Kotare - Moutuhora Details

PropertyValue
Rupture Count84
Ruptures Above Sect Min Mag81
Ruptures w/ Nonzero Rates22
Magnitude Range[6.95, 7.73]
Length Range[22, 117] km
Total Rate2.6506535E-4 /yr
Multi-Fault Rate1.9302085E-4 /yr (72.82%)
Directly-Connected Faults7
All Co-Rupturing Faults18

Table Of Contents

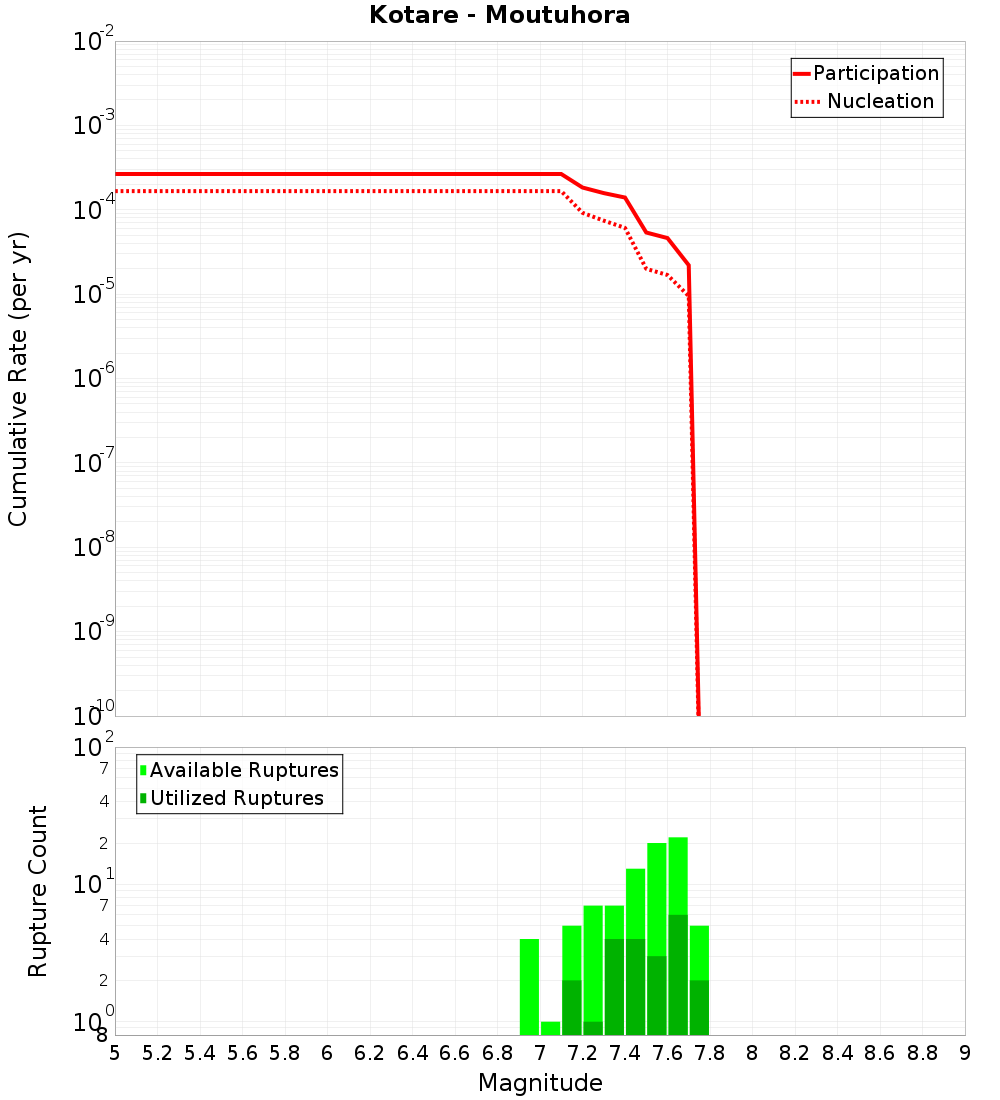

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

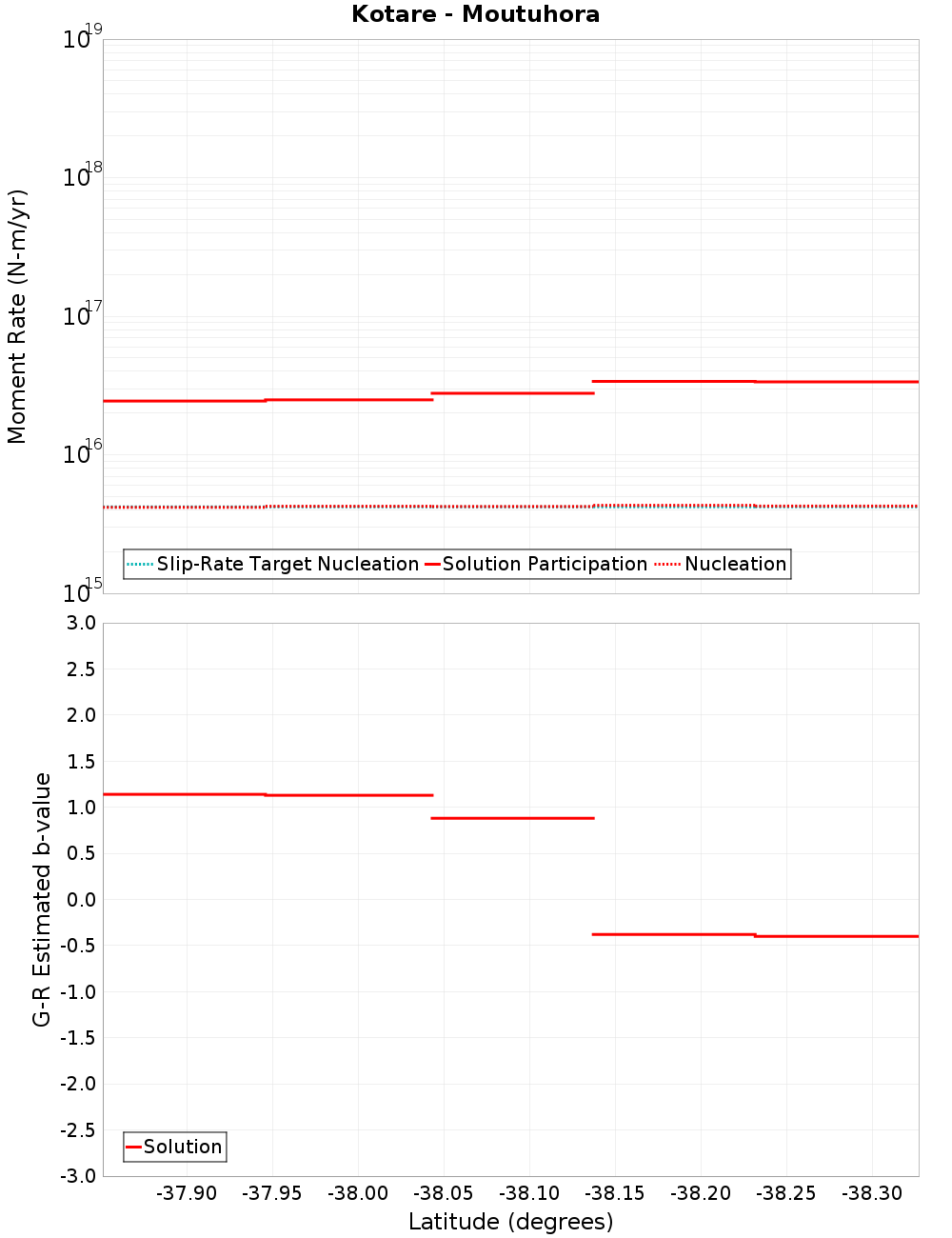

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Ohae 2, 0.13 km awayMotu, 13.58 km away
Opotiki 2, 0.14 km awayWaimanawa - Waikaremoana, 14.48 km away
Ohae 1, 0.17 km awayRaukumara 17, 15.37 km away
Tirohanga, 0.29 km awayRaukumara 18, 16.03 km away
Opape 1, 2.38 km awayWaiotahi: North, 16.72 km away
Opotiki 3, 6.08 km awayWaimana: North, 16.9 km away
Raukumara 9, 7.8 km awayRaukumara 20, 17.95 km away
Raukumara 16, 8.71 km awayWhite Island 2, 19.23 km away
Wairata, 9.2 km awayMotu River, 19.32 km away
Ohae 3, 10.99 km away

Ohae 2, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate5.6856607E-7

Opotiki 2, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?true
Directly Connected?true
Co-rupture Count23
Co-rupture Rate7.2353374E-5

Ohae 1, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate6.395266E-6

Tirohanga, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?true
Directly Connected?true
Co-rupture Count2
Co-rupture Rate2.874298E-6

Opape 1, 2.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?true
Directly Connected?true
Co-rupture Count35
Co-rupture Rate4.9473805E-5

Opotiki 3, 6.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate0.0

Raukumara 9, 7.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?true
Directly Connected?true
Co-rupture Count13
Co-rupture Rate2.149803E-5

Raukumara 16, 8.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairata, 9.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 3, 10.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Motu, 13.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?true
Directly Connected?true
Co-rupture Count28
Co-rupture Rate8.358396E-5

Waimanawa - Waikaremoana, 14.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raukumara 17, 15.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate1.85643E-5

Raukumara 18, 16.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate8.1337384E-5

Waiotahi: North, 16.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Waimana: North, 16.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raukumara 20, 17.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate4.290503E-6

White Island 2, 19.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Motu River, 19.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate4.261717E-6
