Waewaepa Details

Property	Value
Rupture Count	404
Ruptures Above Sect Min Mag	404
Ruptures w/ Nonzero Rates	3
Magnitude Range	[6.69, 8.56]
Length Range	[16, 1,042] km
Total Rate	0.001095041 /yr
Multi-Fault Rate	6.7669223E-4 /yr (61.80%)
Directly-Connected Faults	1
All Co-Rupturing Faults	47

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

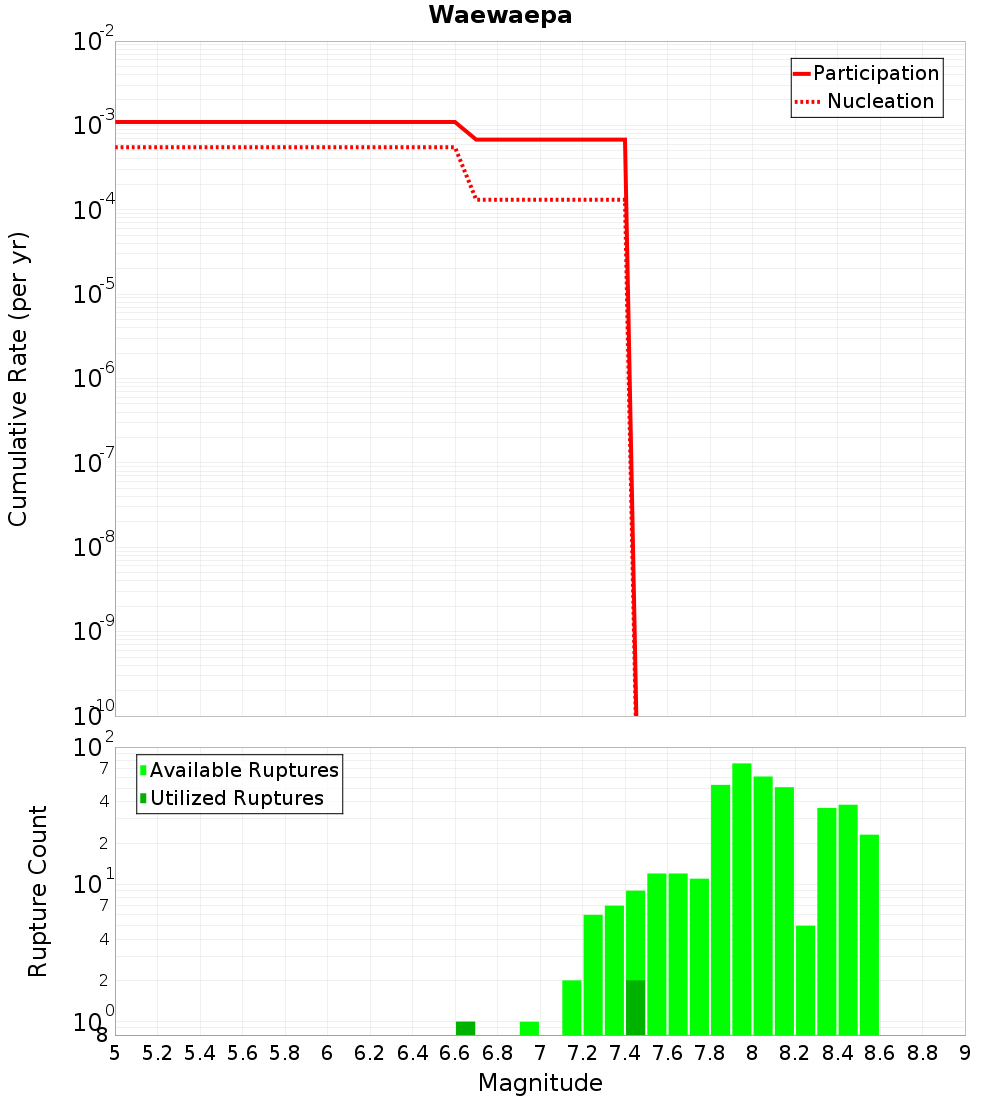

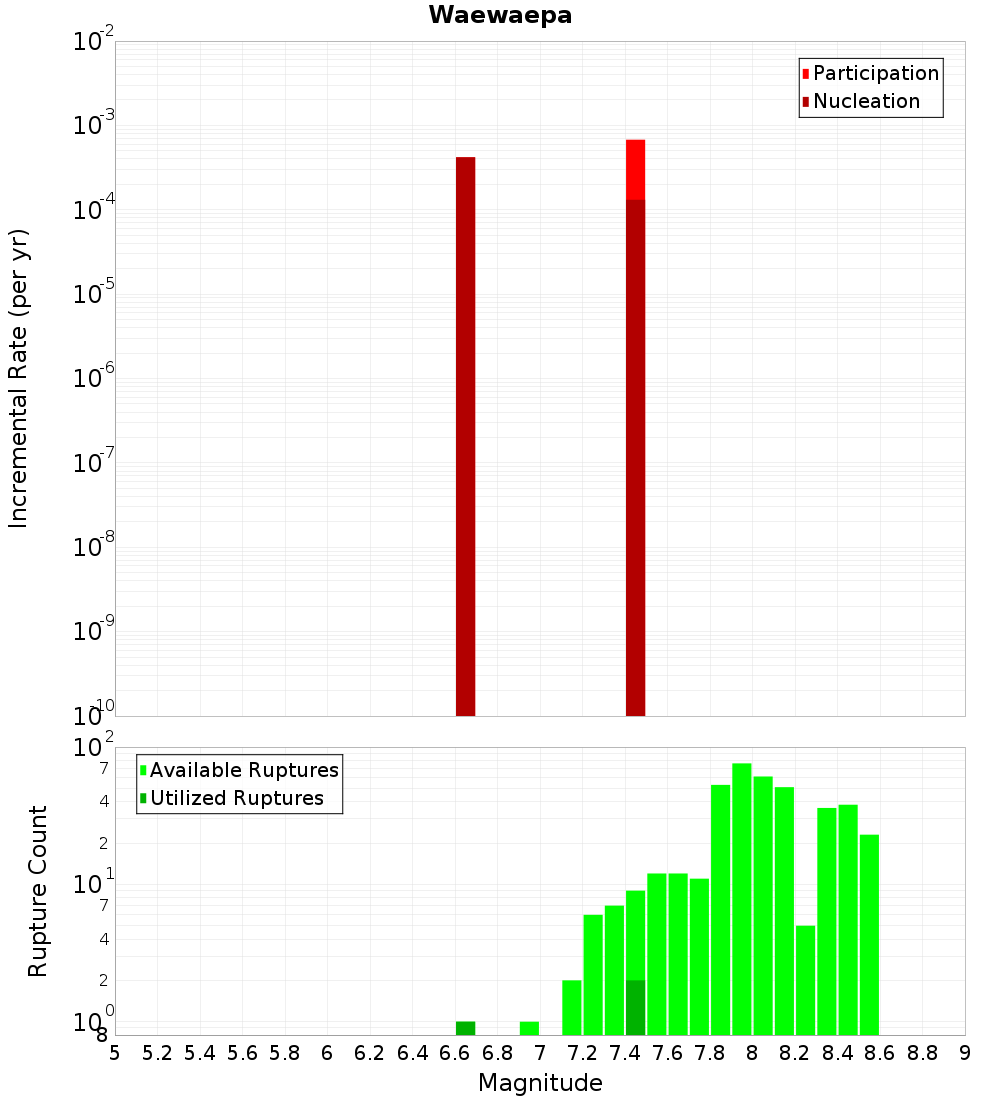

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

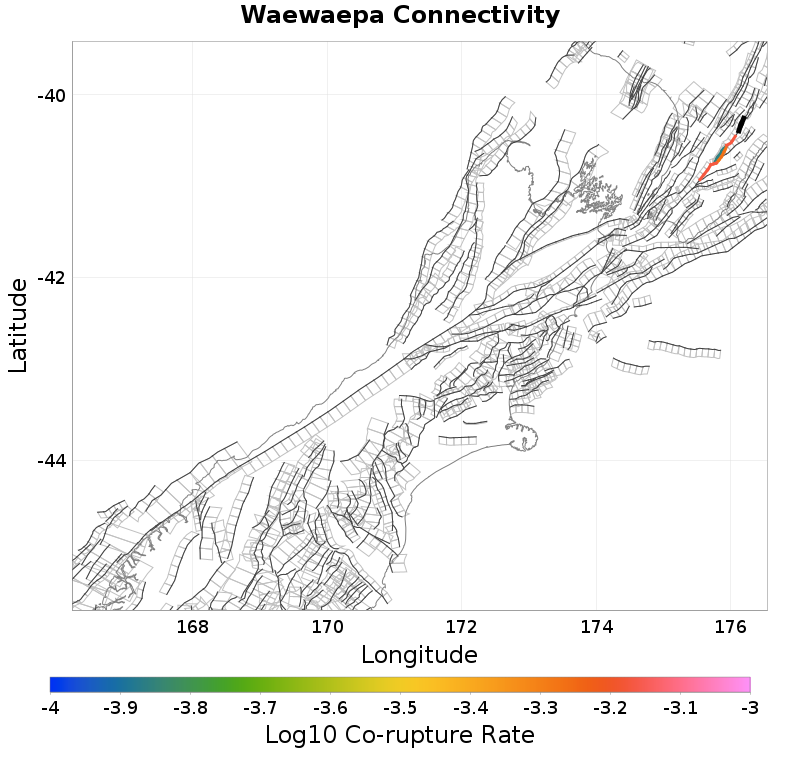

Connectivity

Nearby Sections

Fault Section
Makuri - Waewaepa, 0 km away
Clear Hills - Waikopiro, 1.98 km away
Oruawharo - Mangatoro, 3.74 km away
Maunga, 6.08 km away
Waipukaka, 10.91 km away
Pahiatua, 11.55 km away
Saunders Road, 12.73 km away
Woodville, 13.08 km away
Pongaroa - Weber, 13.65 km away
Ruataniwha, 13.99 km away
Rangefront, 16.75 km away
Mohaka: South, 17.23 km away

Makuri - Waewaepa, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?	true
Directly Connected?	true
Co-rupture Count	403
Co-rupture Rate	6.7669223E-4

Clear Hills - Waikopiro, 1.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Oruawharo - Mangatoro, 3.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Maunga, 6.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waipukaka, 10.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pahiatua, 11.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Saunders Road, 12.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Woodville, 13.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pongaroa - Weber, 13.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ruataniwha, 13.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rangefront, 16.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mohaka: South, 17.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDQzYmJS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
