Pylap Details

PropertyValue
Rupture Count180
Ruptures Above Sect Min Mag180
Ruptures w/ Nonzero Rates2
Magnitude Range[7.00, 8.01]
Length Range[24, 215] km
Total Rate1.1677265E-5 /yr
Multi-Fault Rate1.1677265E-5 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults25

Table Of Contents

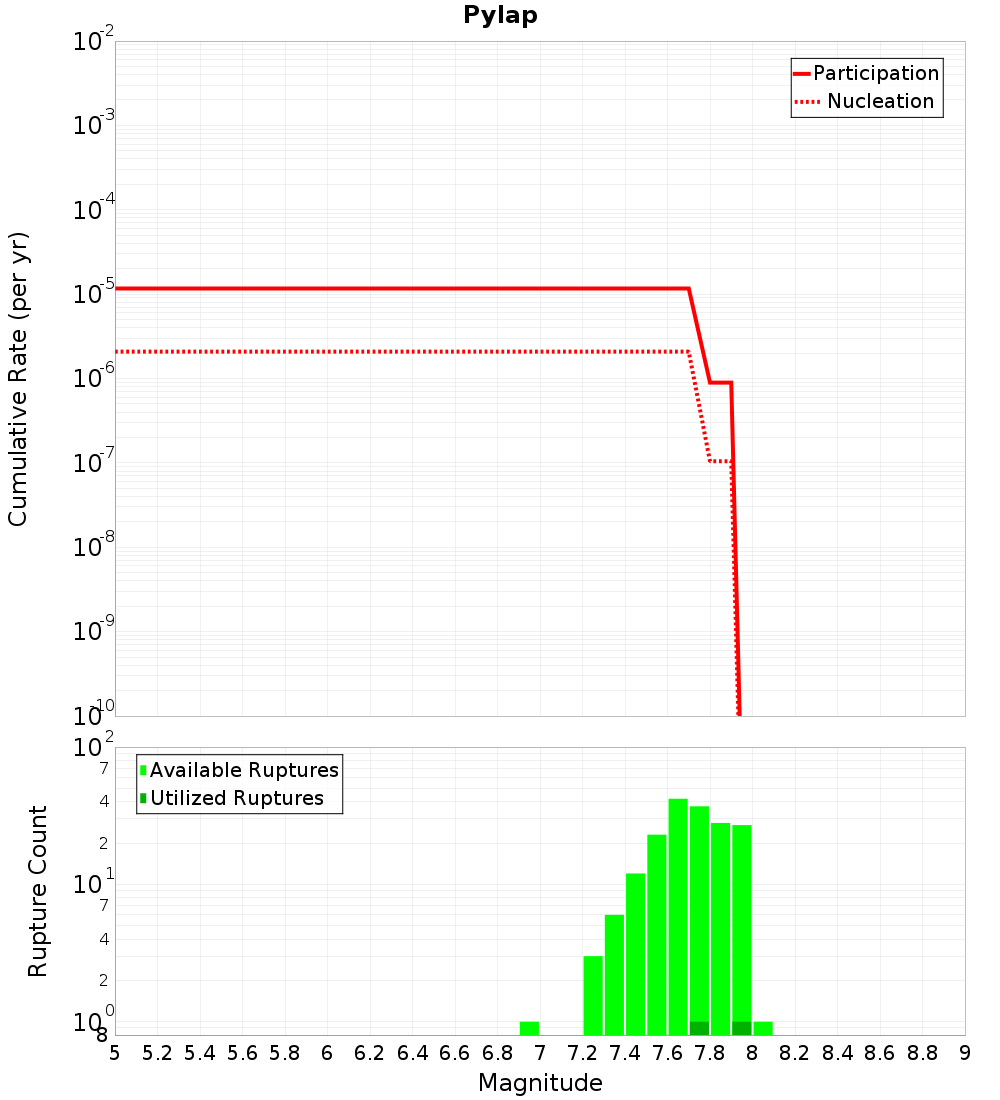

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

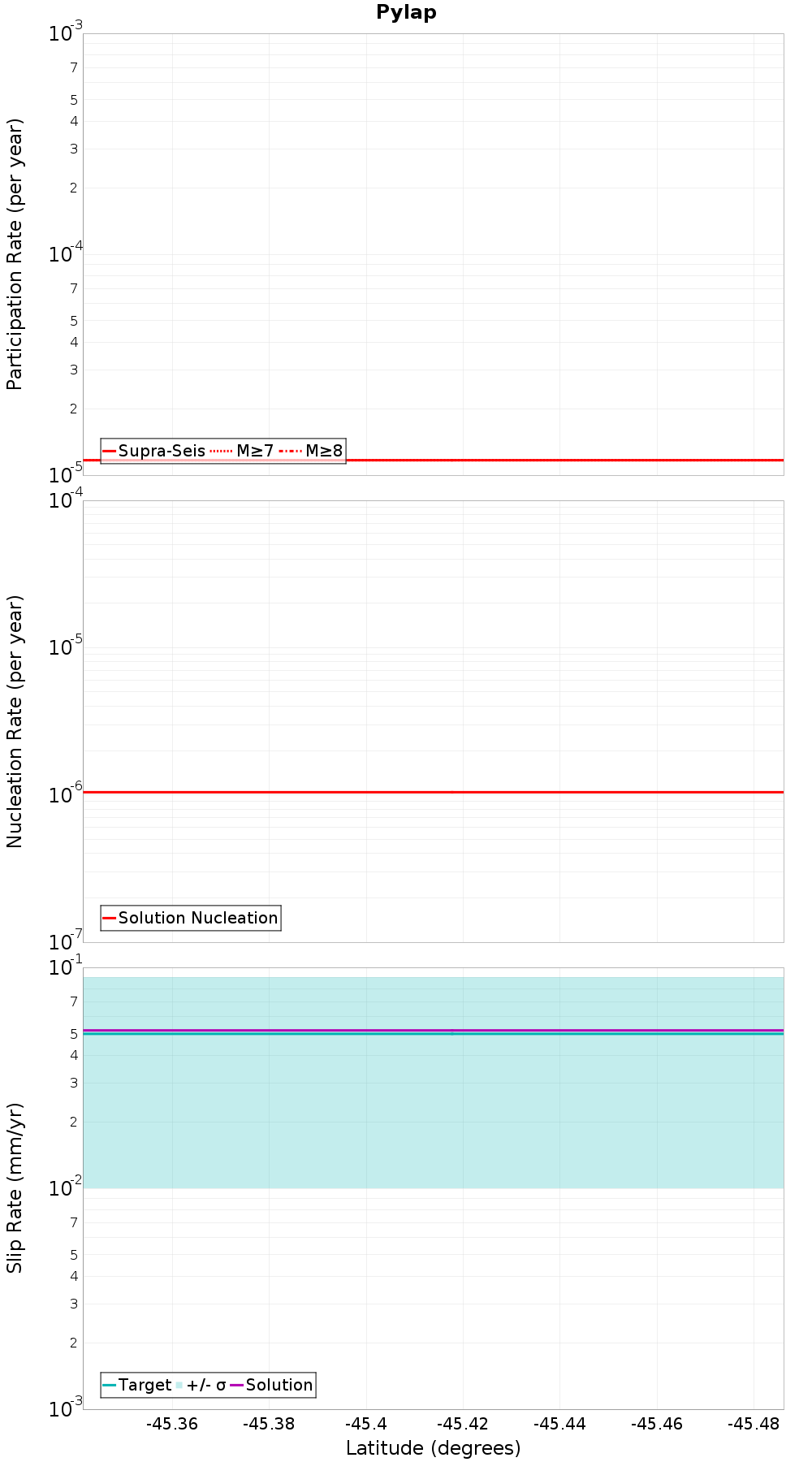

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Hyde North, 0.03 km awayNichols Rock, 6.94 km away
Beaumont River, 0.16 km awayLake Onslow, 7.26 km away
Horse Flat, 0.45 km awayDunback Hill, 9.81 km away
Gimmerburn, 2.27 km awayLittle Valley, 11.66 km away
Billys Ridge, 2.61 km awayFlat Stream - Glenpark, 12.38 km away
Waipiata, 3.22 km awayRanfurly, 13.83 km away
Logan Burn, 4.69 km awayMaungatua - North Taieri, 14.96 km away
Hyde South - The Twins, 4.96 km awayBackbone, 15.99 km away
Murphys Creek, 6.31 km awayGaribaldi, 18.09 km away
Long Valley, 6.52 km away

Hyde North, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDRHNFdq
Connected?true
Directly Connected?true
Co-rupture Count14
Co-rupture Rate1.1677265E-5

Beaumont River, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDRHNFdq
Connected?true
Directly Connected?true
Co-rupture Count95
Co-rupture Rate0.0

Horse Flat, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDRHNFdq
Connected?true
Directly Connected?true
Co-rupture Count24
Co-rupture Rate8.949753E-7

Gimmerburn, 2.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDRHNFdq
Connected?true
Directly Connected?true
Co-rupture Count119
Co-rupture Rate1.078229E-5

Billys Ridge, 2.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDRHNFdq
Connected?true
Directly Connected?true
Co-rupture Count34
Co-rupture Rate0.0

Waipiata, 3.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDRHNFdq
Connected?true
Directly Connected?true
Co-rupture Count20
Co-rupture Rate0.0

Logan Burn, 4.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDRHNFdq
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Hyde South - The Twins, 4.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDRHNFdq
Connected?true
Directly Connected?true
Co-rupture Count43
Co-rupture Rate8.949753E-7

Murphys Creek, 6.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDRHNFdq
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Long Valley, 6.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDRHNFdq
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Nichols Rock, 6.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDRHNFdq
Connected?true
Directly Connected?false
Co-rupture Count14
Co-rupture Rate0.0

Lake Onslow, 7.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDRHNFdq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dunback Hill, 9.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDRHNFdq
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Little Valley, 11.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDRHNFdq
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate0.0

Flat Stream - Glenpark, 12.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDRHNFdq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ranfurly, 13.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDRHNFdq
Connected?true
Directly Connected?false
Co-rupture Count34
Co-rupture Rate0.0

Maungatua - North Taieri, 14.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDRHNFdq
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Backbone, 15.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDRHNFdq
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate0.0

Garibaldi, 18.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NDAuMDRHNFdq
Connected?true
Directly Connected?false
Co-rupture Count56
Co-rupture Rate0.0
