Ruahine: North Details

PropertyValue
Rupture Count29,514
Ruptures Above Sect Min Mag29,511
Ruptures w/ Nonzero Rates83
Magnitude Range[6.97, 8.60]
Length Range[24, 1,113] km
Total Rate0.0012154646 /yr
Multi-Fault Rate4.3254116E-4 /yr (35.59%)
Directly-Connected Faults8
All Co-Rupturing Faults128

Table Of Contents

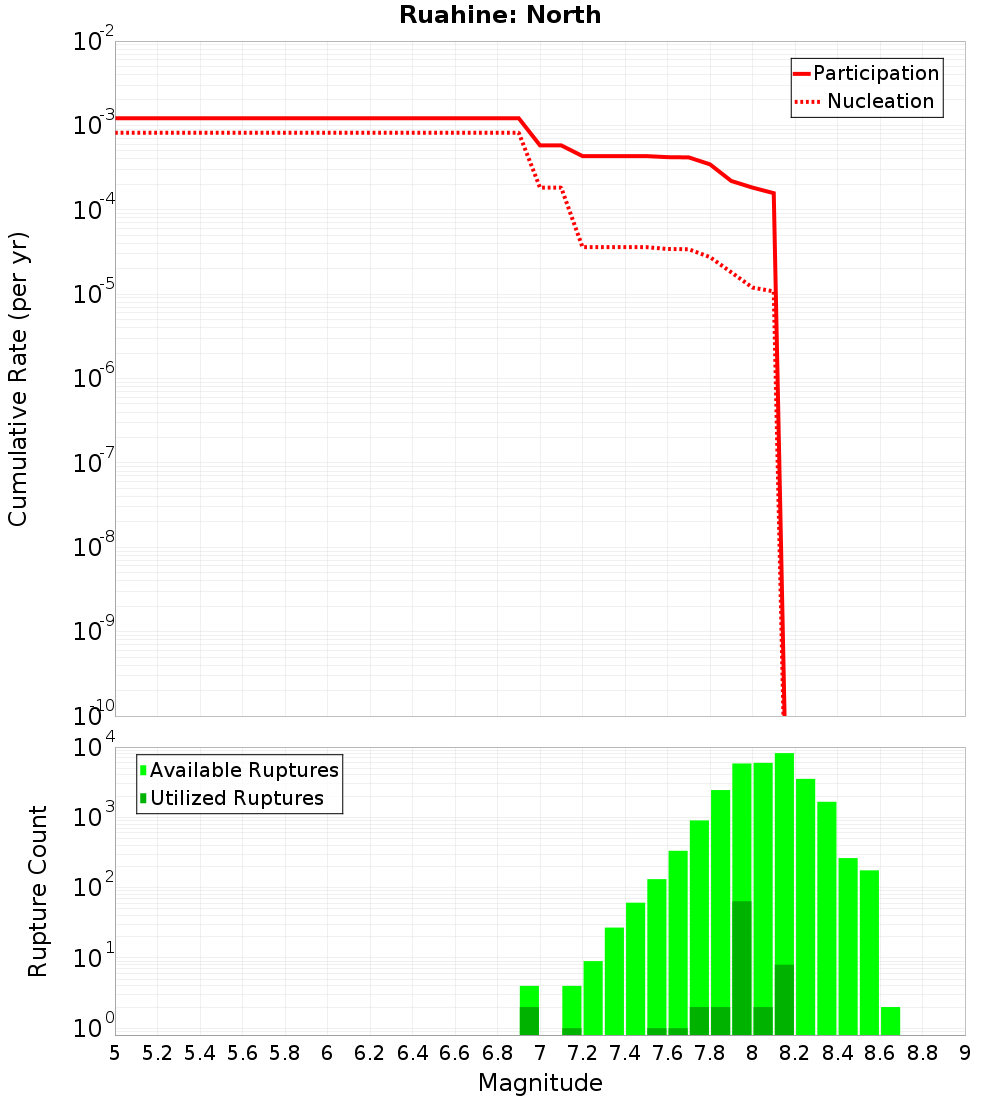

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waiohau: South, 0 km away
Ruahine: Central, 0 km away
Kaweka, 1.83 km away
Wheao: South, 2.68 km away
Wakarara, 4 km away
Mohaka: South, 4.35 km away
Mohaka: North, 5.2 km away
Patoka - Rangiora, 6.53 km away
Te Whaiti South, 9.06 km away
Whakatane: South, 11.52 km away
Waimana: South, 11.54 km away
Awanui, 17.89 km away
Te Heka, 19.72 km away

Waiohau: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NTQuMGp3ZTQ3
Connected?true
Directly Connected?true
Co-rupture Count10,454
Co-rupture Rate1.6200406E-4

Ruahine: Central, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NTQuMGp3ZTQ3
Connected?true
Directly Connected?true
Co-rupture Count19,042
Co-rupture Rate1.843889E-4

Kaweka, 1.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NTQuMGp3ZTQ3
Connected?true
Directly Connected?true
Co-rupture Count339
Co-rupture Rate2.1798002E-4

Wheao: South, 2.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NTQuMGp3ZTQ3
Connected?true
Directly Connected?true
Co-rupture Count2,916
Co-rupture Rate3.985136E-5

Wakarara, 4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NTQuMGp3ZTQ3
Connected?true
Directly Connected?true
Co-rupture Count2,372
Co-rupture Rate2.7816352E-10

Mohaka: South, 4.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NTQuMGp3ZTQ3
Connected?true
Directly Connected?true
Co-rupture Count10,423
Co-rupture Rate6.1201215E-5

Mohaka: North, 5.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NTQuMGp3ZTQ3
Connected?true
Directly Connected?true
Co-rupture Count5,135
Co-rupture Rate1.4949529E-4

Patoka - Rangiora, 6.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NTQuMGp3ZTQ3
Connected?true
Directly Connected?false
Co-rupture Count49
Co-rupture Rate0.0

Te Whaiti South, 9.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NTQuMGp3ZTQ3
Connected?true
Directly Connected?true
Co-rupture Count5,231
Co-rupture Rate7.6371805E-5

Whakatane: South, 11.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NTQuMGp3ZTQ3
Connected?true
Directly Connected?false
Co-rupture Count2,006
Co-rupture Rate2.4939966E-4

Waimana: South, 11.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NTQuMGp3ZTQ3
Connected?true
Directly Connected?false
Co-rupture Count3,143
Co-rupture Rate0.0

Awanui, 17.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NTQuMGp3ZTQ3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Heka, 19.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NTQuMGp3ZTQ3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
