Dunstan Details

PropertyValue
Rupture Count275
Ruptures Above Sect Min Mag273
Ruptures w/ Nonzero Rates34
Magnitude Range[7.06, 8.20]
Length Range[24, 310] km
Total Rate2.6188212E-4 /yr
Multi-Fault Rate8.606316E-5 /yr (32.86%)
Directly-Connected Faults8
All Co-Rupturing Faults30

Table Of Contents

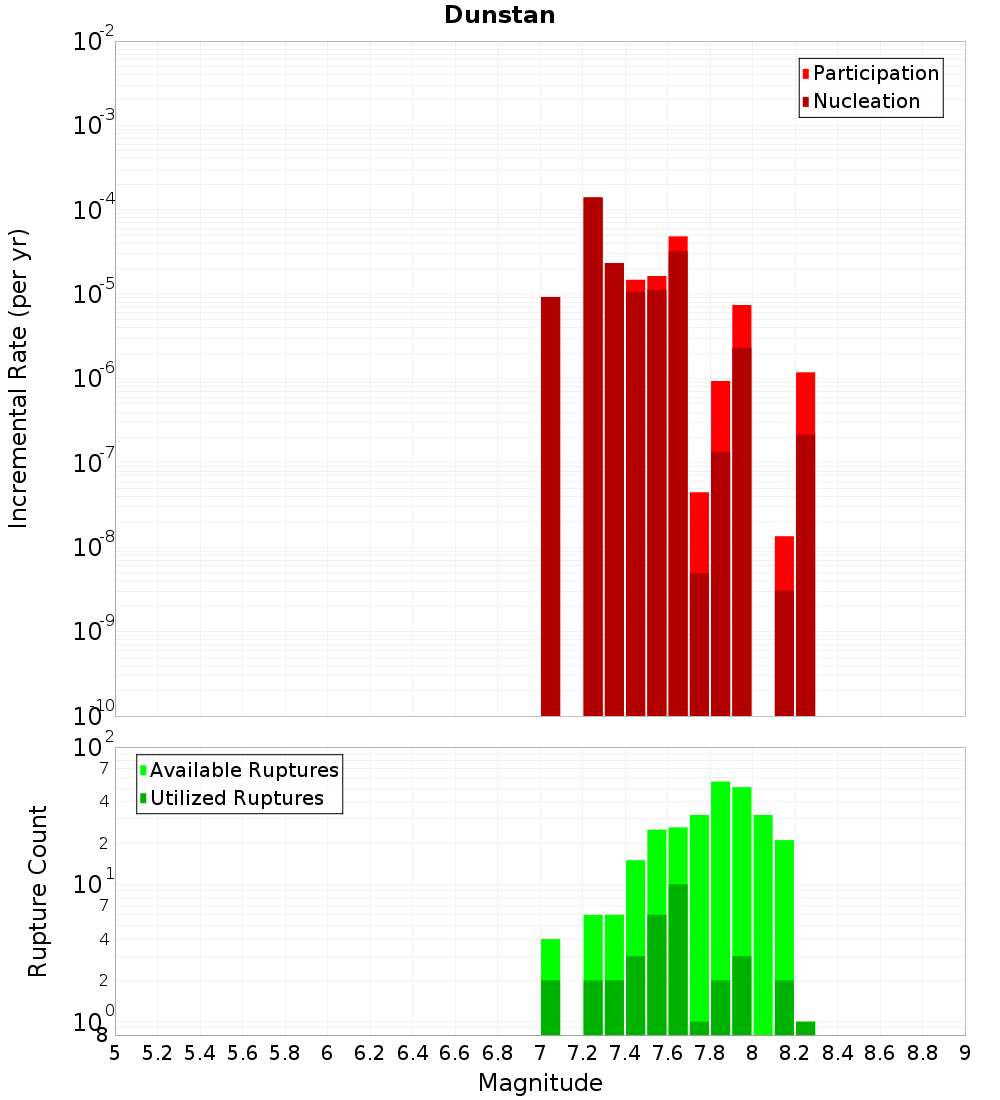

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Lindis River, 0.19 km awayRoaring Lion, 6.22 km away
Goodger, 0.2 km awayDromedary, 6.46 km away
Grandview, 0.21 km awayRaggedy - Blackstone, 9.93 km away
Blue Lake, 1.26 km awayRoaring Meg, 10.34 km away
Old Man, 1.92 km awayGarvie, 12.95 km away
Cluden, 3.6 km awayHawkdun, 15.22 km away
Galloway, 3.61 km awayGaribaldi, 16.05 km away
Pisa, 4.43 km awayLittle Valley, 16.37 km away
Omarama Saddle, 5.06 km awayNW Cardrona South, 16.68 km away
Paddys Ridge, 5.61 km awayNevis, 18.02 km away

Lindis River, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NjAuMDZhU25y
Connected?true
Directly Connected?true
Co-rupture Count71
Co-rupture Rate1.0568916E-5

Goodger, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NjAuMDZhU25y
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate9.8295495E-6

Grandview, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NjAuMDZhU25y
Connected?true
Directly Connected?true
Co-rupture Count163
Co-rupture Rate5.641458E-6

Blue Lake, 1.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NjAuMDZhU25y
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Old Man, 1.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NjAuMDZhU25y
Connected?true
Directly Connected?true
Co-rupture Count86
Co-rupture Rate1.1982821E-6

Cluden, 3.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NjAuMDZhU25y
Connected?true
Directly Connected?true
Co-rupture Count23
Co-rupture Rate2.1155969E-5

Galloway, 3.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NjAuMDZhU25y
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate9.696102E-6

Pisa, 4.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NjAuMDZhU25y
Connected?true
Directly Connected?false
Co-rupture Count43
Co-rupture Rate1.1922024E-6

Omarama Saddle, 5.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NjAuMDZhU25y
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate2.0682726E-5

Paddys Ridge, 5.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NjAuMDZhU25y
Connected?true
Directly Connected?true
Co-rupture Count27
Co-rupture Rate1.0764105E-5

Roaring Lion, 6.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NjAuMDZhU25y
Connected?true
Directly Connected?false
Co-rupture Count24
Co-rupture Rate0.0

Dromedary, 6.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NjAuMDZhU25y
Connected?true
Directly Connected?false
Co-rupture Count47
Co-rupture Rate1.1982821E-6

Raggedy - Blackstone, 9.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NjAuMDZhU25y
Connected?true
Directly Connected?true
Co-rupture Count20
Co-rupture Rate3.078709E-5

Roaring Meg, 10.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NjAuMDZhU25y
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Garvie, 12.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NjAuMDZhU25y
Connected?true
Directly Connected?false
Co-rupture Count24
Co-rupture Rate1.1847656E-6

Hawkdun, 15.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NjAuMDZhU25y
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Garibaldi, 16.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NjAuMDZhU25y
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Little Valley, 16.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NjAuMDZhU25y
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

NW Cardrona South, 16.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NjAuMDZhU25y
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate1.1894007E-6

Nevis, 18.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NjAuMDZhU25y
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate1.1894007E-6
