Edgecumbe 1987 Details

PropertyValue
Rupture Count1,128
Ruptures Above Sect Min Mag1,128
Ruptures w/ Nonzero Rates31
Magnitude Range[6.79, 7.50]
Length Range[20, 136] km
Total Rate7.636041E-5 /yr
Multi-Fault Rate6.816058E-5 /yr (89.26%)
Directly-Connected Faults4
All Co-Rupturing Faults31

Table Of Contents

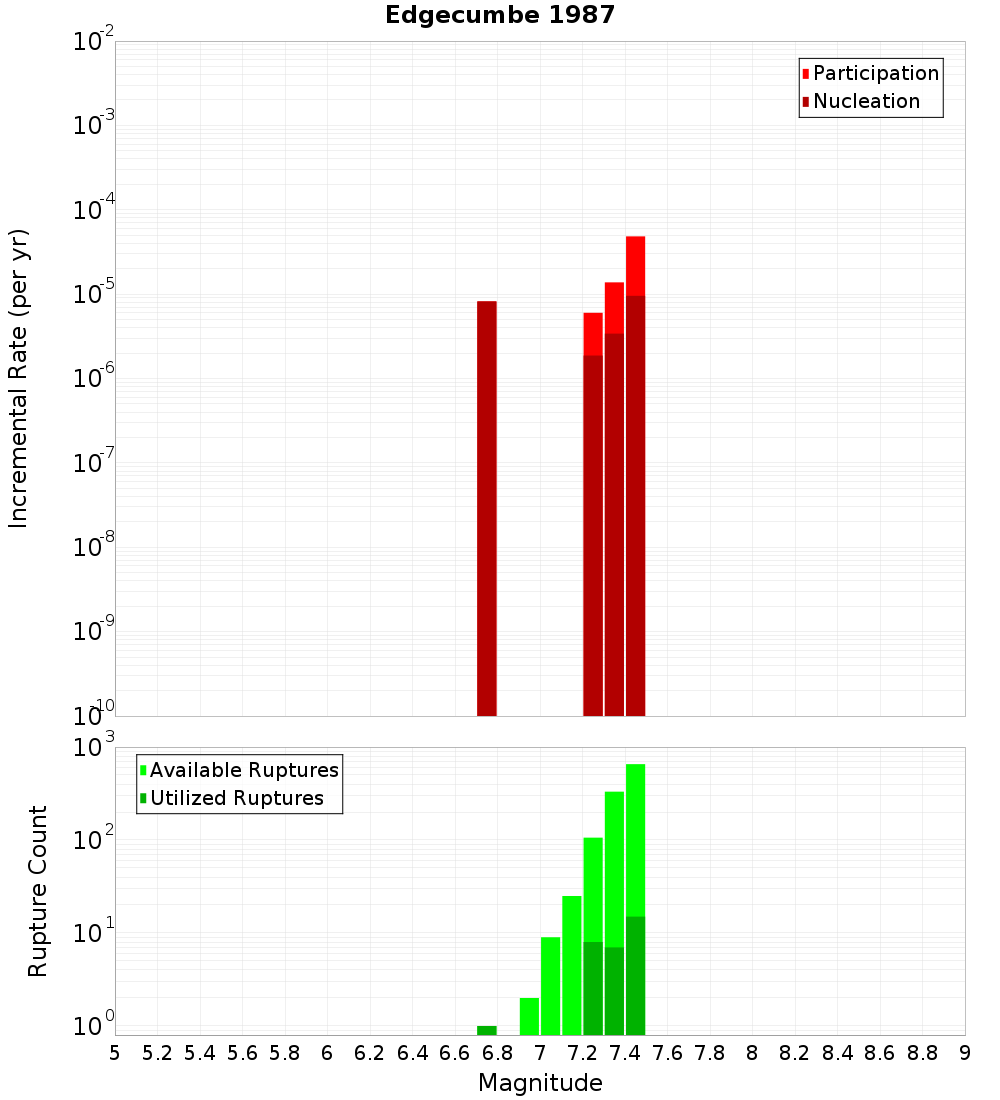

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Awakeri, 0 km away
Edgecumbe Coastal, 0 km away
Otakiri, 0.19 km away
Matata, 0.29 km away
Braemar, 0.32 km away
Waiohau: North, 2.18 km away
White Island 1, 4.49 km away
Whakatane: North, 7.15 km away
Rangitaiki 1, 15.01 km away

Awakeri, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NjkuMEdrZzRu
Connected?true
Directly Connected?false
Co-rupture Count143
Co-rupture Rate4.3966006E-6

Edgecumbe Coastal, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NjkuMEdrZzRu
Connected?true
Directly Connected?true
Co-rupture Count762
Co-rupture Rate6.5265776E-5

Otakiri, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NjkuMEdrZzRu
Connected?true
Directly Connected?false
Co-rupture Count82
Co-rupture Rate7.408969E-6

Matata, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NjkuMEdrZzRu
Connected?true
Directly Connected?false
Co-rupture Count158
Co-rupture Rate1.1337683E-5

Braemar, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NjkuMEdrZzRu
Connected?true
Directly Connected?true
Co-rupture Count819
Co-rupture Rate4.368145E-5

Waiohau: North, 2.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NjkuMEdrZzRu
Connected?true
Directly Connected?true
Co-rupture Count420
Co-rupture Rate3.45132E-5

White Island 1, 4.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NjkuMEdrZzRu
Connected?true
Directly Connected?true
Co-rupture Count438
Co-rupture Rate7.791273E-7

Whakatane: North, 7.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NjkuMEdrZzRu
Connected?true
Directly Connected?false
Co-rupture Count35
Co-rupture Rate1.690071E-5

Rangitaiki 1, 15.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NjkuMEdrZzRu
Connected?true
Directly Connected?false
Co-rupture Count72
Co-rupture Rate2.2792481E-5
