Honeycomb Details

PropertyValue
Rupture Count2,117
Ruptures Above Sect Min Mag2,114
Ruptures w/ Nonzero Rates9
Magnitude Range[6.75, 8.43]
Length Range[19, 808] km
Total Rate1.999462E-4 /yr
Multi-Fault Rate1.999462E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults48

Table Of Contents

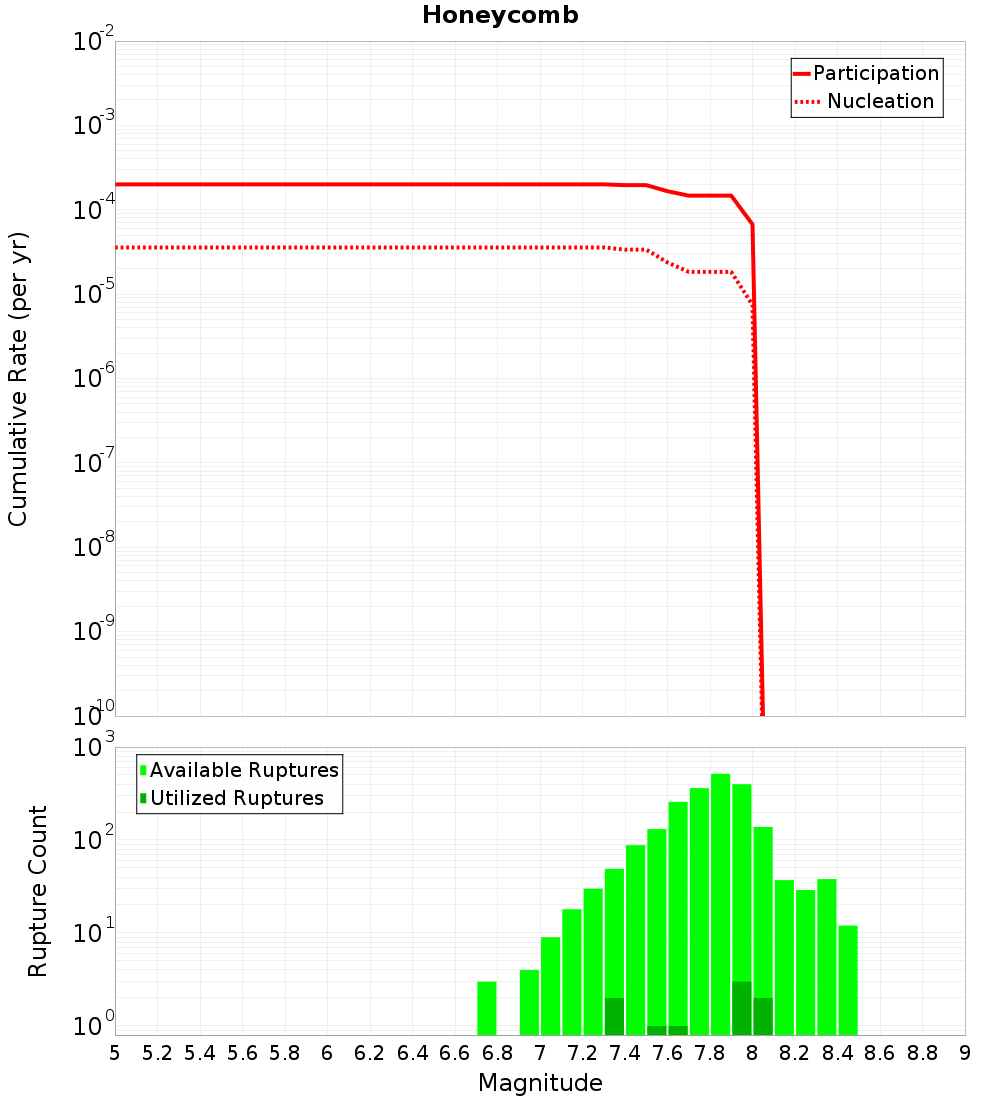

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

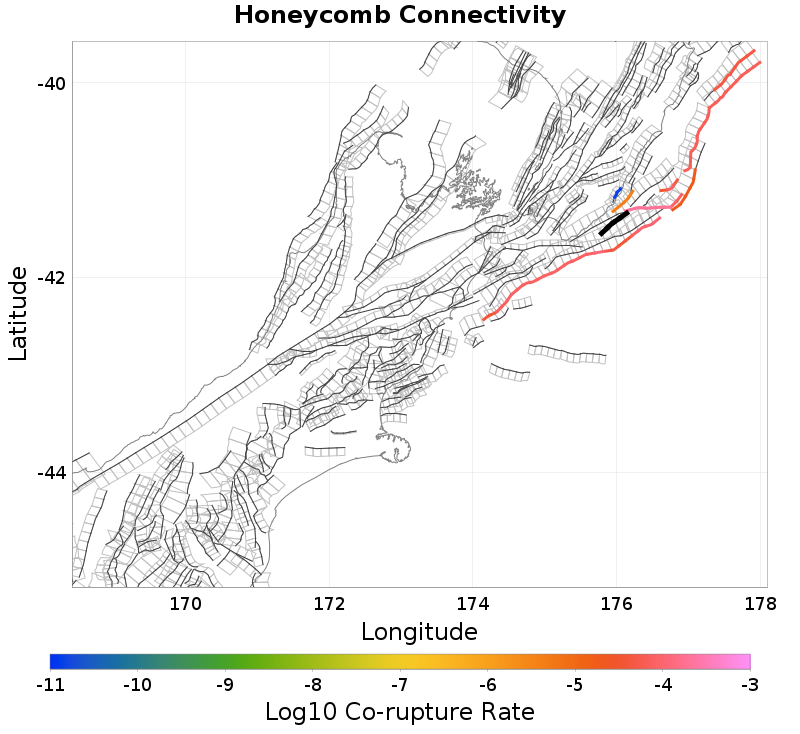

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Uruti Basin, 0.57 km away
Palliser - Kaiwhata, 1.22 km away
Opouawe - Uruti, 5.87 km away
Riversdale, 6.88 km away
Whareama Bank, 8.19 km away
Uruti Point, 9.04 km away
Pahaua, 13.47 km away
Riversdale North, 17.37 km away

Uruti Basin, 0.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?true
Directly Connected?true
Co-rupture Count1,746
Co-rupture Rate1.9994618E-4

Palliser - Kaiwhata, 1.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?true
Directly Connected?true
Co-rupture Count73
Co-rupture Rate0.0

Opouawe - Uruti, 5.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?true
Directly Connected?true
Co-rupture Count513
Co-rupture Rate0.0

Riversdale, 6.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?true
Directly Connected?false
Co-rupture Count60
Co-rupture Rate4.298803E-6

Whareama Bank, 8.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Uruti Point, 9.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?true
Directly Connected?true
Co-rupture Count181
Co-rupture Rate1.416386E-11

Pahaua, 13.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?true
Directly Connected?true
Co-rupture Count1,182
Co-rupture Rate2.0860133E-4

Riversdale North, 17.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
