Hororata Details

PropertyValue
Rupture Count140
Ruptures Above Sect Min Mag136
Ruptures w/ Nonzero Rates9
Magnitude Range[6.70, 7.88]
Length Range[17, 214] km
Total Rate2.2407084E-4 /yr
Multi-Fault Rate4.0589668E-5 /yr (18.11%)
Directly-Connected Faults3
All Co-Rupturing Faults14

Table Of Contents

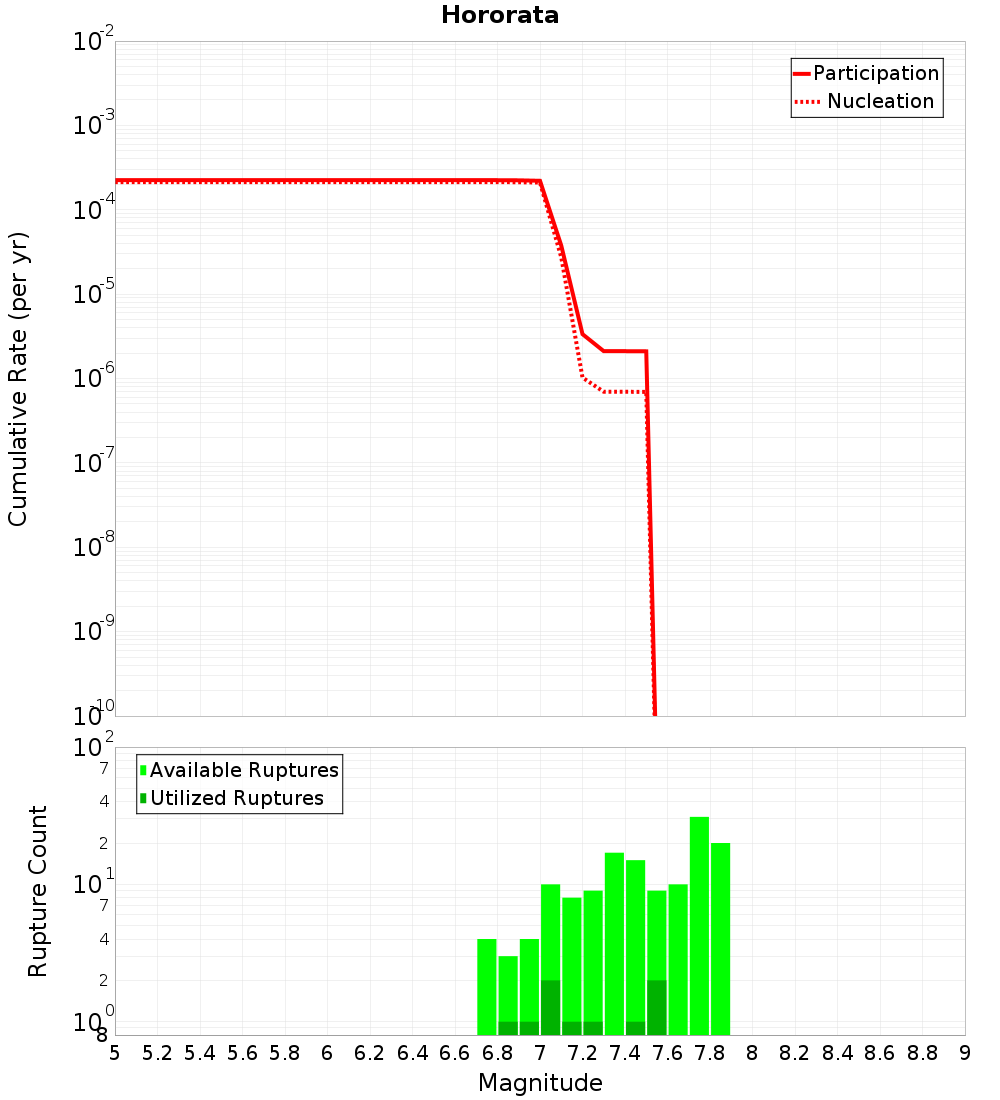

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

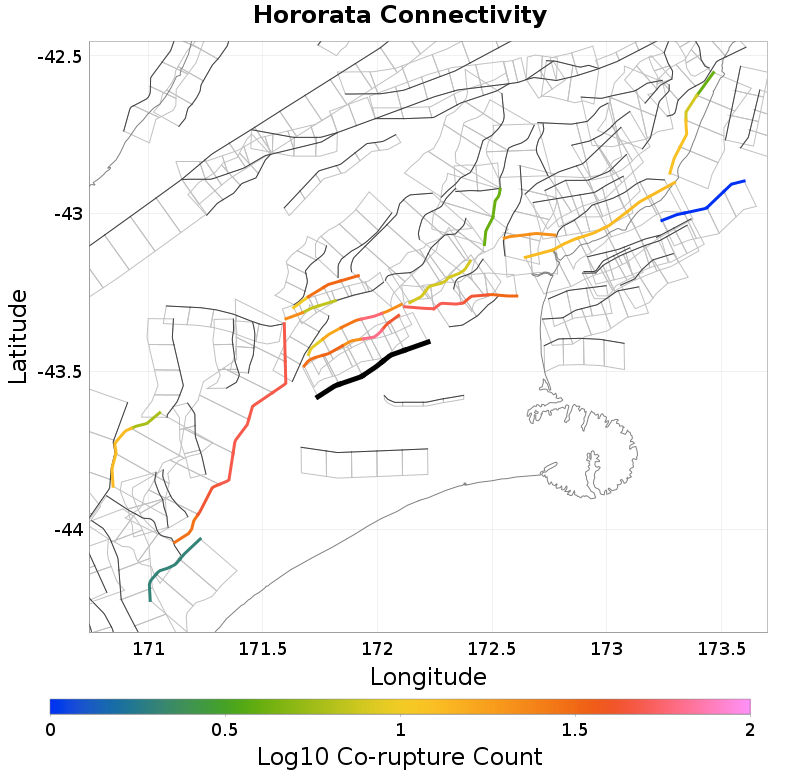

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
High Peak - Sheffield, 0.14 km away
Kowai - View Hill, 0.21 km away
Lees Valley, 5.51 km away
Starvation - Ashley, 6.38 km away
Esk South, 6.48 km away
Springbank, 8.03 km away
Big Ben, 8.05 km away
Knowles Top, 10.03 km away
Greendale, 10.04 km away
Hutt Peel, 10.65 km away
Torlesse, 12.36 km away
Double Hill, 12.7 km away
Porters Pass, 15.19 km away
Mt Lawry, 17.55 km away
Rakaia, 18.46 km away

High Peak - Sheffield, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?true
Directly Connected?true
Co-rupture Count76
Co-rupture Rate7.671336E-9

Kowai - View Hill, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?true
Directly Connected?true
Co-rupture Count58
Co-rupture Rate3.3547153E-6

Lees Valley, 5.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Starvation - Ashley, 6.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?true
Directly Connected?false
Co-rupture Count50
Co-rupture Rate7.671336E-9

Esk South, 6.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Springbank, 8.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Big Ben, 8.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Knowles Top, 10.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate3.347044E-6

Greendale, 10.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hutt Peel, 10.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?true
Directly Connected?false
Co-rupture Count48
Co-rupture Rate0.0

Torlesse, 12.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?true
Directly Connected?true
Co-rupture Count32
Co-rupture Rate3.7234953E-5

Double Hill, 12.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Porters Pass, 15.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?true
Directly Connected?false
Co-rupture Count22
Co-rupture Rate0.0

Mt Lawry, 17.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rakaia, 18.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
