London Hill Details

Property	Value
Rupture Count	2,918
Ruptures Above Sect Min Mag	2,915
Ruptures w/ Nonzero Rates	1
Magnitude Range	[6.74, 8.55]
Length Range	[16, 930] km
Total Rate	9.157855E-5 /yr
Multi-Fault Rate	9.157855E-5 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	82

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

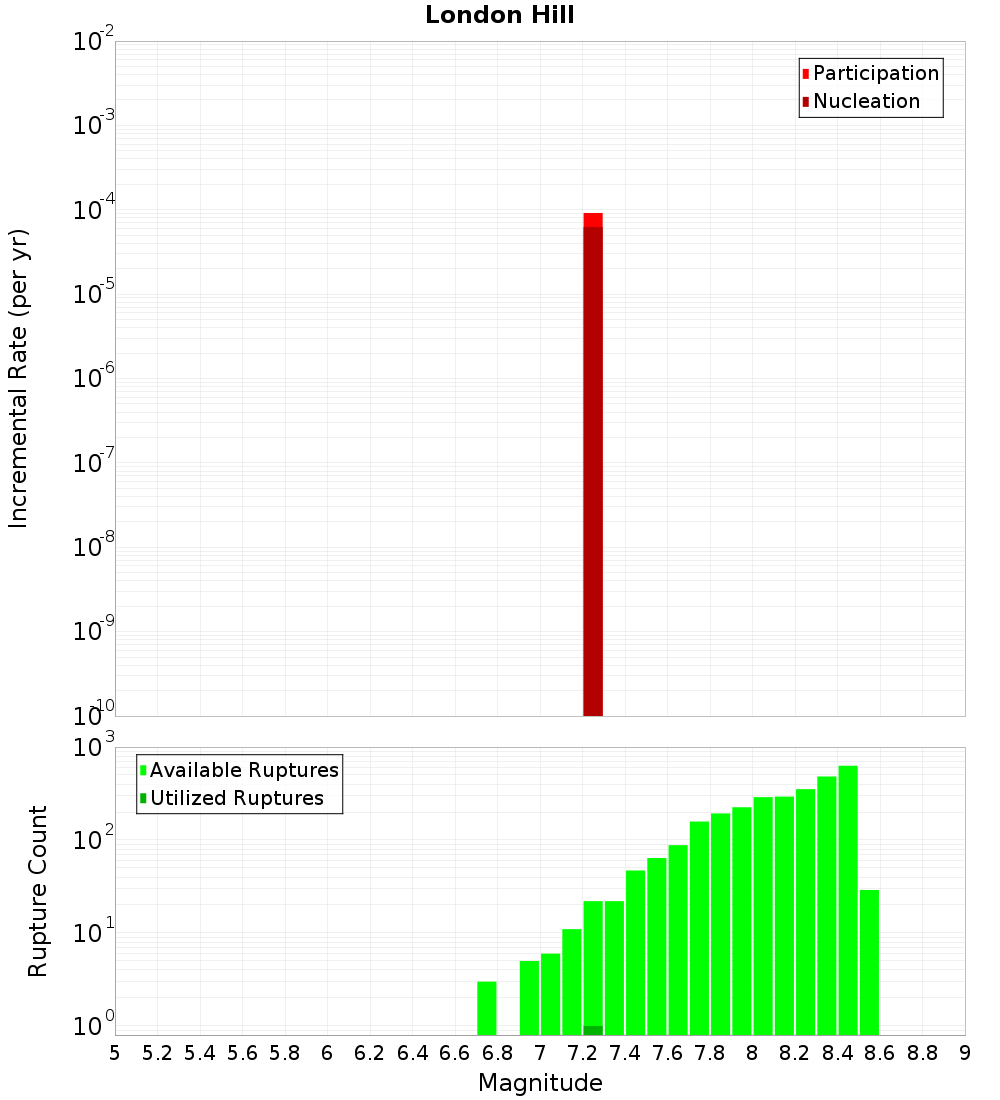

Magnitude-Frequency Distribution

Incremental	Cumulative

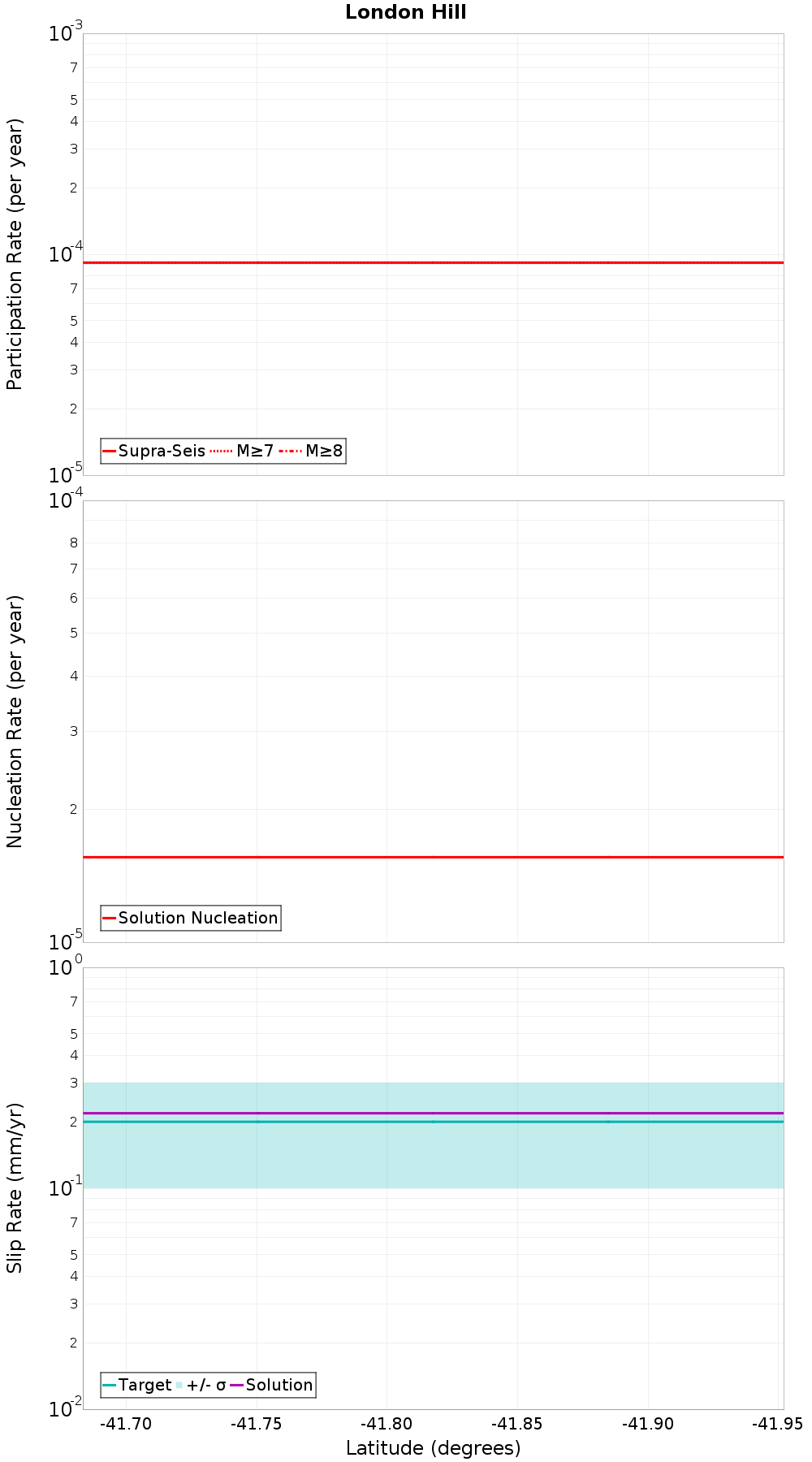

Along-Strike Values

Moment-Rates and b-Values

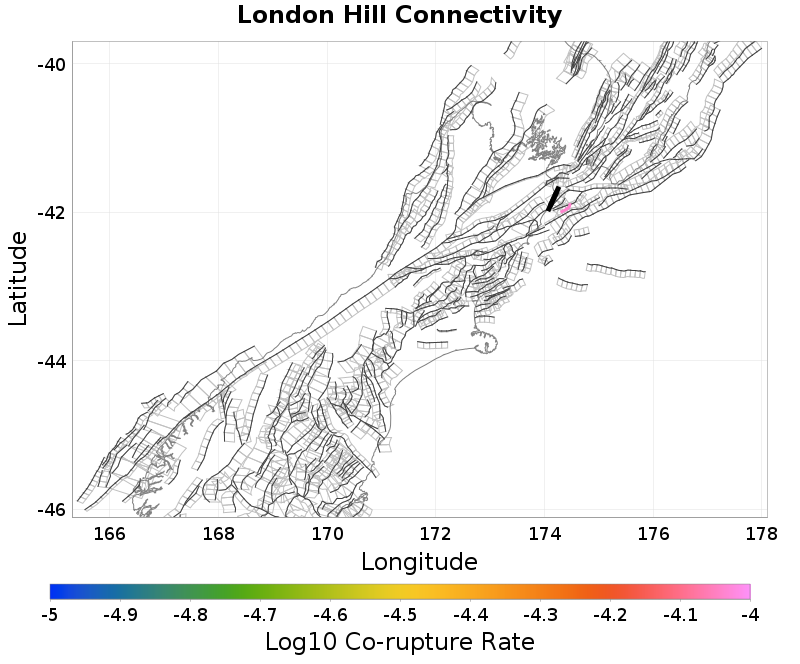

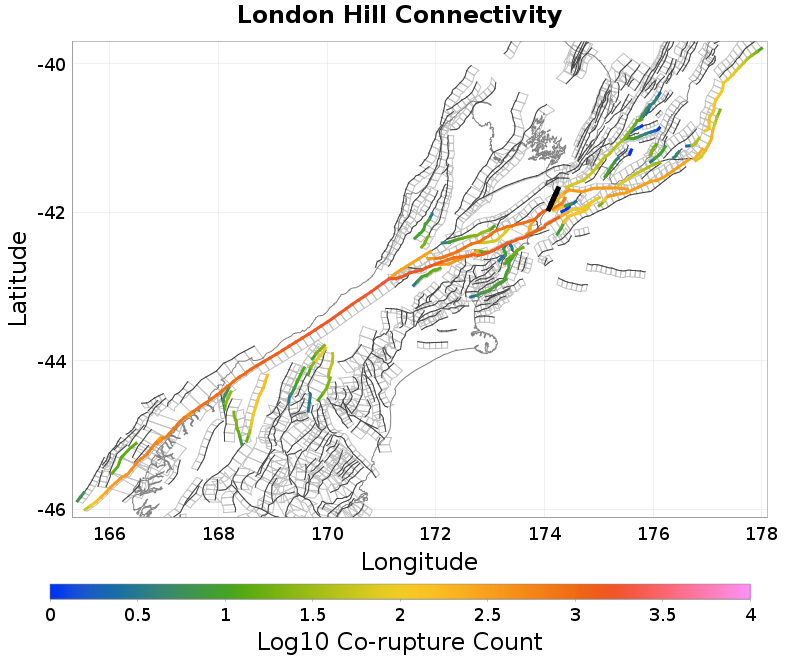

Connectivity

Nearby Sections

Fault Section	Fault Section
Kekerengu 1, 0 km away	Vernon 4, 10.91 km away
Needles, 0 km away	Awatere: Northeast 2, 14.08 km away
Chancet, 0.17 km away	Vernon 3, 15.44 km away
Needles East 2, 0.29 km away	Cloudy 3, 16.3 km away
Wharanui, 0.49 km away	Vernon 2, 16.59 km away
Upper Slope, 0.69 km away	Cloudy 1, 16.68 km away
Hope: Te Rapa, 4.43 km away	Vernon 1, 17.41 km away
BooBoo, 7.46 km away	Te Rapa 1, 17.64 km away
Wairarapa: Needles, 9.47 km away	Awatere: Northeast 1, 19.17 km away
Clarence: Northeast, 10.86 km away	Kekerengu Bank, 19.94 km away

Kekerengu 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?	true
Directly Connected?	true
Co-rupture Count	1,199
Co-rupture Rate	0.0

Needles, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?	true
Directly Connected?	true
Co-rupture Count	316
Co-rupture Rate	0.0

Chancet, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?	true
Directly Connected?	true
Co-rupture Count	150
Co-rupture Rate	0.0

Needles East 2, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?	true
Directly Connected?	true
Co-rupture Count	639
Co-rupture Rate	0.0

Wharanui, 0.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?	true
Directly Connected?	true
Co-rupture Count	1
Co-rupture Rate	9.157855E-5

Upper Slope, 0.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?	true
Directly Connected?	true
Co-rupture Count	148
Co-rupture Rate	0.0

Hope: Te Rapa, 4.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?	true
Directly Connected?	true
Co-rupture Count	1,246
Co-rupture Rate	0.0

BooBoo, 7.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?	true
Directly Connected?	false
Co-rupture Count	378
Co-rupture Rate	0.0

Wairarapa: Needles, 9.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?	true
Directly Connected?	false
Co-rupture Count	62
Co-rupture Rate	0.0

Clarence: Northeast, 10.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Vernon 4, 10.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Awatere: Northeast 2, 14.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Vernon 3, 15.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cloudy 3, 16.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Vernon 2, 16.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cloudy 1, 16.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Vernon 1, 17.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Rapa 1, 17.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?	true
Directly Connected?	false
Co-rupture Count	89
Co-rupture Rate	0.0

Awatere: Northeast 1, 19.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kekerengu Bank, 19.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
