Te Heka Details

PropertyValue
Rupture Count148
Ruptures Above Sect Min Mag147
Ruptures w/ Nonzero Rates6
Magnitude Range[6.91, 8.27]
Length Range[22, 495] km
Total Rate6.87074E-5 /yr
Multi-Fault Rate6.87074E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults28

Table Of Contents

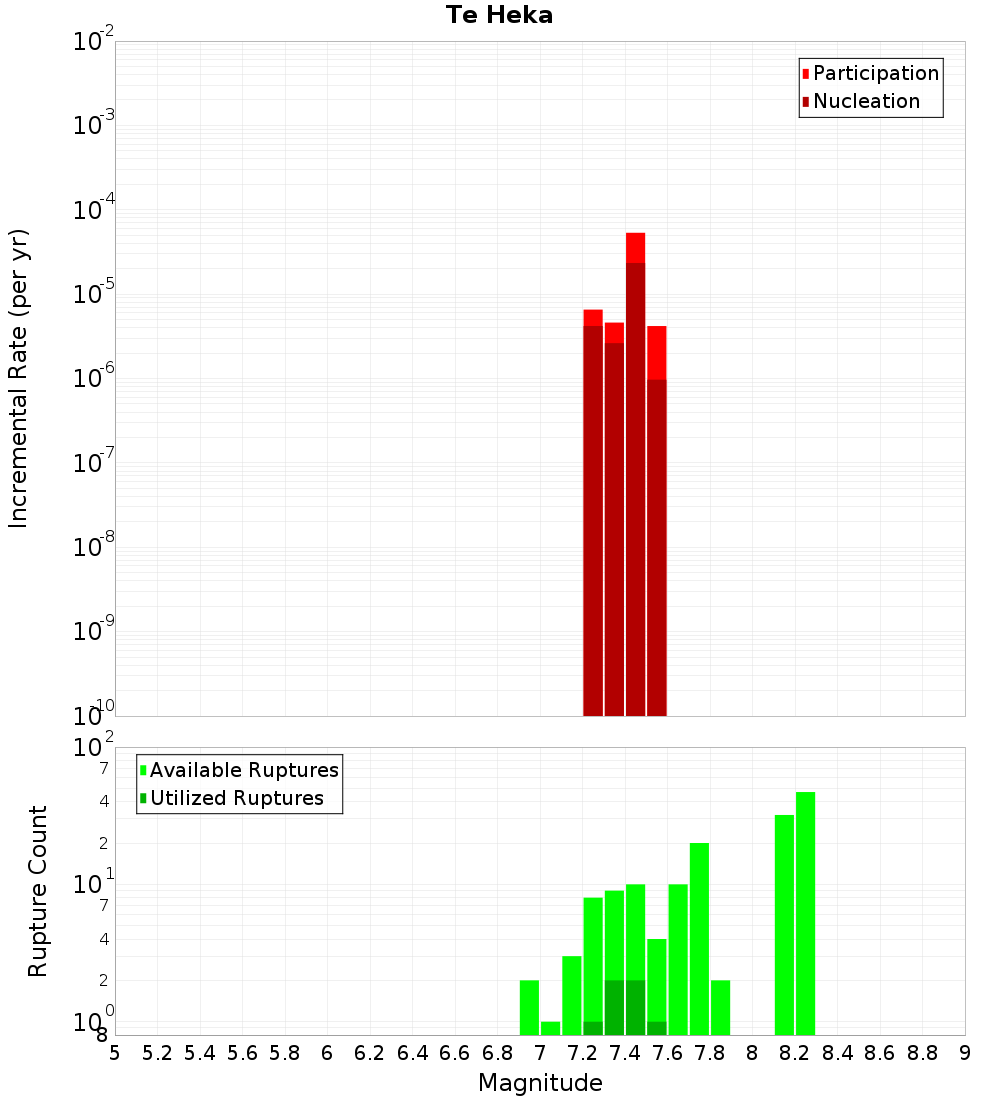

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

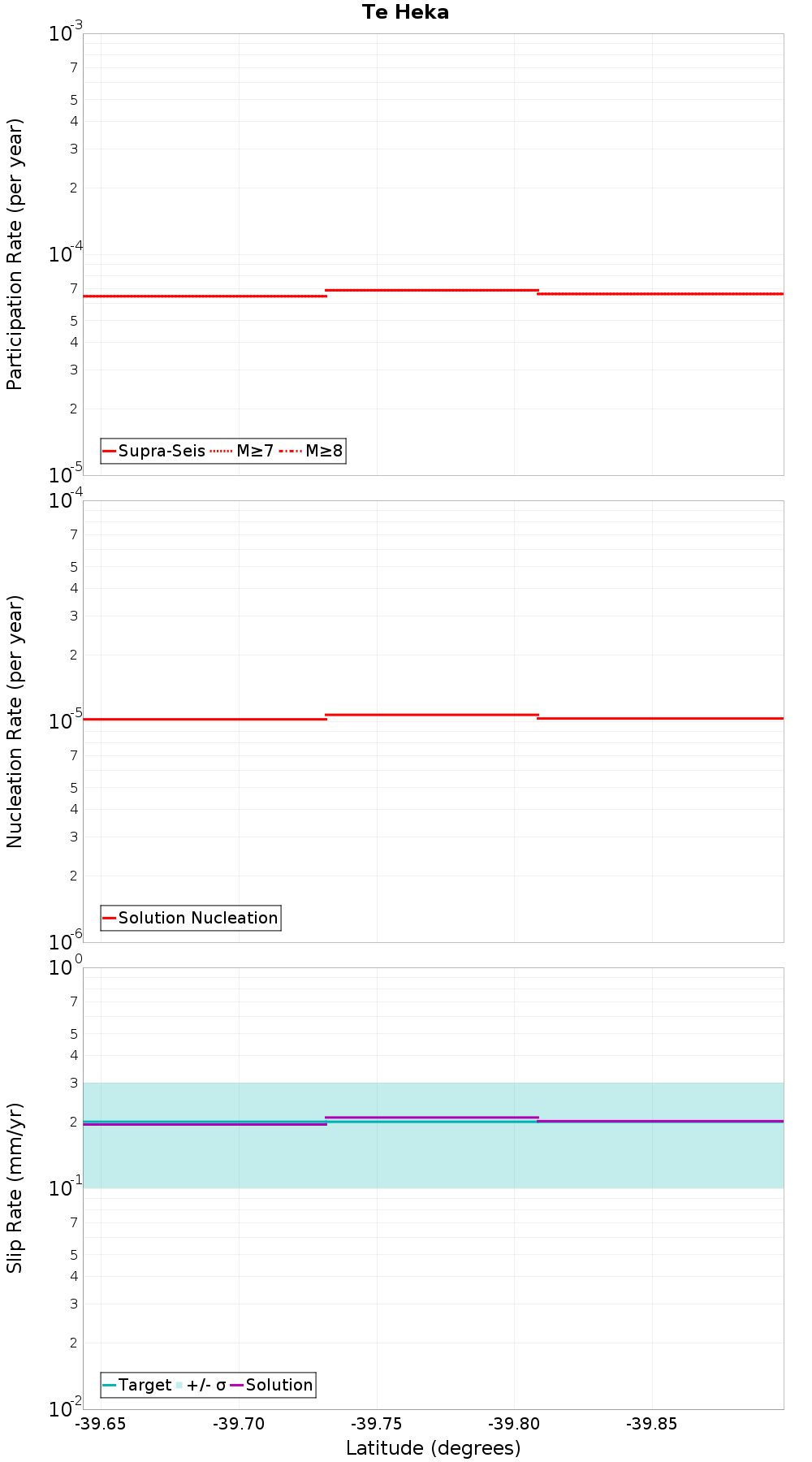

Along-Strike Values

(top)

Along-strike plot

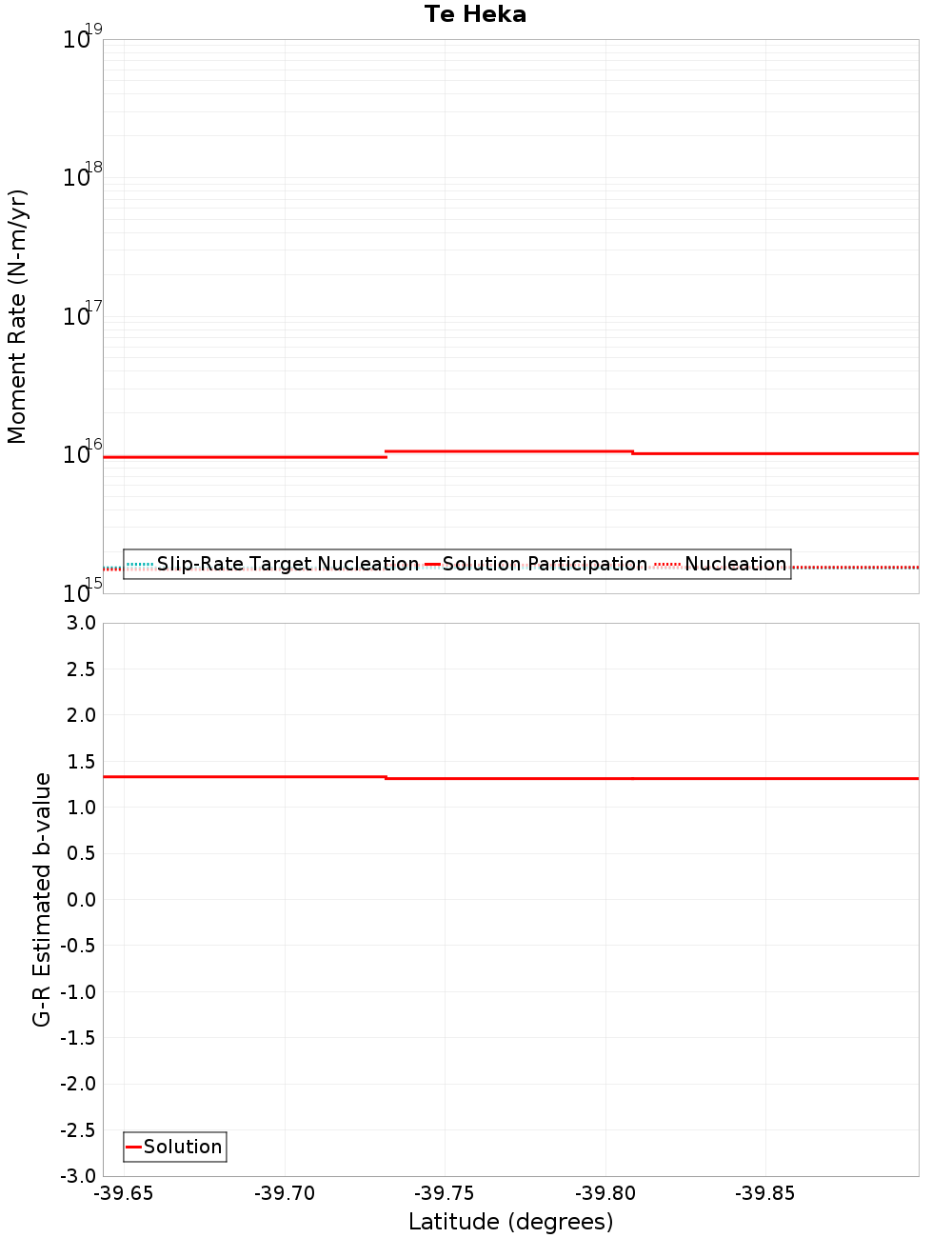

Moment-Rates and b-Values

(top)

Along-strike plot

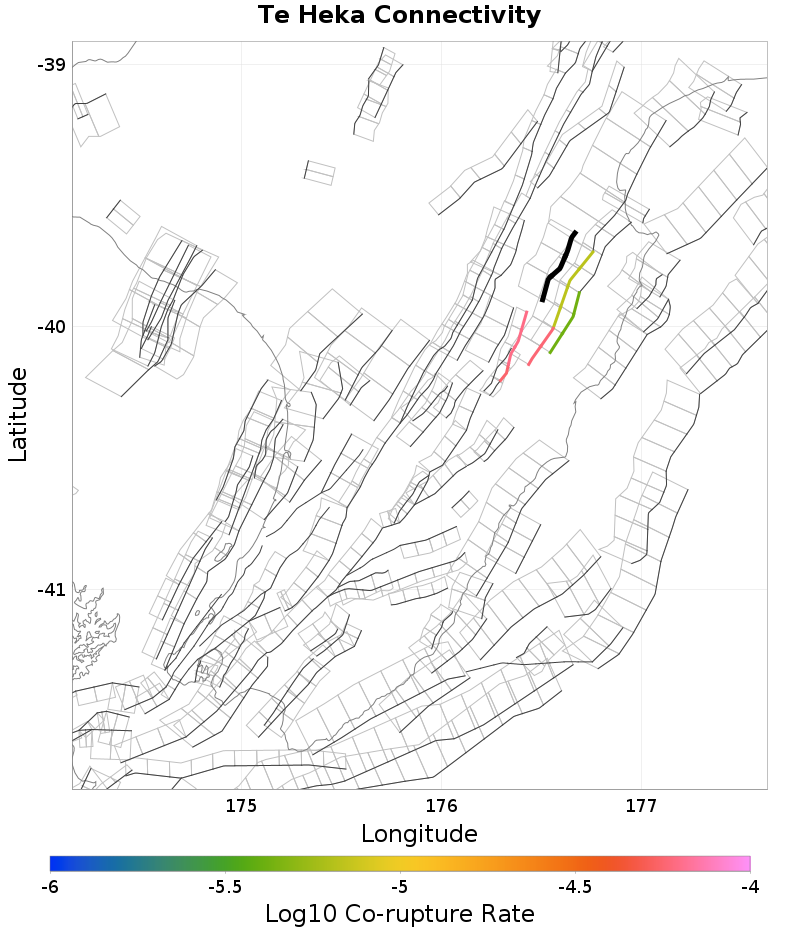

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Awanui, 0.14 km away
Waipukurau - Poukawa, 5.65 km away
Oruawharo - Mangatoro, 8.05 km away
Tukituki Thrust, 11.15 km away
Ruataniwha, 12.04 km away
Mohaka: North, 14.28 km away
Wakarara, 14.9 km away
Mohaka: South, 14.94 km away
Rangefront, 17.34 km away
Patoka - Rangiora, 17.57 km away
Ruahine: Central, 18.27 km away
Ruahine: North, 19.72 km away

Awanui, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?true
Directly Connected?true
Co-rupture Count118
Co-rupture Rate0.0

Waipukurau - Poukawa, 5.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?true
Directly Connected?true
Co-rupture Count10
Co-rupture Rate5.755521E-5

Oruawharo - Mangatoro, 8.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?true
Directly Connected?true
Co-rupture Count22
Co-rupture Rate6.196082E-5

Tukituki Thrust, 11.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate4.186187E-6

Ruataniwha, 12.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mohaka: North, 14.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?true
Directly Connected?false
Co-rupture Count39
Co-rupture Rate0.0

Wakarara, 14.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mohaka: South, 14.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?true
Directly Connected?false
Co-rupture Count79
Co-rupture Rate0.0

Rangefront, 17.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Patoka - Rangiora, 17.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?true
Directly Connected?false
Co-rupture Count84
Co-rupture Rate0.0

Ruahine: Central, 18.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ruahine: North, 19.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzUuMFl2SDRq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
