Braemar Details

Property	Value
Rupture Count	8,602
Ruptures Above Sect Min Mag	8,600
Ruptures w/ Nonzero Rates	268
Magnitude Range	[6.59, 7.80]
Length Range	[14, 210] km
Total Rate	5.8434927E-4 /yr
Multi-Fault Rate	5.728086E-4 /yr (98.03%)
Directly-Connected Faults	7
All Co-Rupturing Faults	47

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

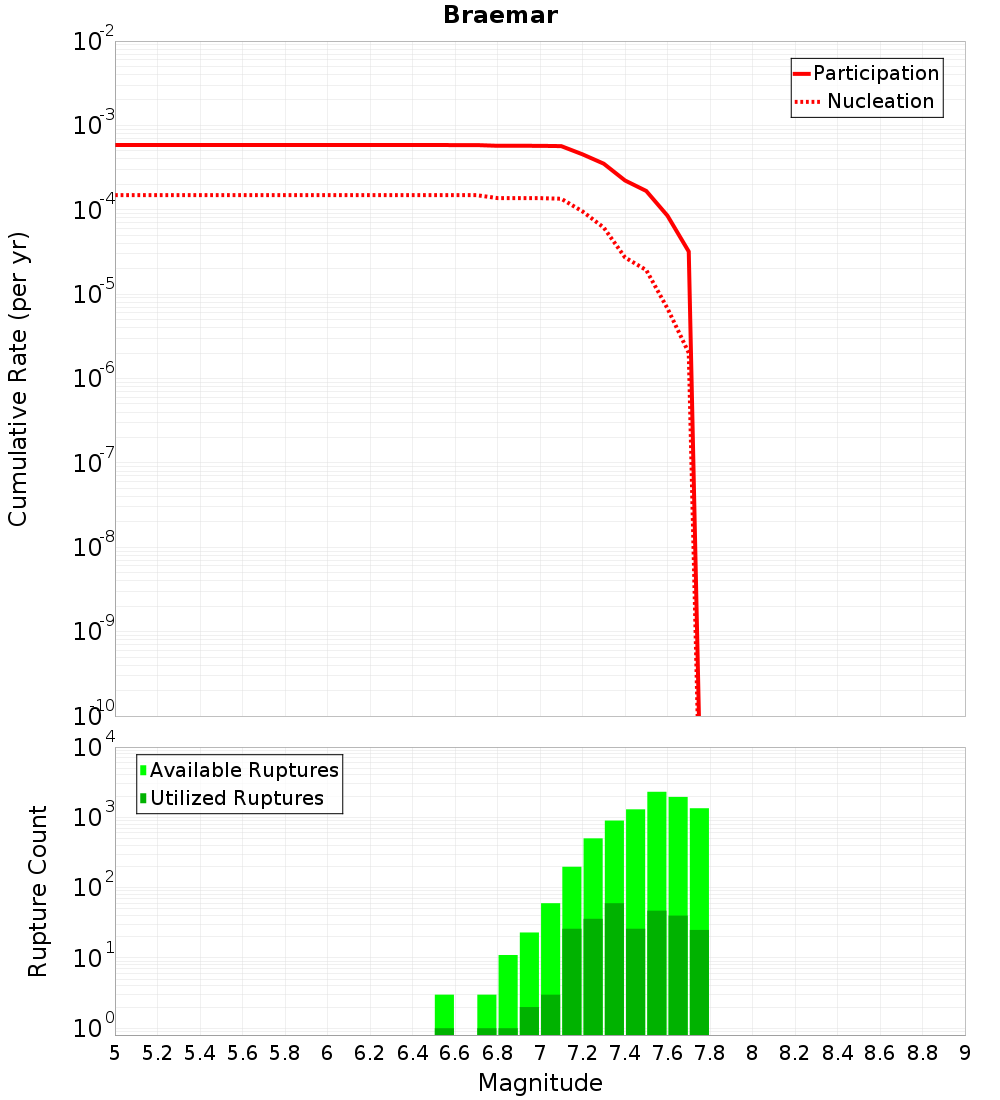

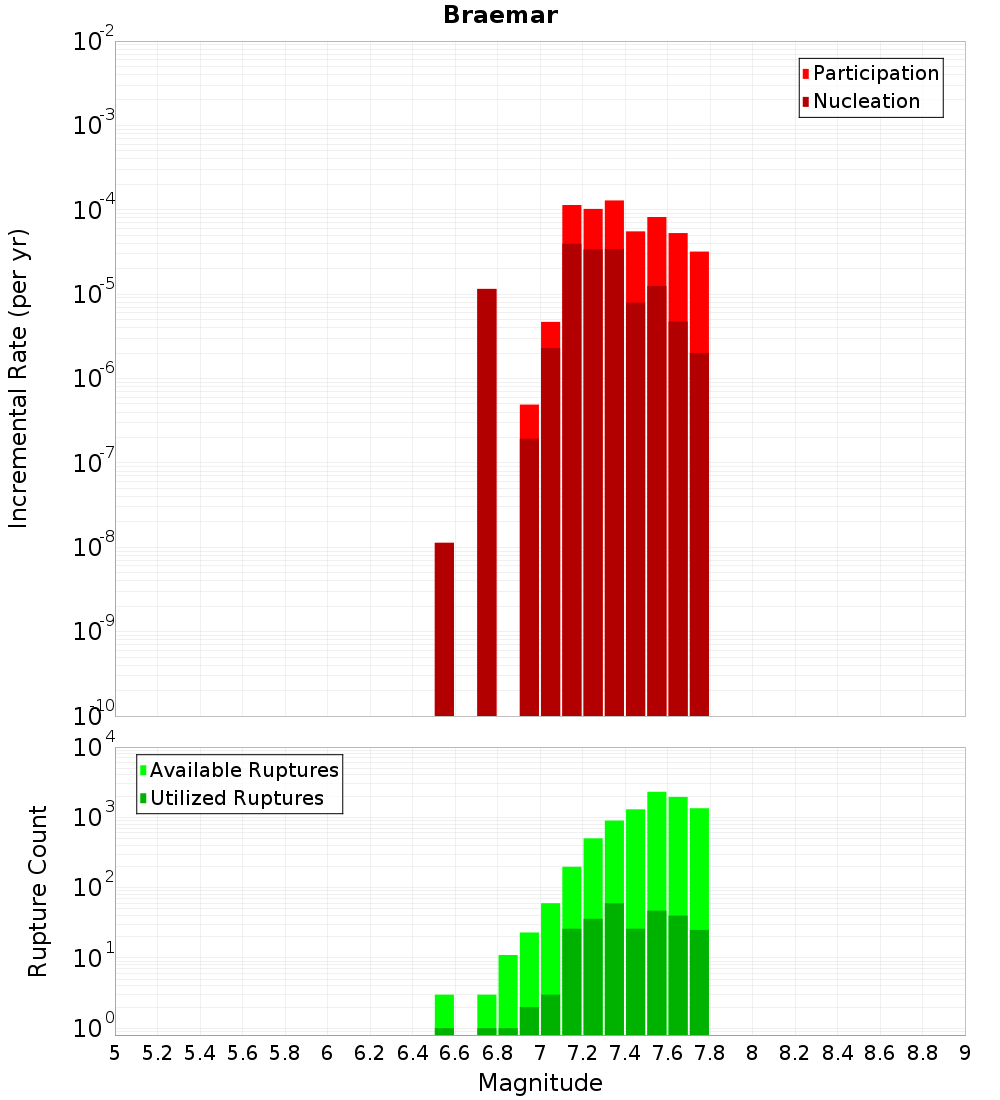

Magnitude-Frequency Distribution

Incremental	Cumulative

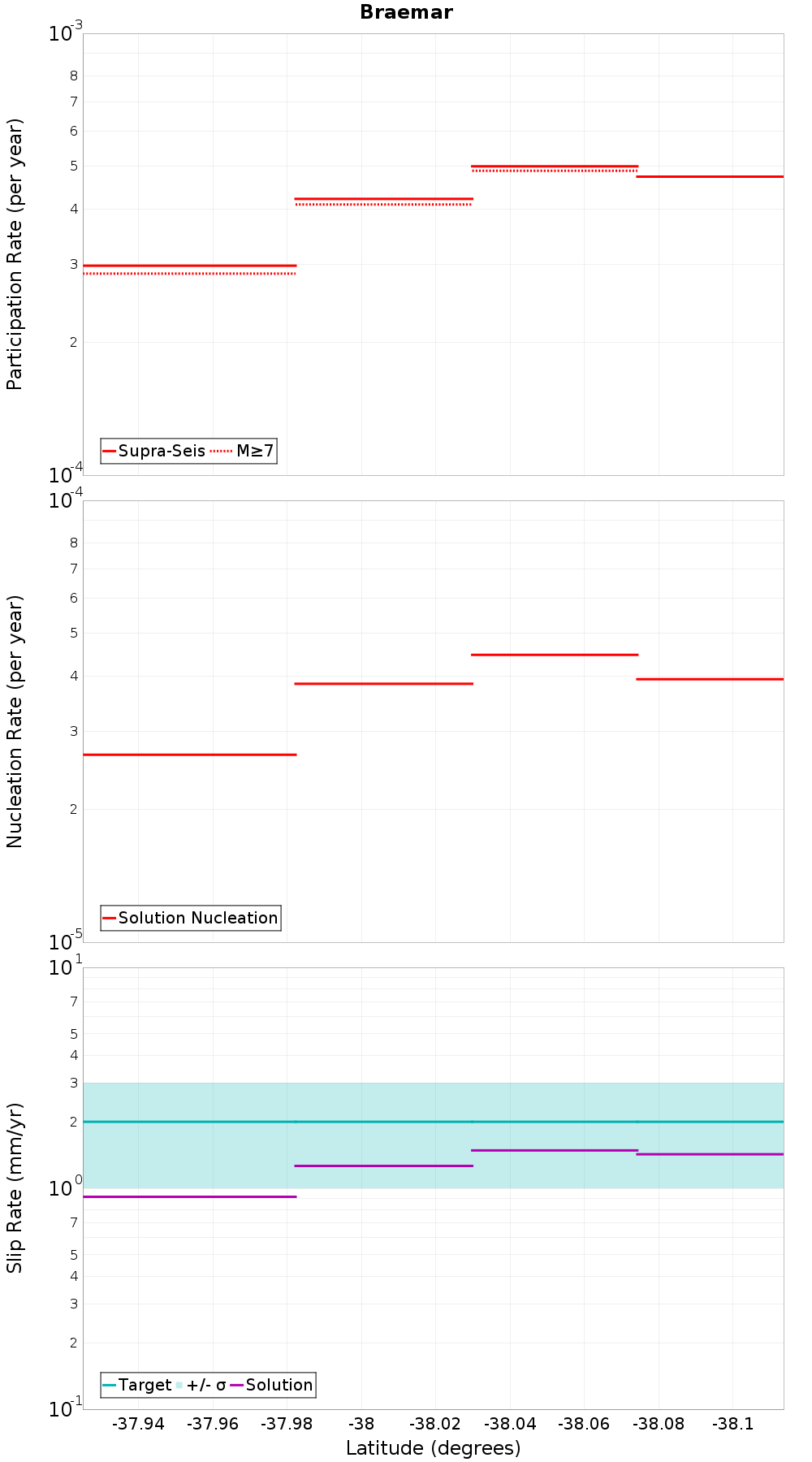

Along-Strike Values

Moment-Rates and b-Values

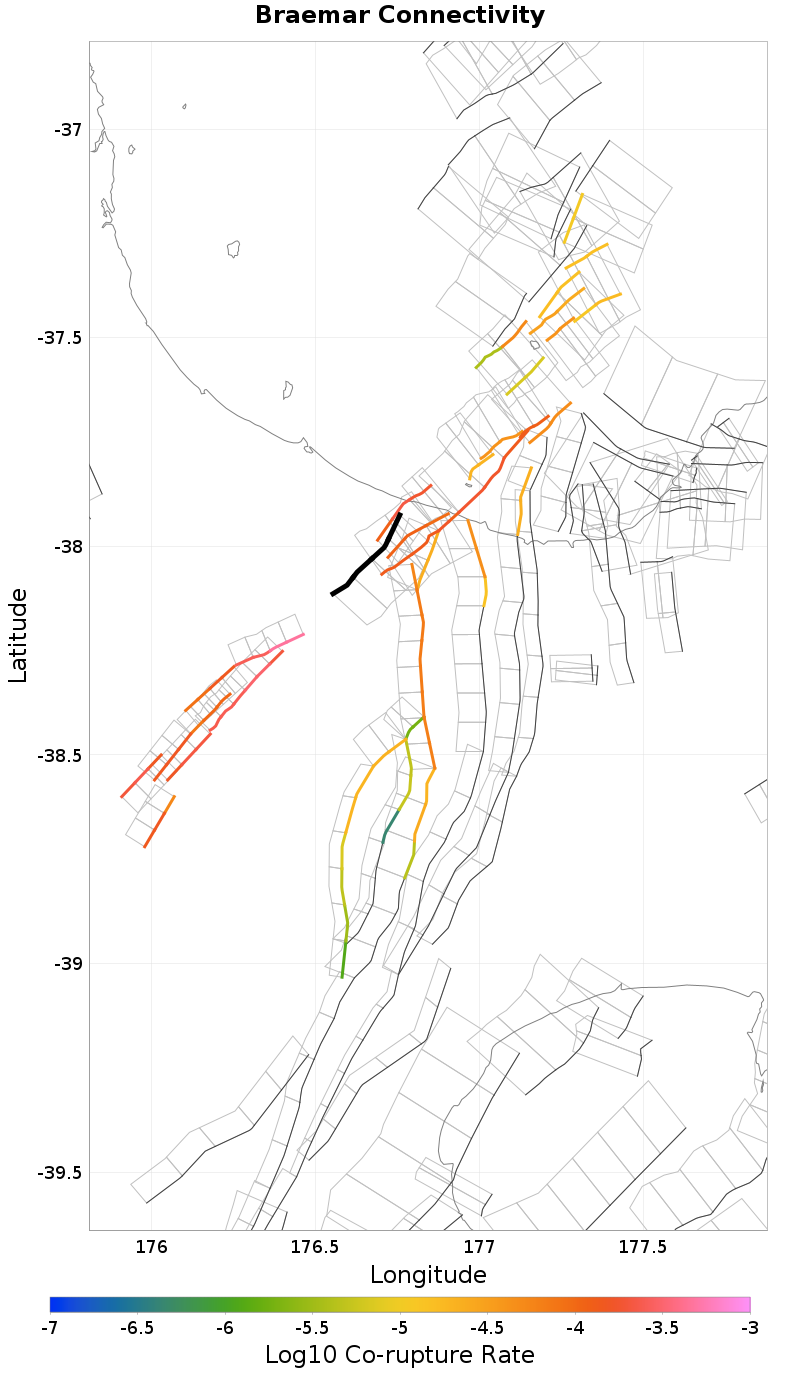

Connectivity

Nearby Sections

Fault Section
Awakeri, 0.1 km away
Waiohau: North, 0.22 km away
Otakiri, 0.26 km away
Edgecumbe 1987, 0.32 km away
Matata, 0.98 km away
Edgecumbe Coastal, 4.62 km away
Whakatane: North, 4.83 km away
White Island 1, 11.21 km away
EarthquakeFlat - Tumunui, 12.8 km away
Waimana: North, 18.49 km away

Awakeri, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?	true
Directly Connected?	true
Co-rupture Count	1,691
Co-rupture Rate	2.2929955E-5

Waiohau: North, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?	true
Directly Connected?	true
Co-rupture Count	1,616
Co-rupture Rate	7.050364E-5

Otakiri, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?	true
Directly Connected?	true
Co-rupture Count	975
Co-rupture Rate	1.1575863E-4

Edgecumbe 1987, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?	true
Directly Connected?	true
Co-rupture Count	2,611
Co-rupture Rate	1.3391579E-4

Matata, 0.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?	true
Directly Connected?	true
Co-rupture Count	3,093
Co-rupture Rate	2.1710127E-4

Edgecumbe Coastal, 4.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?	true
Directly Connected?	true
Co-rupture Count	3,995
Co-rupture Rate	1.6195913E-4

Whakatane: North, 4.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?	true
Directly Connected?	false
Co-rupture Count	62
Co-rupture Rate	4.4934044E-5

White Island 1, 11.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?	true
Directly Connected?	false
Co-rupture Count	6,164
Co-rupture Rate	1.7661566E-4

EarthquakeFlat - Tumunui, 12.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?	true
Directly Connected?	true
Co-rupture Count	5,392
Co-rupture Rate	4.6803584E-4

Waimana: North, 18.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?	true
Directly Connected?	false
Co-rupture Count	16
Co-rupture Rate	2.212116E-5
