Matata Details

Property	Value
Rupture Count	6,829
Ruptures Above Sect Min Mag	6,828
Ruptures w/ Nonzero Rates	158
Magnitude Range	[6.55, 7.80]
Length Range	[14, 208] km
Total Rate	3.2832447E-4 /yr
Multi-Fault Rate	3.0781995E-4 /yr (93.75%)
Directly-Connected Faults	5
All Co-Rupturing Faults	46

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

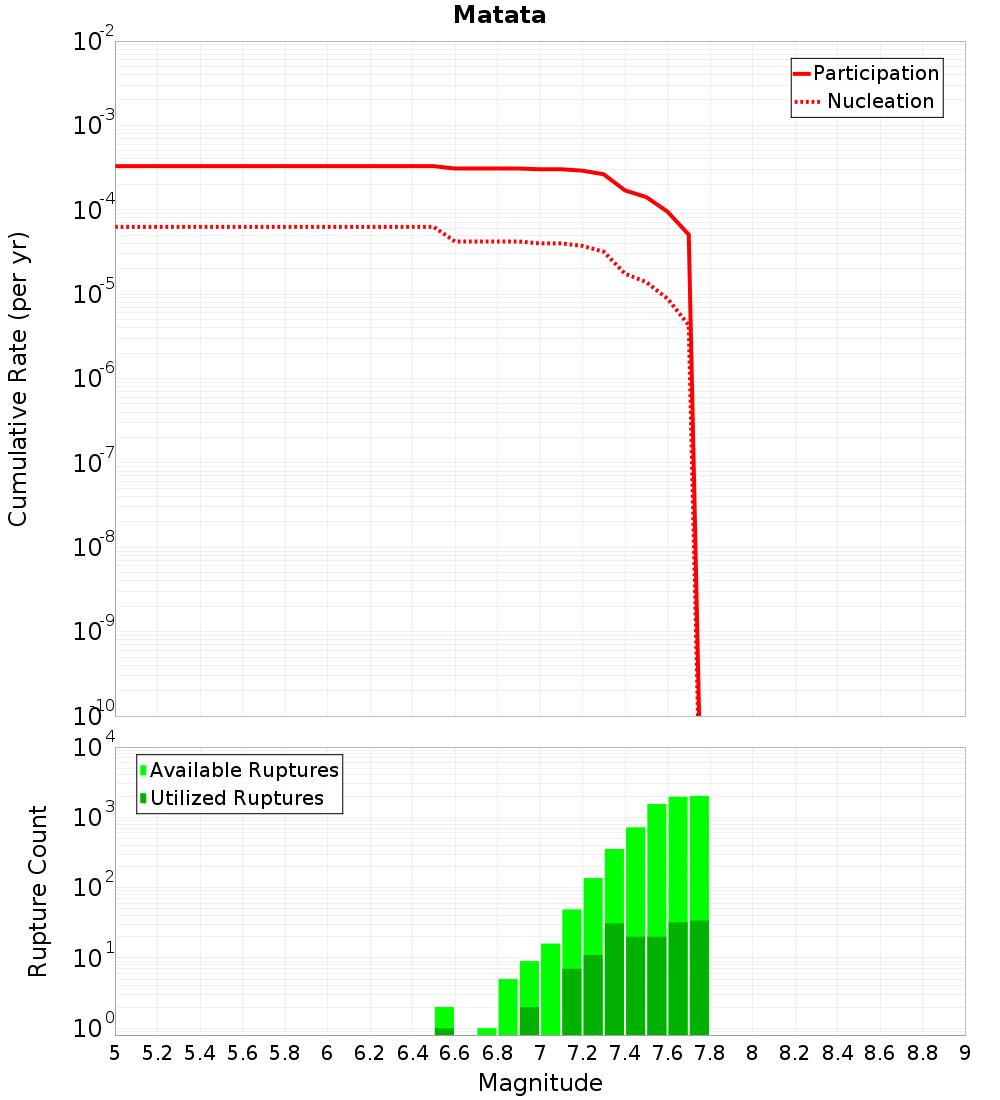

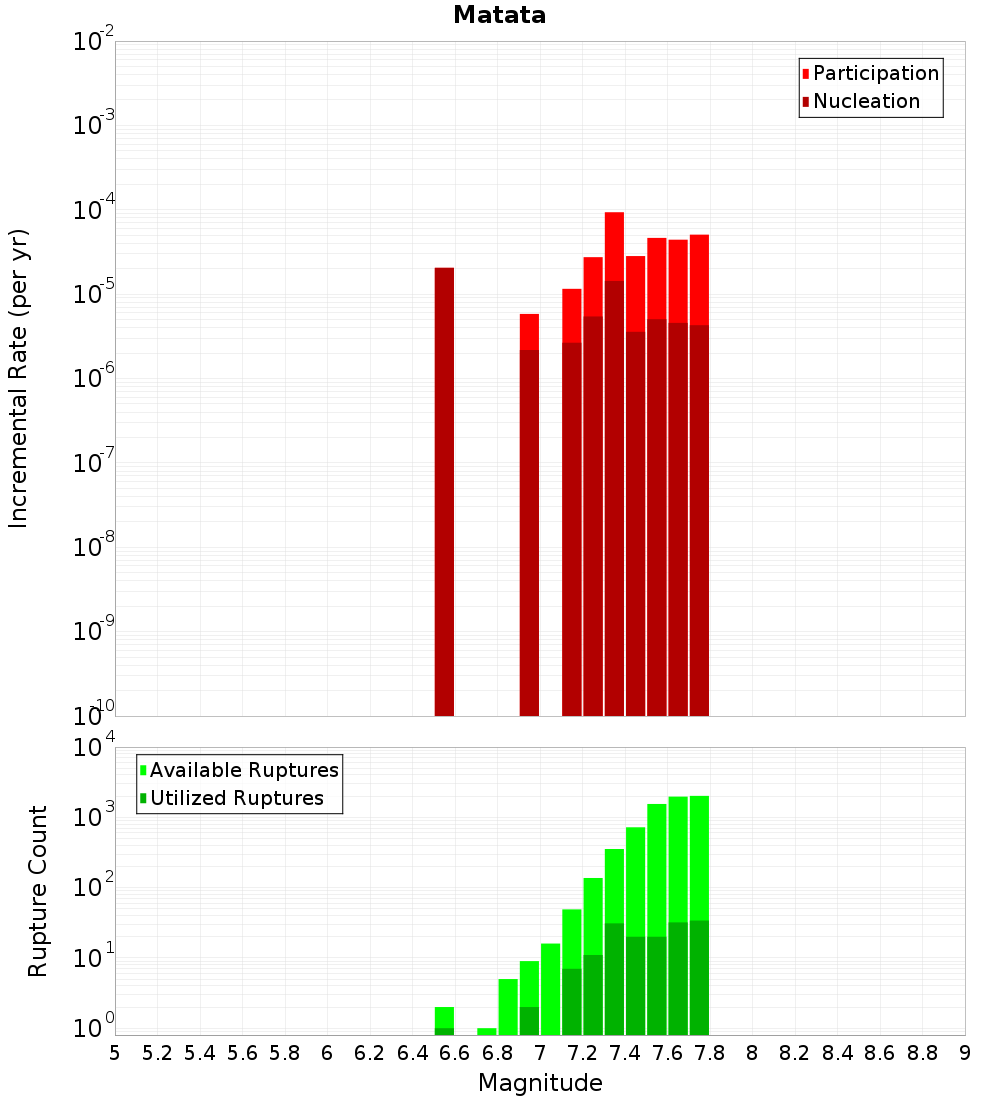

Magnitude-Frequency Distribution

Incremental	Cumulative

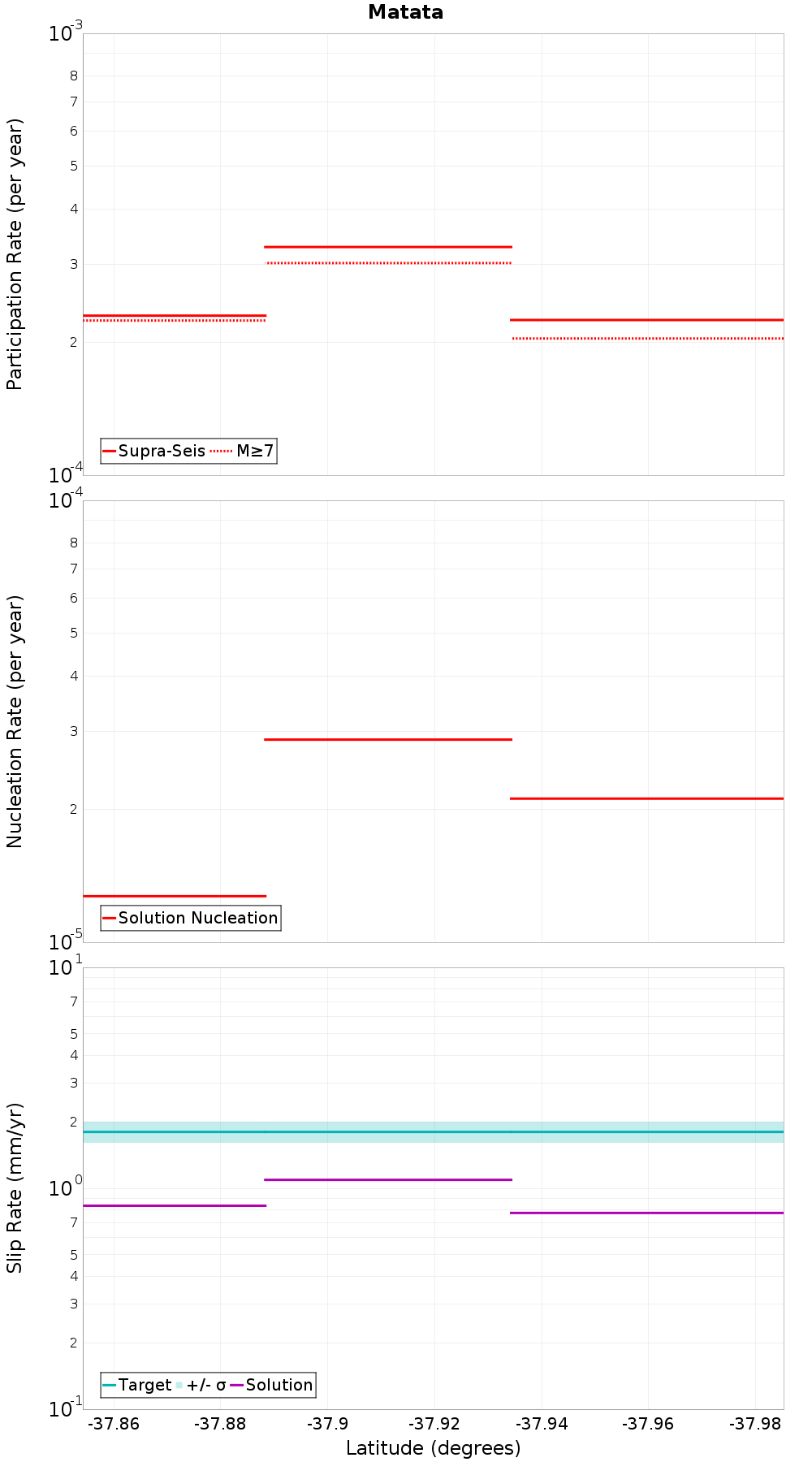

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Edgecumbe Coastal, 0.14 km away
Awakeri, 0.16 km away
White Island 1, 0.2 km away
Edgecumbe 1987, 0.29 km away
Braemar, 0.98 km away
Whakatane: North, 1.44 km away
Waiohau: North, 2.01 km away
Otakiri, 4.49 km away
Rangitaiki 1, 9.11 km away
Waimana: North, 14.4 km away
Rangitaiki 2, 15.14 km away
Waimanawa - Waikaremoana, 17.19 km away
Waiotahi: North, 18.33 km away

Edgecumbe Coastal, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?	true
Directly Connected?	true
Co-rupture Count	1,710
Co-rupture Rate	7.1651535E-5

Awakeri, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

White Island 1, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?	true
Directly Connected?	true
Co-rupture Count	5,920
Co-rupture Rate	1.5980507E-4

Edgecumbe 1987, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?	true
Directly Connected?	false
Co-rupture Count	388
Co-rupture Rate	1.2192941E-5

Braemar, 0.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?	true
Directly Connected?	true
Co-rupture Count	3,093
Co-rupture Rate	2.1710127E-4

Whakatane: North, 1.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?	true
Directly Connected?	false
Co-rupture Count	61
Co-rupture Rate	1.4444057E-5

Waiohau: North, 2.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?	true
Directly Connected?	true
Co-rupture Count	3,939
Co-rupture Rate	1.0535043E-4

Otakiri, 4.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?	true
Directly Connected?	true
Co-rupture Count	58
Co-rupture Rate	5.828067E-6

Rangitaiki 1, 9.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?	true
Directly Connected?	false
Co-rupture Count	303
Co-rupture Rate	4.2518168E-5

Waimana: North, 14.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rangitaiki 2, 15.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?	true
Directly Connected?	false
Co-rupture Count	2,207
Co-rupture Rate	6.5408865E-5

Waimanawa - Waikaremoana, 17.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waiotahi: North, 18.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
