Tuatoru 2 Details

PropertyValue
Rupture Count6,233
Ruptures Above Sect Min Mag6,233
Ruptures w/ Nonzero Rates57
Magnitude Range[6.87, 7.80]
Length Range[14, 210] km
Total Rate6.0809136E-5 /yr
Multi-Fault Rate6.0809136E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults42

Table Of Contents

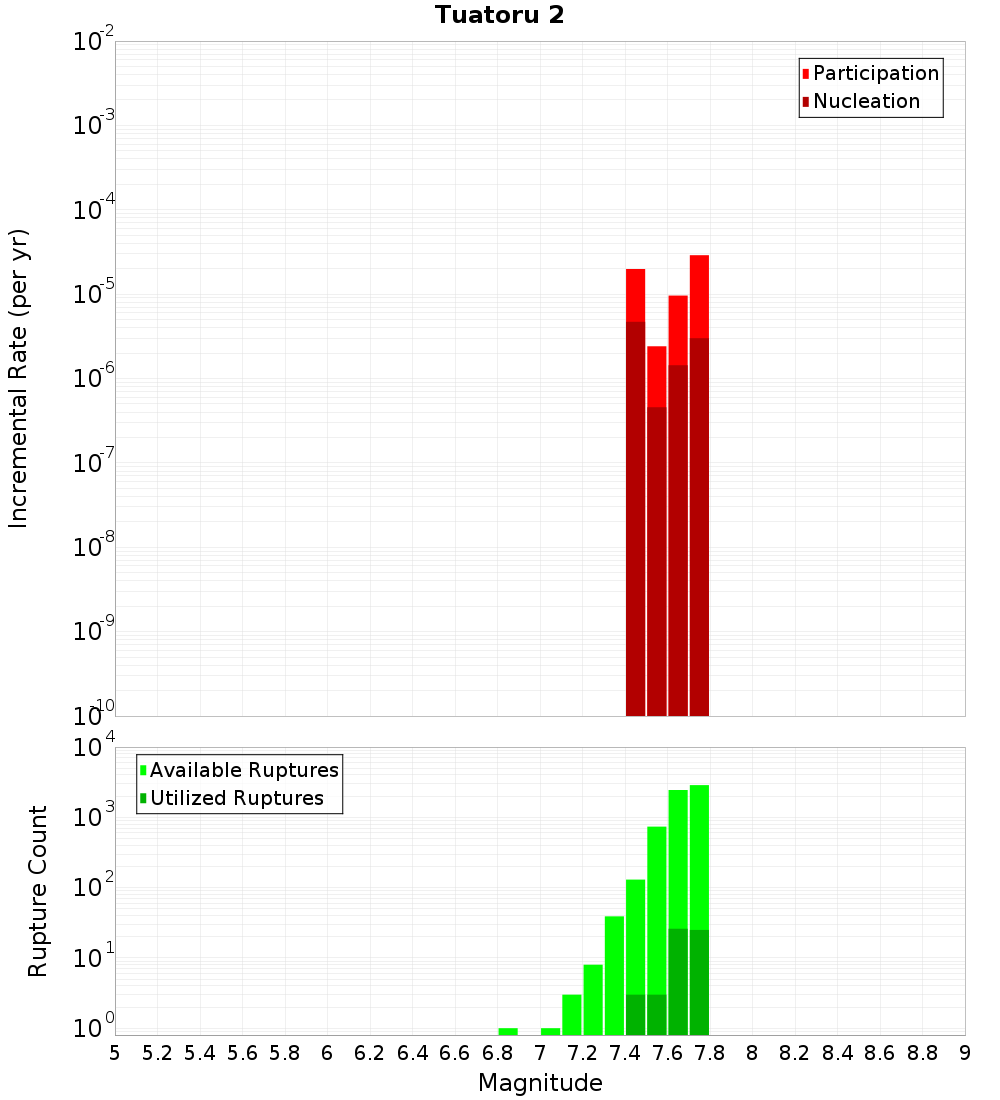

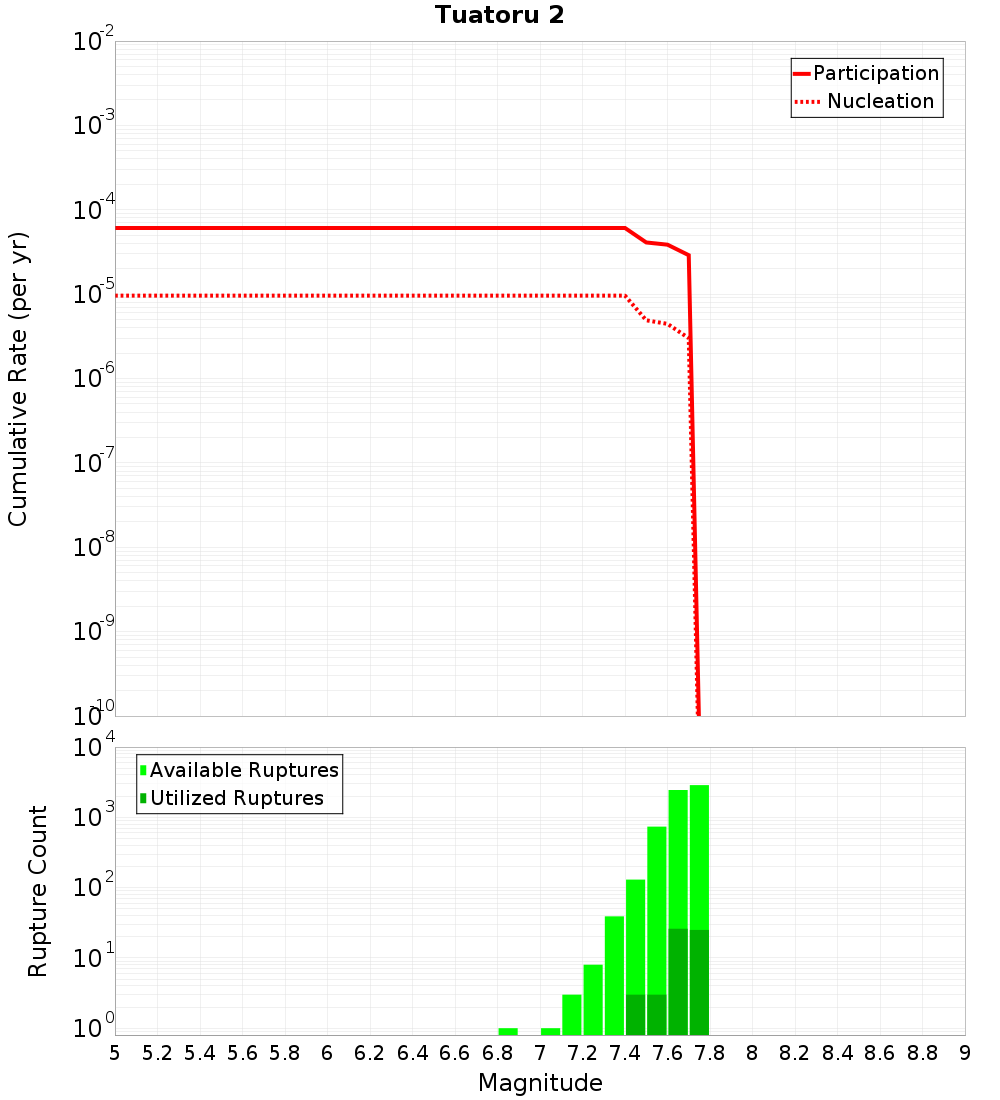

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

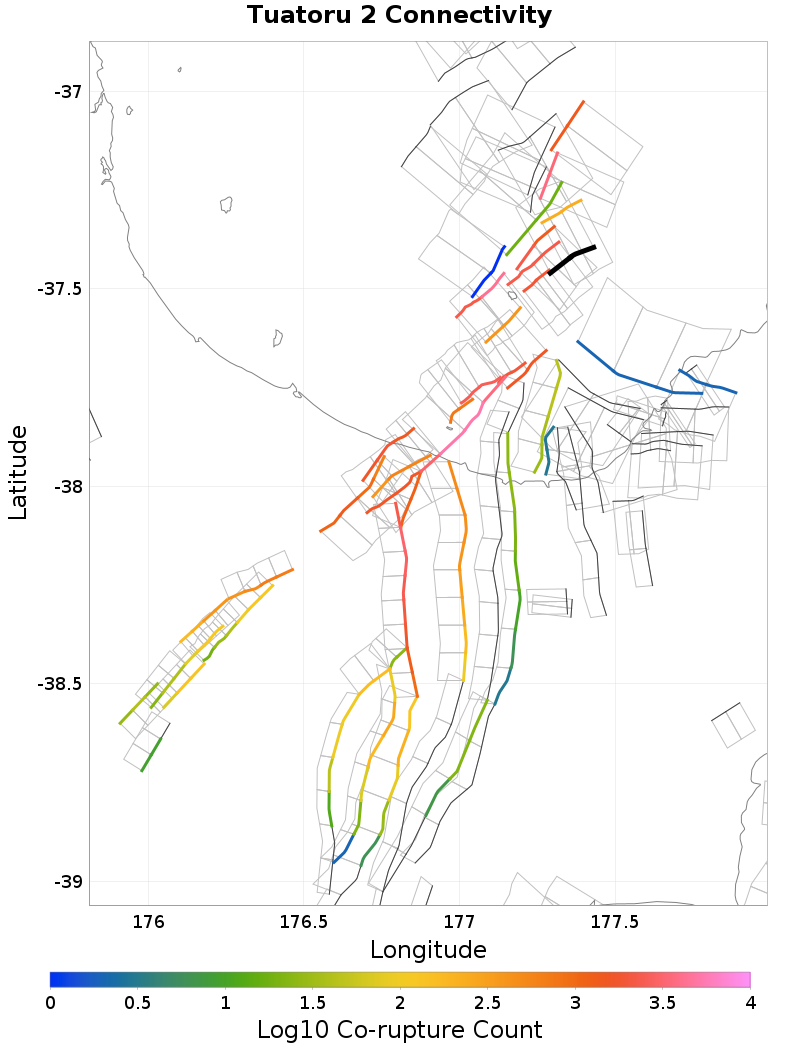

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Otara West 3, 0.1 km awayTuakana 6, 11.58 km away
Te Arawa 3, 0.11 km awayTuakana 7, 12.24 km away
Te Arawa 2, 0.13 km awayOtara West 1, 12.32 km away
Otara East 1, 0.2 km awayVolkner 3, 12.56 km away
Te Arawa 1, 0.34 km awayCalypso 2, 12.9 km away
Tuatoru 1, 0.43 km awayOtara West 2, 15.5 km away
Otara East 2, 8.63 km awayHariki, 18.73 km away
Volkner 4, 10.03 km awayWhite Island 2, 19.44 km away
Whakaari 4, 11.04 km away

Otara West 3, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 3, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?true
Directly Connected?false
Co-rupture Count230
Co-rupture Rate1.2763556E-5

Te Arawa 2, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?true
Directly Connected?true
Co-rupture Count2,260
Co-rupture Rate1.208448E-5

Otara East 1, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?true
Directly Connected?true
Co-rupture Count3,640
Co-rupture Rate2.8467995E-5

Te Arawa 1, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?true
Directly Connected?true
Co-rupture Count2,262
Co-rupture Rate4.9595014E-6

Tuatoru 1, 0.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?true
Directly Connected?true
Co-rupture Count1,916
Co-rupture Rate4.735904E-5

Otara East 2, 8.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?true
Directly Connected?false
Co-rupture Count1,407
Co-rupture Rate1.979302E-6

Volkner 4, 10.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?true
Directly Connected?false
Co-rupture Count17
Co-rupture Rate0.0

Whakaari 4, 11.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?true
Directly Connected?false
Co-rupture Count4,259
Co-rupture Rate2.743407E-5

Tuakana 6, 11.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuakana 7, 12.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara West 1, 12.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Volkner 3, 12.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Calypso 2, 12.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?true
Directly Connected?false
Co-rupture Count401
Co-rupture Rate9.33387E-7

Otara West 2, 15.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hariki, 18.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

White Island 2, 19.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1NzkuMEd0Z2FE
Connected?true
Directly Connected?false
Co-rupture Count1,565
Co-rupture Rate3.244168E-5
