Rangitaiki 1 Details

PropertyValue
Rupture Count2,346
Ruptures Above Sect Min Mag2,346
Ruptures w/ Nonzero Rates130
Magnitude Range[6.52, 8.20]
Length Range[9, 444] km
Total Rate2.9334222E-4 /yr
Multi-Fault Rate2.922832E-4 /yr (99.64%)
Directly-Connected Faults2
All Co-Rupturing Faults43

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

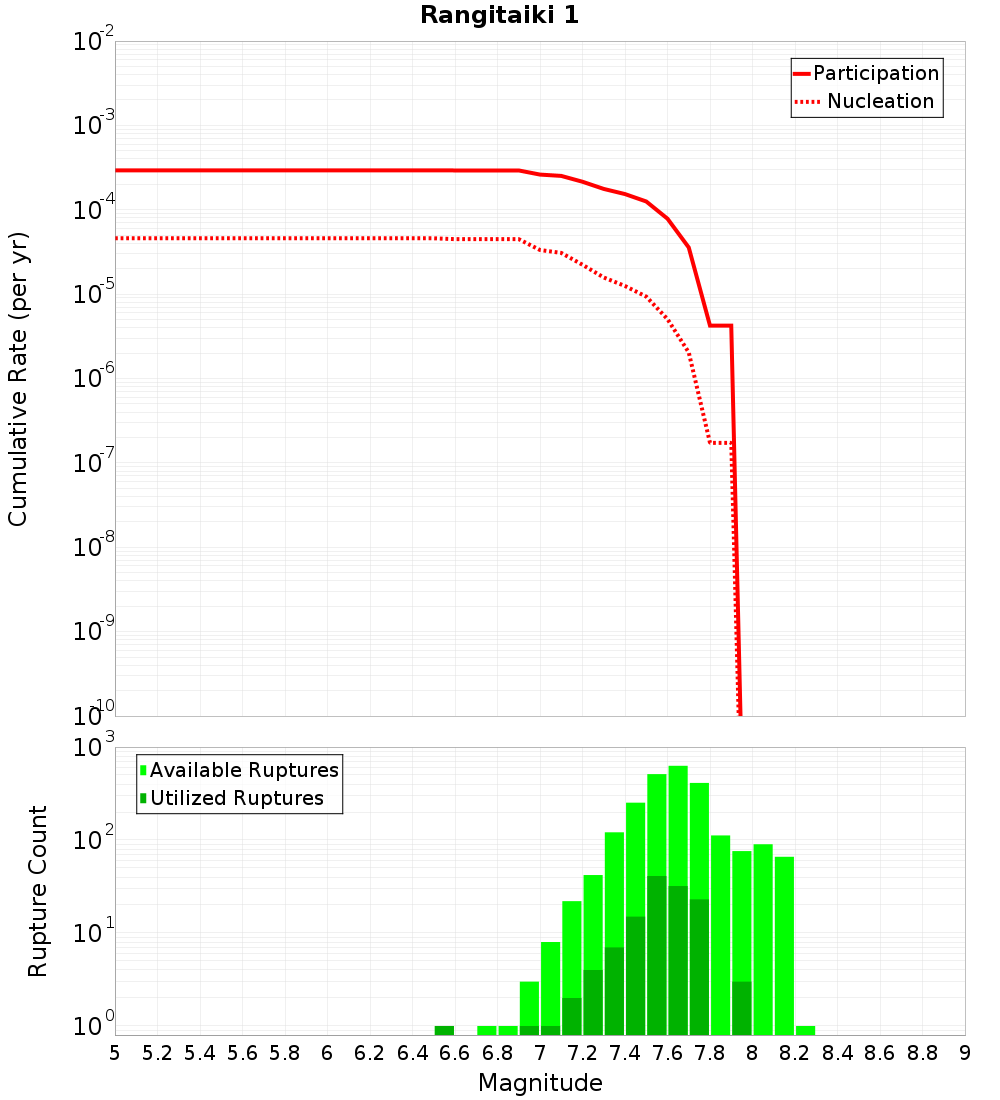

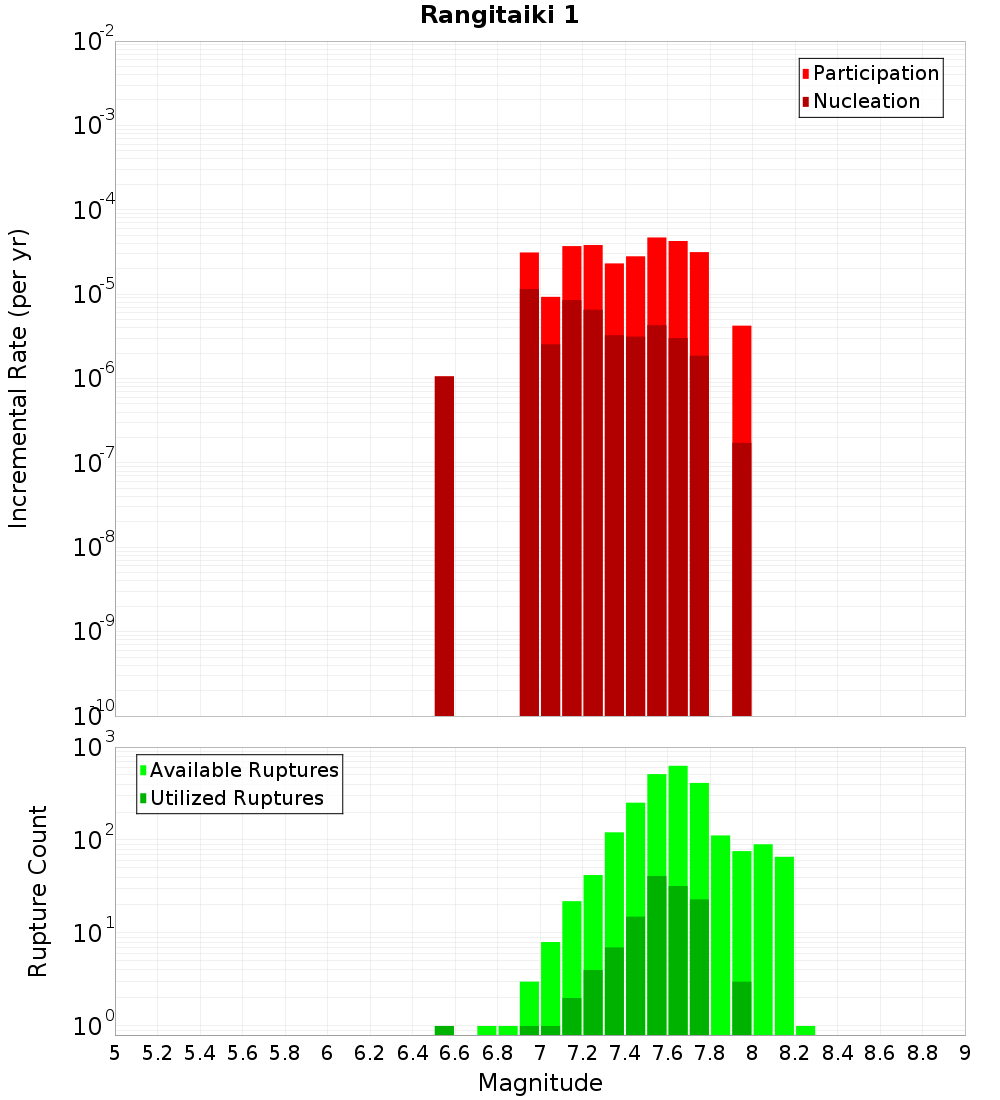

Incremental PlotCumulative Plot

Along-Strike Values

(top)

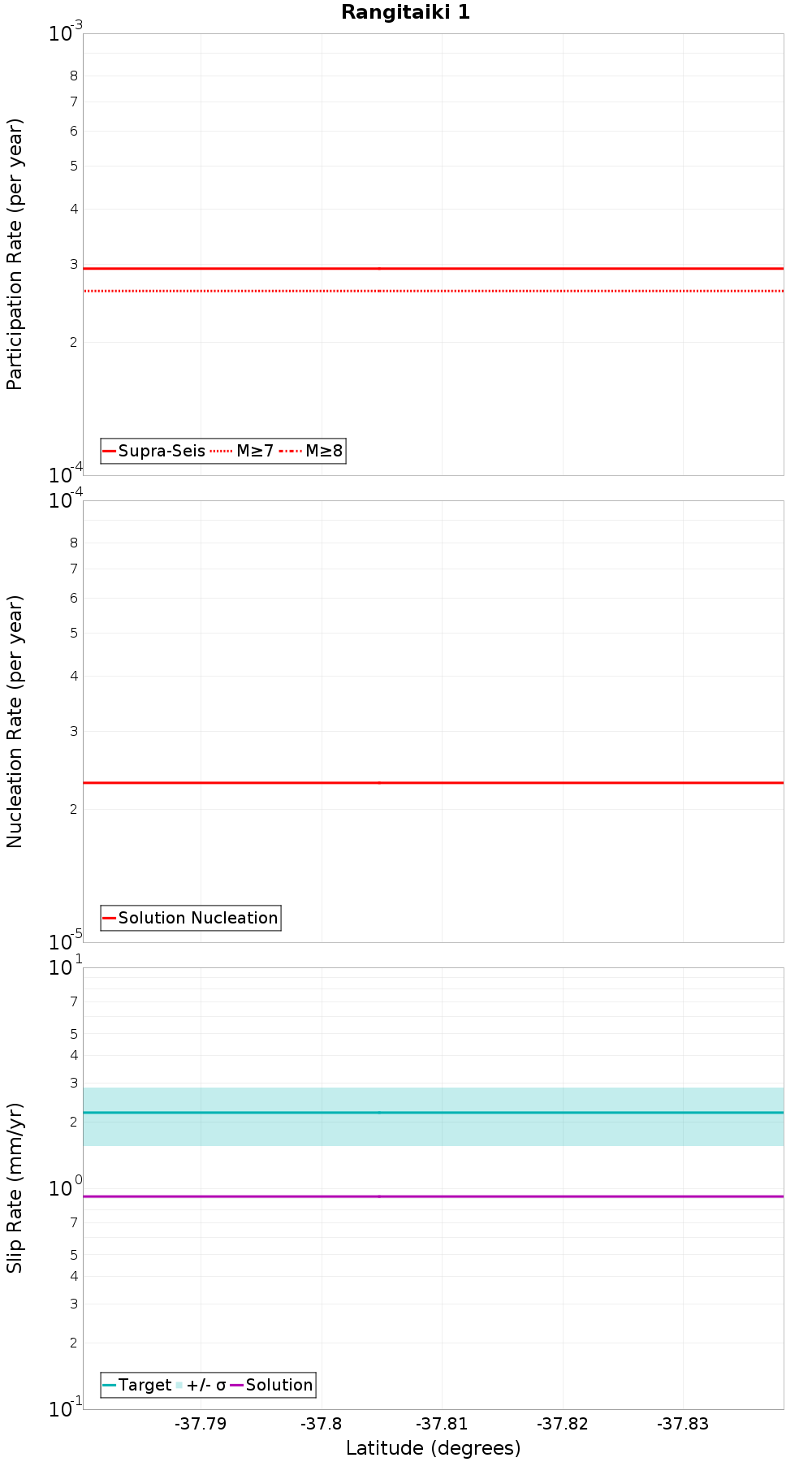

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

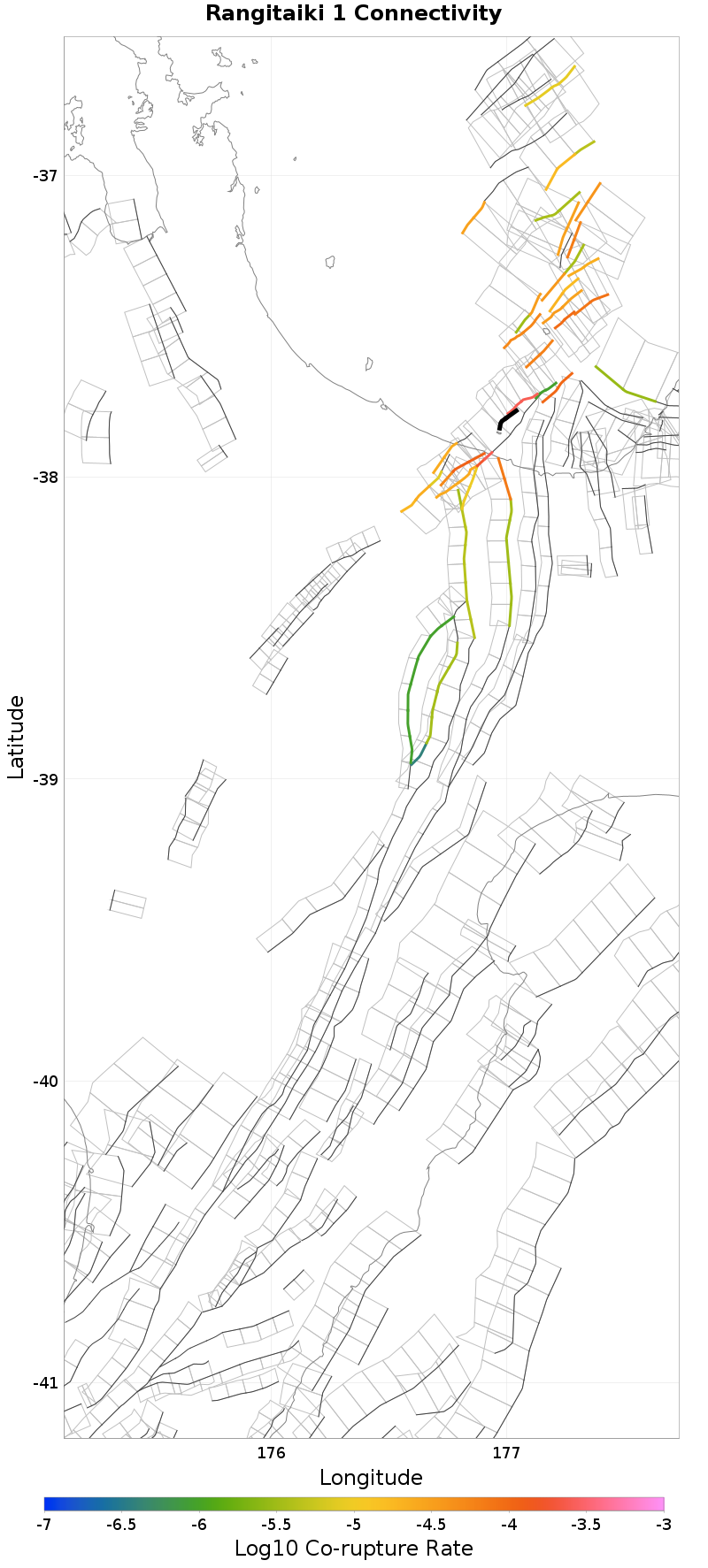

MapMap

Nearby Sections

(top)

Fault Section
Rangitaiki 2, 0.74 km away
White Island 1, 2 km away
Ohiwa 1, 8.72 km away
Edgecumbe Coastal, 8.81 km away
Matata, 9.11 km away
White Island 2, 9.3 km away
Waimana: North, 10.53 km away
Whakaari 4, 10.86 km away
Otakiri, 10.94 km away
Whakatane: North, 11.12 km away
Waimanawa - Waikaremoana, 12.26 km away
Waiotahi: North, 13.71 km away
Calypso 2, 14.65 km away
Edgecumbe 1987, 15.01 km away
Awakeri, 16.13 km away

Rangitaiki 2, 0.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?true
Directly Connected?true
Co-rupture Count2,166
Co-rupture Rate2.5181647E-4

White Island 1, 2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohiwa 1, 8.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?true
Directly Connected?false
Co-rupture Count599
Co-rupture Rate9.141689E-7

Edgecumbe Coastal, 8.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?true
Directly Connected?true
Co-rupture Count2,242
Co-rupture Rate2.4670194E-4

Matata, 9.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?true
Directly Connected?false
Co-rupture Count304
Co-rupture Rate2.4170737E-5

White Island 2, 9.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?true
Directly Connected?false
Co-rupture Count450
Co-rupture Rate1.0312166E-4

Waimana: North, 10.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whakaari 4, 10.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?true
Directly Connected?false
Co-rupture Count1,451
Co-rupture Rate5.426651E-5

Otakiri, 10.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?true
Directly Connected?false
Co-rupture Count41
Co-rupture Rate1.1646295E-4

Whakatane: North, 11.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?true
Directly Connected?false
Co-rupture Count164
Co-rupture Rate7.1346585E-5

Waimanawa - Waikaremoana, 12.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiotahi: North, 13.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 14.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?true
Directly Connected?false
Co-rupture Count169
Co-rupture Rate6.275263E-5

Edgecumbe 1987, 15.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?true
Directly Connected?false
Co-rupture Count762
Co-rupture Rate2.4924553E-5

Awakeri, 16.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?true
Directly Connected?false
Co-rupture Count874
Co-rupture Rate9.3711005E-6
