Wairau Details

PropertyValue
Rupture Count27,376
Ruptures Above Sect Min Mag27,367
Ruptures w/ Nonzero Rates32
Magnitude Range[6.80, 8.63]
Length Range[20, 1,119] km
Total Rate0.0016337608 /yr
Multi-Fault Rate0.0013436236 /yr (82.24%)
Directly-Connected Faults4
All Co-Rupturing Faults100

Table Of Contents

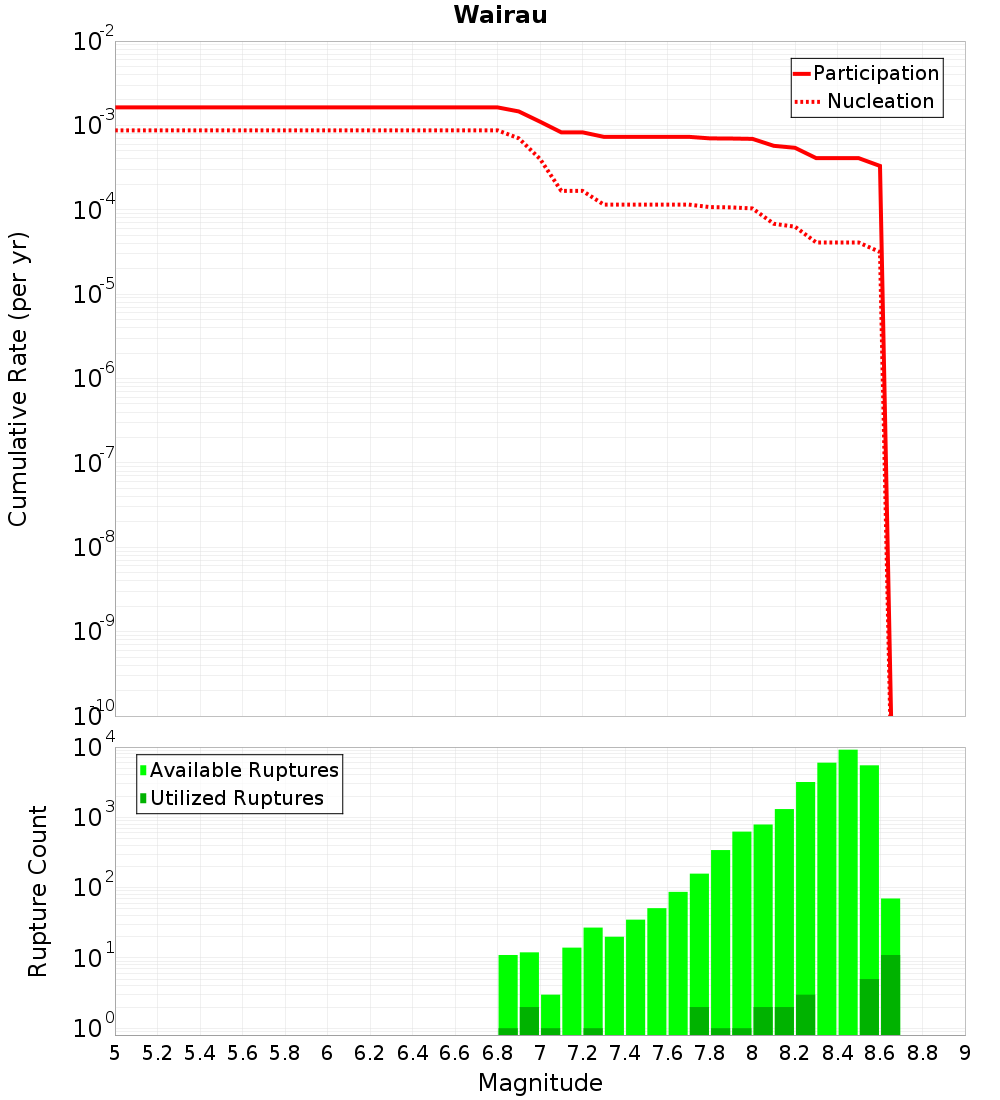

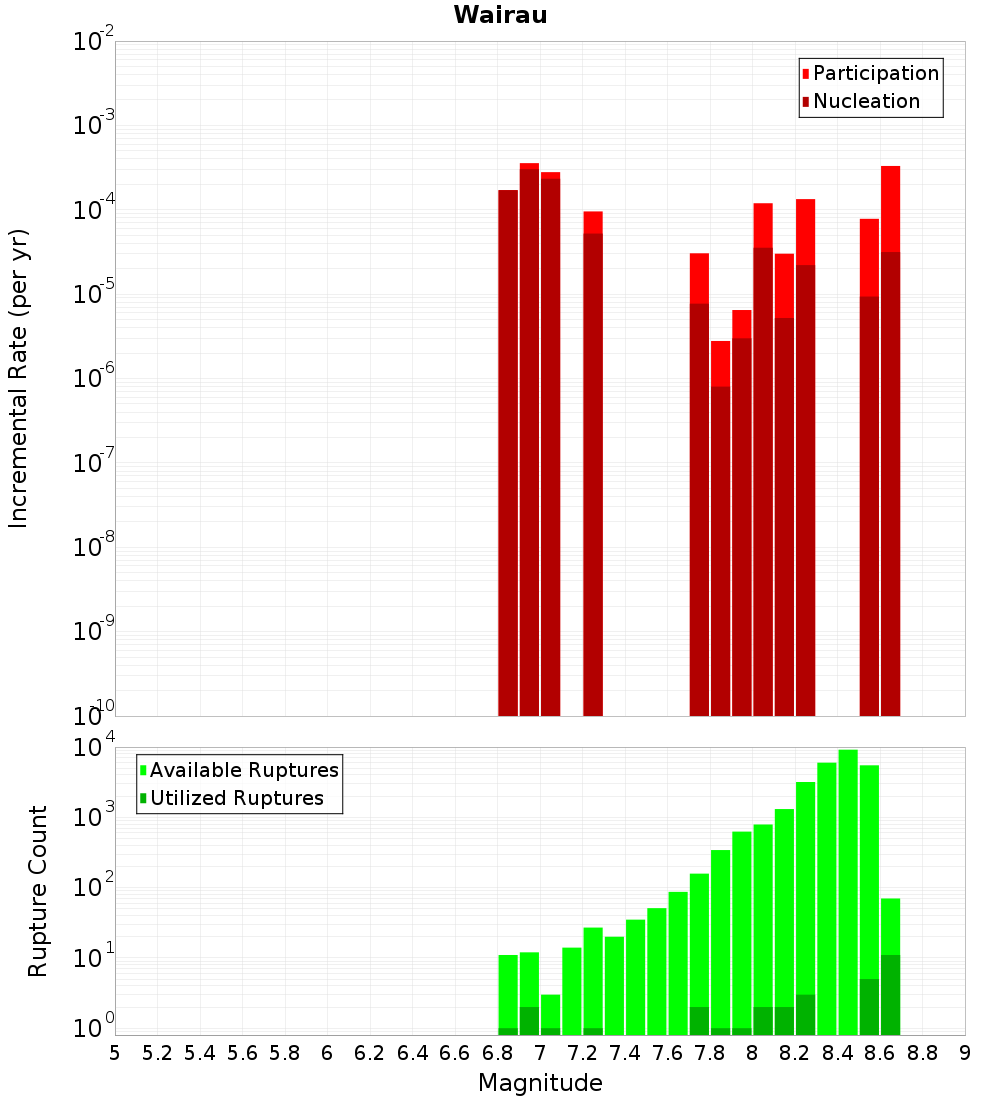

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

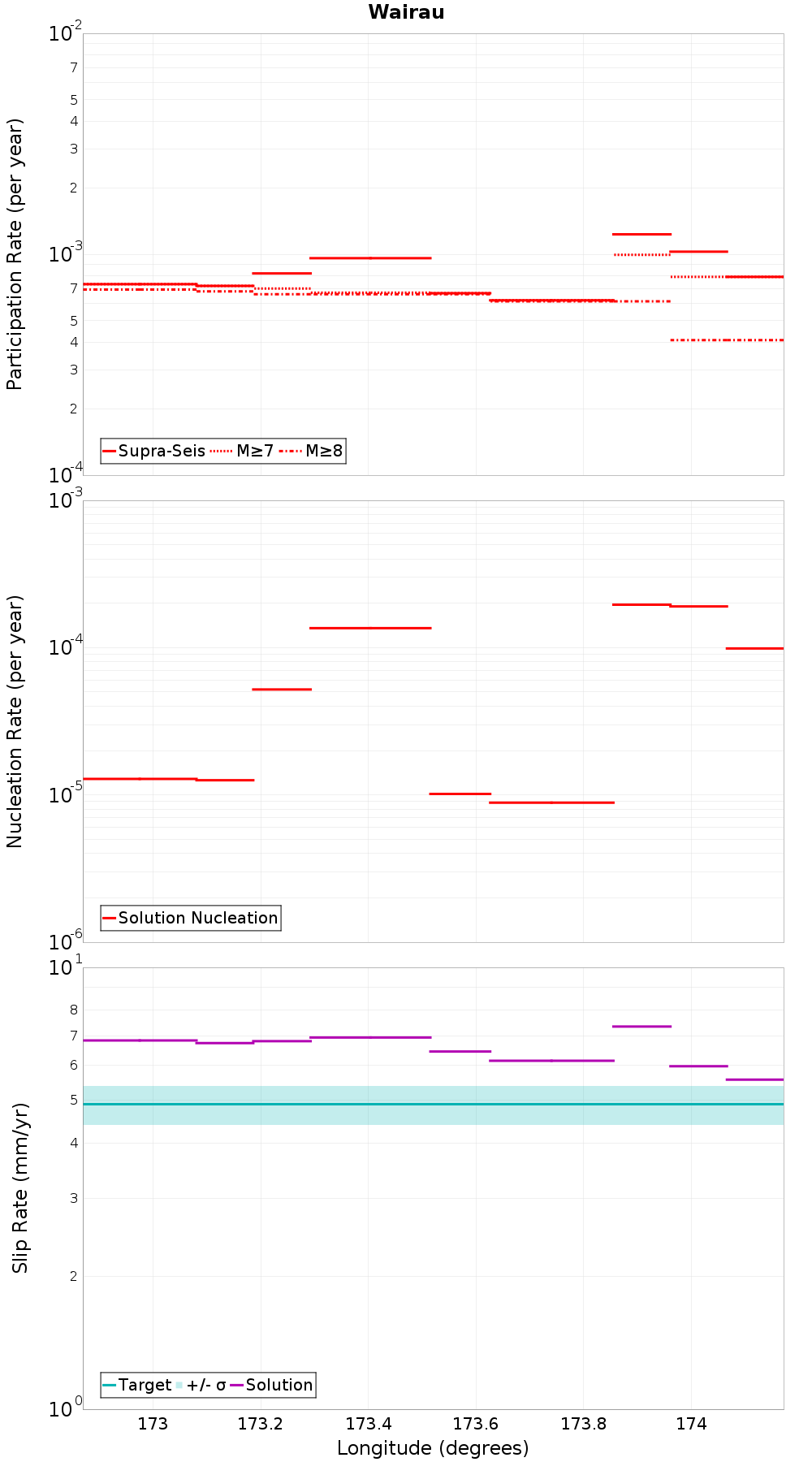

Along-Strike Values

(top)

Along-strike plot

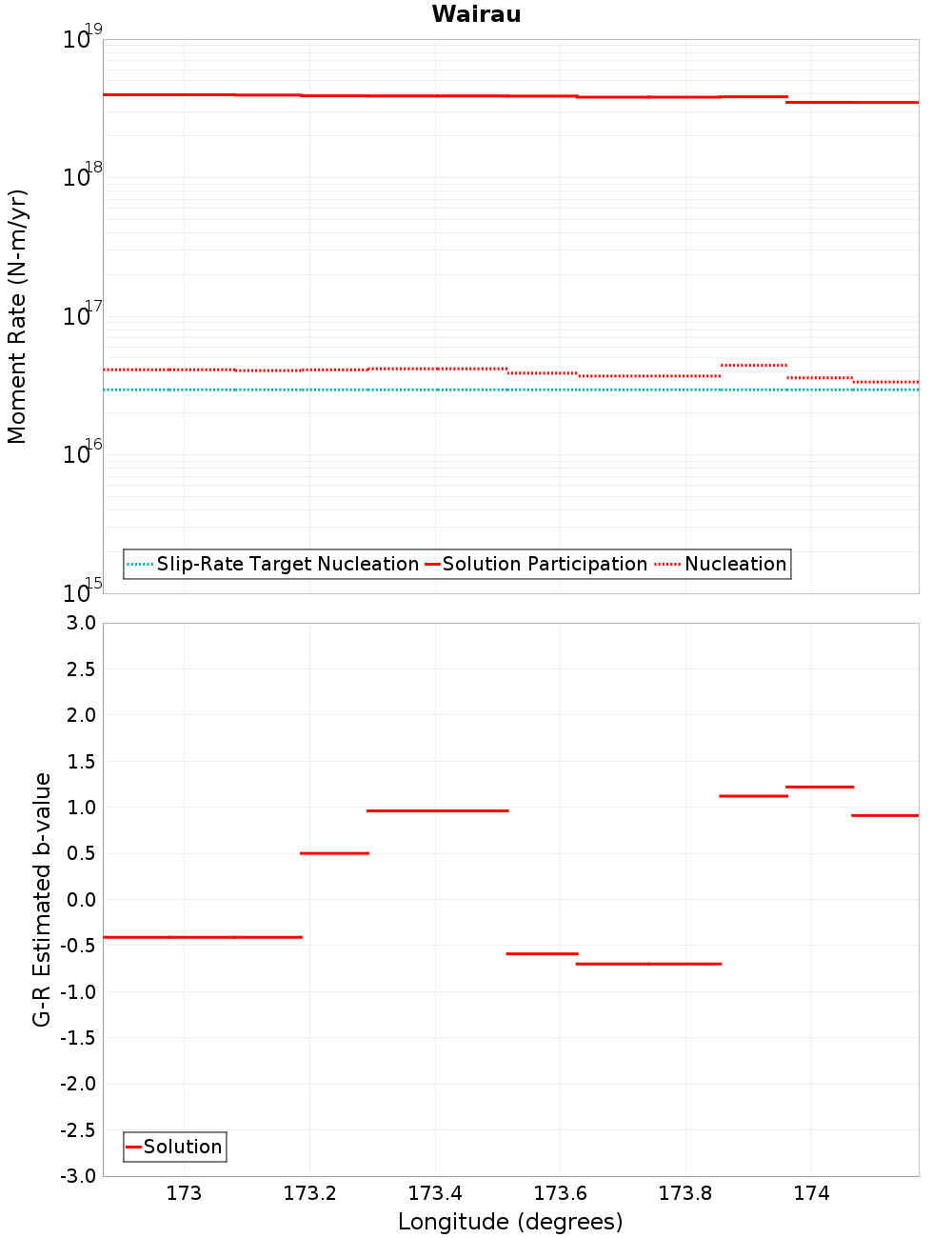

Moment-Rates and b-Values

(top)

Along-strike plot

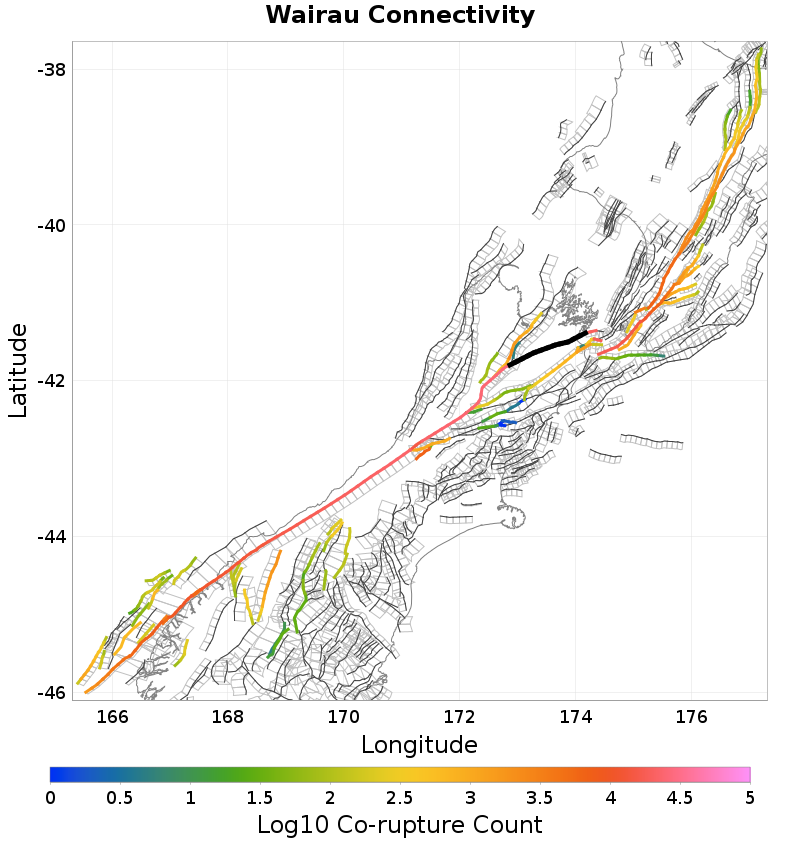

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wairau 2, 0 km awayWairau 3, 13.7 km away
Whangamoa, 0 km awayVernon 1, 14 km away
Alpine: Springs Junction to Tophouse, 0 km awayVernon 2, 14 km away
Flaxmore - Waimea - Tahunanui, 0.17 km awayRuby Bay - Moutere, 14.99 km away
Tutaki, 7.34 km awayVernon 3, 15.38 km away
Awatere: Northeast 1, 11.05 km awayCloudy 3, 15.4 km away
Awatere: Northeast 2, 12.04 km awayOhariu South 1, 16.44 km away
Cloudy 2, 12.85 km awayVernon 4, 17.5 km away
Cloudy 1, 12.85 km away

Wairau 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?true
Directly Connected?true
Co-rupture Count18,998
Co-rupture Rate5.105325E-4

Whangamoa, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Alpine: Springs Junction to Tophouse, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?true
Directly Connected?true
Co-rupture Count25,103
Co-rupture Rate7.315347E-4

Flaxmore - Waimea - Tahunanui, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?true
Directly Connected?true
Co-rupture Count2,456
Co-rupture Rate1.539692E-5

Tutaki, 7.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?true
Directly Connected?false
Co-rupture Count79
Co-rupture Rate3.9741095E-5

Awatere: Northeast 1, 11.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?true
Directly Connected?false
Co-rupture Count745
Co-rupture Rate0.0

Awatere: Northeast 2, 12.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?true
Directly Connected?false
Co-rupture Count1,430
Co-rupture Rate0.0

Cloudy 2, 12.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?true
Directly Connected?false
Co-rupture Count105
Co-rupture Rate0.0

Cloudy 1, 12.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?true
Directly Connected?false
Co-rupture Count378
Co-rupture Rate0.0

Wairau 3, 13.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 1, 14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?true
Directly Connected?true
Co-rupture Count728
Co-rupture Rate8.1566407E-4

Vernon 2, 14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Ruby Bay - Moutere, 14.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 3, 15.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cloudy 3, 15.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?true
Directly Connected?false
Co-rupture Count18,667
Co-rupture Rate3.3040764E-4

Ohariu South 1, 16.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 4, 17.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?true
Directly Connected?false
Co-rupture Count143
Co-rupture Rate0.0
