Waitahuna 2 Details

PropertyValue
Rupture Count5
Ruptures Above Sect Min Mag4
Ruptures w/ Nonzero Rates1
Magnitude Range[6.69, 7.74]
Length Range[9, 103] km
Total Rate1.9457962E-5 /yr
Multi-Fault Rate1.9457962E-5 /yr (100.00%)
Directly-Connected Faults1
All Co-Rupturing Faults4

Table Of Contents

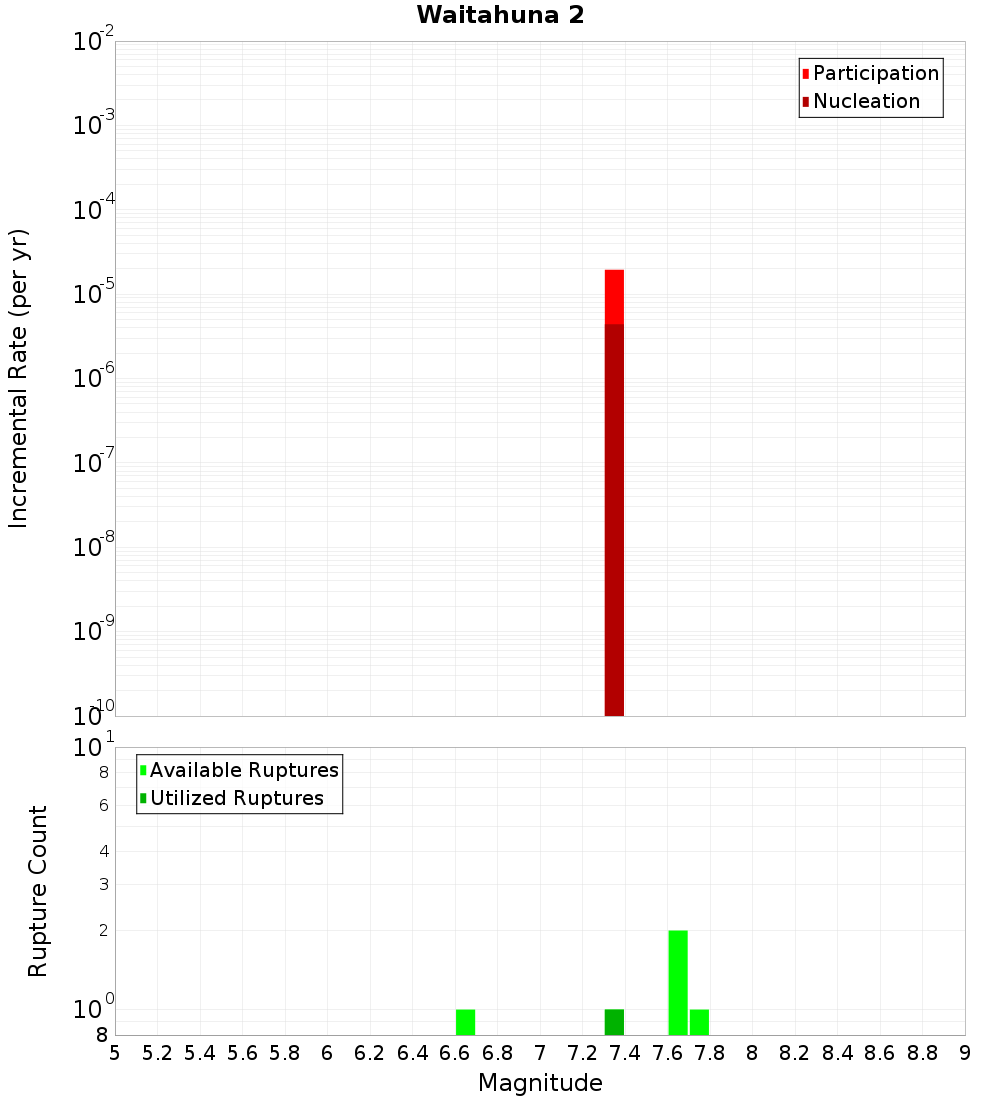

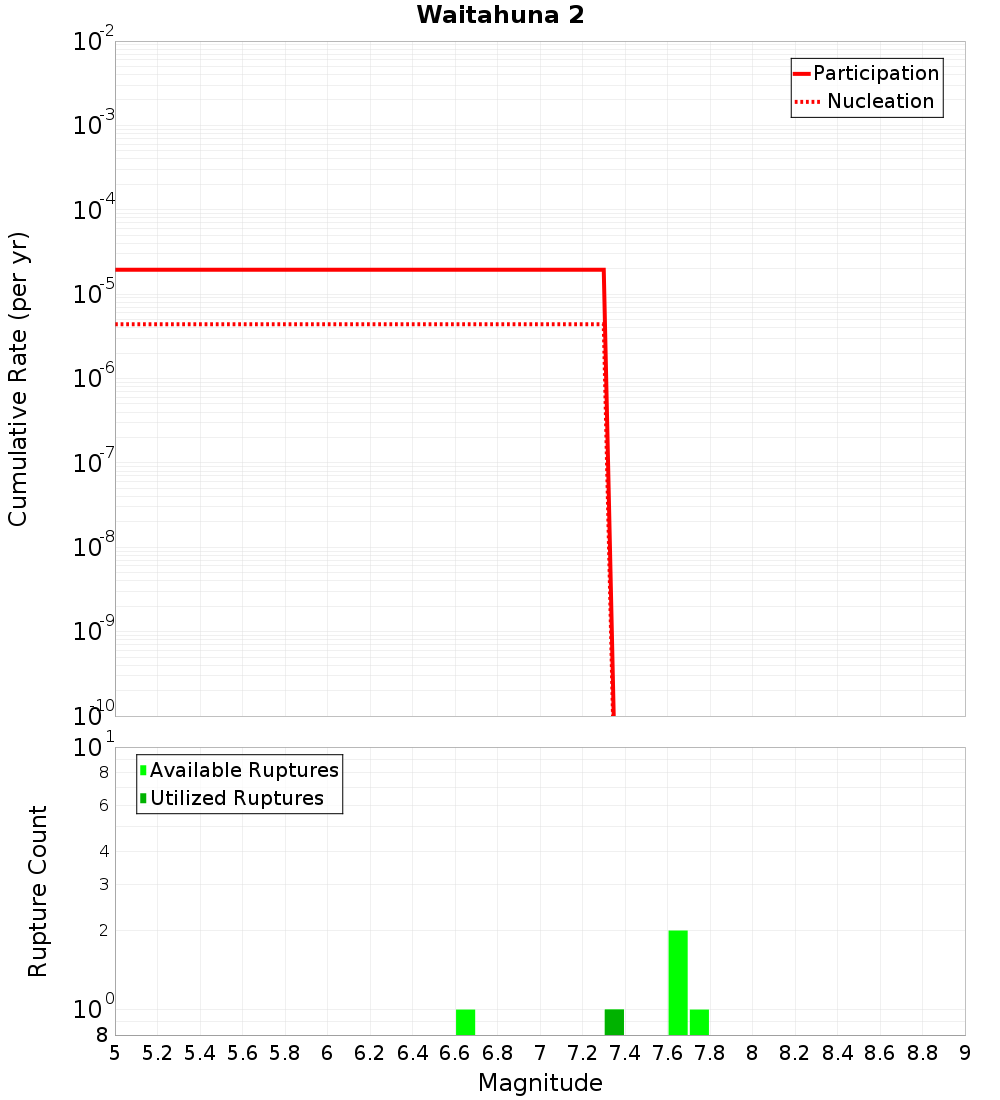

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

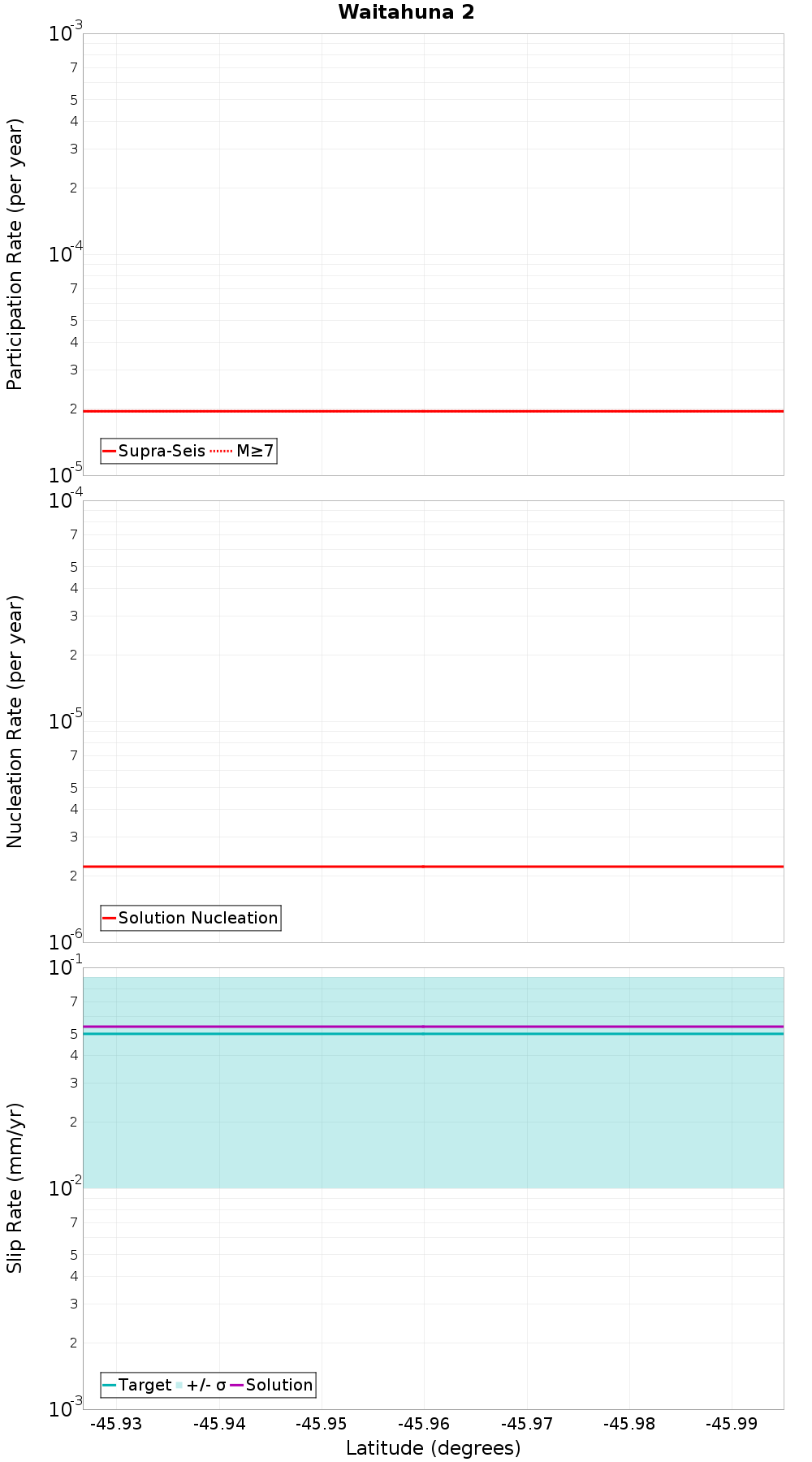

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Maungatua - North Taieri, 1.55 km away
Waitahuna 1, 3.29 km away
Titri Central, 8.3 km away
Tuapeka, 10.05 km away
Titri South, 11.05 km away
Titri North, 11.55 km away
Green Island, 15.74 km away
Akatore, 16.32 km away
Hyde South - The Twins, 18 km away
Nichols Rock, 18.79 km away

Maungatua - North Taieri, 1.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitahuna 1, 3.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Titri Central, 8.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate1.9457962E-5

Tuapeka, 10.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Titri South, 11.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Titri North, 11.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Green Island, 15.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Akatore, 16.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Hyde South - The Twins, 18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Nichols Rock, 18.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM1ODMuMFljQ3ht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
