Matata Details

Property	Value
Rupture Count	9,758
Ruptures Above Sect Min Mag	9,757
Ruptures w/ Nonzero Rates	90
Magnitude Range	[6.55, 8.00]
Length Range	[14, 305] km
Total Rate	3.3778834E-4 /yr
Multi-Fault Rate	3.0528815E-4 /yr (90.38%)
Directly-Connected Faults	5
All Co-Rupturing Faults	53

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

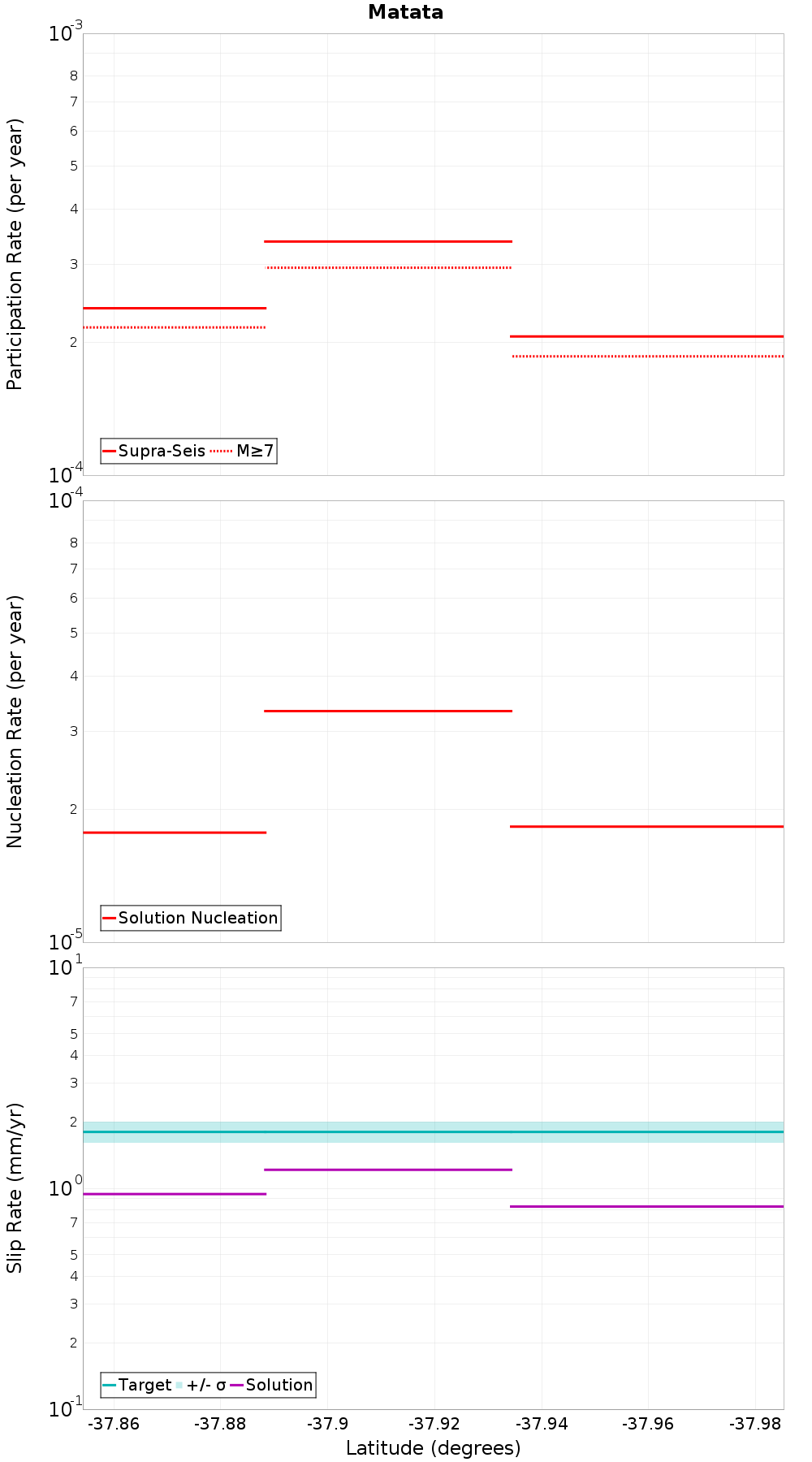

Along-Strike Values

Moment-Rates and b-Values

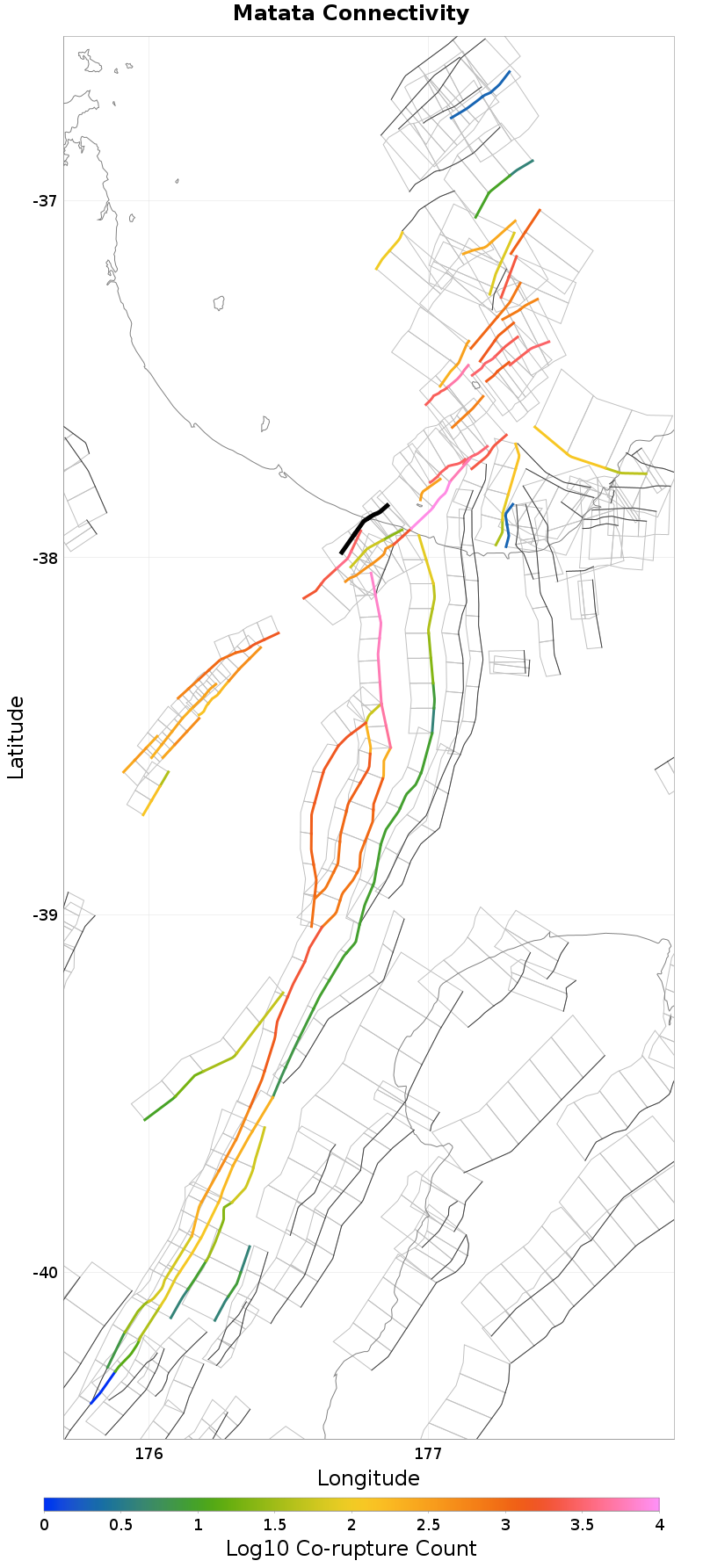

Connectivity

Nearby Sections

Fault Section
Edgecumbe Coastal, 0.14 km away
Awakeri, 0.16 km away
White Island 1, 0.2 km away
Edgecumbe 1987, 0.29 km away
Braemar, 0.98 km away
Whakatane: North, 1.44 km away
Waiohau: North, 2.01 km away
Otakiri, 4.49 km away
Rangitaiki 1, 9.11 km away
Waimana: North, 14.4 km away
Rangitaiki 2, 15.14 km away
Waimanawa - Waikaremoana, 17.19 km away
Waiotahi: North, 18.33 km away

Edgecumbe Coastal, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDYuME5jWTN1
Connected?	true
Directly Connected?	true
Co-rupture Count	1,890
Co-rupture Rate	7.312802E-5

Awakeri, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDYuME5jWTN1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

White Island 1, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDYuME5jWTN1
Connected?	true
Directly Connected?	true
Co-rupture Count	8,545
Co-rupture Rate	1.5105445E-4

Edgecumbe 1987, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDYuME5jWTN1
Connected?	true
Directly Connected?	false
Co-rupture Count	427
Co-rupture Rate	2.00712E-5

Braemar, 0.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDYuME5jWTN1
Connected?	true
Directly Connected?	true
Co-rupture Count	4,074
Co-rupture Rate	2.3536496E-4

Whakatane: North, 1.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDYuME5jWTN1
Connected?	true
Directly Connected?	false
Co-rupture Count	80
Co-rupture Rate	1.8694925E-6

Waiohau: North, 2.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDYuME5jWTN1
Connected?	true
Directly Connected?	true
Co-rupture Count	6,848
Co-rupture Rate	1.01358906E-4

Otakiri, 4.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDYuME5jWTN1
Connected?	true
Directly Connected?	true
Co-rupture Count	58
Co-rupture Rate	1.0531639E-5

Rangitaiki 1, 9.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDYuME5jWTN1
Connected?	true
Directly Connected?	false
Co-rupture Count	304
Co-rupture Rate	3.4909586E-5

Waimana: North, 14.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDYuME5jWTN1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rangitaiki 2, 15.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDYuME5jWTN1
Connected?	true
Directly Connected?	false
Co-rupture Count	2,787
Co-rupture Rate	6.4865264E-5

Waimanawa - Waikaremoana, 17.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDYuME5jWTN1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waiotahi: North, 18.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDYuME5jWTN1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
