Hedgehope Details
| Property | Value |
|---|---|
| Rupture Count | 6 |
| Ruptures Above Sect Min Mag | 5 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [7.15, 7.59] |
| Length Range | [27, 80] km |
| Total Rate | 1.7675748E-5 /yr |
| Multi-Fault Rate | 1.0566112E-6 /yr (5.98%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 1 |
Table Of Contents

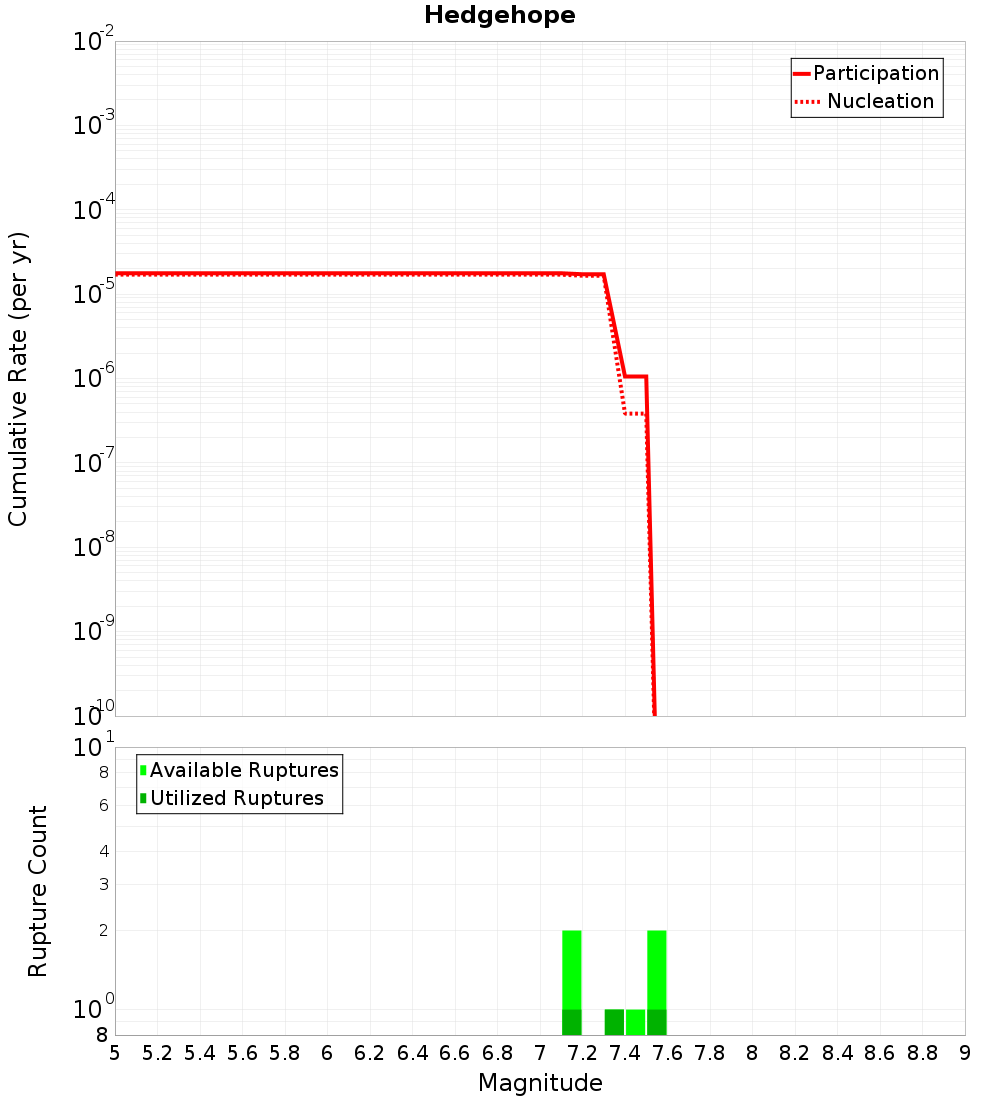

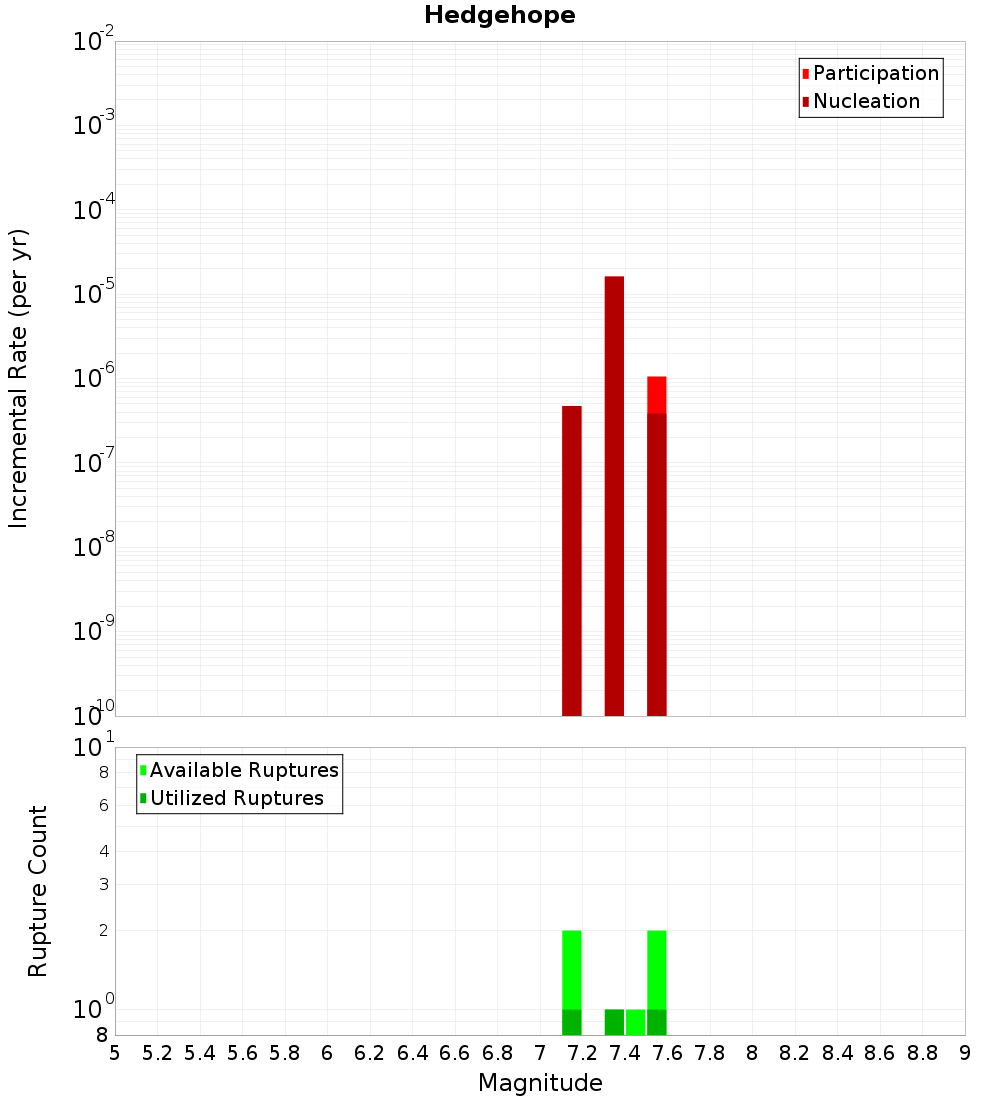

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

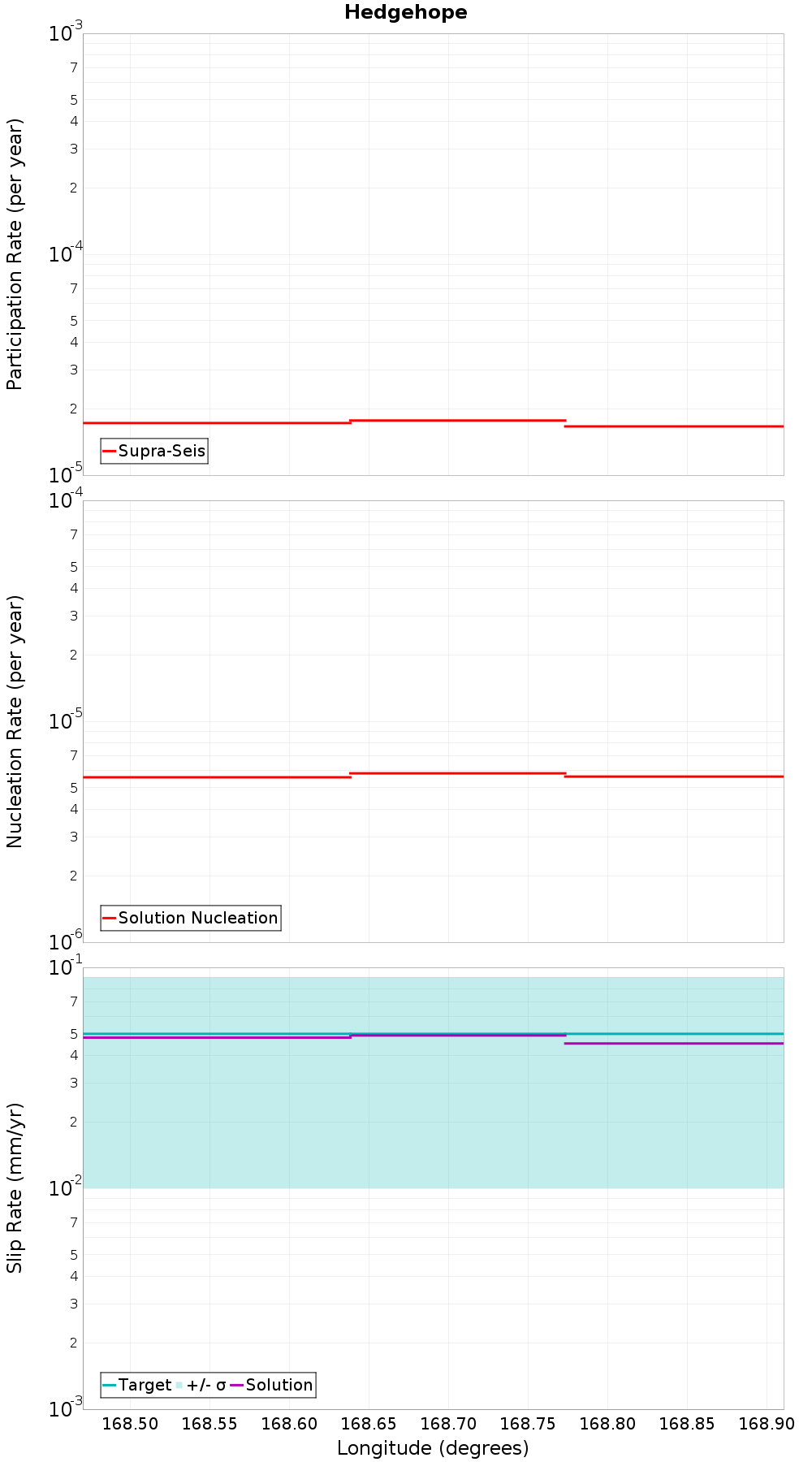

Along-Strike Values

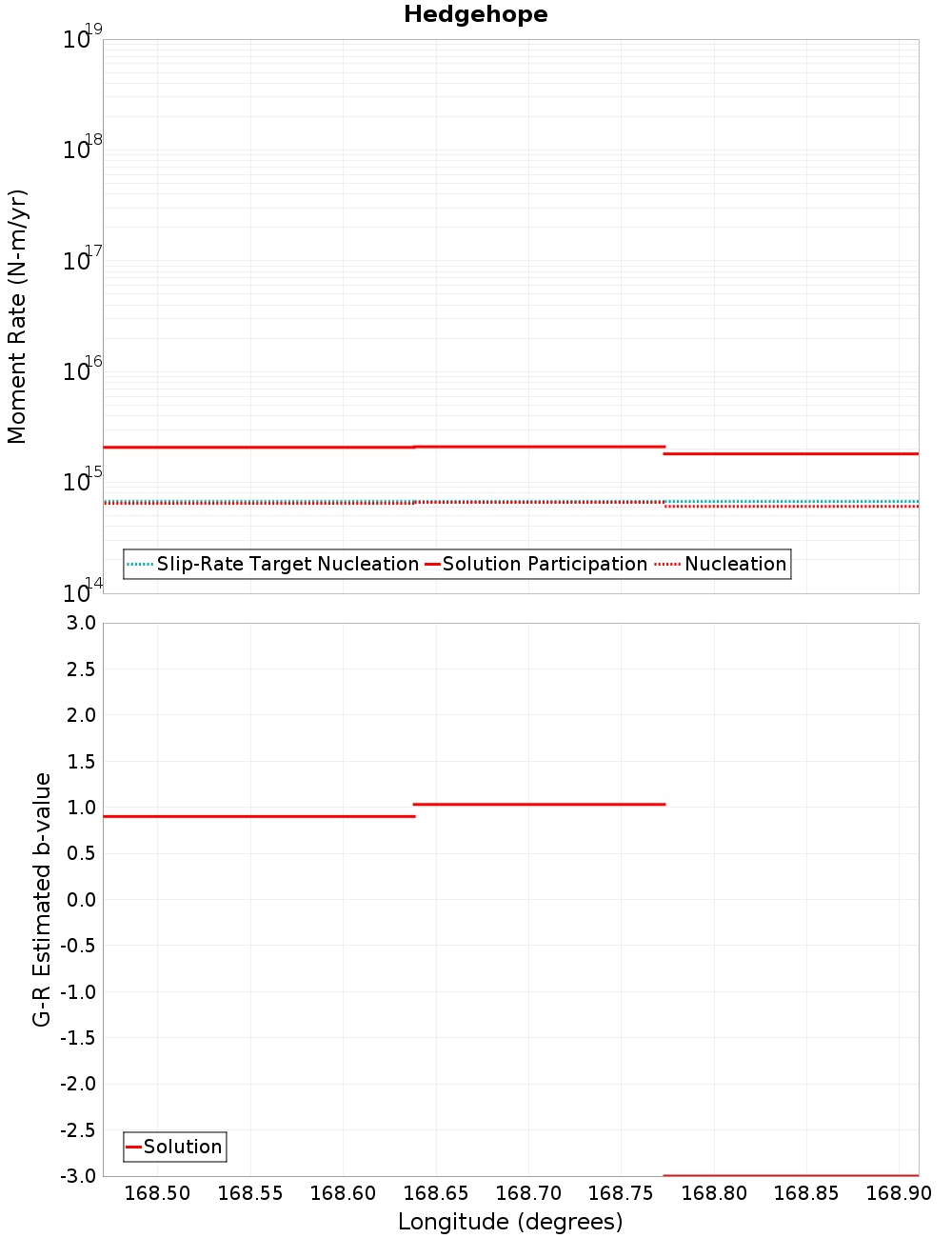

Moment-Rates and b-Values

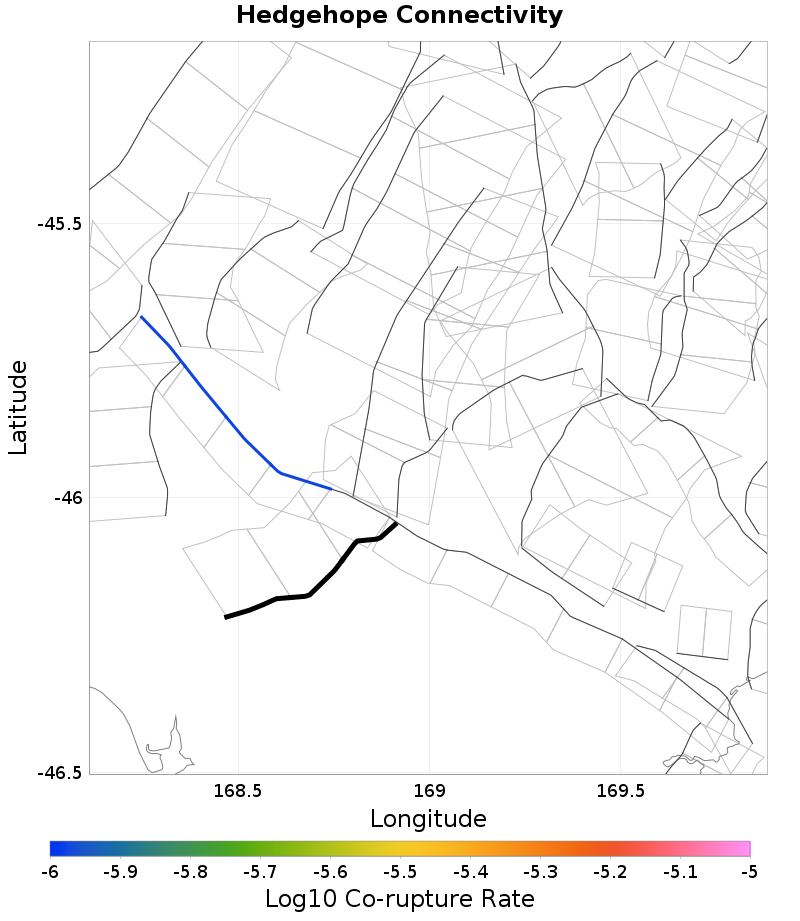

Connectivity
 |  |
|---|
Nearby Sections
Hokonui, 0.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3 |
| Co-rupture Rate | 1.0566112E-6 |
Hillfoot, 0.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waikaka, 0.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waikaia, 0.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wendon Valley, 17.75 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mid Dome, 17.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
White Hill, 18.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Garvie, 19.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Spylaw, 19.53 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
