Pongaroa - Weber Details

Property	Value
Rupture Count	21
Ruptures Above Sect Min Mag	18
Ruptures w/ Nonzero Rates	1
Magnitude Range	[6.55, 7.62]
Length Range	[13, 138] km
Total Rate	1.301305E-4 /yr
Multi-Fault Rate	1.301305E-4 /yr (100.00%)
Directly-Connected Faults	1
All Co-Rupturing Faults	4

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

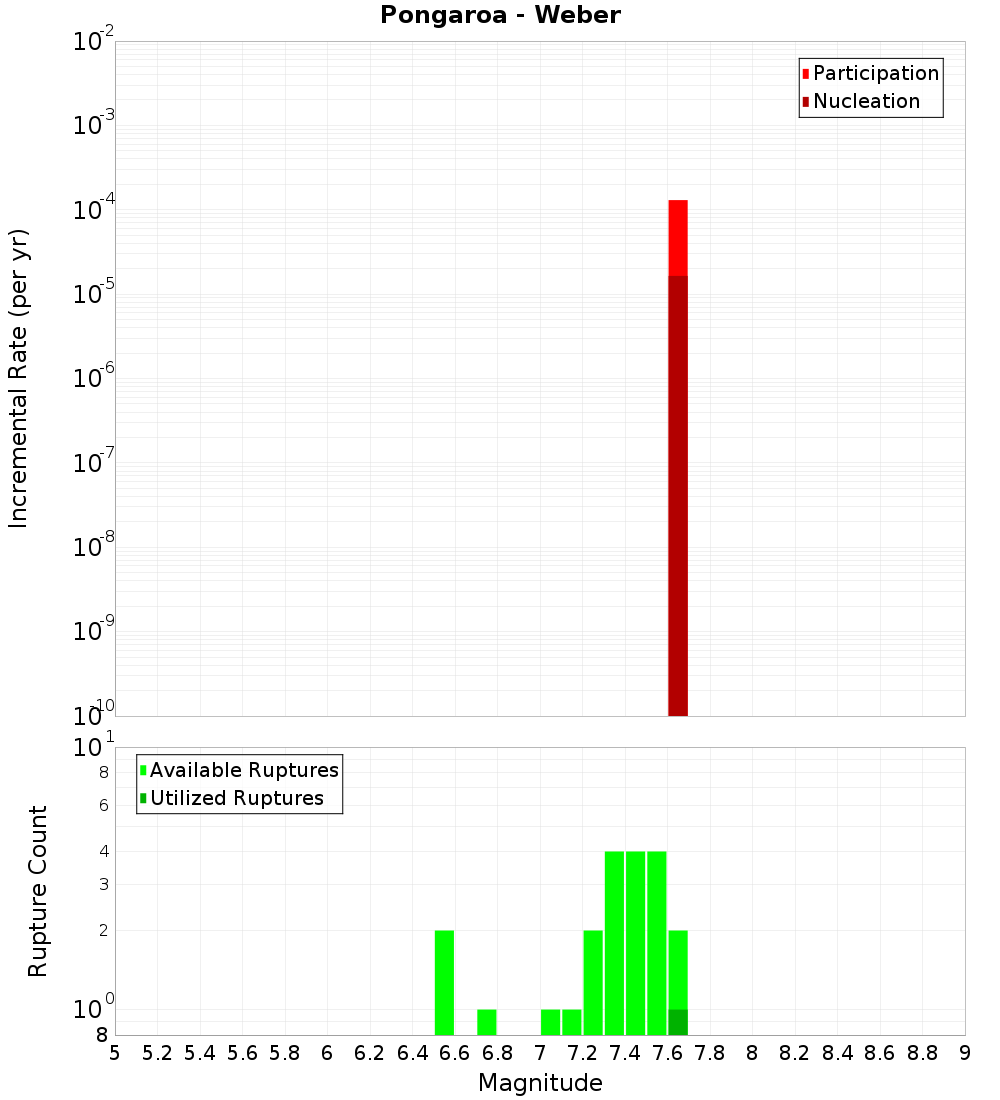

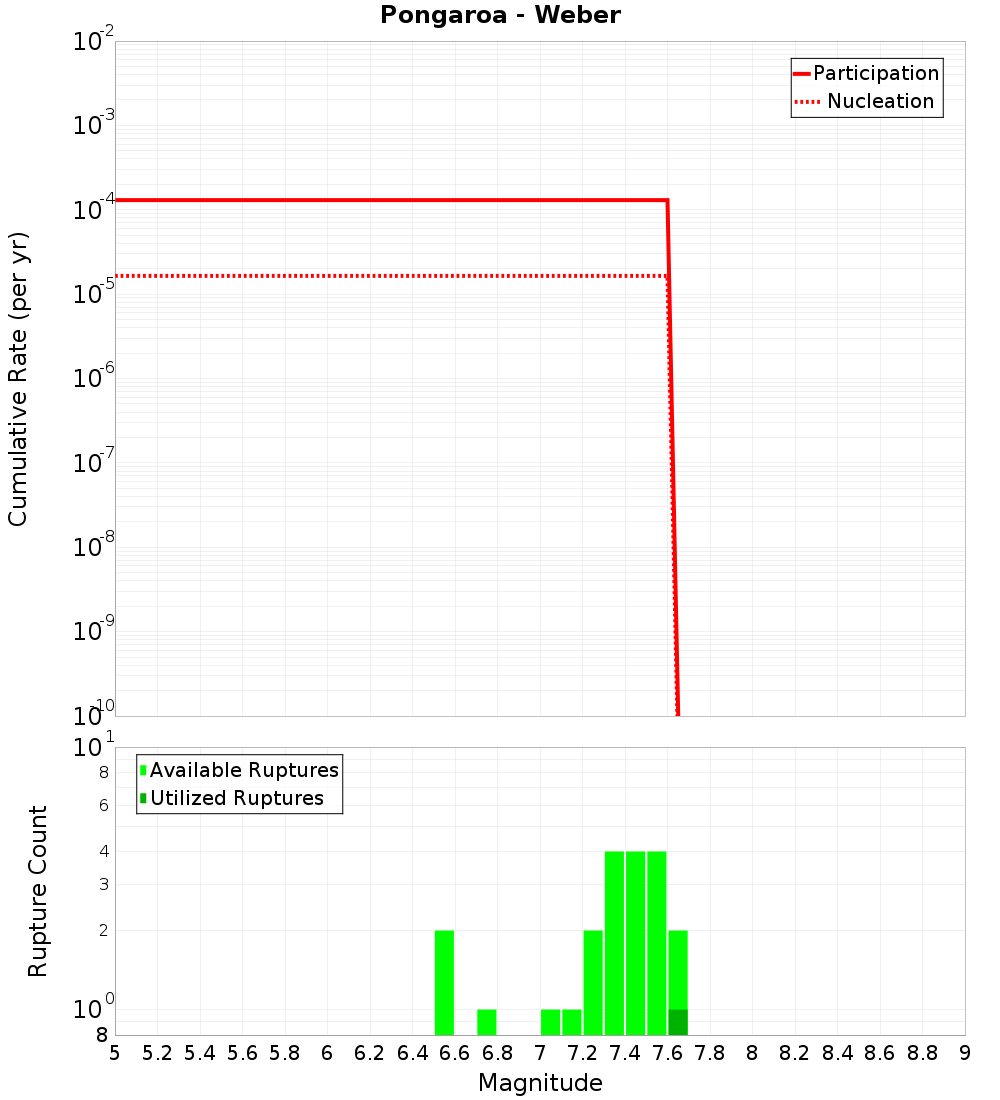

Magnitude-Frequency Distribution

Incremental	Cumulative

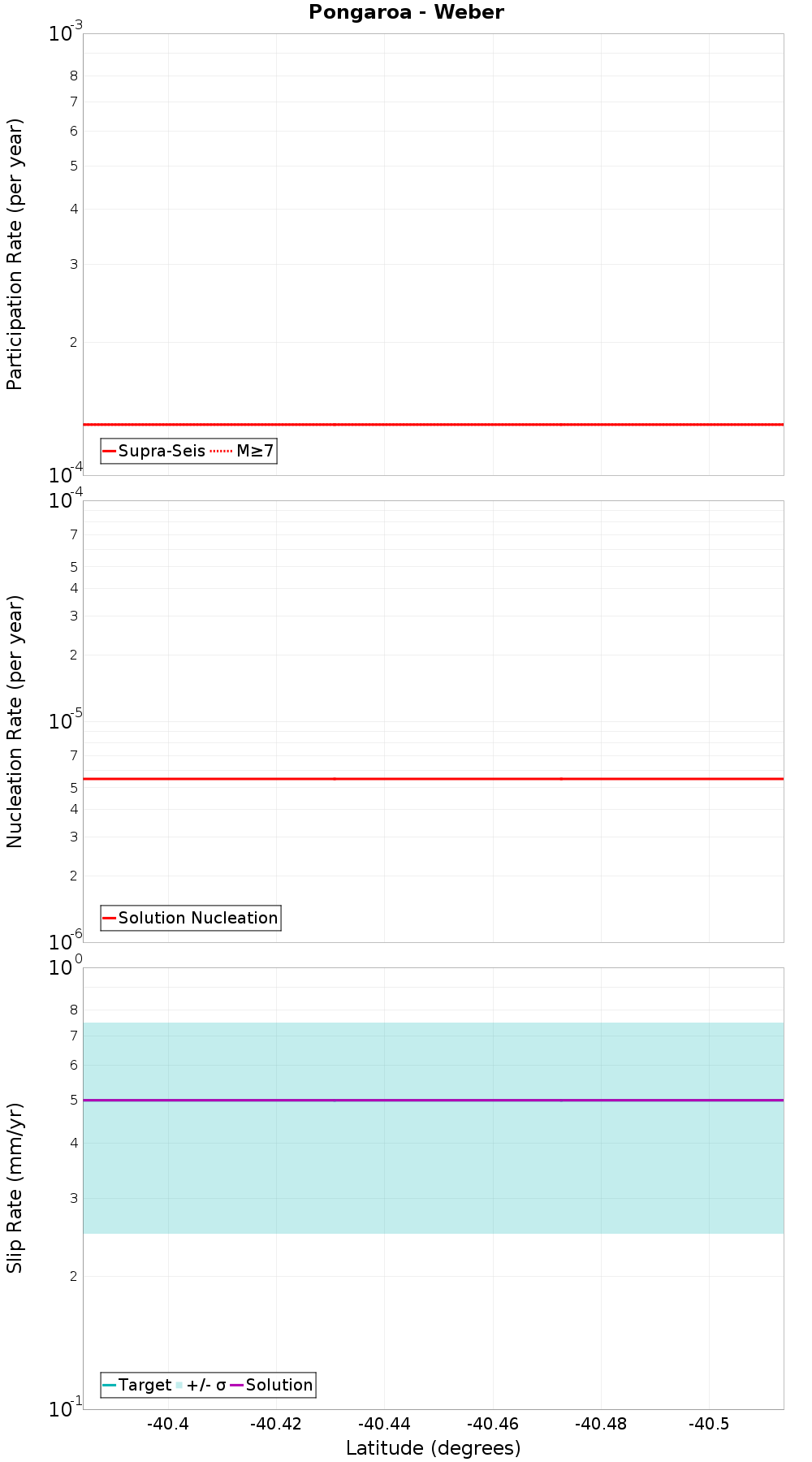

Along-Strike Values

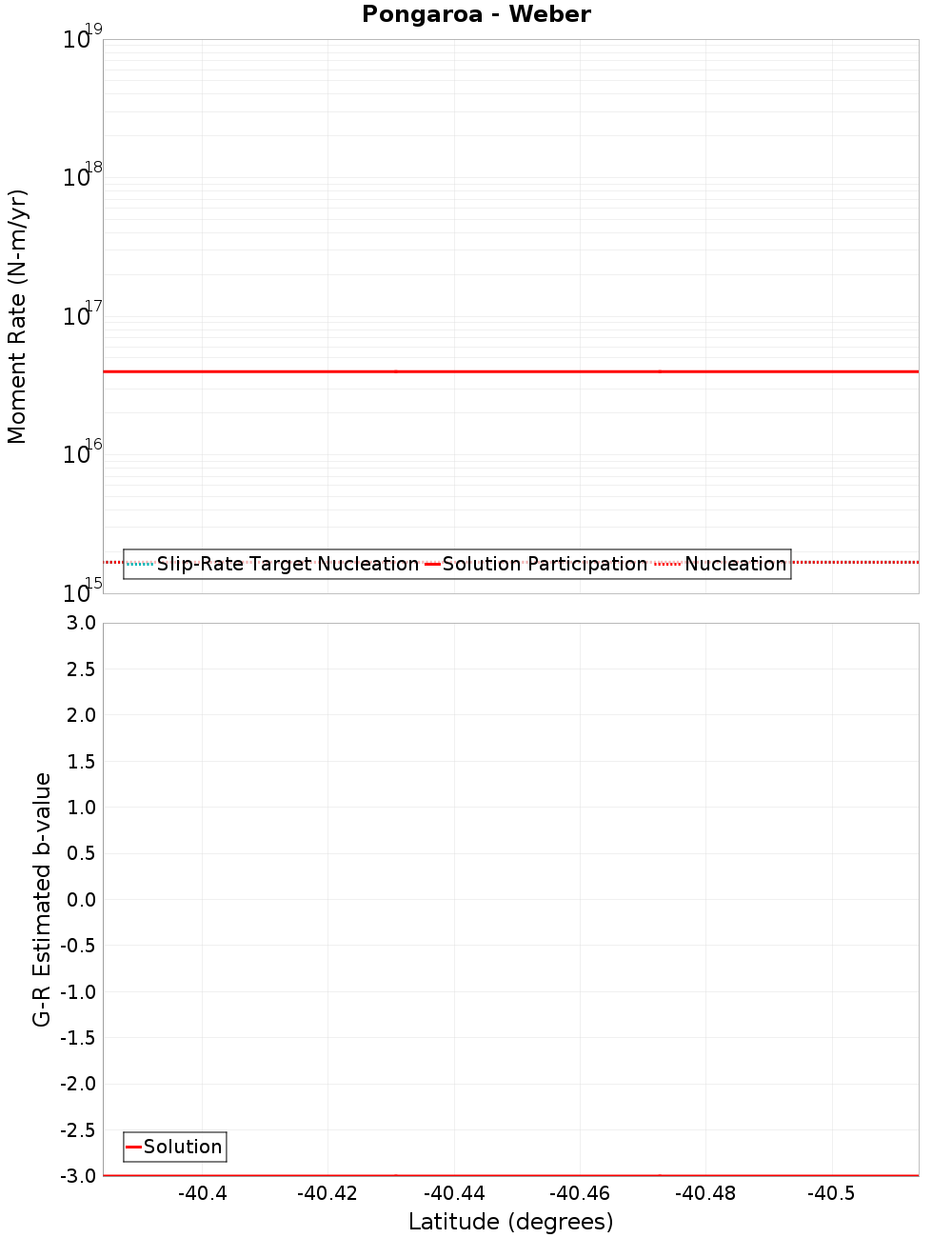

Moment-Rates and b-Values

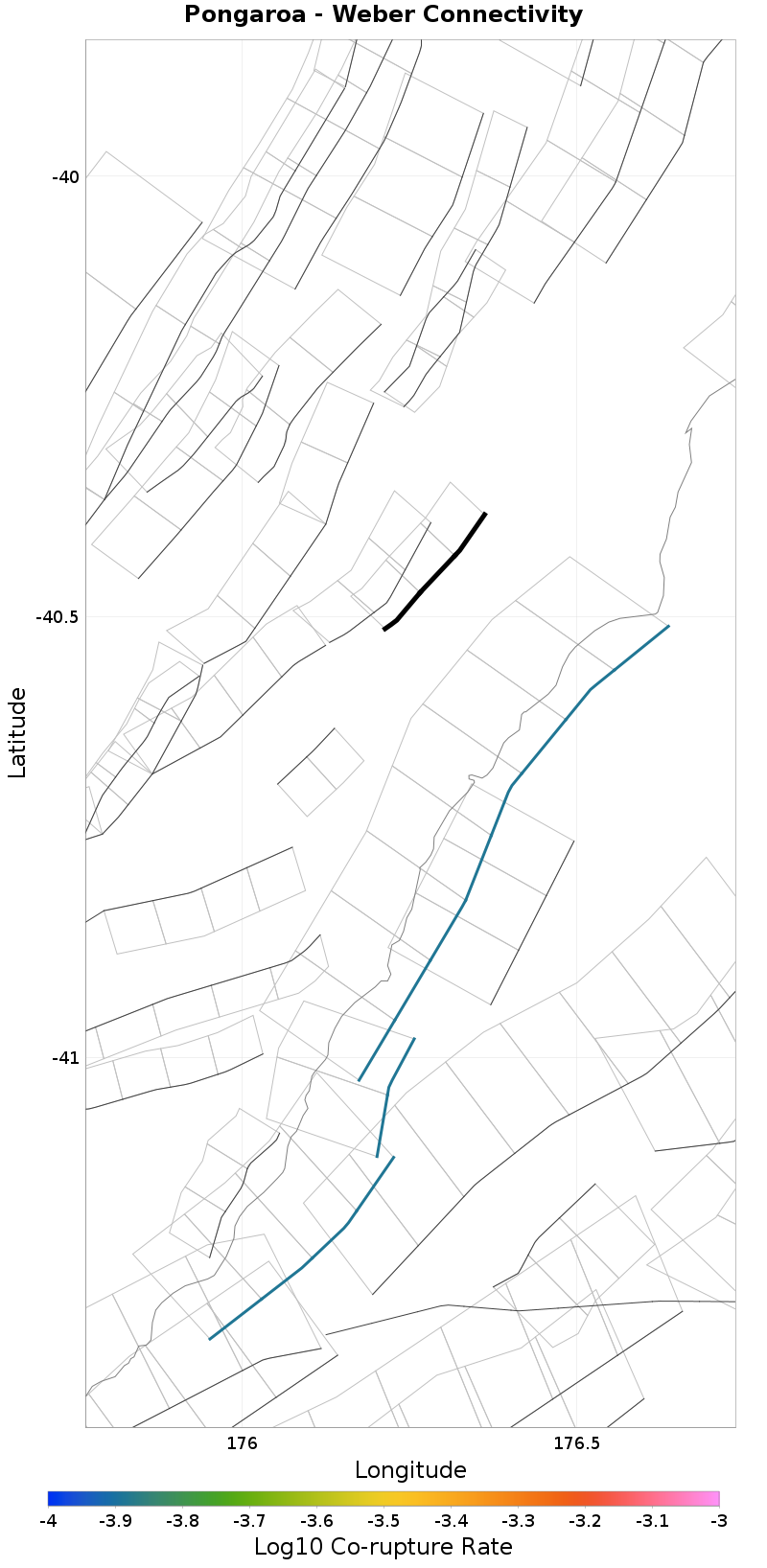

Connectivity

Nearby Sections

Fault Section
Waipukaka, 2.27 km away
Saunders Road, 6.74 km away
Clear Hills - Waikopiro, 9.94 km away
Mataikona, 12.8 km away
Makuri - Waewaepa, 12.83 km away
Waewaepa, 13.65 km away
Waitawhiti, 14.09 km away
Oruawharo - Mangatoro, 14.66 km away

Waipukaka, 2.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Saunders Road, 6.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Clear Hills - Waikopiro, 9.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mataikona, 12.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?	true
Directly Connected?	true
Co-rupture Count	18
Co-rupture Rate	1.301305E-4

Makuri - Waewaepa, 12.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waewaepa, 13.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitawhiti, 14.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Oruawharo - Mangatoro, 14.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
