Waiohau: North Details

PropertyValue
Rupture Count20,345
Ruptures Above Sect Min Mag20,332
Ruptures w/ Nonzero Rates257
Magnitude Range[6.50, 8.27]
Length Range[14, 521] km
Total Rate2.1452607E-4 /yr
Multi-Fault Rate2.1452607E-4 /yr (100.00%)
Directly-Connected Faults10
All Co-Rupturing Faults83

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

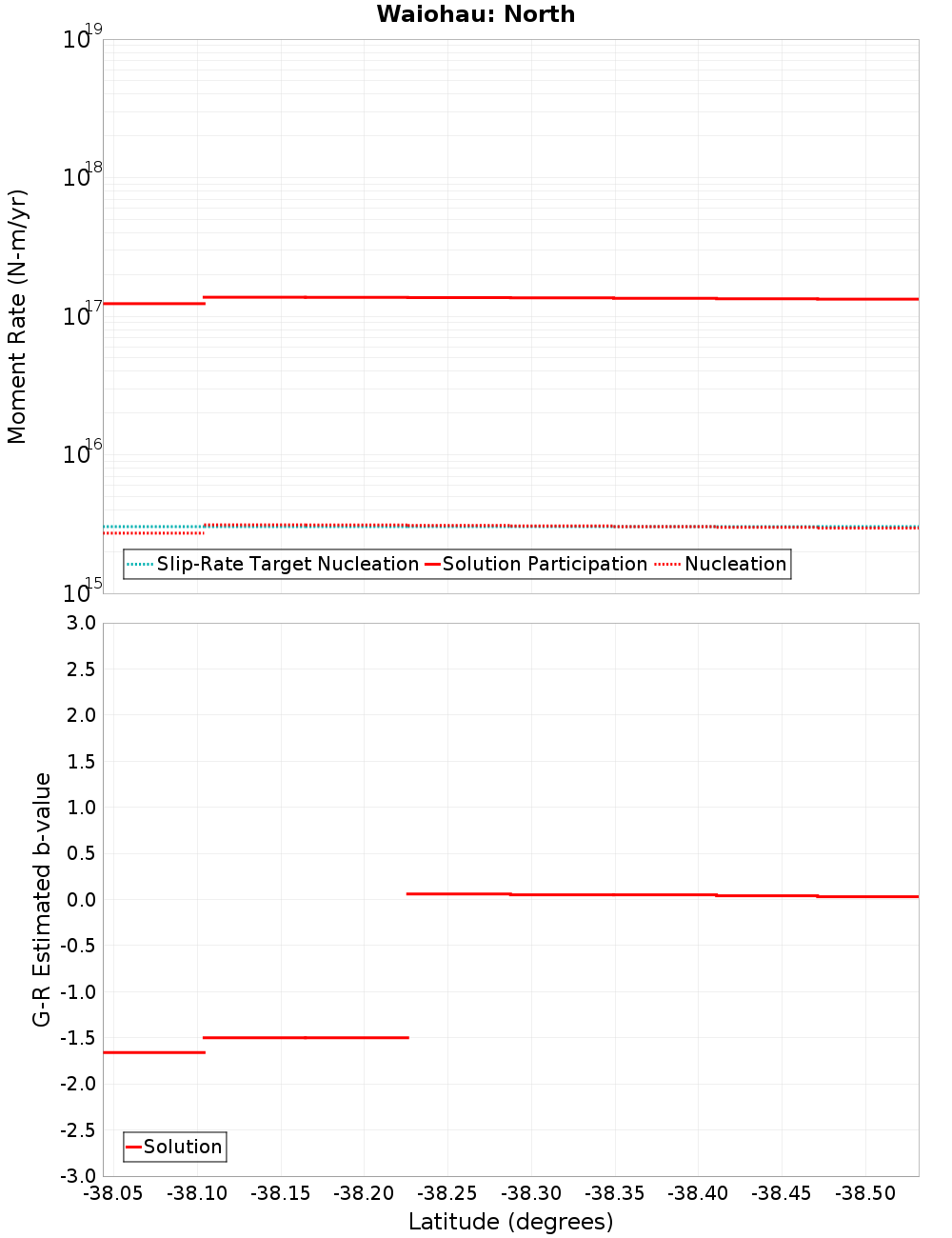

Moment-Rates and b-Values

(top)

Along-strike plot

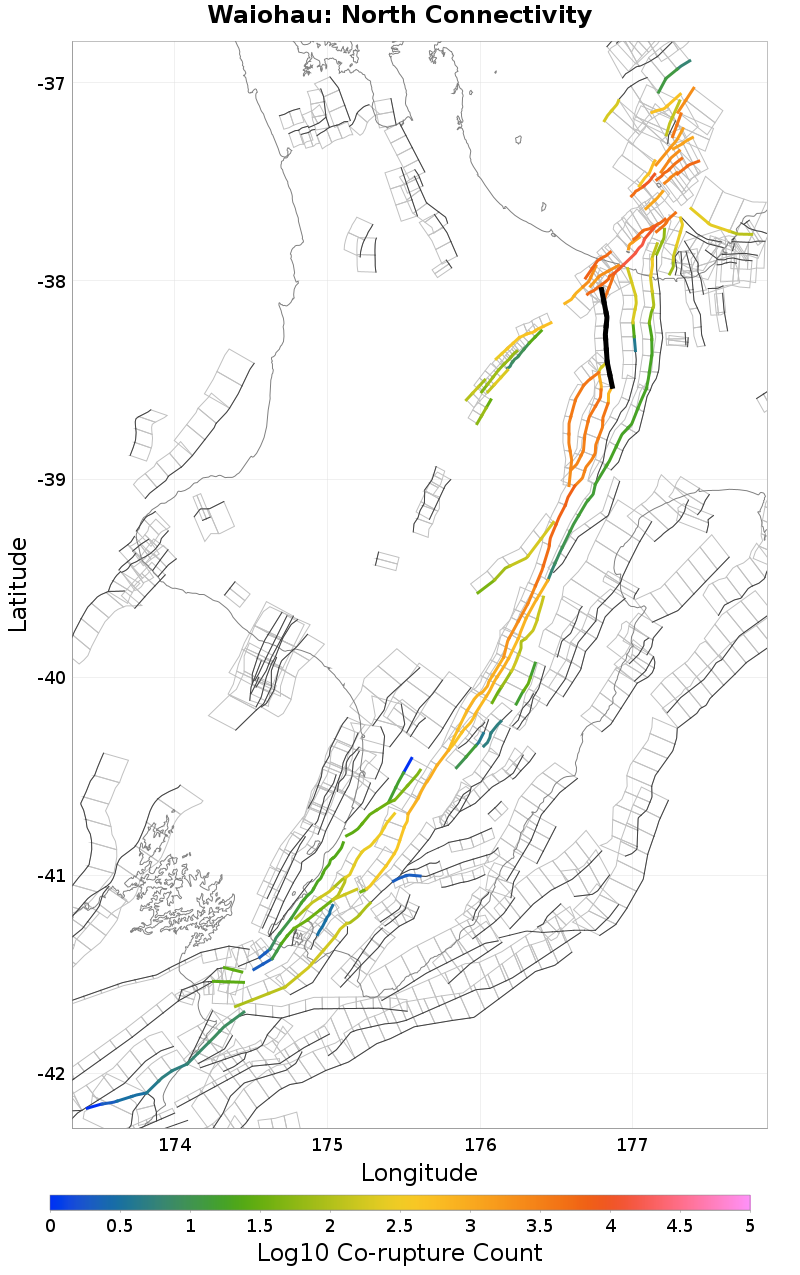

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Waiohau: South, 0 km awayWheao: North, 2.44 km away
Awakeri, 0.13 km awayWhakatane: South, 11.09 km away
Te Whaiti North, 0.16 km awayEdgecumbe Coastal, 11.47 km away
Braemar, 0.22 km awayWheao: South, 11.7 km away
Otakiri, 0.39 km awayWhakatane: North, 12.32 km away
Te Whaiti South, 1.94 km awayWaimana: South, 17.98 km away
Matata, 2.01 km awayWhite Island 1, 18.73 km away
Edgecumbe 1987, 2.18 km awayWaimana: North, 18.89 km away

Waiohau: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?true
Directly Connected?true
Co-rupture Count4,183
Co-rupture Rate1.01217156E-4

Awakeri, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?true
Directly Connected?true
Co-rupture Count4,556
Co-rupture Rate3.101353E-5

Te Whaiti North, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?true
Directly Connected?true
Co-rupture Count173
Co-rupture Rate2.9515631E-6

Braemar, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?true
Directly Connected?true
Co-rupture Count2,847
Co-rupture Rate8.482471E-5

Otakiri, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?true
Directly Connected?true
Co-rupture Count2,166
Co-rupture Rate1.2314104E-5

Te Whaiti South, 1.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?true
Directly Connected?true
Co-rupture Count4,629
Co-rupture Rate1.5125447E-5

Matata, 2.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?true
Directly Connected?true
Co-rupture Count6,840
Co-rupture Rate9.8675395E-5

Edgecumbe 1987, 2.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?true
Directly Connected?true
Co-rupture Count5,717
Co-rupture Rate9.884674E-5

Wheao: North, 2.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?true
Directly Connected?true
Co-rupture Count4,047
Co-rupture Rate4.7227993E-5

Whakatane: South, 11.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Edgecumbe Coastal, 11.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?true
Directly Connected?false
Co-rupture Count8,924
Co-rupture Rate1.06251646E-4

Wheao: South, 11.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?true
Directly Connected?false
Co-rupture Count3,715
Co-rupture Rate4.7227993E-5

Whakatane: North, 12.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?true
Directly Connected?true
Co-rupture Count230
Co-rupture Rate7.969961E-9

Waimana: South, 17.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate0.0

White Island 1, 18.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?true
Directly Connected?false
Co-rupture Count14,707
Co-rupture Rate1.2461636E-4

Waimana: North, 18.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?true
Directly Connected?false
Co-rupture Count309
Co-rupture Rate0.0
