Whakatane: South Details

PropertyValue
Rupture Count7,197
Ruptures Above Sect Min Mag7,195
Ruptures w/ Nonzero Rates16
Magnitude Range[7.04, 8.56]
Length Range[26, 994] km
Total Rate3.9074637E-4 /yr
Multi-Fault Rate3.9074637E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults93

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

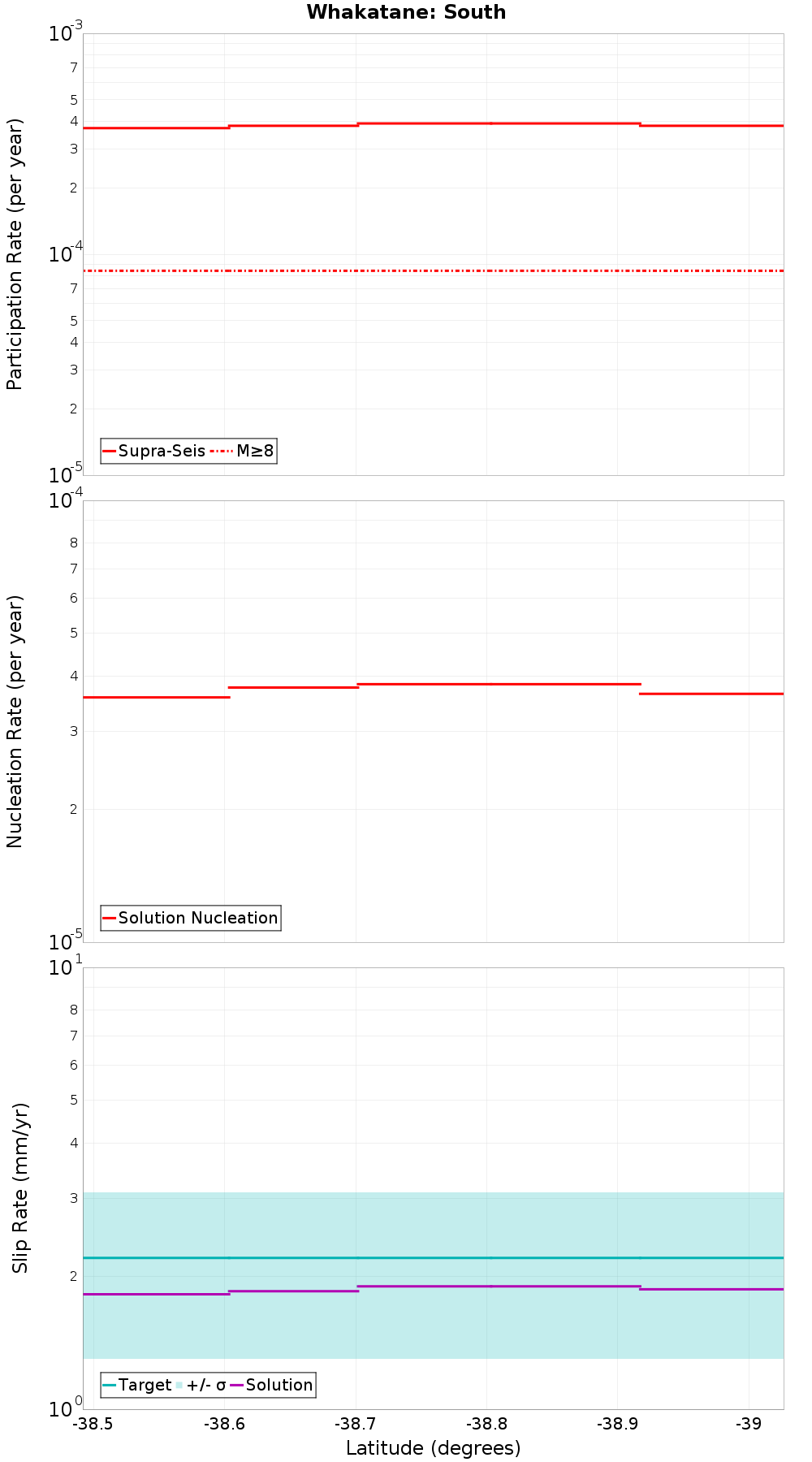

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

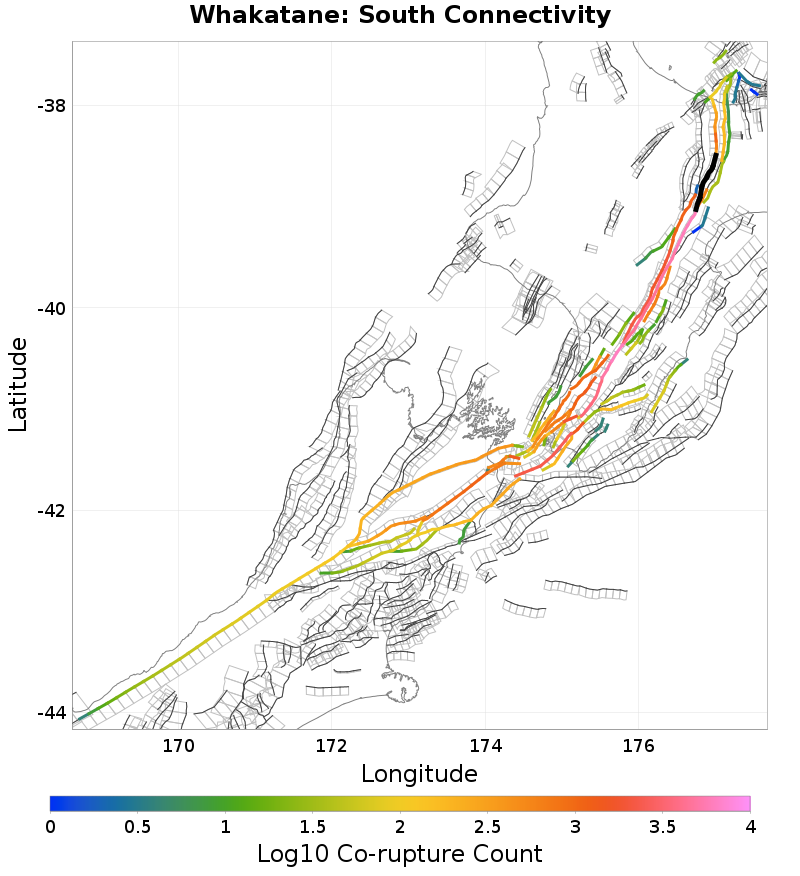

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waimana: South, 0 km away
Whakatane: North, 0 km away
Mohaka: North, 0 km away
Waiohau: South, 4.67 km away
Waimana: North, 5.63 km away
Waiotahi: South, 5.93 km away
Waiotahi: North, 10.09 km away
Waiohau: North, 11.09 km away
Ruahine: North, 11.52 km away
Te Whaiti South, 11.9 km away
Patoka - Rangiora, 12.36 km away
Wheao: South, 14.52 km away
Te Whaiti North, 18 km away
Awanui, 18.5 km away

Waimana: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?true
Directly Connected?true
Co-rupture Count619
Co-rupture Rate9.275327E-6

Whakatane: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?true
Directly Connected?true
Co-rupture Count1,039
Co-rupture Rate2.3947742E-4

Mohaka: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?true
Directly Connected?true
Co-rupture Count5,964
Co-rupture Rate9.3409E-5

Waiohau: South, 4.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?true
Directly Connected?true
Co-rupture Count1,179
Co-rupture Rate7.4579984E-5

Waimana: North, 5.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?true
Directly Connected?true
Co-rupture Count197
Co-rupture Rate1.1353619E-4

Waiotahi: South, 5.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?true
Directly Connected?false
Co-rupture Count36
Co-rupture Rate9.280857E-6

Waiotahi: North, 10.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate9.280857E-6

Waiohau: North, 11.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ruahine: North, 11.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?true
Directly Connected?false
Co-rupture Count2,006
Co-rupture Rate1.2018602E-4

Te Whaiti South, 11.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Patoka - Rangiora, 12.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Wheao: South, 14.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Whaiti North, 18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awanui, 18.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MDcuMFpTaFl1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
