Akatarawa Details

Property	Value
Rupture Count	5,470
Ruptures Above Sect Min Mag	5,469
Ruptures w/ Nonzero Rates	10
Magnitude Range	[6.69, 8.29]
Length Range	[15, 521] km
Total Rate	1.4560082E-4 /yr
Multi-Fault Rate	1.4560082E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	47

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

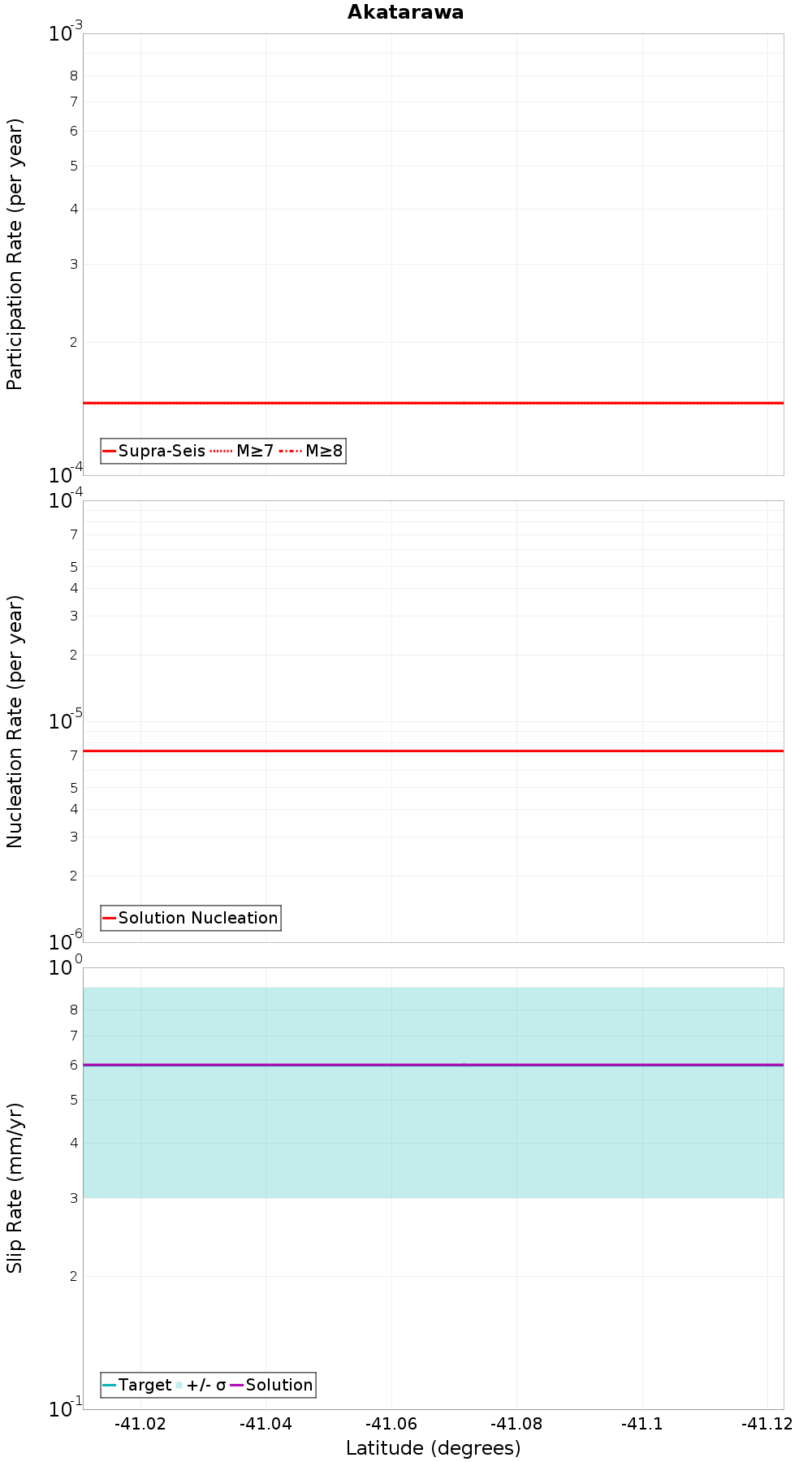

Along-Strike Values

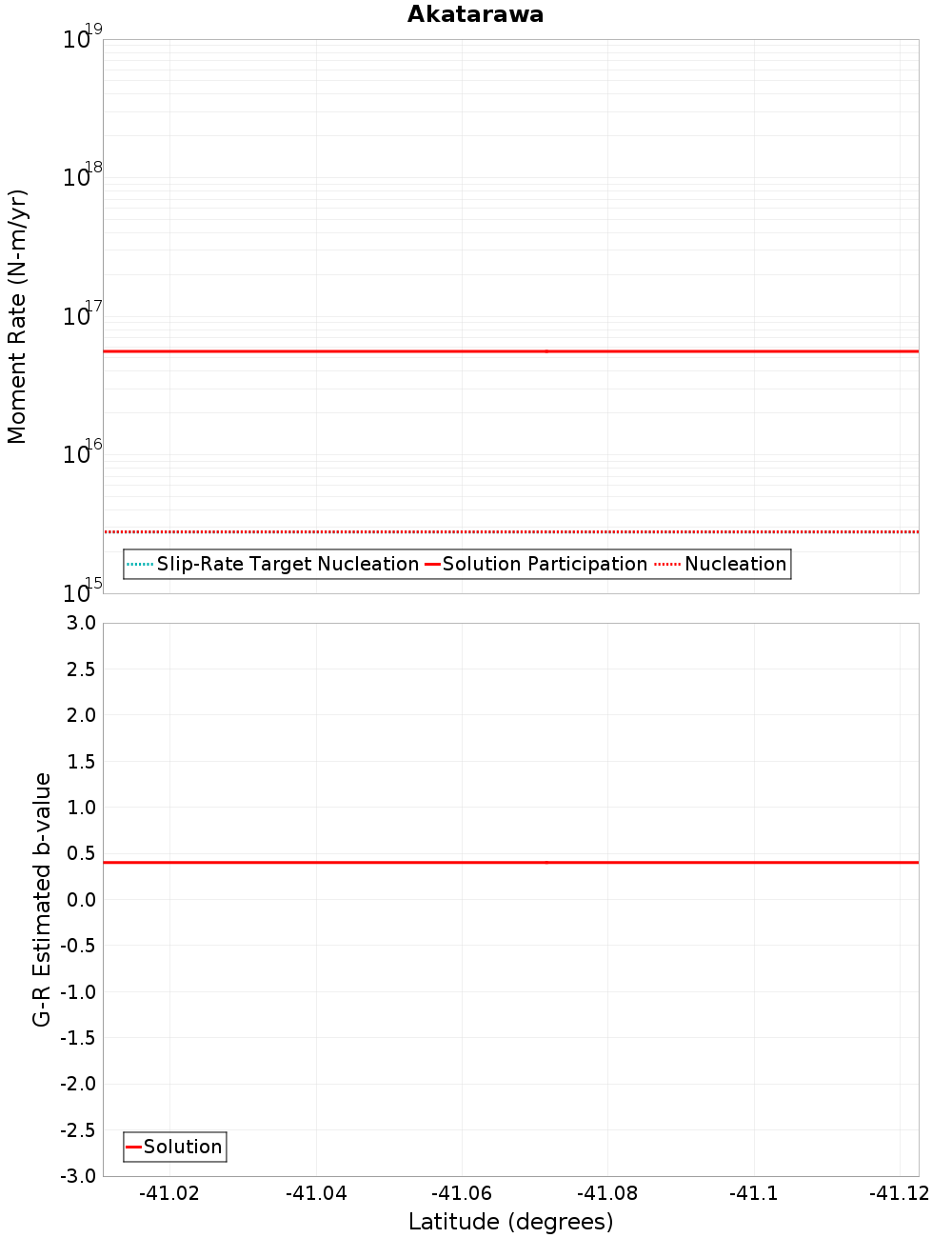

Moment-Rates and b-Values

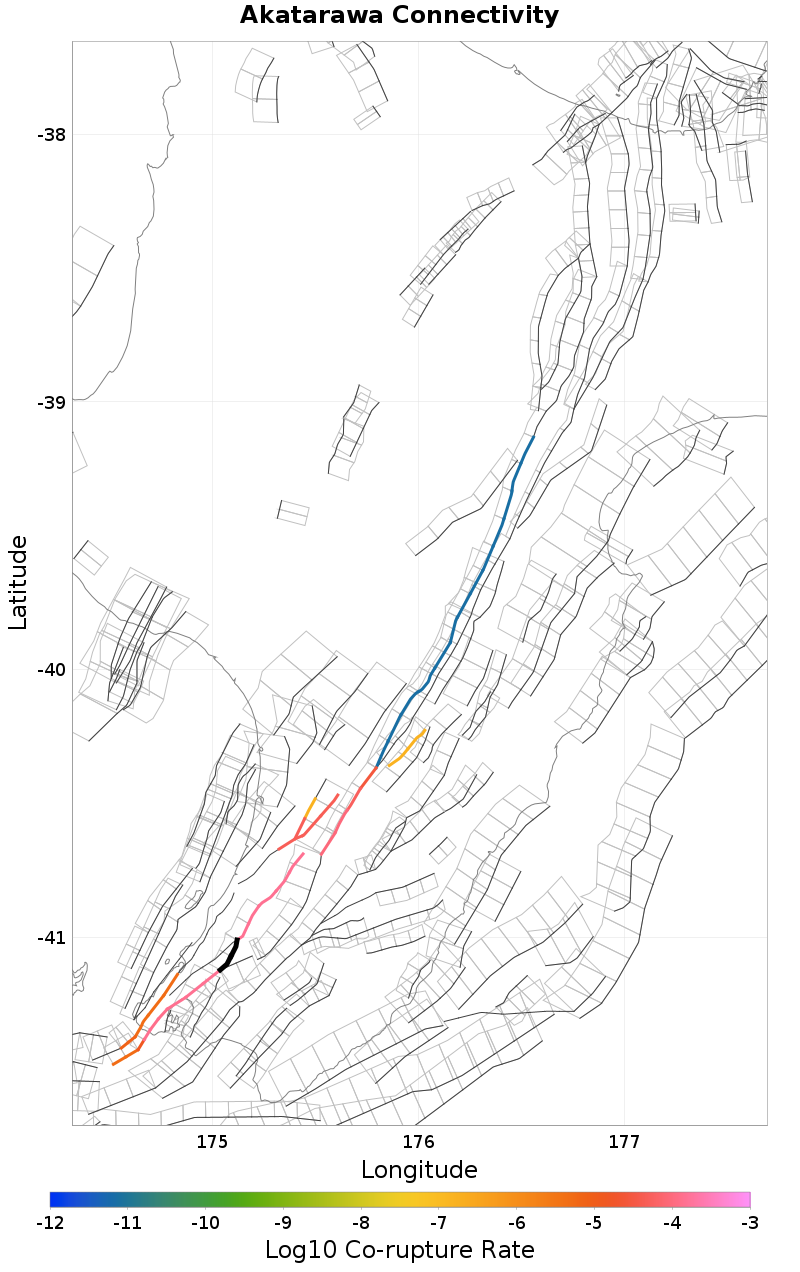

Connectivity

Nearby Sections

Fault Section
Wellington Hutt Valley: 5, 0 km away
Otaki Forks: 1, 0 km away
Moonshine, 0 km away
Wellington Hutt Valley: 4, 0.01 km away
Whitemans Valley, 3.01 km away
Ohariu, 6.24 km away
Wharekauhau, 6.44 km away
Wellington: Tararua 1, 9.17 km away
Pukerua - Shepherds Gully: 3, 10.58 km away
Wellington: Tararua 2, 10.96 km away
Wairarapa: 1, 12.63 km away
Wairarapa: 2, 12.78 km away
Otaki Forks: 2, 16.75 km away

Wellington Hutt Valley: 5, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	false
Co-rupture Count	46
Co-rupture Rate	0.0

Otaki Forks: 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	true
Co-rupture Count	5,460
Co-rupture Rate	1.4560082E-4

Moonshine, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	true
Co-rupture Count	2,780
Co-rupture Rate	0.0

Wellington Hutt Valley: 4, 0.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	true
Co-rupture Count	1,901
Co-rupture Rate	1.4560082E-4

Whitemans Valley, 3.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	false
Co-rupture Count	103
Co-rupture Rate	0.0

Ohariu, 6.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	false
Co-rupture Count	460
Co-rupture Rate	4.8073425E-6

Wharekauhau, 6.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	false
Co-rupture Count	505
Co-rupture Rate	0.0

Wellington: Tararua 1, 9.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pukerua - Shepherds Gully: 3, 10.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington: Tararua 2, 10.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairarapa: 1, 12.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairarapa: 2, 12.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otaki Forks: 2, 16.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	false
Co-rupture Count	5,390
Co-rupture Rate	1.4560082E-4
