Lake Heron Details

PropertyValue
Rupture Count26
Ruptures Above Sect Min Mag23
Ruptures w/ Nonzero Rates9
Magnitude Range[6.79, 8.11]
Length Range[18, 345] km
Total Rate4.5879037E-4 /yr
Multi-Fault Rate2.8091145E-4 /yr (61.23%)
Directly-Connected Faults2
All Co-Rupturing Faults10

Table Of Contents

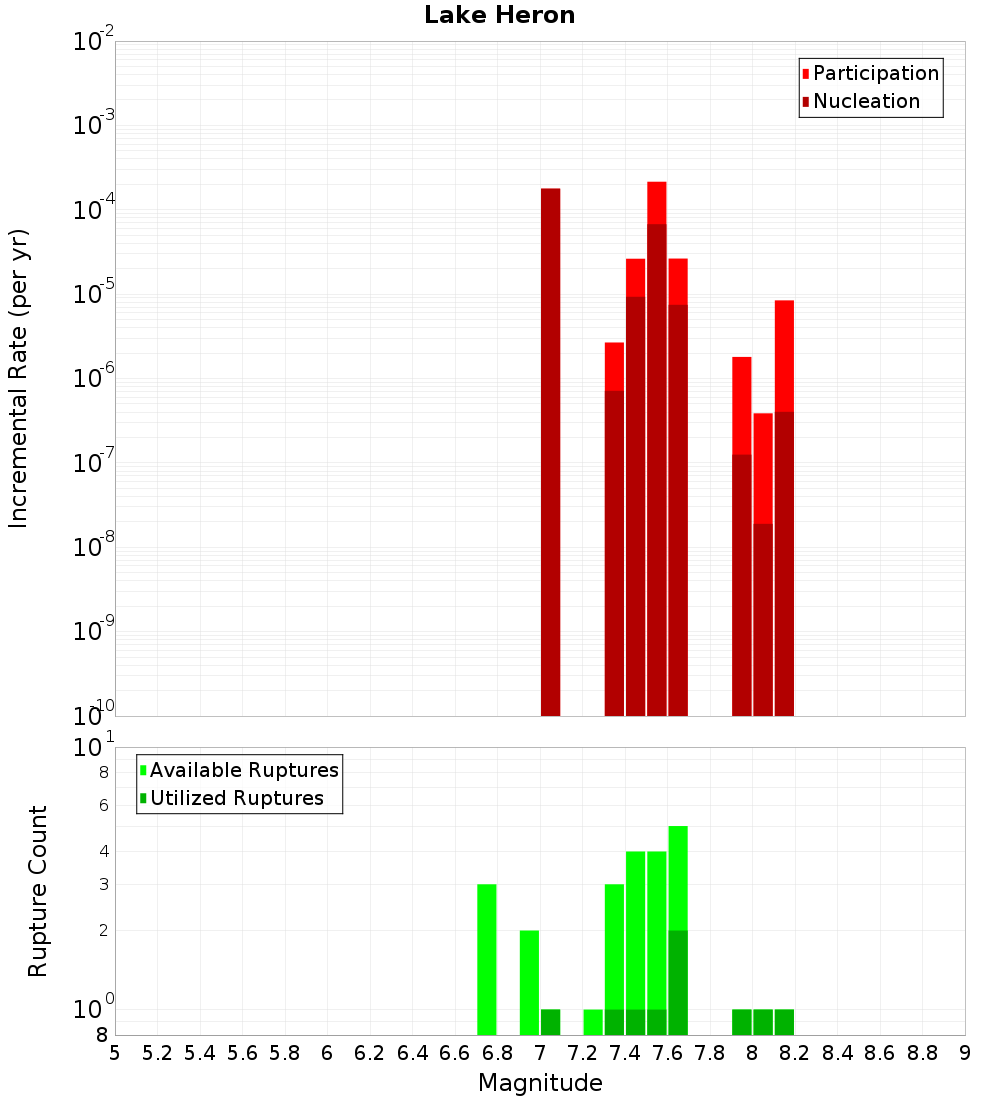

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

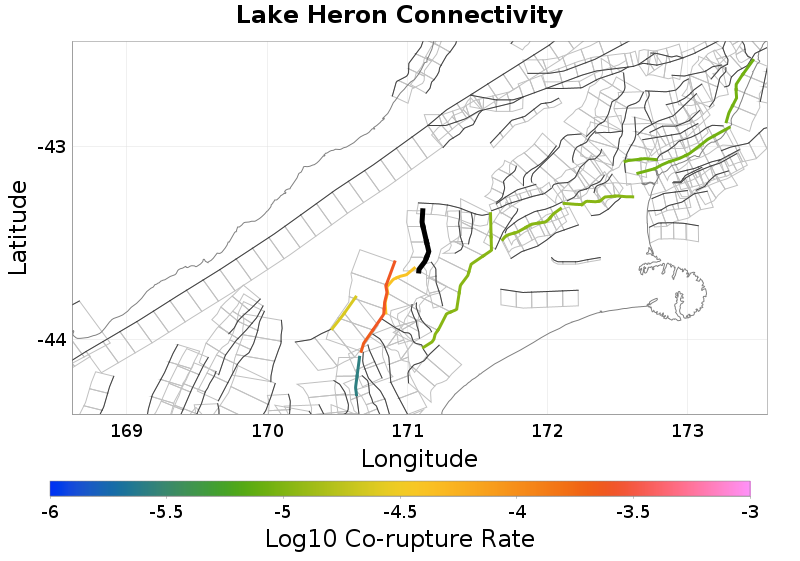

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ben McLeod, 0.47 km away
Double Hill, 1.64 km away
Klondyke Moor, 3.5 km away
Hutt Peel, 12.22 km away
Fox Peak, 13.35 km away
North Branch, 14.3 km away
Alpine: Jacksons to Kaniere, 17.93 km away
Edith, 18.52 km away
Catherine, 19.66 km away

Ben McLeod, 0.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate3.9576807E-5

Double Hill, 1.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Klondyke Moor, 3.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hutt Peel, 12.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate1.0623974E-5

Fox Peak, 13.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?true
Directly Connected?true
Co-rupture Count14
Co-rupture Rate2.4133465E-4

North Branch, 14.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alpine: Jacksons to Kaniere, 17.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Edith, 18.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Catherine, 19.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
