Motu o Kura Ridge Details

PropertyValue
Rupture Count1,747
Ruptures Above Sect Min Mag1,743
Ruptures w/ Nonzero Rates35
Magnitude Range[6.69, 8.26]
Length Range[17, 562] km
Total Rate4.5421097E-4 /yr
Multi-Fault Rate3.1968835E-4 /yr (70.38%)
Directly-Connected Faults3
All Co-Rupturing Faults25

Table Of Contents

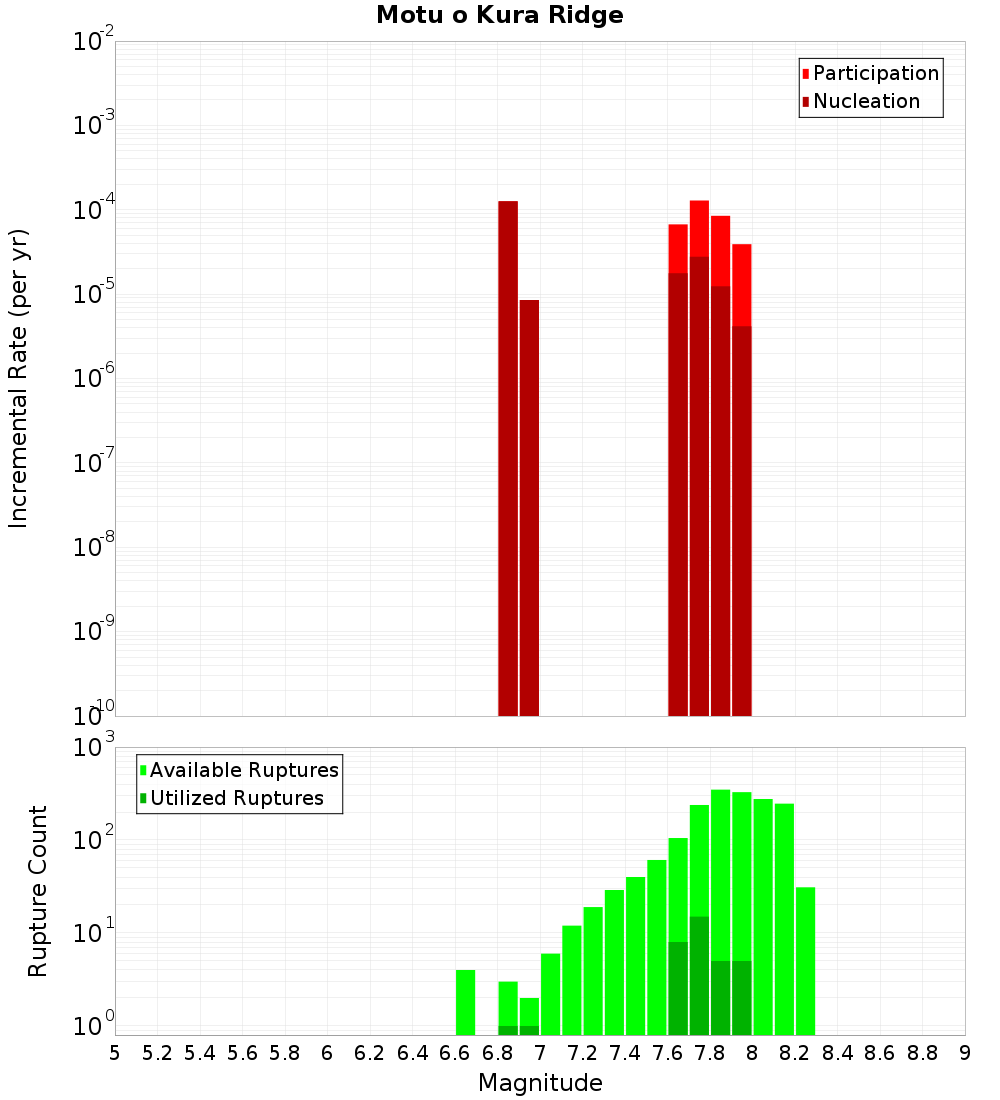

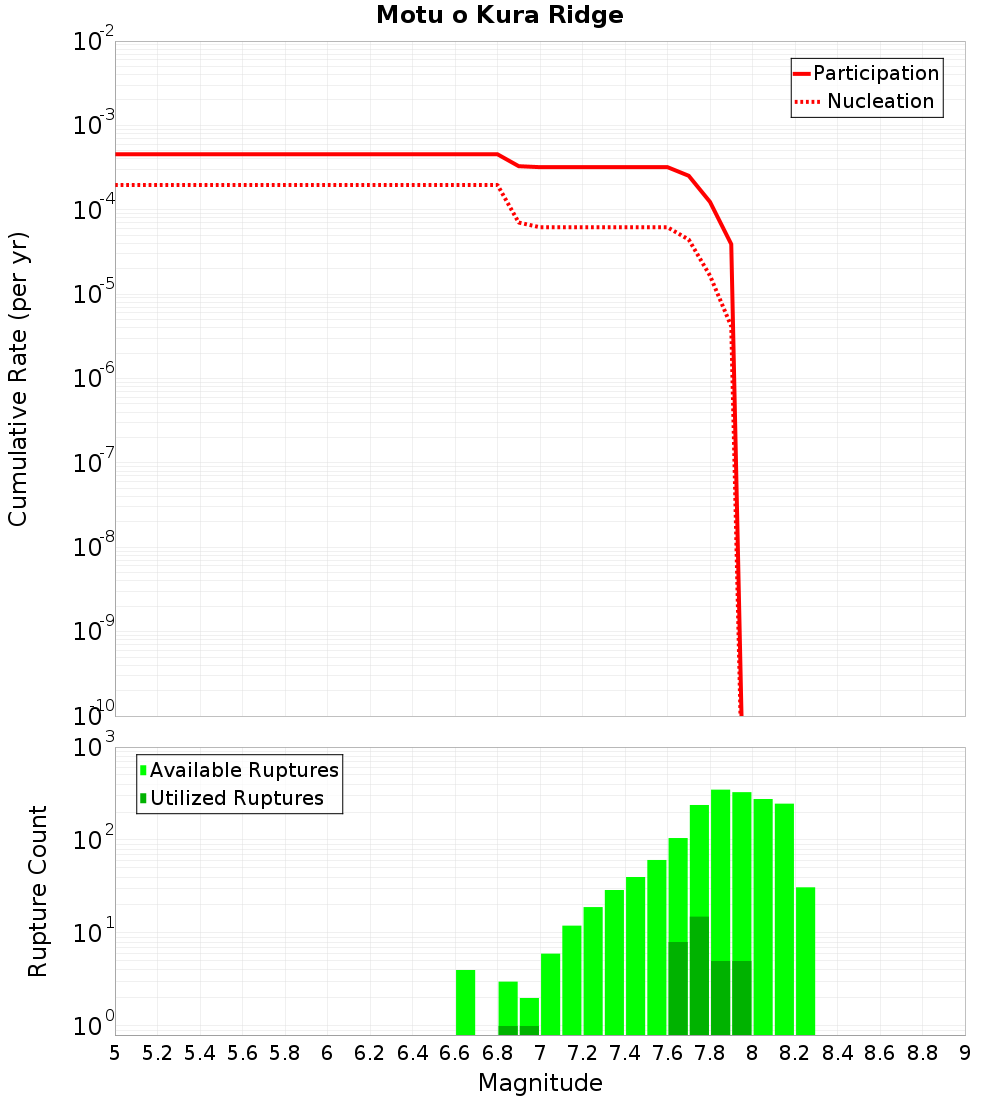

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

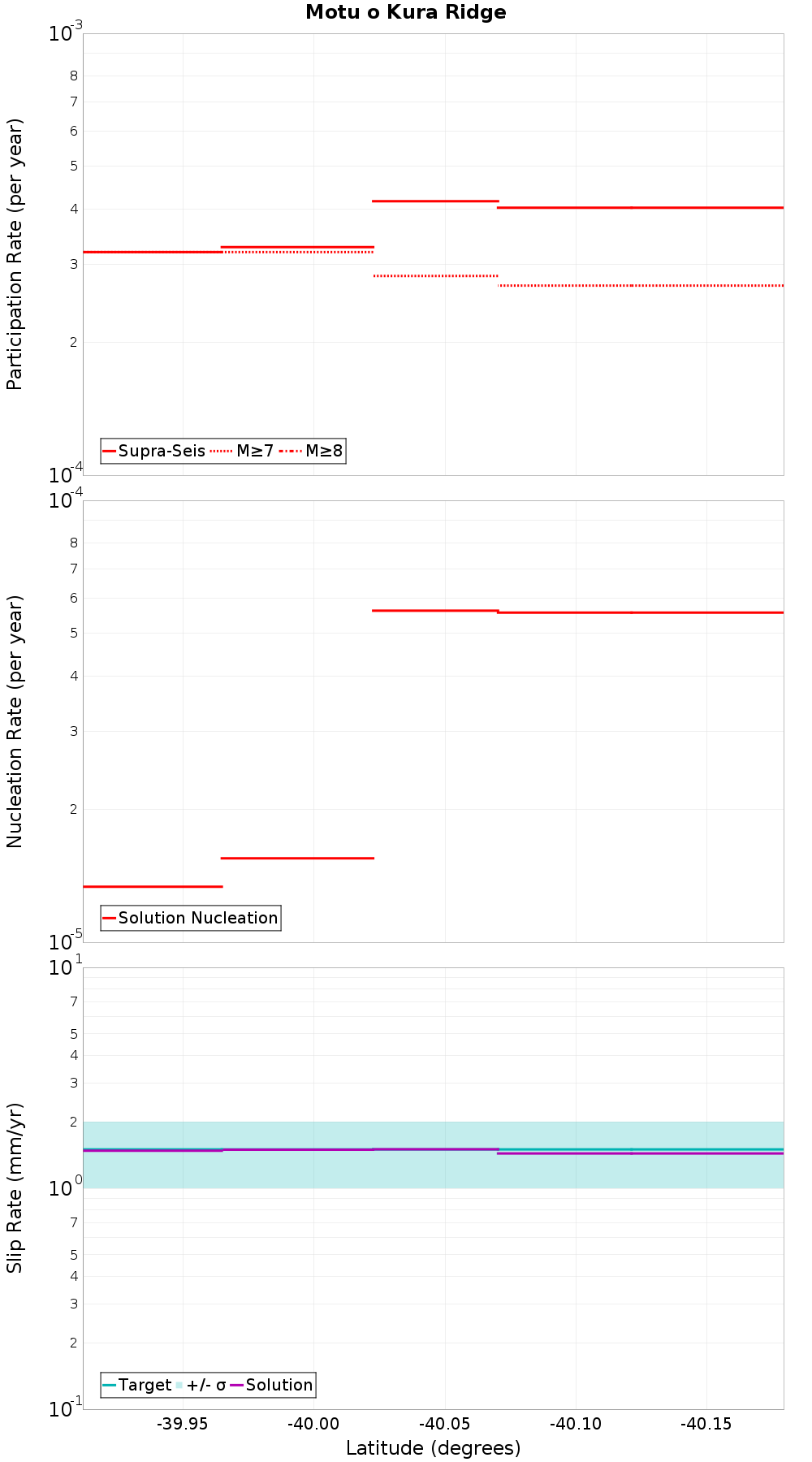

Along-Strike Values

(top)

Along-strike plot

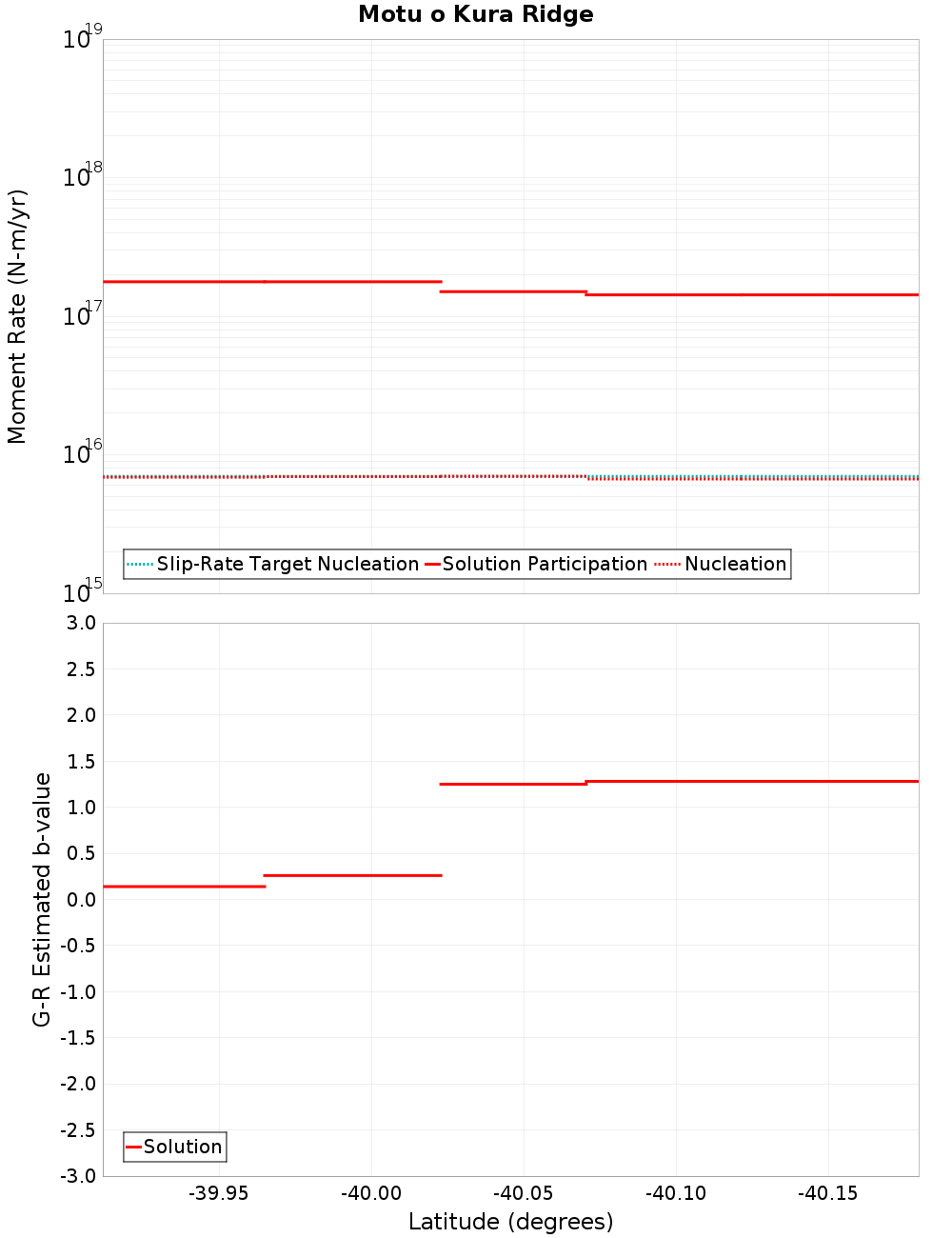

Moment-Rates and b-Values

(top)

Along-strike plot

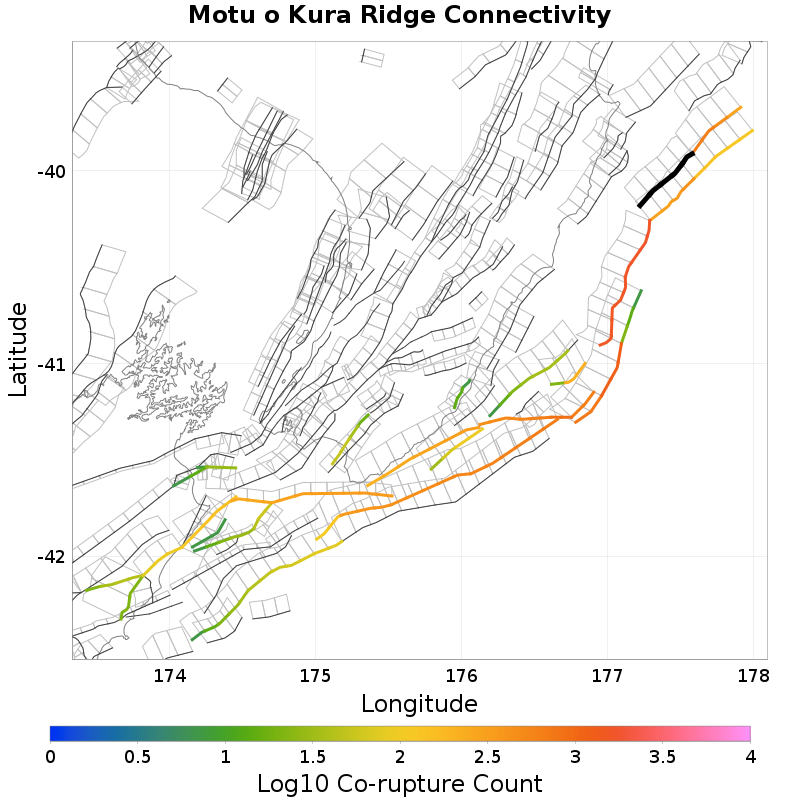

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Motuokura North, 0 km away
Motu o Kura East, 6.46 km away
Madden Banks, 7.97 km away
Kairakau 2, 13.65 km away
Kairakau South, 15.16 km away
Kairakau North, 15.92 km away
Lachlan 1 & 2, 19.76 km away

Motuokura North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?true
Directly Connected?true
Co-rupture Count655
Co-rupture Rate2.0869031E-4

Motu o Kura East, 6.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?true
Directly Connected?true
Co-rupture Count444
Co-rupture Rate2.5681301E-4

Madden Banks, 7.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?true
Directly Connected?true
Co-rupture Count1,674
Co-rupture Rate2.9928546E-4

Kairakau 2, 13.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kairakau South, 15.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kairakau North, 15.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lachlan 1 & 2, 19.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
