Otakiri Details

Property	Value
Rupture Count	3,807
Ruptures Above Sect Min Mag	3,806
Ruptures w/ Nonzero Rates	10
Magnitude Range	[6.60, 8.00]
Length Range	[13, 299] km
Total Rate	4.8011538E-4 /yr
Multi-Fault Rate	4.8011538E-4 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	53

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

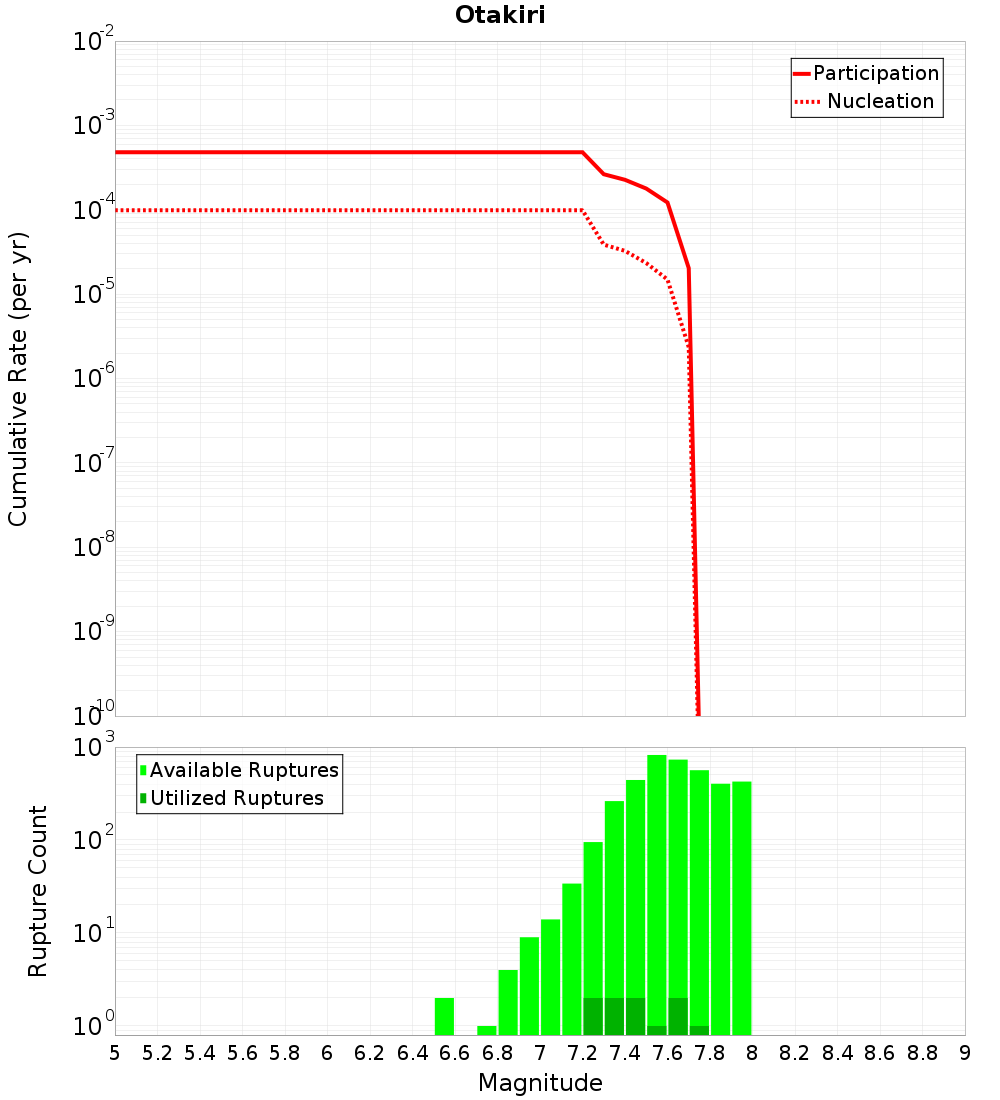

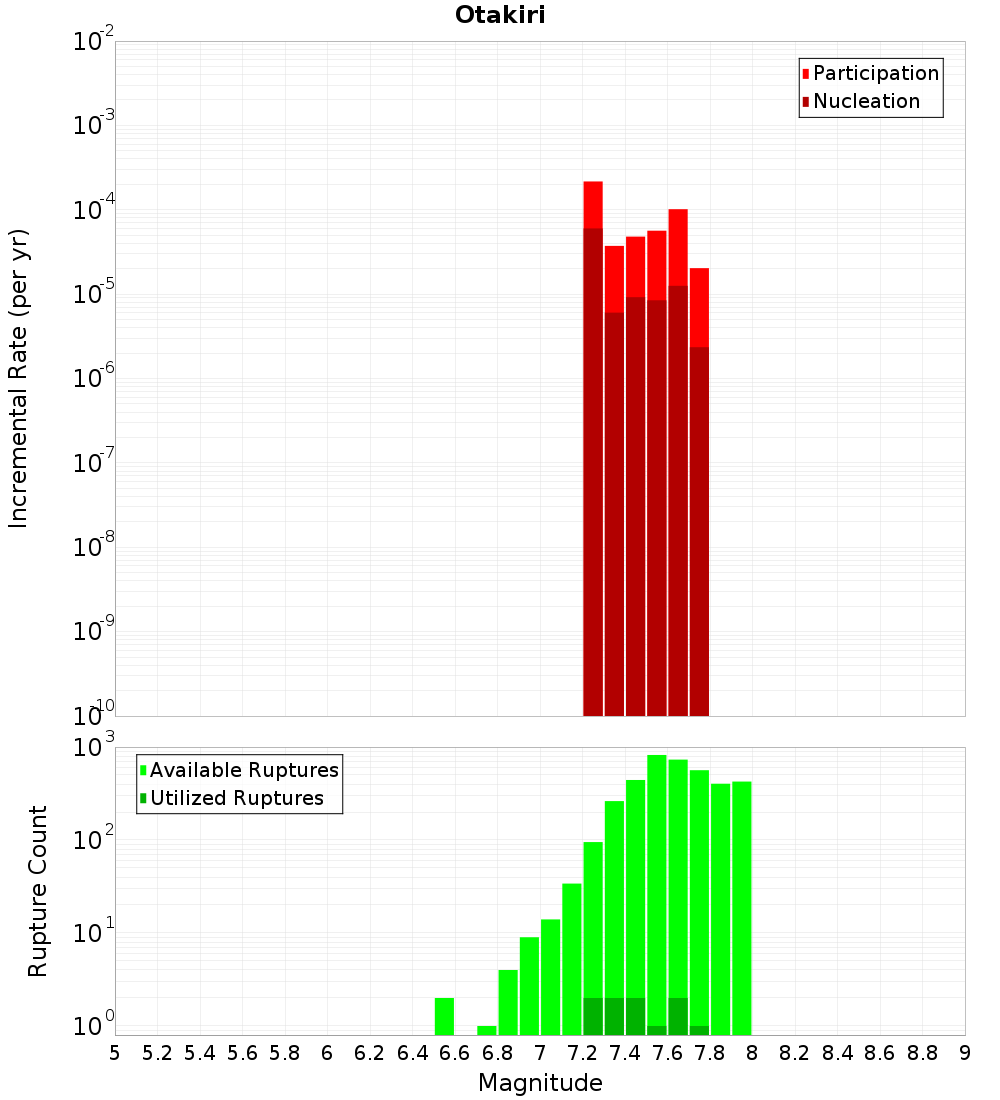

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

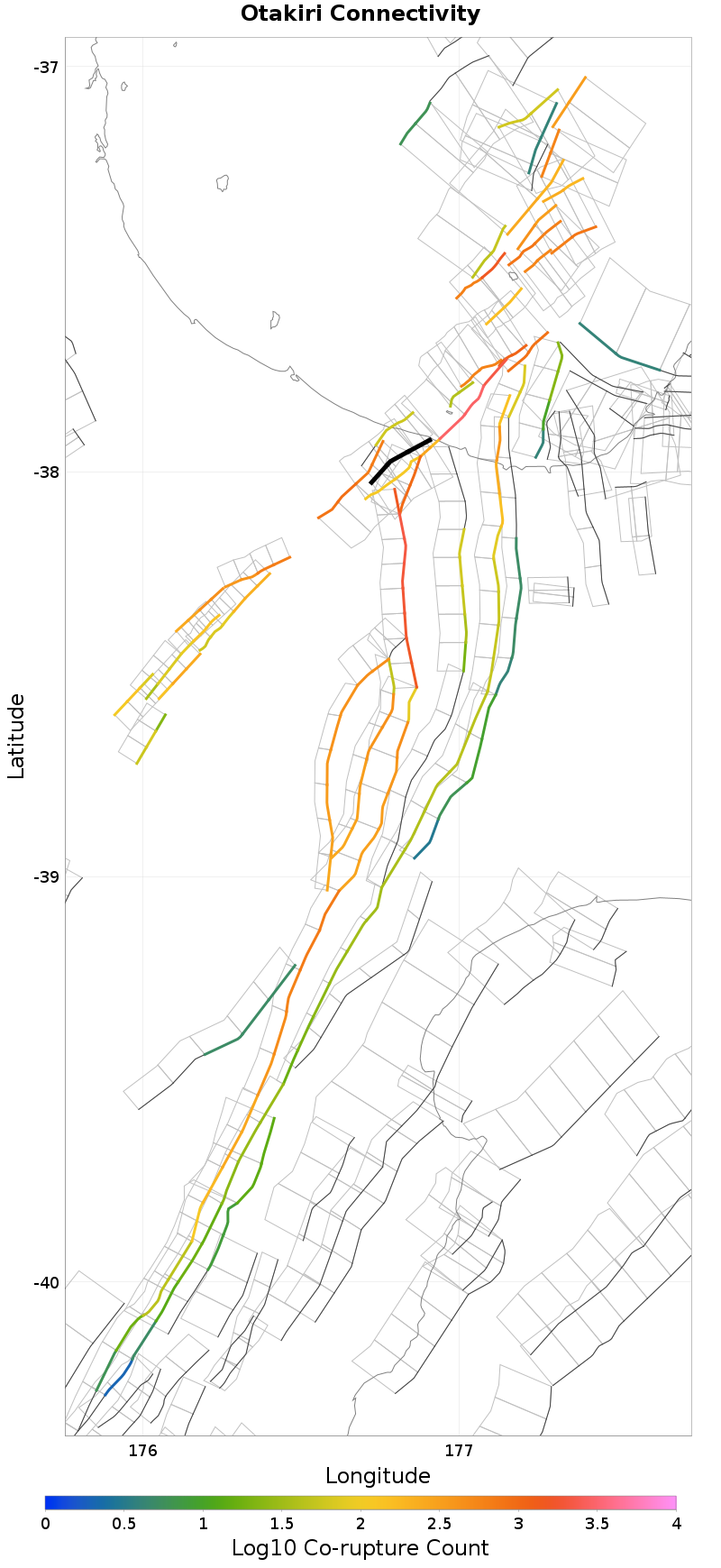

Connectivity

Nearby Sections

Fault Section
Edgecumbe Coastal, 0.1 km away
Awakeri, 0.1 km away
Whakatane: North, 0.17 km away
Edgecumbe 1987, 0.19 km away
Braemar, 0.26 km away
Waiohau: North, 0.39 km away
White Island 1, 2.46 km away
Matata, 4.49 km away
Waimana: North, 8.24 km away
Rangitaiki 1, 10.94 km away
Waiotahi: North, 13.76 km away
Rangitaiki 2, 17.19 km away
Opotiki 3, 18.35 km away

Edgecumbe Coastal, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	true
Co-rupture Count	282
Co-rupture Rate	2.9184544E-4

Awakeri, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	true
Co-rupture Count	969
Co-rupture Rate	6.674428E-6

Whakatane: North, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	true
Co-rupture Count	61
Co-rupture Rate	1.06199615E-4

Edgecumbe 1987, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	false
Co-rupture Count	114
Co-rupture Rate	1.0366535E-4

Braemar, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	true
Co-rupture Count	975
Co-rupture Rate	1.409769E-4

Waiohau: North, 0.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	true
Co-rupture Count	2,166
Co-rupture Rate	5.6466473E-5

White Island 1, 2.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	true
Co-rupture Count	2,933
Co-rupture Rate	0.0

Matata, 4.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	true
Co-rupture Count	58
Co-rupture Rate	0.0

Waimana: North, 8.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	true
Co-rupture Count	378
Co-rupture Rate	4.4758795E-5

Rangitaiki 1, 10.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	false
Co-rupture Count	41
Co-rupture Rate	1.8818009E-4

Waiotahi: North, 13.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	0.0

Rangitaiki 2, 17.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	false
Co-rupture Count	601
Co-rupture Rate	1.8818009E-4

Opotiki 3, 18.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	false
Co-rupture Count	23
Co-rupture Rate	0.0
