Rangitaiki 2 Details

Property	Value
Rupture Count	9,008
Ruptures Above Sect Min Mag	9,008
Ruptures w/ Nonzero Rates	19
Magnitude Range	[6.66, 8.00]
Length Range	[13, 303] km
Total Rate	3.7343934E-4 /yr
Multi-Fault Rate	3.7343934E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	53

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

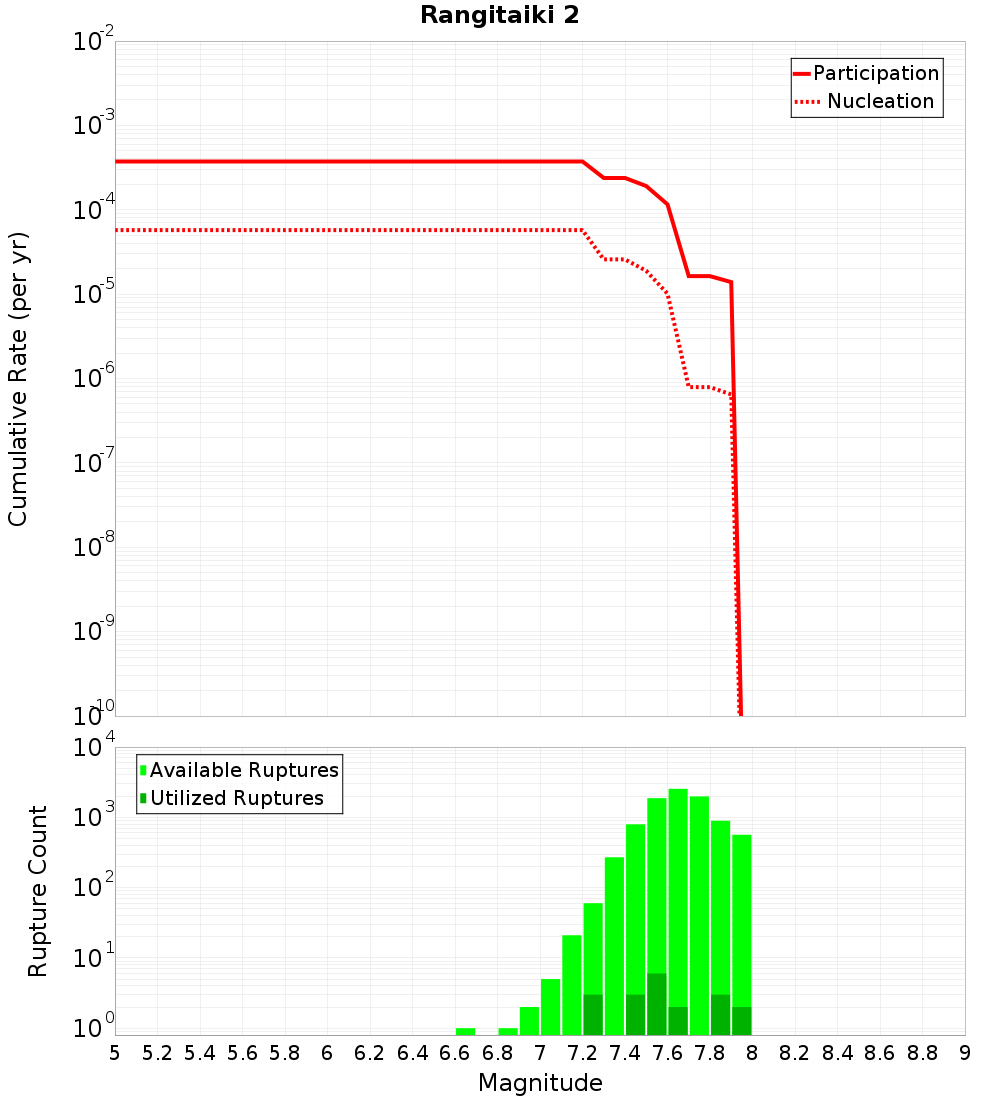

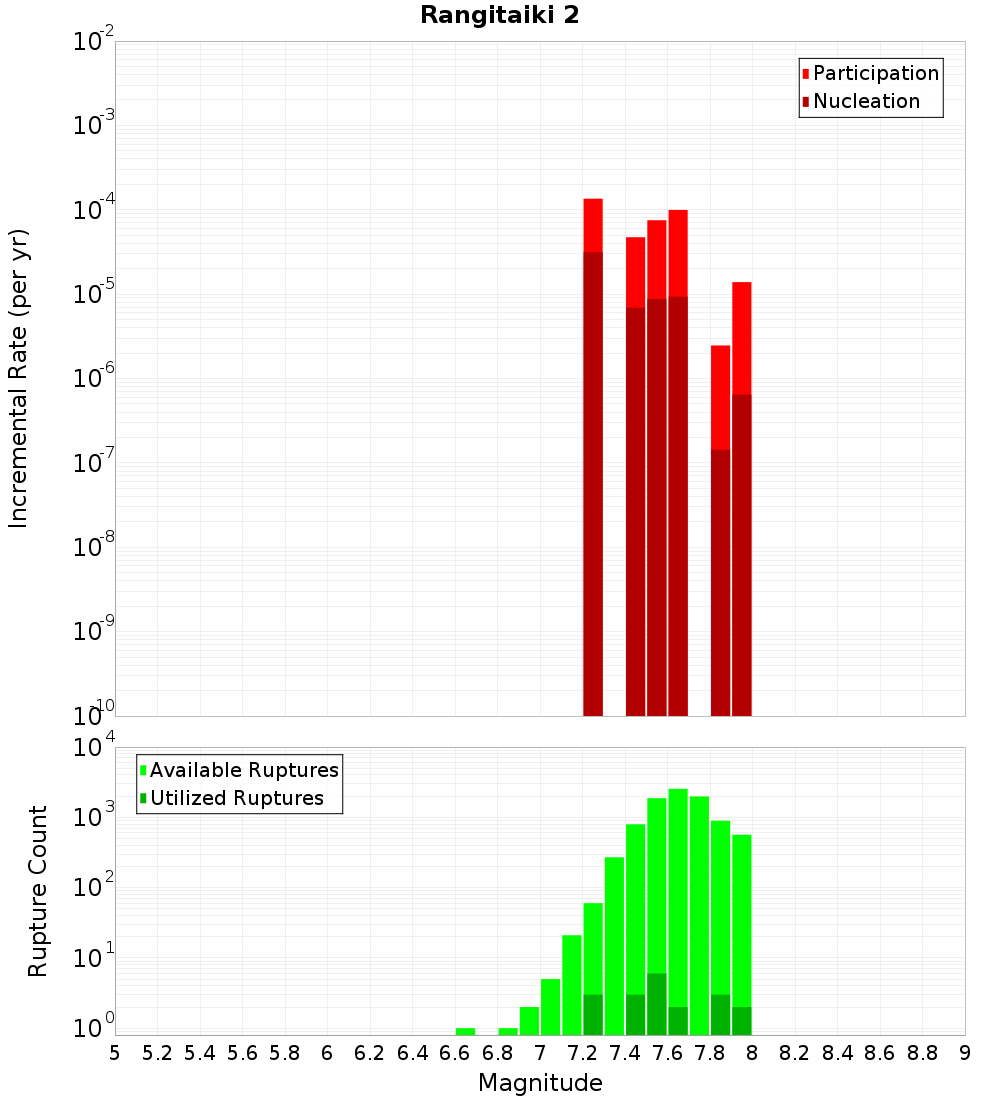

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

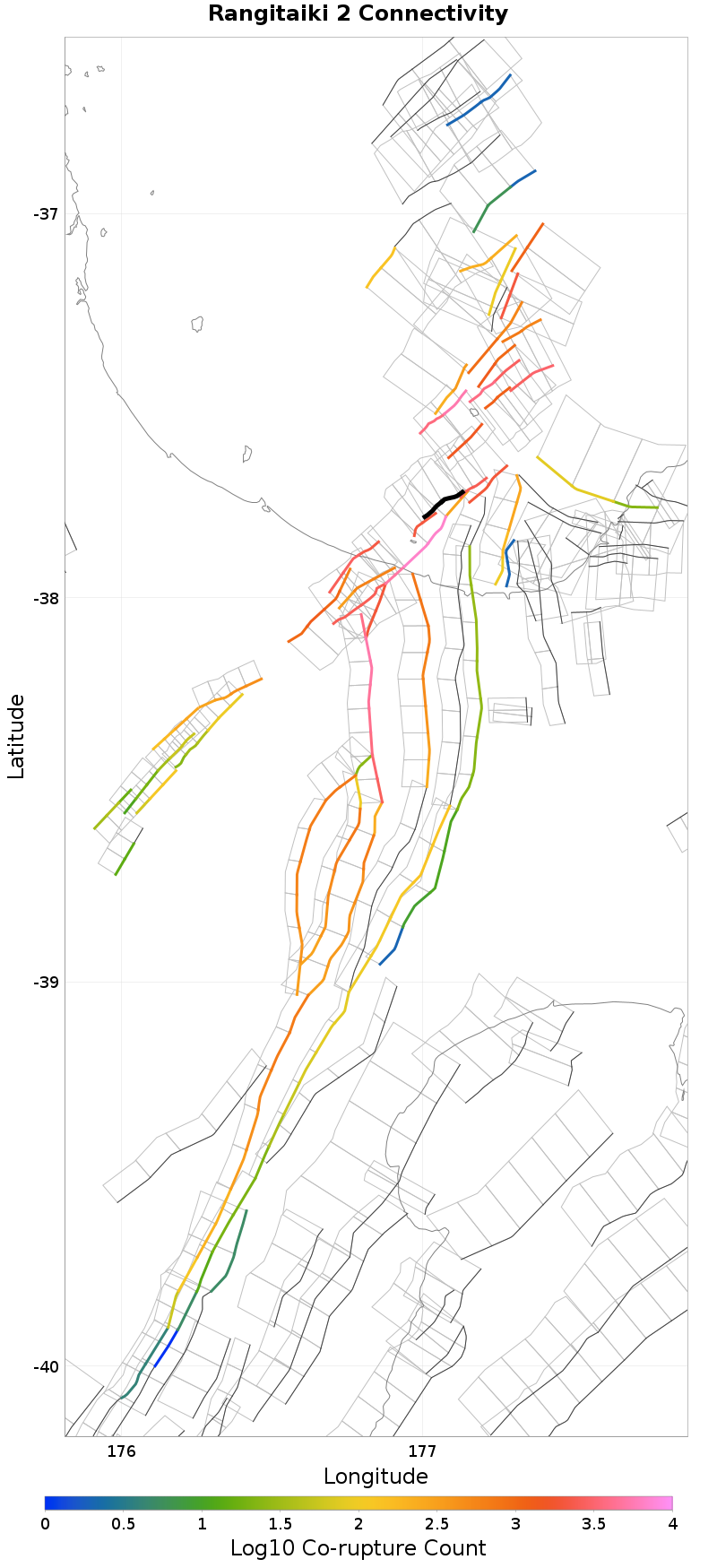

Connectivity

Nearby Sections

Fault Section	Fault Section
Ohiwa 1, 0.42 km away	Ohae 1, 14.97 km away
Whakaari 4, 0.45 km away	Opotiki 3, 15.11 km away
Rangitaiki 1, 0.74 km away	Matata, 15.14 km away
White Island 1, 0.77 km away	Te Arawa 1, 16.46 km away
White Island 2, 2.66 km away	Whakatane: North, 16.94 km away
Waimanawa - Waikaremoana, 6.46 km away	Otakiri, 17.19 km away
Calypso 2, 8.01 km away	Volkner 3, 17.97 km away
Waimana: North, 9.4 km away	Ohae 2, 19.04 km away
Edgecumbe Coastal, 14.83 km away	Tuatoru 1, 19.16 km away
Waiotahi: North, 14.87 km away

Ohiwa 1, 0.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	true
Co-rupture Count	2,484
Co-rupture Rate	8.711988E-5

Whakaari 4, 0.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	true
Co-rupture Count	5,357
Co-rupture Rate	9.089096E-5

Rangitaiki 1, 0.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	true
Co-rupture Count	2,057
Co-rupture Rate	3.184498E-4

White Island 1, 0.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	true
Co-rupture Count	6,815
Co-rupture Rate	3.2599753E-5

White Island 2, 2.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	true
Co-rupture Count	1,954
Co-rupture Rate	8.679515E-5

Waimanawa - Waikaremoana, 6.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Calypso 2, 8.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	true
Co-rupture Count	1,465
Co-rupture Rate	1.7947247E-4

Waimana: North, 9.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Edgecumbe Coastal, 14.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	false
Co-rupture Count	4,999
Co-rupture Rate	3.1689866E-4

Waiotahi: North, 14.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	false
Co-rupture Count	27
Co-rupture Rate	0.0

Ohae 1, 14.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Opotiki 3, 15.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	false
Co-rupture Count	270
Co-rupture Rate	0.0

Matata, 15.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	false
Co-rupture Count	2,787
Co-rupture Rate	6.0376296E-5

Te Arawa 1, 16.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	false
Co-rupture Count	3,698
Co-rupture Rate	3.6629288E-5

Whakatane: North, 16.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	false
Co-rupture Count	778
Co-rupture Rate	7.699358E-5

Otakiri, 17.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	false
Co-rupture Count	601
Co-rupture Rate	1.8818009E-4

Volkner 3, 17.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	false
Co-rupture Count	357
Co-rupture Rate	2.2389791E-5

Ohae 2, 19.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tuatoru 1, 19.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	false
Co-rupture Count	1,240
Co-rupture Rate	8.4457206E-5
