Spey - Mica Burn Details
| Property | Value |
|---|---|
| Rupture Count | 1,861 |
| Ruptures Above Sect Min Mag | 1,858 |
| Ruptures w/ Nonzero Rates | 20 |
| Magnitude Range | [6.91, 8.56] |
| Length Range | [20, 932] km |
| Total Rate | 9.725569E-6 /yr |
| Multi-Fault Rate | 9.725569E-6 /yr (100.00%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 43 |
Table Of Contents

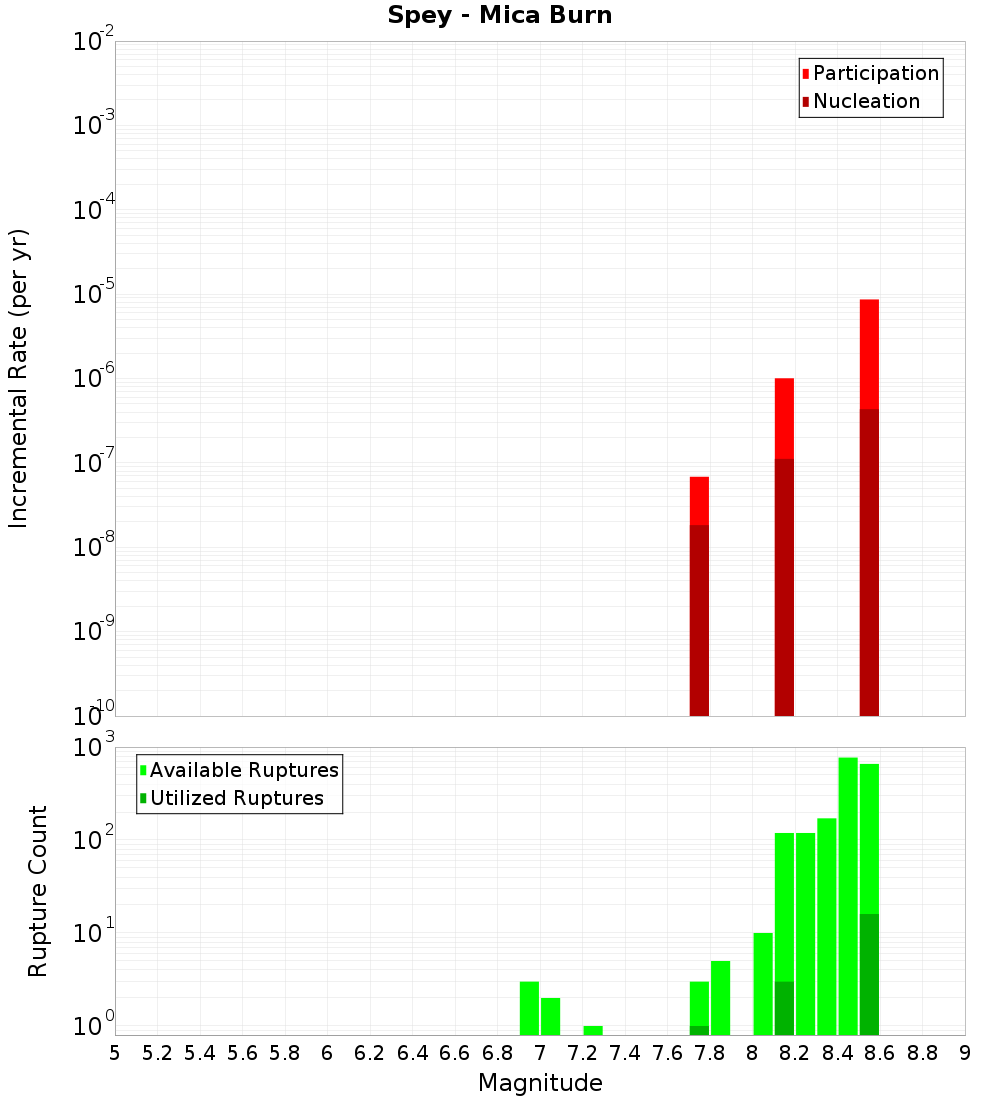

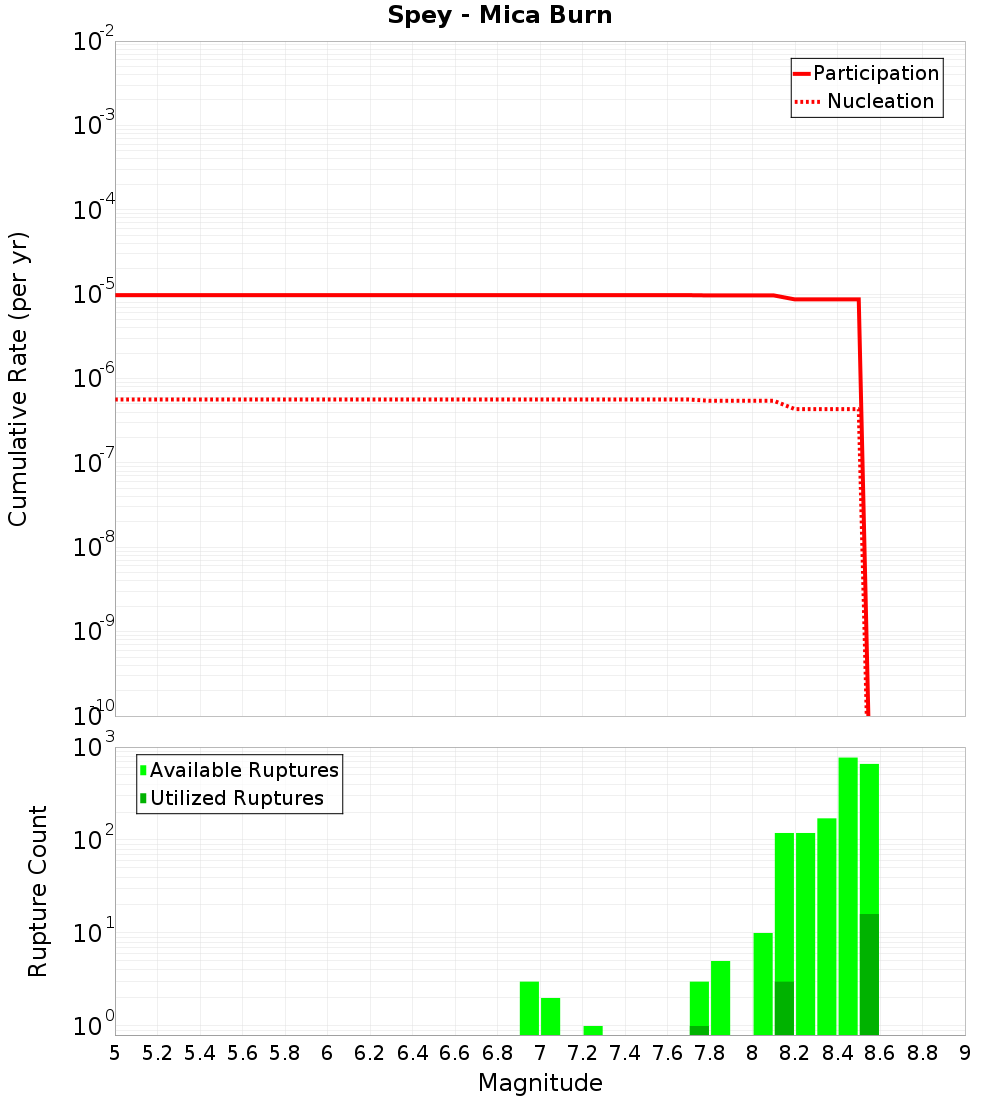

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

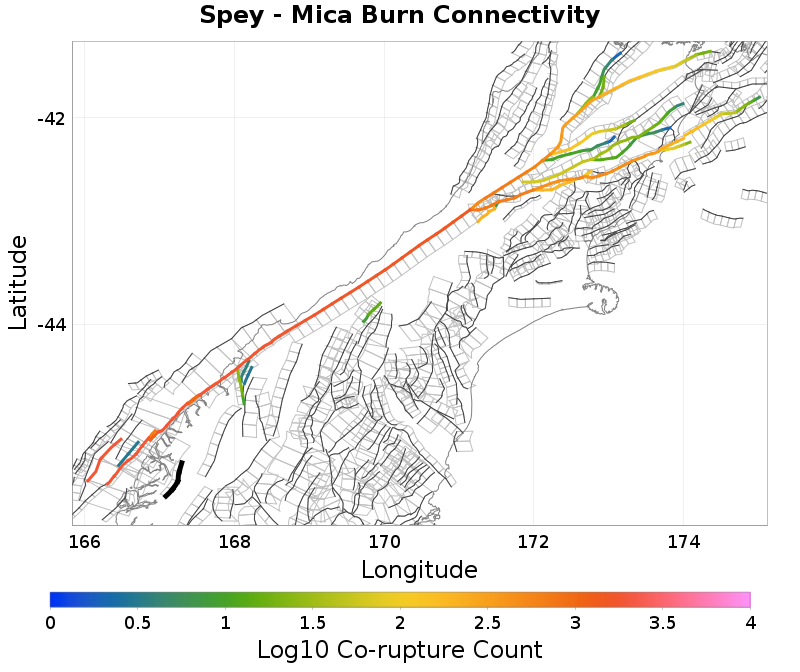

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| South Wedge 2, 1.3 km away |
| South Wedge 3-6-10, 8.22 km away |
| Central Wedge 4 - South Wedge 411, 15.63 km away |
| South Wedge 5, 19.92 km away |
South Wedge 2, 1.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
South Wedge 3-6-10, 8.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,855 |
| Co-rupture Rate | 9.725569E-6 |
Central Wedge 4 - South Wedge 411, 15.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
South Wedge 5, 19.92 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
