Tuakana 6 Details
| Property | Value |
|---|---|
| Rupture Count | 368 |
| Ruptures Above Sect Min Mag | 368 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [6.86, 7.99] |
| Length Range | [14, 266] km |
| Total Rate | 1.19973185E-4 /yr |
| Multi-Fault Rate | 1.19973185E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 25 |
Table Of Contents

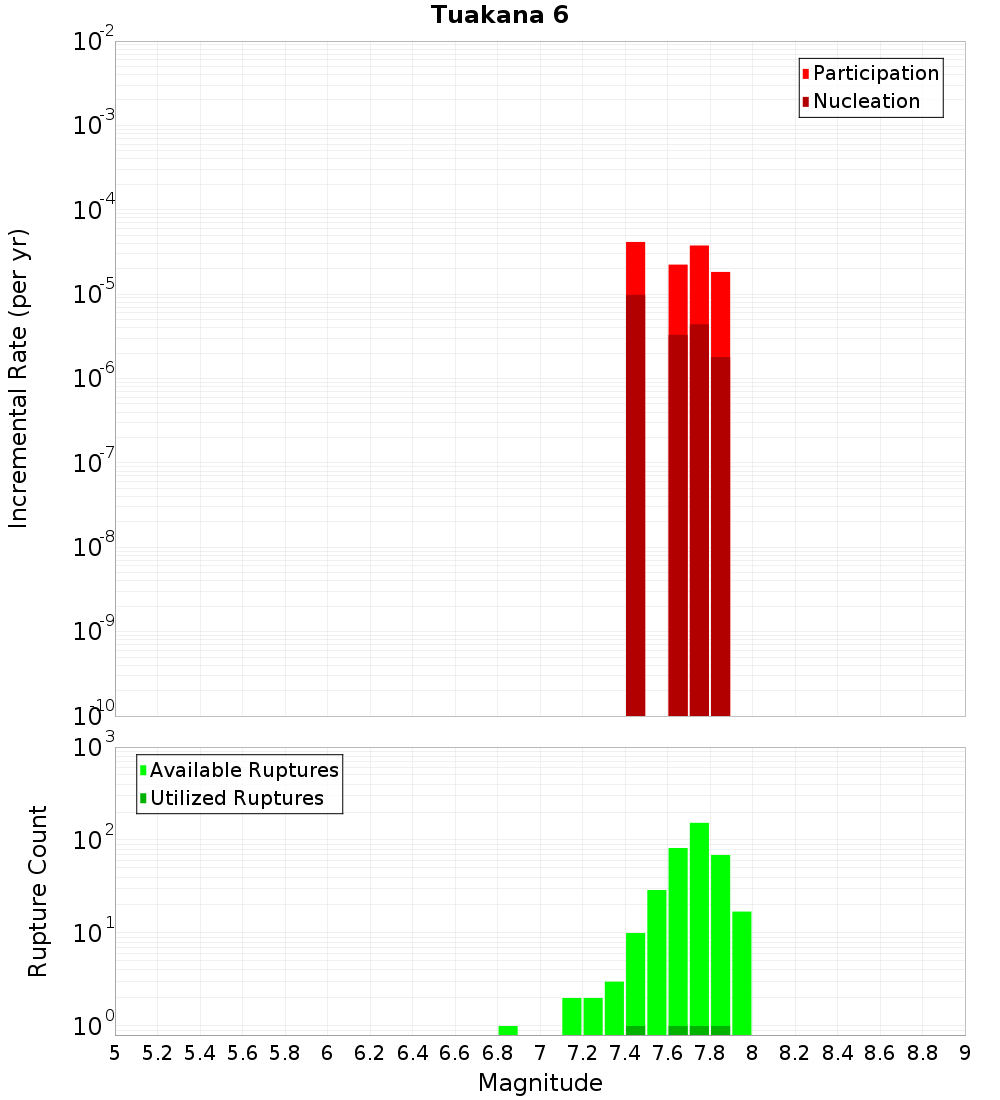

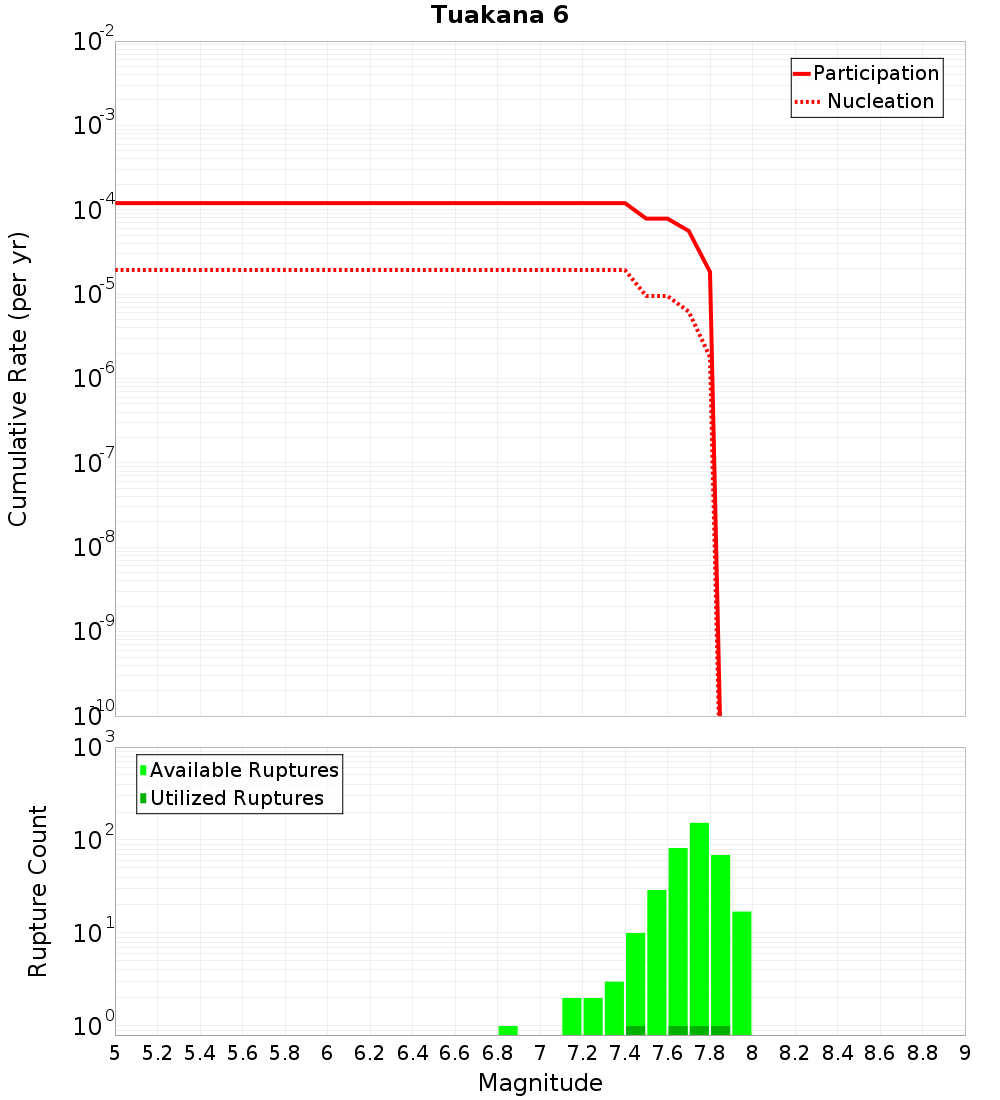

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

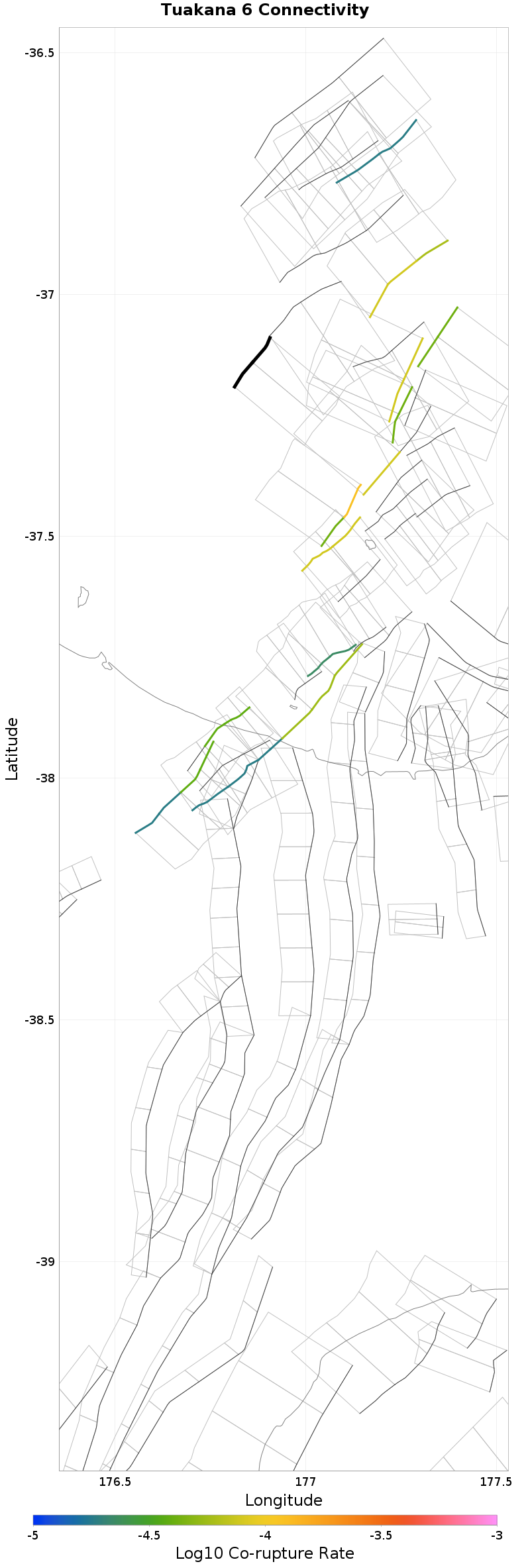

Connectivity
 |  |
|---|
Nearby Sections
Volkner 3, 0.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 352 |
| Co-rupture Rate | 1.19973185E-4 |
Volkner 4, 0.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 335 |
| Co-rupture Rate | 7.843606E-5 |
Otara West 1, 0.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3 |
| Co-rupture Rate | 4.153712E-5 |
Tuakana 7, 0.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 16 |
| Co-rupture Rate | 0.0 |
Otara West 2, 0.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 252 |
| Co-rupture Rate | 7.843606E-5 |
Tuatoru 2, 11.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tauranga Trough West 2, 12.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Otara West 3, 14.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Calypso 2, 17.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tauranga Trough East 2, 19.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 78 |
| Co-rupture Rate | 7.843606E-5 |
