Whangamata West Details

Property	Value
Rupture Count	1,837
Ruptures Above Sect Min Mag	1,834
Ruptures w/ Nonzero Rates	21
Magnitude Range	[6.29, 7.81]
Length Range	[10, 210] km
Total Rate	6.4853684E-4 /yr
Multi-Fault Rate	6.4853684E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	27

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

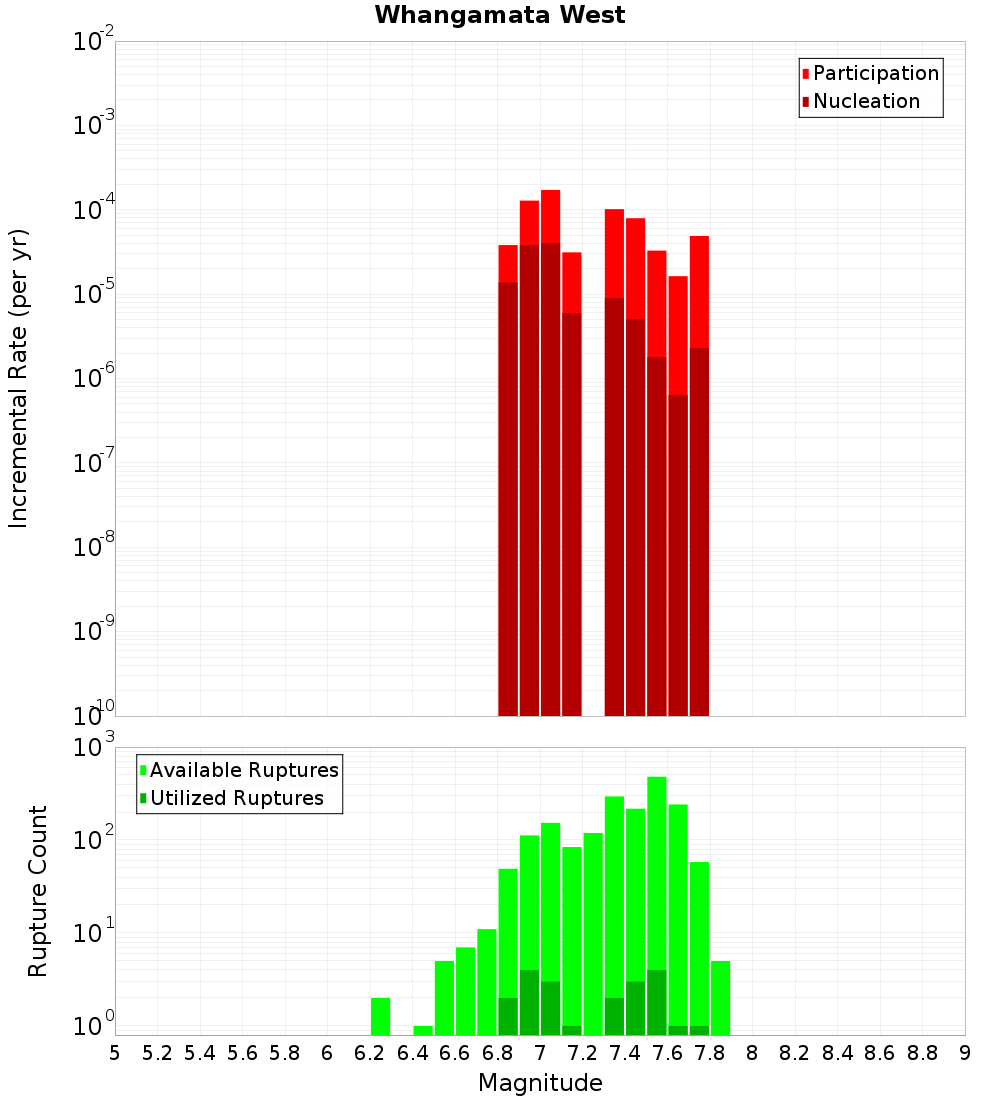

Magnitude-Frequency Distribution

Incremental	Cumulative

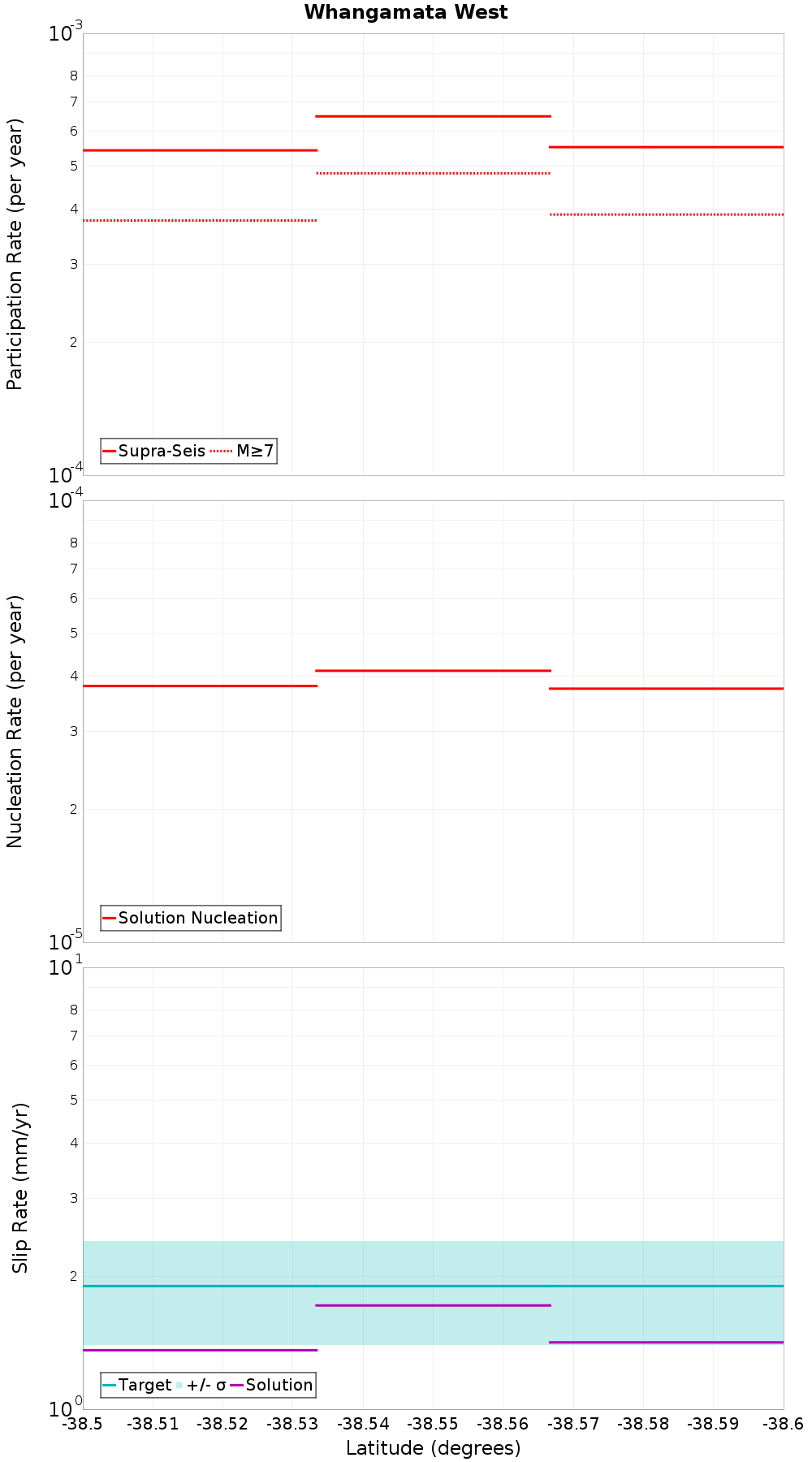

Along-Strike Values

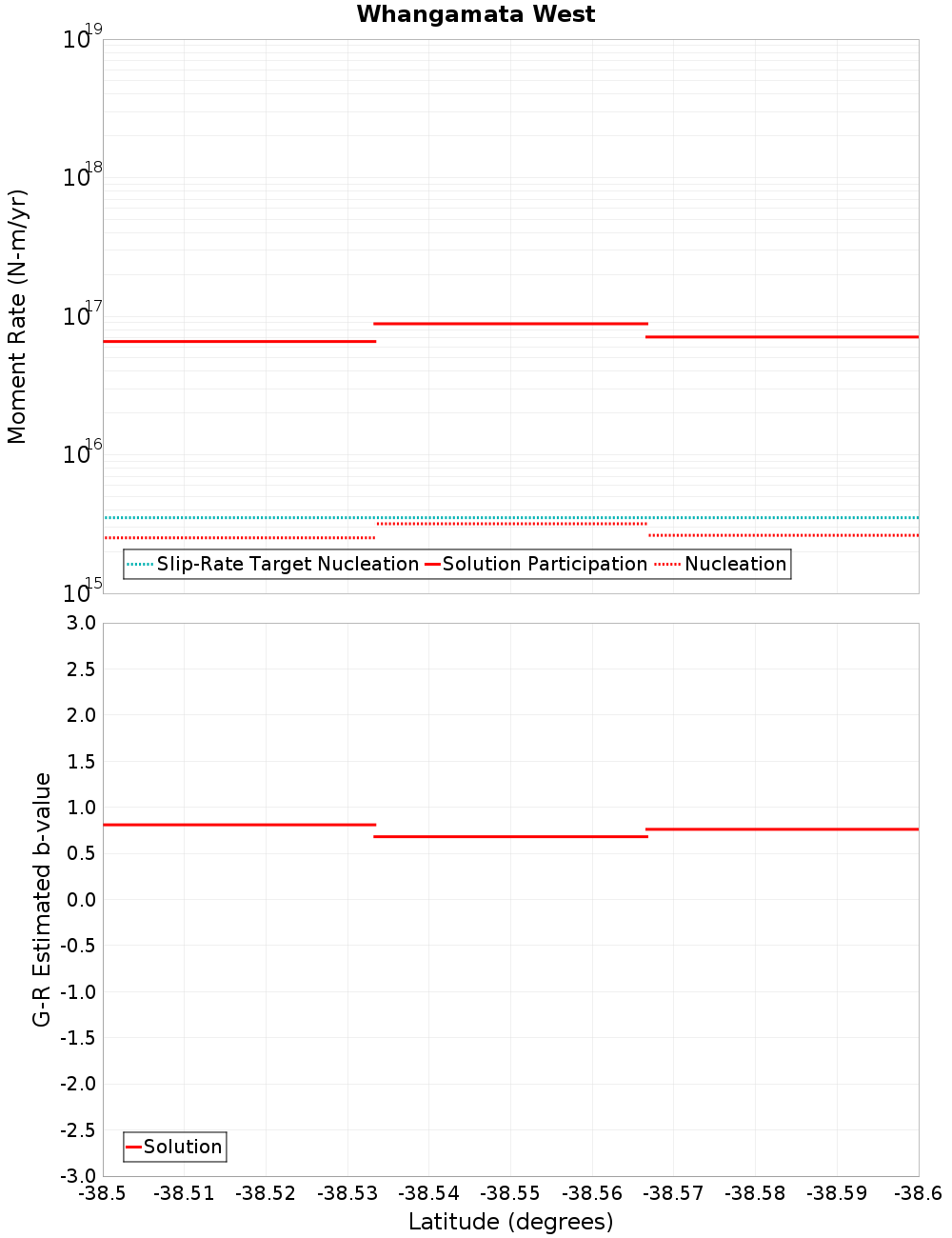

Moment-Rates and b-Values

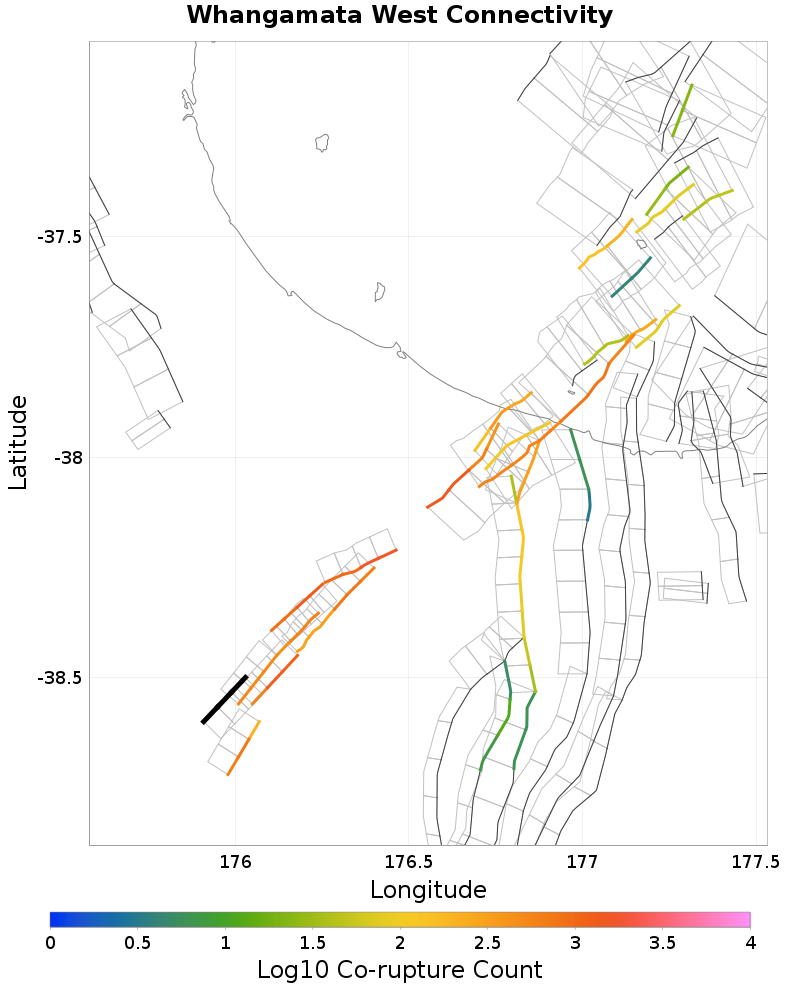

Connectivity

Nearby Sections

Fault Section
Puketerata, 0.11 km away
Orakeikorako, 0.23 km away
Kaiapo, 0.25 km away
Puketerata North, 9.6 km away
Maleme, 12.98 km away
Paeroa, 13.84 km away

Puketerata, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	true
Co-rupture Count	509
Co-rupture Rate	3.7751422E-4

Orakeikorako, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	true
Co-rupture Count	1,321
Co-rupture Rate	2.710226E-4

Kaiapo, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	true
Co-rupture Count	738
Co-rupture Rate	2.6559882E-4

Puketerata North, 9.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	false
Co-rupture Count	615
Co-rupture Rate	2.4943045E-4

Maleme, 12.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	false
Co-rupture Count	1,368
Co-rupture Rate	3.177372E-4

Paeroa, 13.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMDc4dnFN
Connected?	true
Directly Connected?	false
Co-rupture Count	787
Co-rupture Rate	3.3079964E-4
