EarthquakeFlat - Tumunui Details
| Property | Value |
|---|---|
| Rupture Count | 2,694 |
| Ruptures Above Sect Min Mag | 2,689 |
| Ruptures w/ Nonzero Rates | 180 |
| Magnitude Range | [6.26, 7.50] |
| Length Range | [10, 143] km |
| Total Rate | 7.8065135E-4 /yr |
| Multi-Fault Rate | 7.747771E-4 /yr (99.25%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 22 |
Table Of Contents

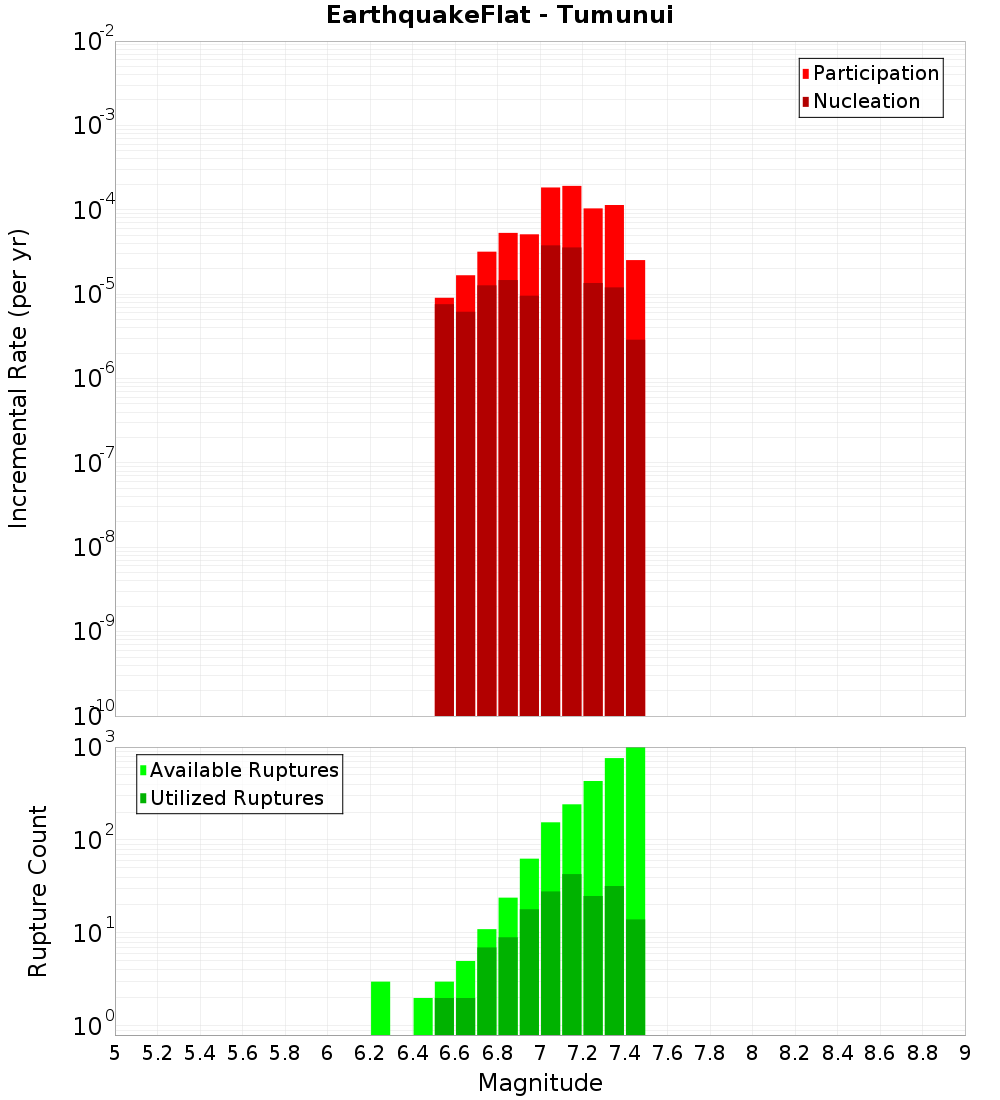

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

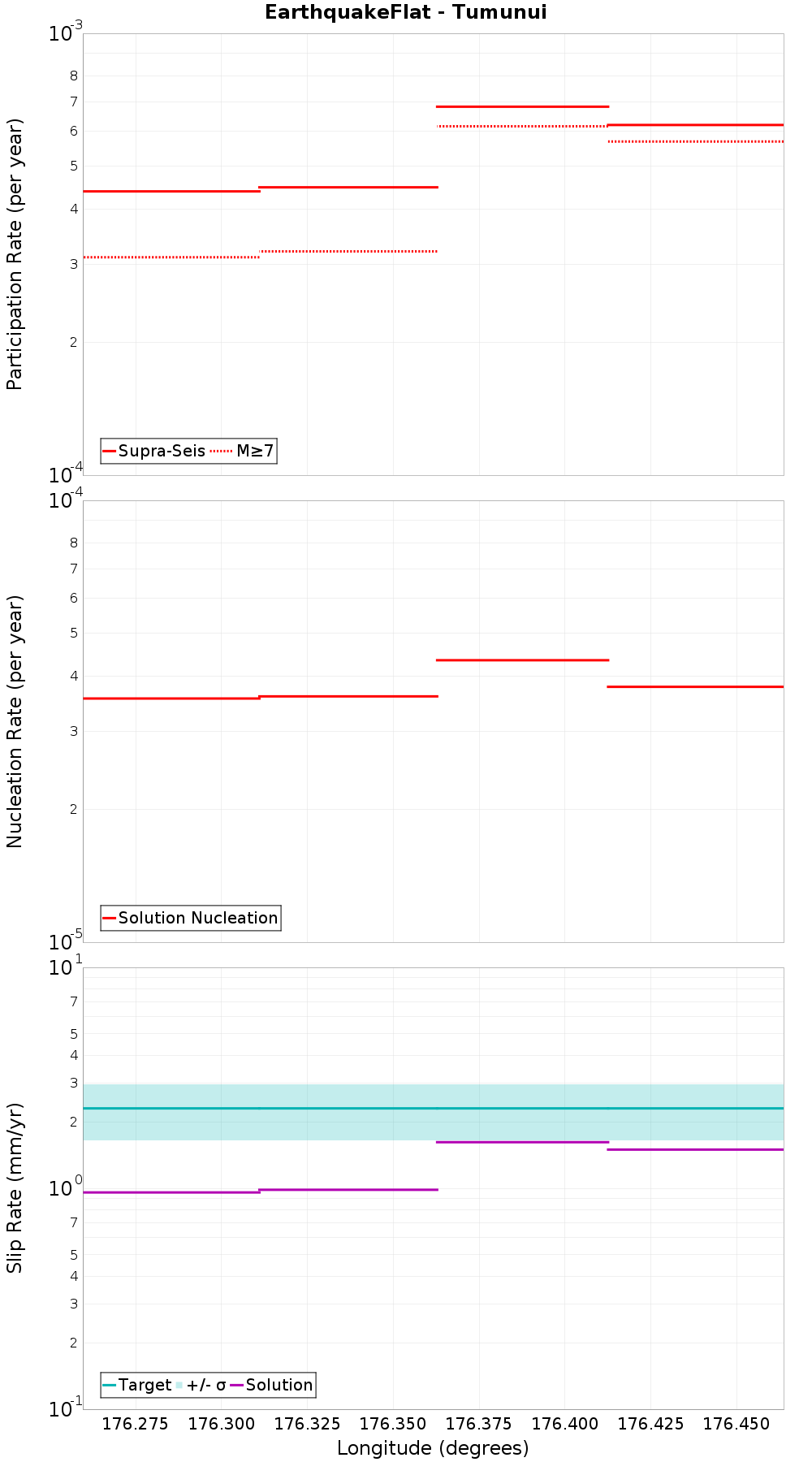

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Maleme, 0.79 km away |
| Paeroa, 1.55 km away |
| Puketerata North, 7.65 km away |
| Braemar, 12.8 km away |
| Orakeikorako, 19.27 km away |
Maleme, 0.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMGg3Z2M3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,724 |
| Co-rupture Rate | 3.4893115E-4 |
Paeroa, 1.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMGg3Z2M3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,107 |
| Co-rupture Rate | 4.4390402E-4 |
Puketerata North, 7.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMGg3Z2M3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 757 |
| Co-rupture Rate | 2.882356E-4 |
Braemar, 12.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMGg3Z2M3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,401 |
| Co-rupture Rate | 3.6959426E-4 |
Orakeikorako, 19.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMGg3Z2M3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,088 |
| Co-rupture Rate | 2.7883812E-4 |
