Timaru Creek Details

PropertyValue
Rupture Count630
Ruptures Above Sect Min Mag629
Ruptures w/ Nonzero Rates13
Magnitude Range[6.89, 8.22]
Length Range[19, 324] km
Total Rate1.453074E-4 /yr
Multi-Fault Rate6.185748E-5 /yr (42.57%)
Directly-Connected Faults5
All Co-Rupturing Faults29

Table Of Contents

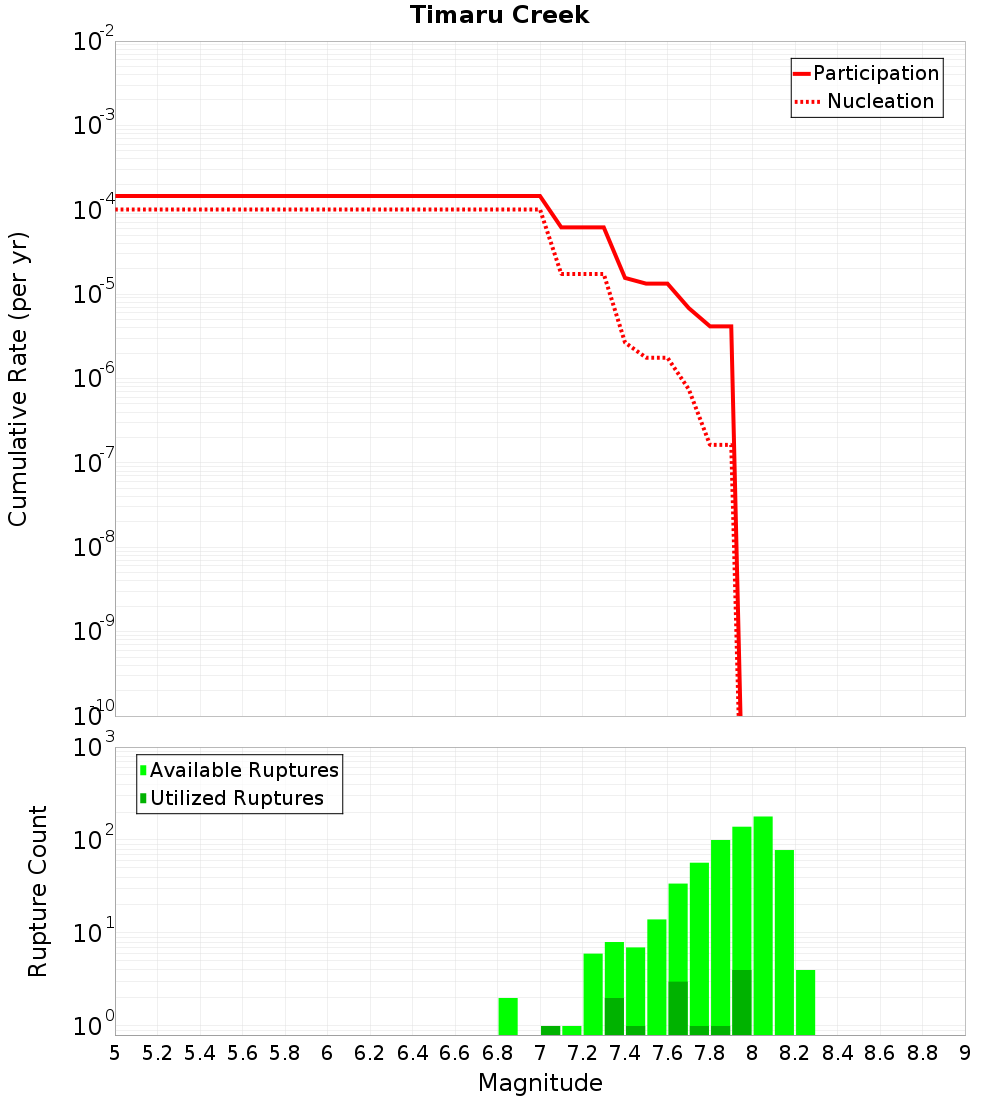

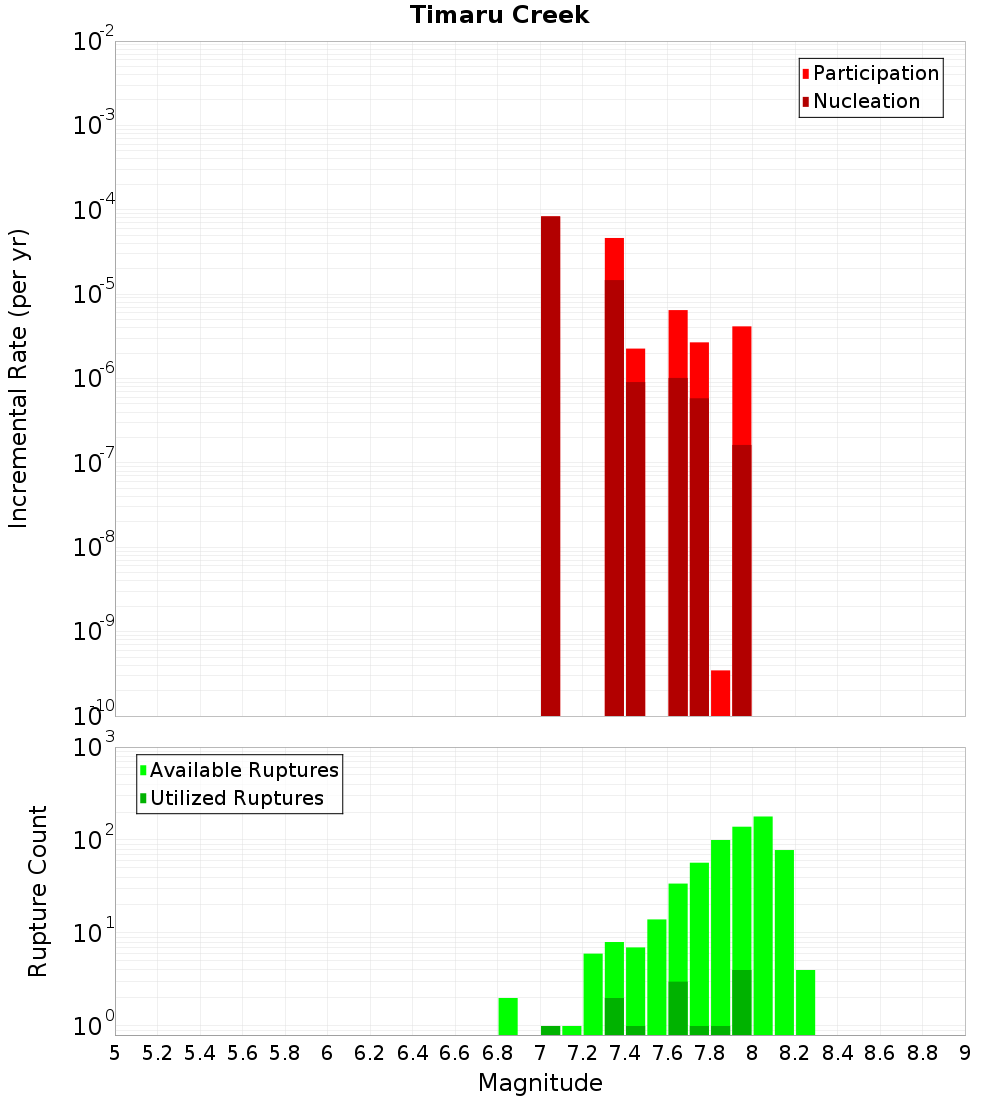

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

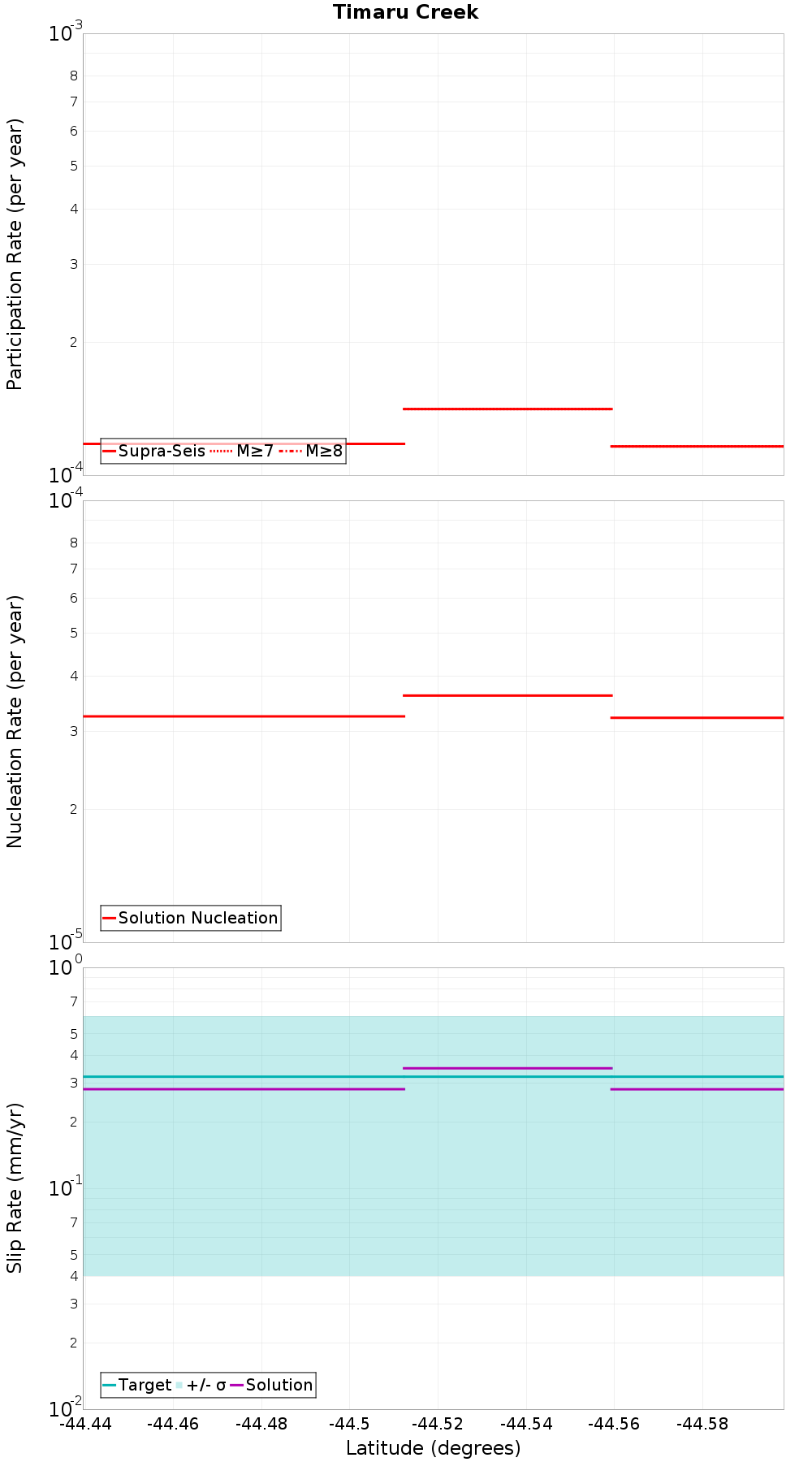

Along-Strike Values

(top)

Along-strike plot

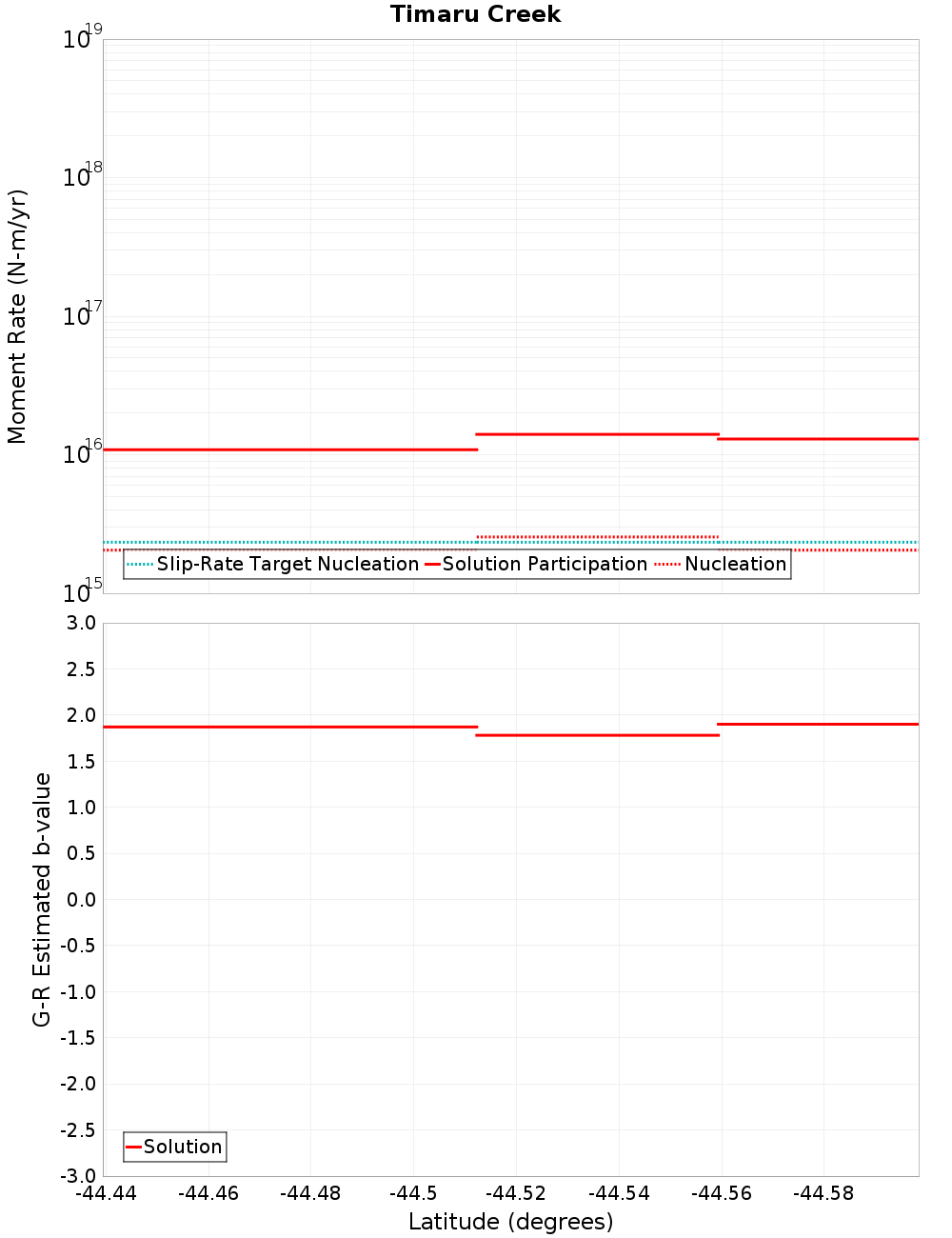

Moment-Rates and b-Values

(top)

Along-strike plot

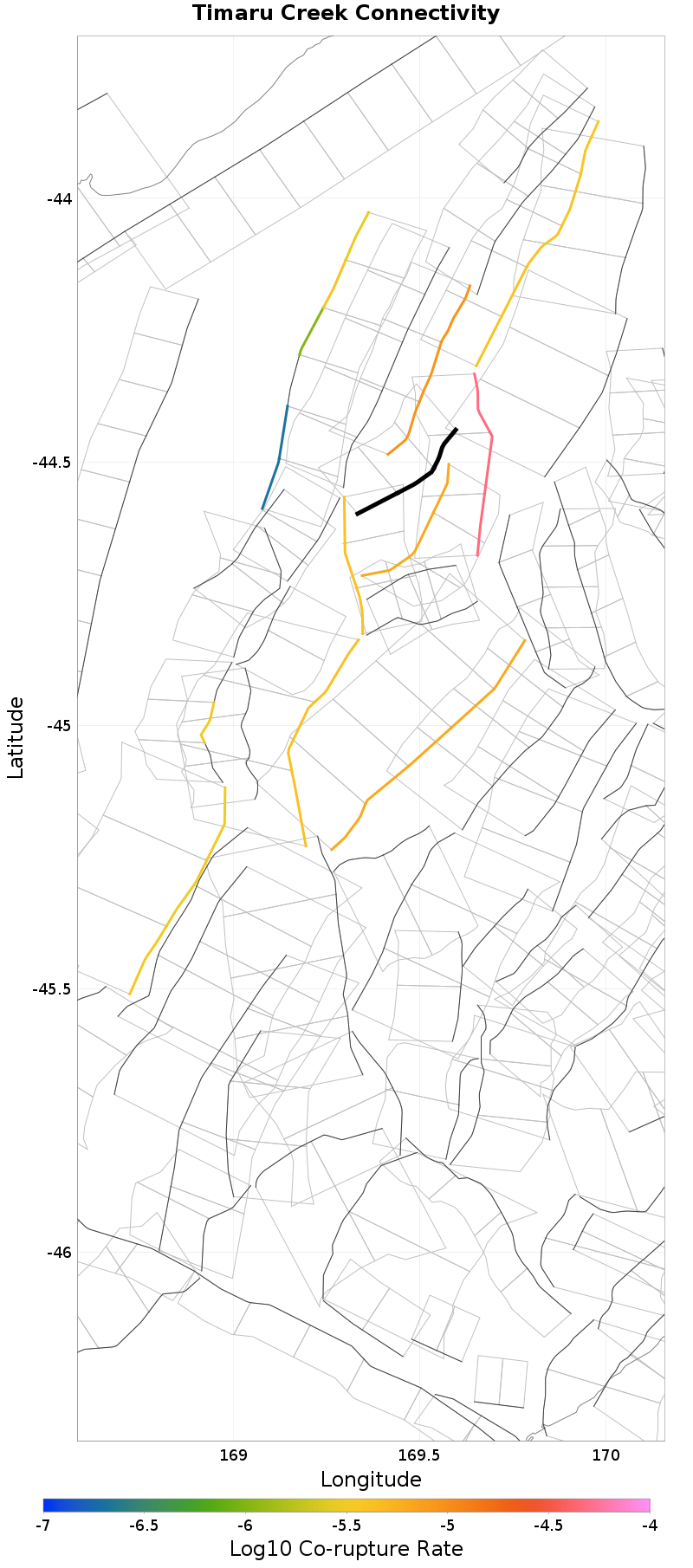

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Dromedary, 0.12 km away
Grandview, 0.3 km away
Wanaka, 0.46 km away
Lindis River, 2.49 km away
Cardrona - Hawea, 4.34 km away
Dingle, 4.92 km away
Hunter Valley, 4.93 km away
Motatapu, 7.02 km away
Barrier Range, 9.19 km away
Ostler South, 9.79 km away
Goodger, 16.27 km away
Blue Lake, 18.94 km away
NW Cardrona North, 19.19 km away

Dromedary, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMGg3Z2M3
Connected?true
Directly Connected?true
Co-rupture Count133
Co-rupture Rate4.7348207E-5

Grandview, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMGg3Z2M3
Connected?true
Directly Connected?true
Co-rupture Count554
Co-rupture Rate4.1511275E-6

Wanaka, 0.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMGg3Z2M3
Connected?true
Directly Connected?false
Co-rupture Count228
Co-rupture Rate4.1511275E-6

Lindis River, 2.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMGg3Z2M3
Connected?true
Directly Connected?true
Co-rupture Count63
Co-rupture Rate6.2999393E-6

Cardrona - Hawea, 4.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMGg3Z2M3
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Dingle, 4.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMGg3Z2M3
Connected?true
Directly Connected?true
Co-rupture Count328
Co-rupture Rate9.265007E-6

Hunter Valley, 4.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMGg3Z2M3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Motatapu, 7.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMGg3Z2M3
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Barrier Range, 9.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMGg3Z2M3
Connected?true
Directly Connected?true
Co-rupture Count201
Co-rupture Rate3.9070305E-6

Ostler South, 9.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMGg3Z2M3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Goodger, 16.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMGg3Z2M3
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Blue Lake, 18.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMGg3Z2M3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

NW Cardrona North, 19.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MTMuMGg3Z2M3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
