Stonewall Details

PropertyValue
Rupture Count149
Ruptures Above Sect Min Mag145
Ruptures w/ Nonzero Rates10
Magnitude Range[6.77, 7.91]
Length Range[19, 199] km
Total Rate1.3382548E-5 /yr
Multi-Fault Rate1.3382548E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults14

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

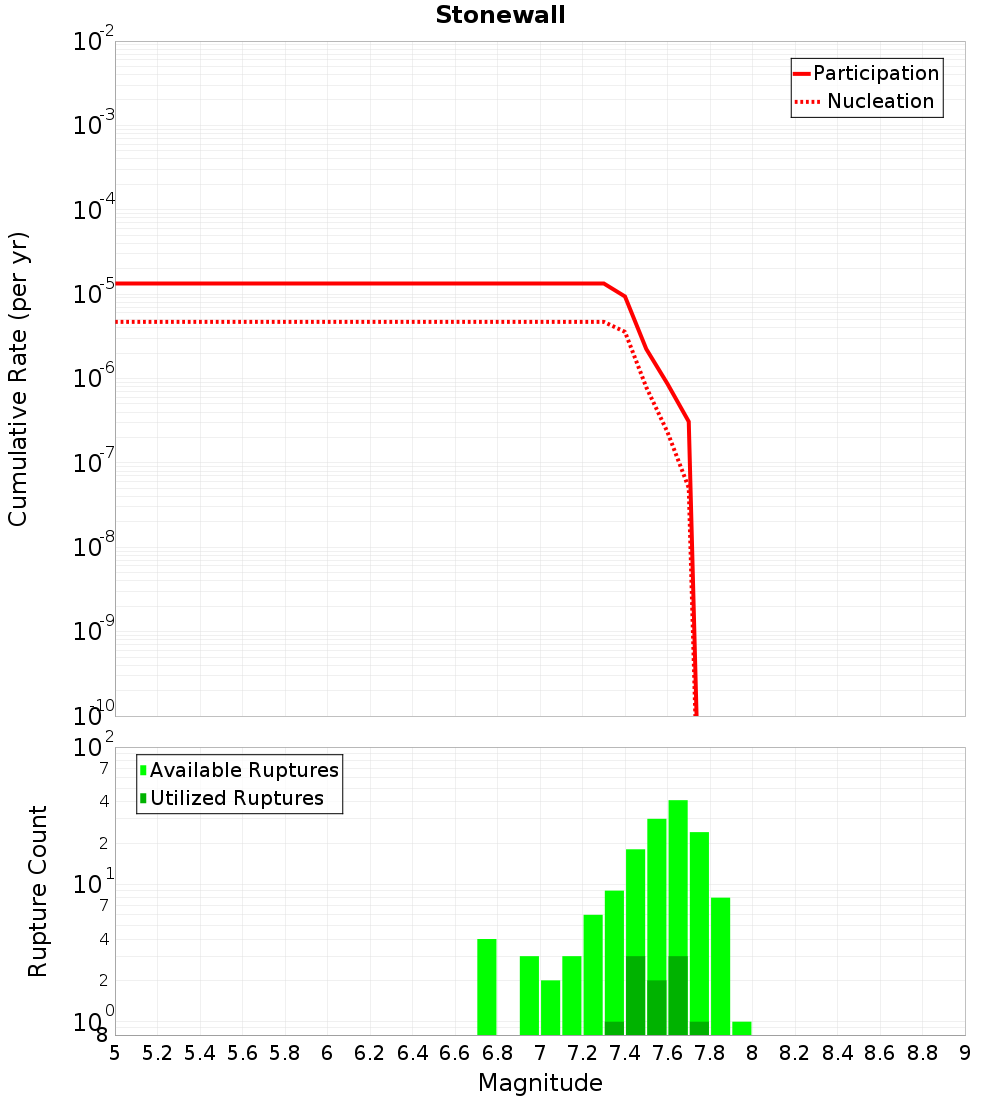

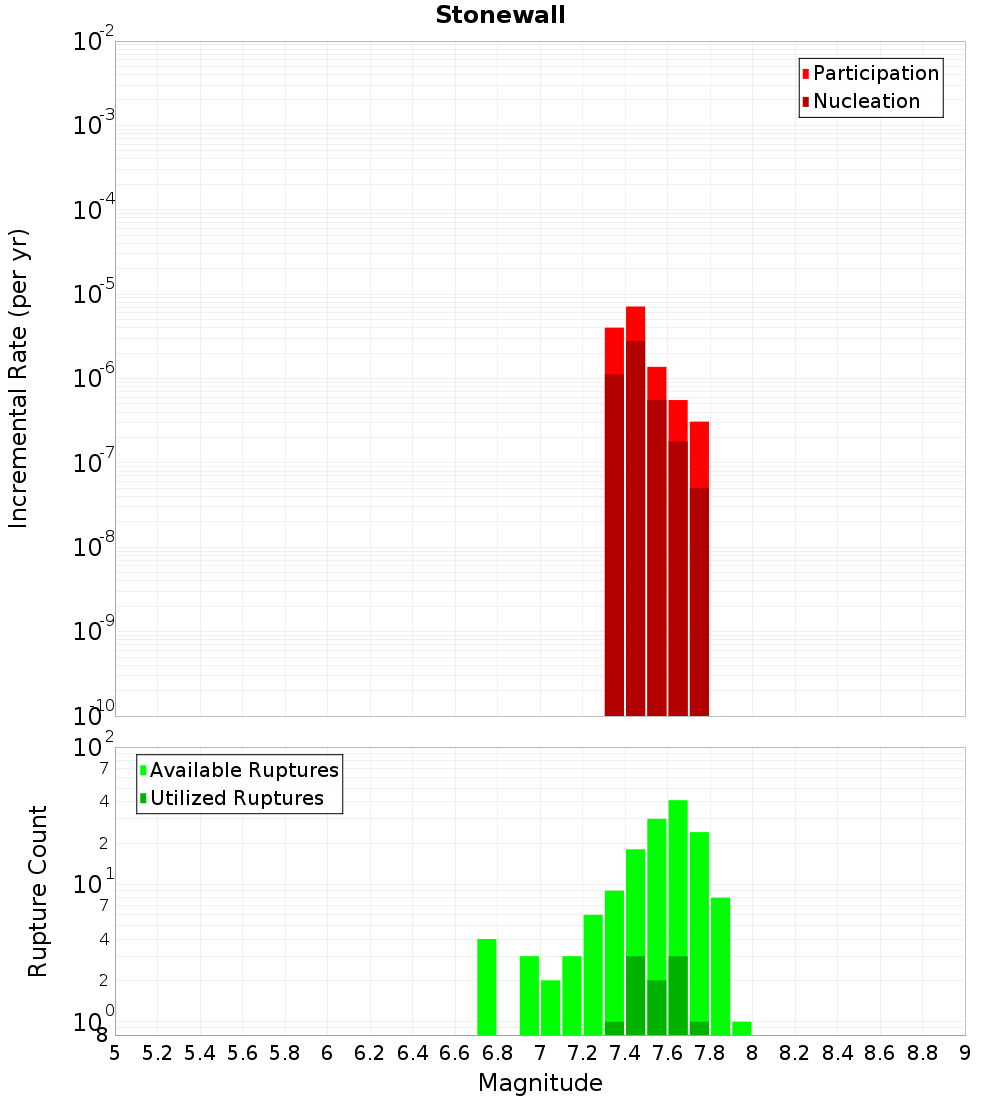

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

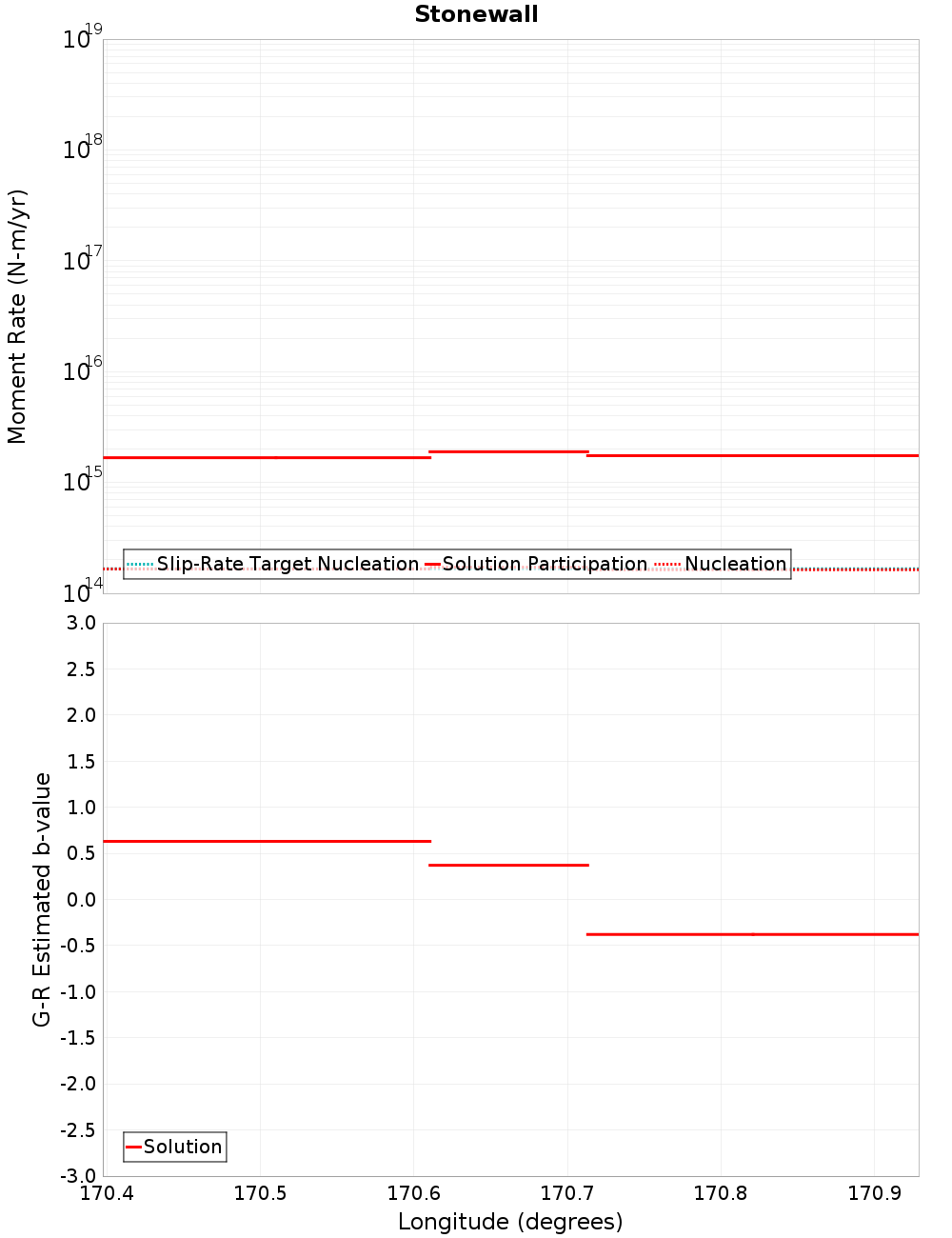

Along-strike plot

Connectivity

(top)

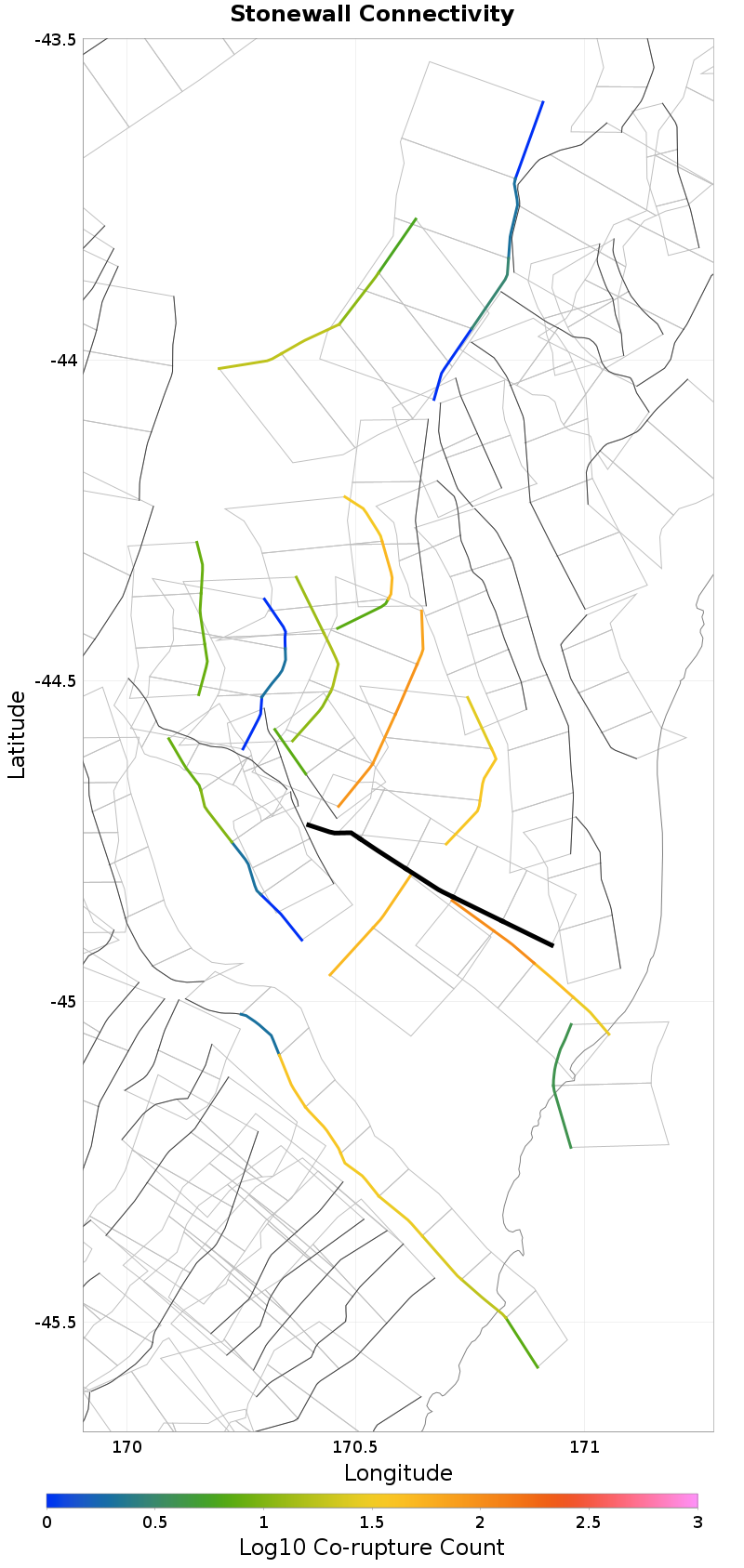

MapMap

Nearby Sections

(top)

Fault Section
Campbell Hills, 0.27 km away
Dryburgh, 0.28 km away
Hunters, 0.33 km away
Waimate, 0.35 km away
Waitaki, 0.64 km away
Black Hill, 0.69 km away
Awahokomo, 0.84 km away
Kirkliston, 1.94 km away
Waitangi, 3.51 km away
Fern Gully, 6.14 km away
Middle Range, 9.97 km away
Mt Sutton, 13.56 km away
Awamoa, 14.16 km away
Chamberlain, 15.66 km away
Gibson, 17.07 km away

Campbell Hills, 0.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjIuMENQS0ZK
Connected?true
Directly Connected?true
Co-rupture Count37
Co-rupture Rate3.8491853E-6

Dryburgh, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjIuMENQS0ZK
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate5.032803E-7

Hunters, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjIuMENQS0ZK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimate, 0.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjIuMENQS0ZK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitaki, 0.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjIuMENQS0ZK
Connected?true
Directly Connected?true
Co-rupture Count103
Co-rupture Rate3.6034172E-7

Black Hill, 0.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjIuMENQS0ZK
Connected?true
Directly Connected?false
Co-rupture Count48
Co-rupture Rate0.0

Awahokomo, 0.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjIuMENQS0ZK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kirkliston, 1.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjIuMENQS0ZK
Connected?true
Directly Connected?true
Co-rupture Count102
Co-rupture Rate1.3382548E-5

Waitangi, 3.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjIuMENQS0ZK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Fern Gully, 6.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjIuMENQS0ZK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Middle Range, 9.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjIuMENQS0ZK
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate1.3885812E-6

Mt Sutton, 13.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjIuMENQS0ZK
Connected?true
Directly Connected?false
Co-rupture Count15
Co-rupture Rate5.032803E-7

Awamoa, 14.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjIuMENQS0ZK
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Chamberlain, 15.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjIuMENQS0ZK
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Gibson, 17.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjIuMENQS0ZK
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate3.0826303E-7
