Waitaki Details
| Property | Value |
|---|---|
| Rupture Count | 163 |
| Ruptures Above Sect Min Mag | 160 |
| Ruptures w/ Nonzero Rates | 14 |
| Magnitude Range | [6.75, 7.91] |
| Length Range | [18, 199] km |
| Total Rate | 2.5848052E-5 /yr |
| Multi-Fault Rate | 2.4807523E-5 /yr (95.97%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 15 |
Table Of Contents

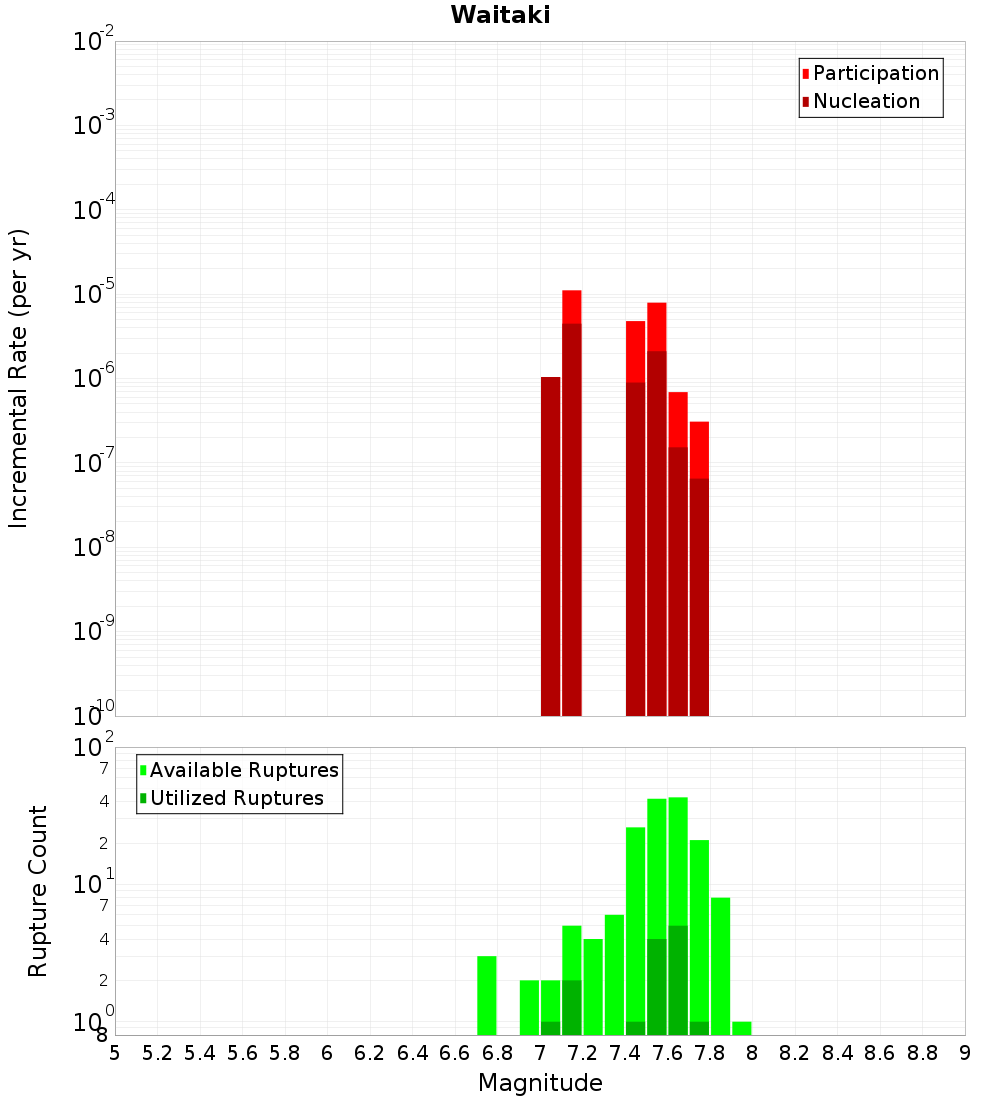

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Black Hill, 0.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjIuMENQS0ZK | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 63 |
| Co-rupture Rate | 0.0 |
Awamoa, 0.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjIuMENQS0ZK | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7 |
| Co-rupture Rate | 4.703005E-6 |
Stonewall, 0.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjIuMENQS0ZK | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 103 |
| Co-rupture Rate | 3.6034172E-7 |
Waimate, 8.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjIuMENQS0ZK | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2 |
| Co-rupture Rate | 6.8076747E-6 |
Campbell Hills, 9.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjIuMENQS0ZK | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 30 |
| Co-rupture Rate | 0.0 |
Middle Range, 13.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjIuMENQS0ZK | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 46 |
| Co-rupture Rate | 1.3402069E-5 |
Hunters, 16.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjIuMENQS0ZK | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Awahokomo, 19.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjIuMENQS0ZK | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
