Ohiwa 1 Details

PropertyValue
Rupture Count658
Ruptures Above Sect Min Mag658
Ruptures w/ Nonzero Rates8
Magnitude Range[6.53, 7.50]
Length Range[9, 118] km
Total Rate3.191145E-4 /yr
Multi-Fault Rate1.988132E-4 /yr (62.30%)
Directly-Connected Faults3
All Co-Rupturing Faults28

Table Of Contents

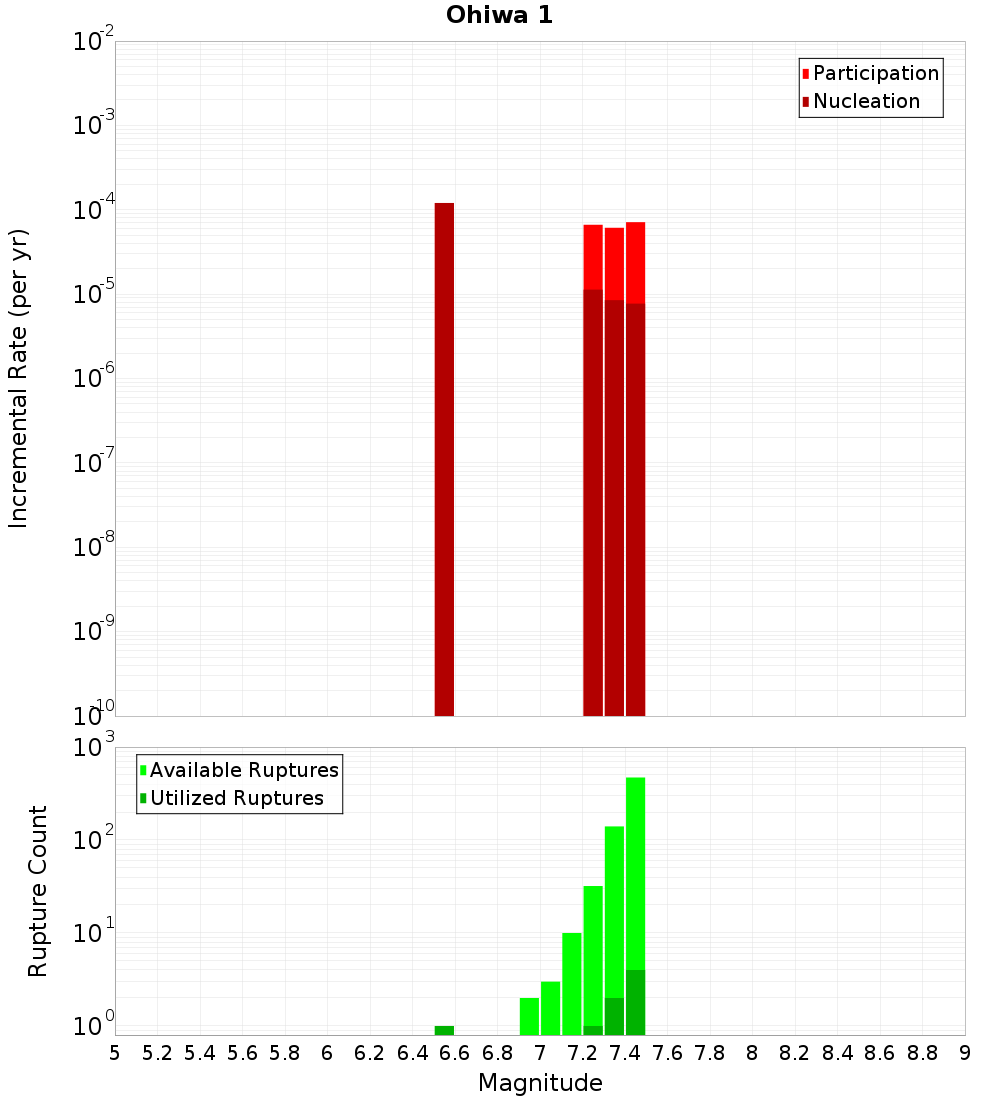

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

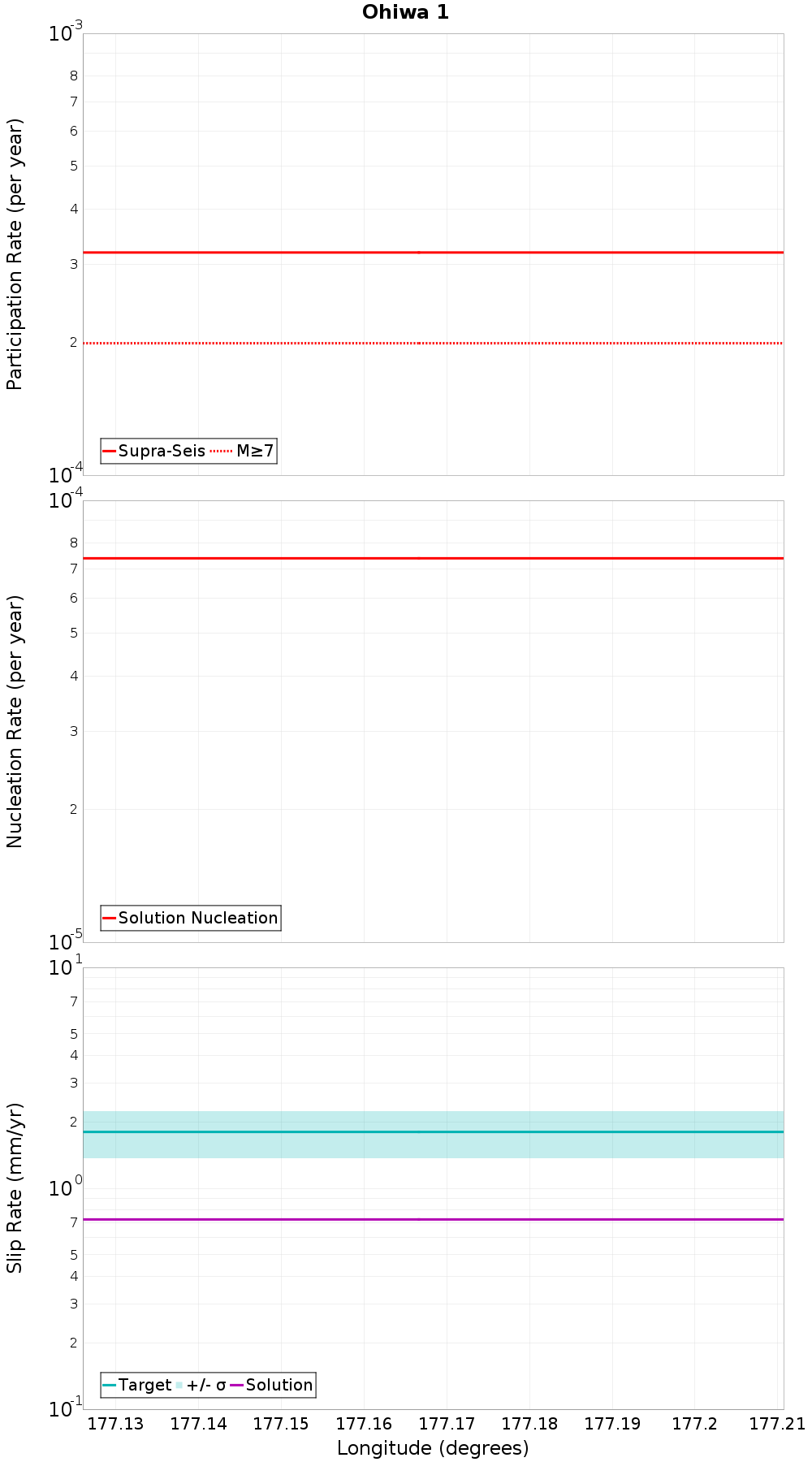

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Whakaari 4, 0.14 km awayOhae 1, 8.74 km away
White Island 1, 0.17 km awayTuatoru 1, 11.29 km away
Rangitaiki 2, 0.42 km awayOhae 2, 14.04 km away
White Island 2, 0.88 km awayWaiotahi: North, 14.52 km away
Waimanawa - Waikaremoana, 4.14 km awayTe Arawa 2, 14.95 km away
Calypso 2, 8.32 km awayHariki, 16.12 km away
Opotiki 3, 8.42 km awayOpape 1, 16.67 km away
Te Arawa 1, 8.65 km awayVolkner 3, 17.93 km away
Waimana: North, 8.65 km awayOpotiki 2, 19.25 km away
Rangitaiki 1, 8.72 km away

Whakaari 4, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjMuMExveEF4
Connected?true
Directly Connected?true
Co-rupture Count311
Co-rupture Rate5.7457903E-5

White Island 1, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjMuMExveEF4
Connected?true
Directly Connected?true
Co-rupture Count498
Co-rupture Rate4.82195E-5

Rangitaiki 2, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjMuMExveEF4
Connected?true
Directly Connected?true
Co-rupture Count297
Co-rupture Rate1.505937E-4

White Island 2, 0.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjMuMExveEF4
Connected?true
Directly Connected?false
Co-rupture Count29
Co-rupture Rate0.0

Waimanawa - Waikaremoana, 4.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjMuMExveEF4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 8.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjMuMExveEF4
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Opotiki 3, 8.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjMuMExveEF4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 1, 8.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjMuMExveEF4
Connected?true
Directly Connected?false
Co-rupture Count68
Co-rupture Rate0.0

Waimana: North, 8.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjMuMExveEF4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 1, 8.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjMuMExveEF4
Connected?true
Directly Connected?false
Co-rupture Count112
Co-rupture Rate1.505937E-4

Ohae 1, 8.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjMuMExveEF4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 1, 11.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjMuMExveEF4
Connected?true
Directly Connected?false
Co-rupture Count77
Co-rupture Rate5.7457903E-5

Ohae 2, 14.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjMuMExveEF4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiotahi: North, 14.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjMuMExveEF4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 2, 14.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjMuMExveEF4
Connected?true
Directly Connected?false
Co-rupture Count72
Co-rupture Rate0.0

Hariki, 16.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjMuMExveEF4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opape 1, 16.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjMuMExveEF4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Volkner 3, 17.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjMuMExveEF4
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Opotiki 2, 19.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MjMuMExveEF4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
