Hawke Bay 1 Details
| Property | Value |
|---|---|
| Rupture Count | 126 |
| Ruptures Above Sect Min Mag | 125 |
| Ruptures w/ Nonzero Rates | 38 |
| Magnitude Range | [6.95, 8.06] |
| Length Range | [21, 295] km |
| Total Rate | 1.1195987E-5 /yr |
| Multi-Fault Rate | 1.1194176E-5 /yr (99.98%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 15 |
Table Of Contents

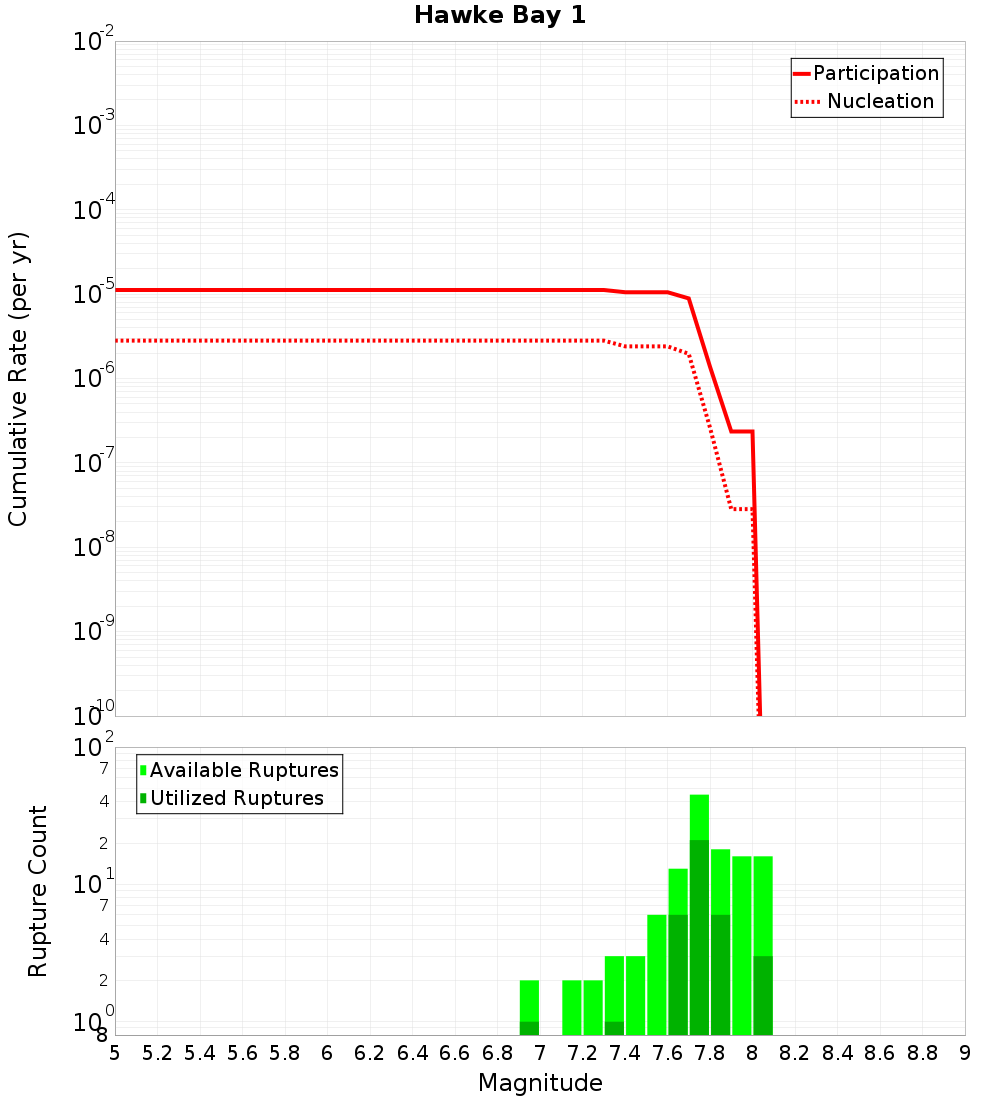

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hawke Bay 4, 4.48 km away |
| Awanui, 4.64 km away |
| Hawke Bay 5 & 11, 8.85 km away |
| Patoka - Rangiora, 12.96 km away |
Hawke Bay 4, 4.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzMuMEpEeUo3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 38 |
| Co-rupture Rate | 4.2947218E-7 |
Awanui, 4.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzMuMEpEeUo3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 78 |
| Co-rupture Rate | 1.0300697E-5 |
Hawke Bay 5 & 11, 8.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzMuMEpEeUo3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 15 |
| Co-rupture Rate | 2.3660125E-7 |
Patoka - Rangiora, 12.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzMuMEpEeUo3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 42 |
| Co-rupture Rate | 8.934792E-7 |
