Ruahine: North Details

Property	Value
Rupture Count	29,514
Ruptures Above Sect Min Mag	29,511
Ruptures w/ Nonzero Rates	459
Magnitude Range	[6.97, 8.60]
Length Range	[24, 1,113] km
Total Rate	3.682996E-4 /yr
Multi-Fault Rate	3.6285E-4 /yr (98.52%)
Directly-Connected Faults	8
All Co-Rupturing Faults	128

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

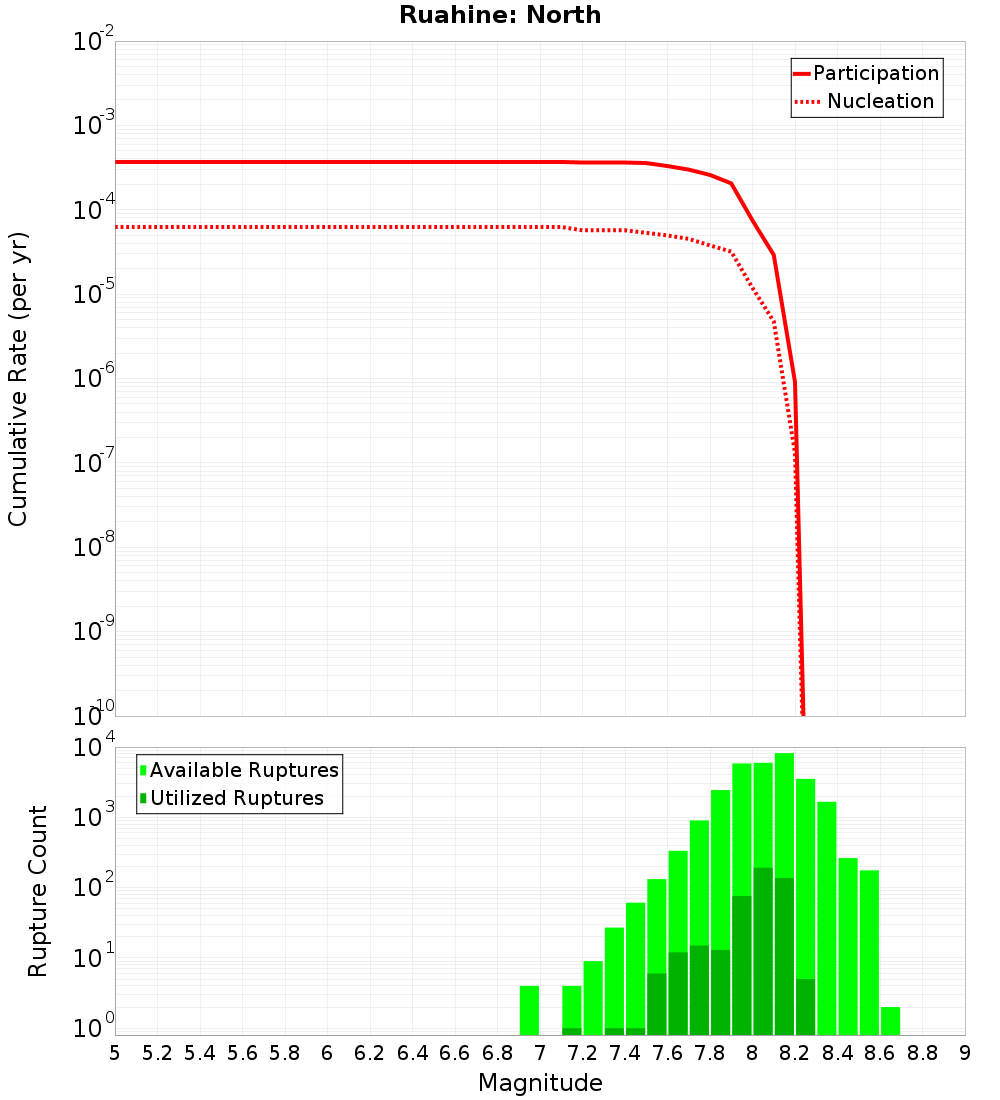

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

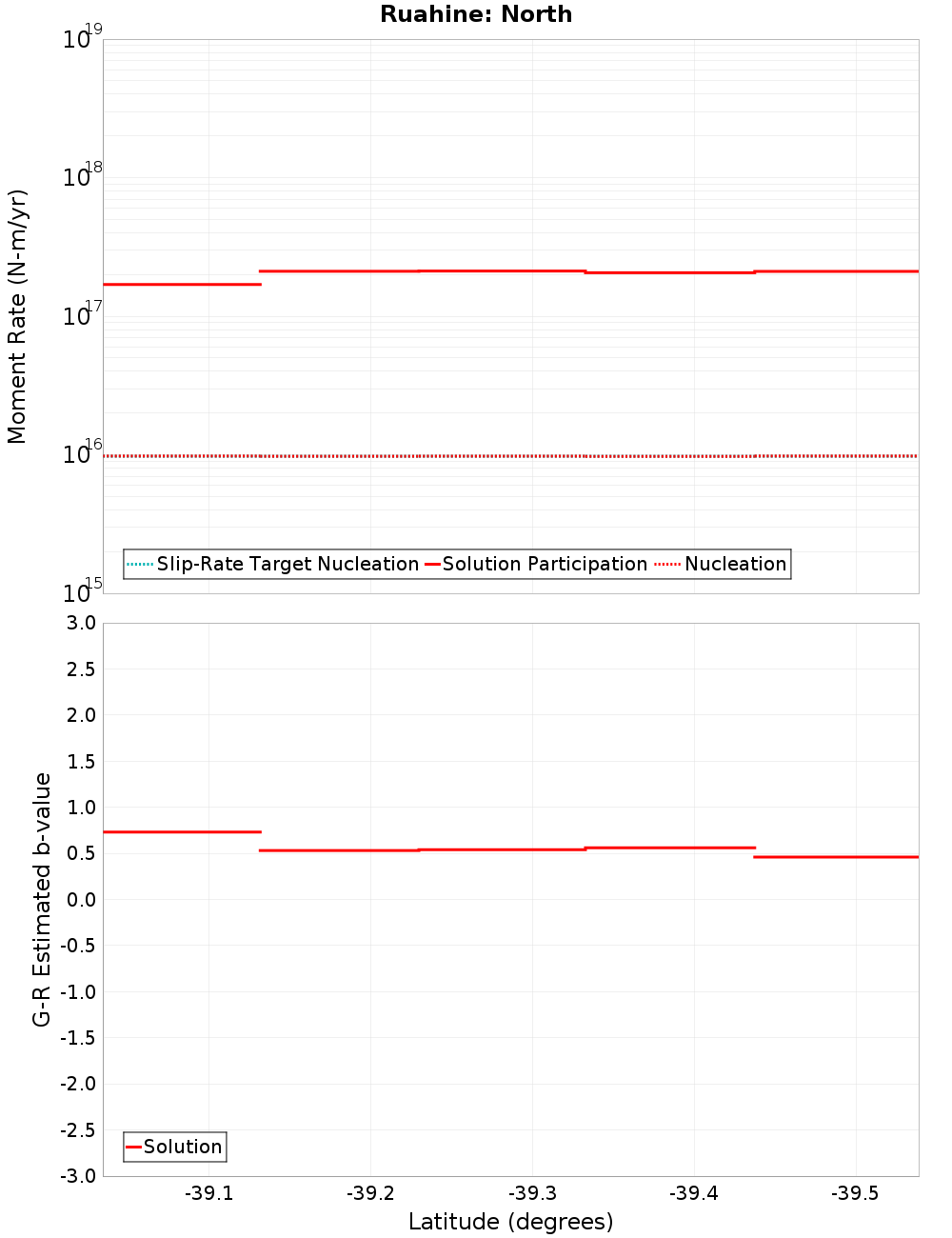

Moment-Rates and b-Values

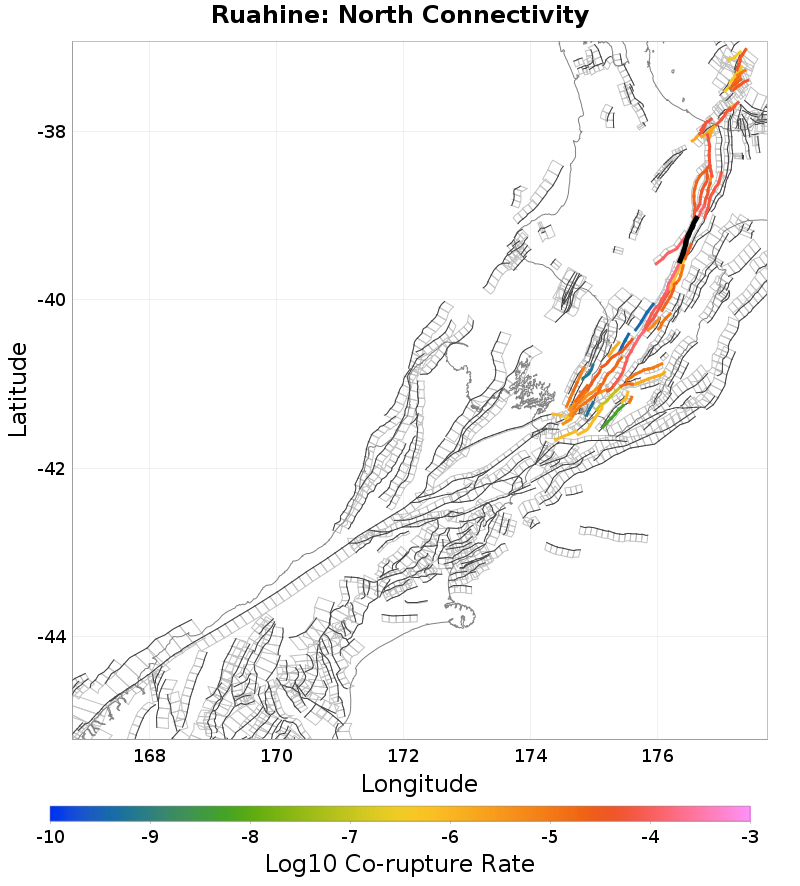

Connectivity

Nearby Sections

Fault Section
Waiohau: South, 0 km away
Ruahine: Central, 0 km away
Kaweka, 1.83 km away
Wheao: South, 2.68 km away
Wakarara, 4 km away
Mohaka: South, 4.35 km away
Mohaka: North, 5.2 km away
Patoka - Rangiora, 6.53 km away
Te Whaiti South, 9.06 km away
Whakatane: South, 11.52 km away
Waimana: South, 11.54 km away
Awanui, 17.89 km away
Te Heka, 19.72 km away

Waiohau: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzMuMEpEeUo3
Connected?	true
Directly Connected?	true
Co-rupture Count	10,454
Co-rupture Rate	1.2084429E-4

Ruahine: Central, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzMuMEpEeUo3
Connected?	true
Directly Connected?	true
Co-rupture Count	19,042
Co-rupture Rate	1.633101E-4

Kaweka, 1.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzMuMEpEeUo3
Connected?	true
Directly Connected?	true
Co-rupture Count	339
Co-rupture Rate	1.1823462E-4

Wheao: South, 2.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzMuMEpEeUo3
Connected?	true
Directly Connected?	true
Co-rupture Count	2,916
Co-rupture Rate	2.7400662E-5

Wakarara, 4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzMuMEpEeUo3
Connected?	true
Directly Connected?	true
Co-rupture Count	2,372
Co-rupture Rate	1.2305188E-5

Mohaka: South, 4.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzMuMEpEeUo3
Connected?	true
Directly Connected?	true
Co-rupture Count	10,423
Co-rupture Rate	7.664202E-5

Mohaka: North, 5.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzMuMEpEeUo3
Connected?	true
Directly Connected?	true
Co-rupture Count	5,135
Co-rupture Rate	2.717638E-5

Patoka - Rangiora, 6.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzMuMEpEeUo3
Connected?	true
Directly Connected?	false
Co-rupture Count	49
Co-rupture Rate	0.0

Te Whaiti South, 9.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzMuMEpEeUo3
Connected?	true
Directly Connected?	true
Co-rupture Count	5,231
Co-rupture Rate	6.940681E-5

Whakatane: South, 11.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzMuMEpEeUo3
Connected?	true
Directly Connected?	false
Co-rupture Count	2,006
Co-rupture Rate	6.805843E-5

Waimana: South, 11.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzMuMEpEeUo3
Connected?	true
Directly Connected?	false
Co-rupture Count	3,143
Co-rupture Rate	0.0

Awanui, 17.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzMuMEpEeUo3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Heka, 19.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzMuMEpEeUo3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
