Wairata Details
| Property | Value |
|---|---|
| Rupture Count | 714 |
| Ruptures Above Sect Min Mag | 713 |
| Ruptures w/ Nonzero Rates | 10 |
| Magnitude Range | [6.39, 8.26] |
| Length Range | [7, 493] km |
| Total Rate | 1.6540462E-4 /yr |
| Multi-Fault Rate | 1.6540462E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 54 |
Table Of Contents

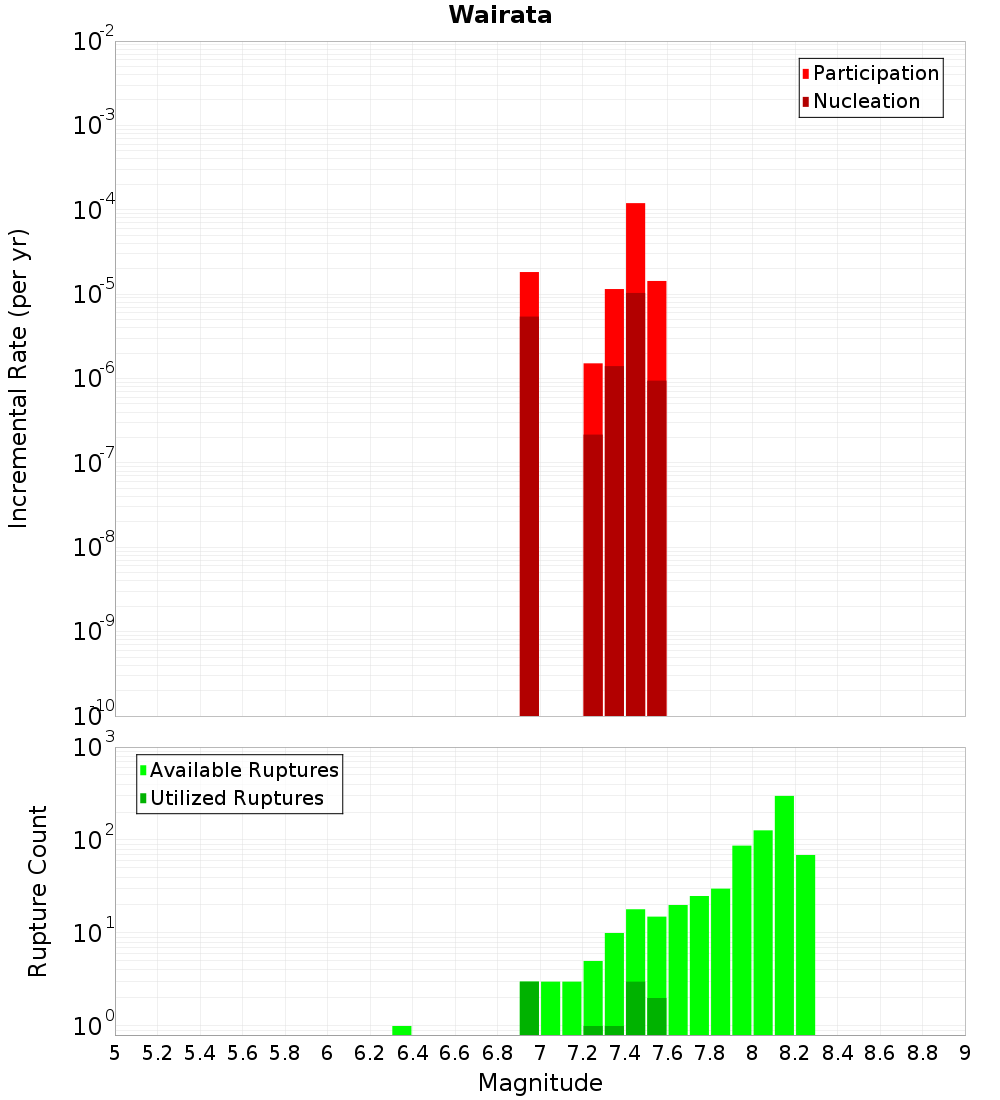

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

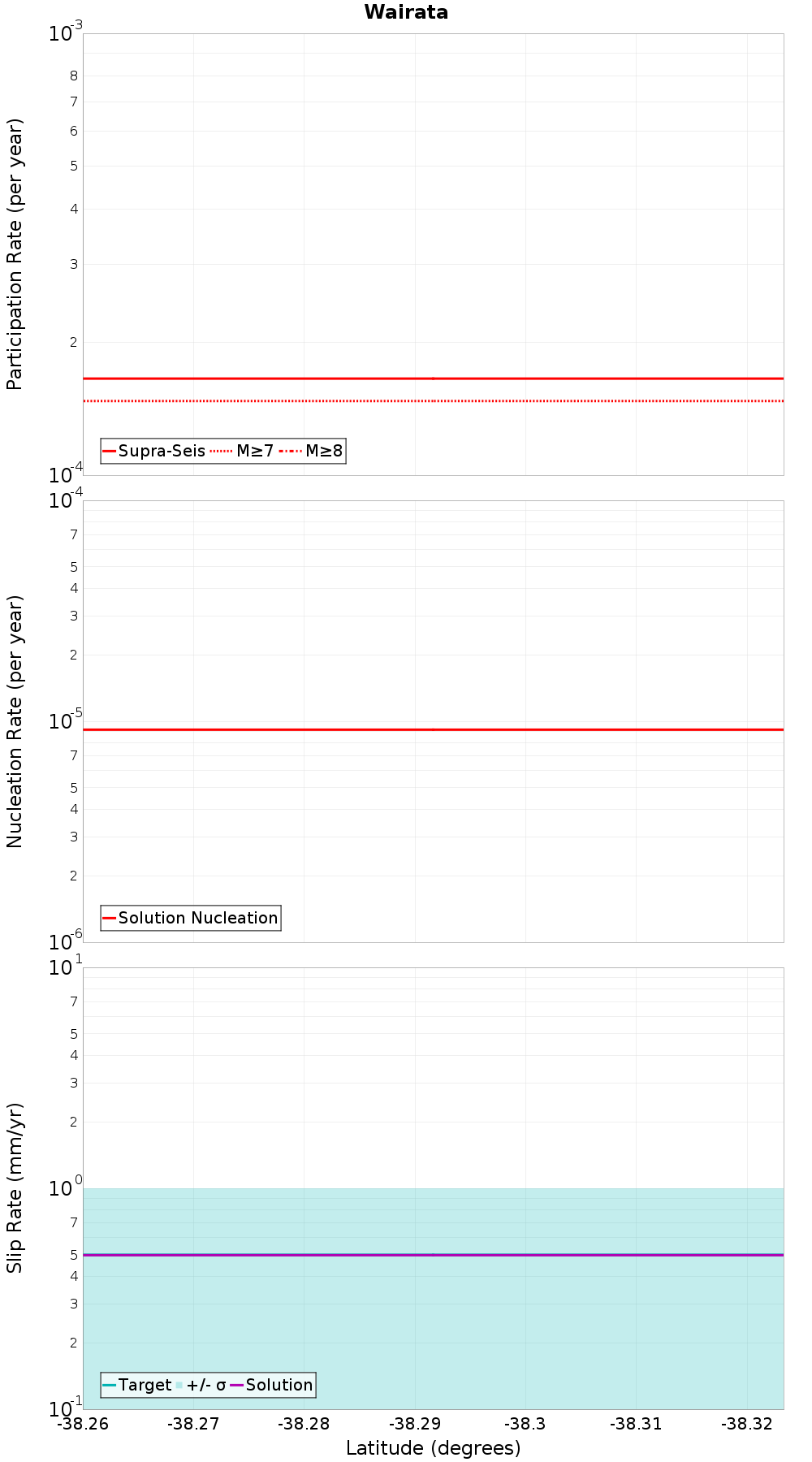

Along-Strike Values
Moment-Rates and b-Values

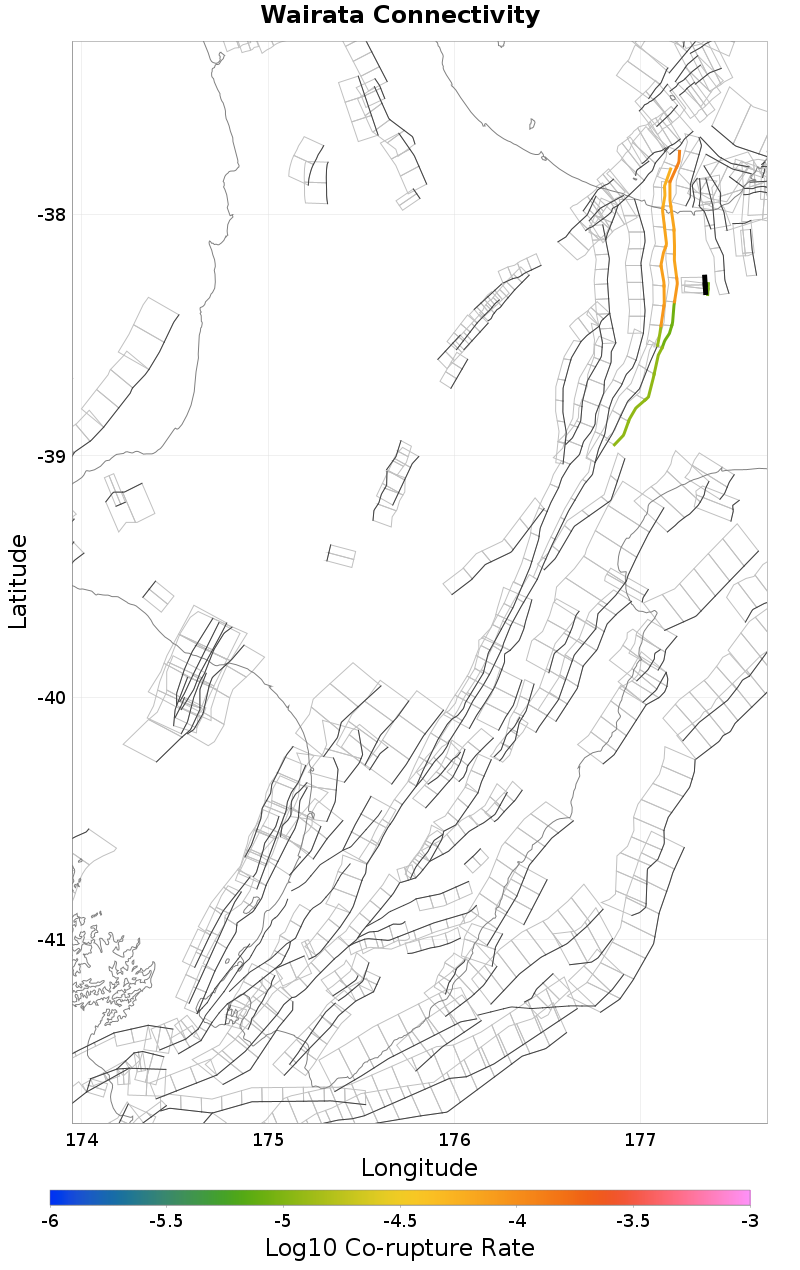

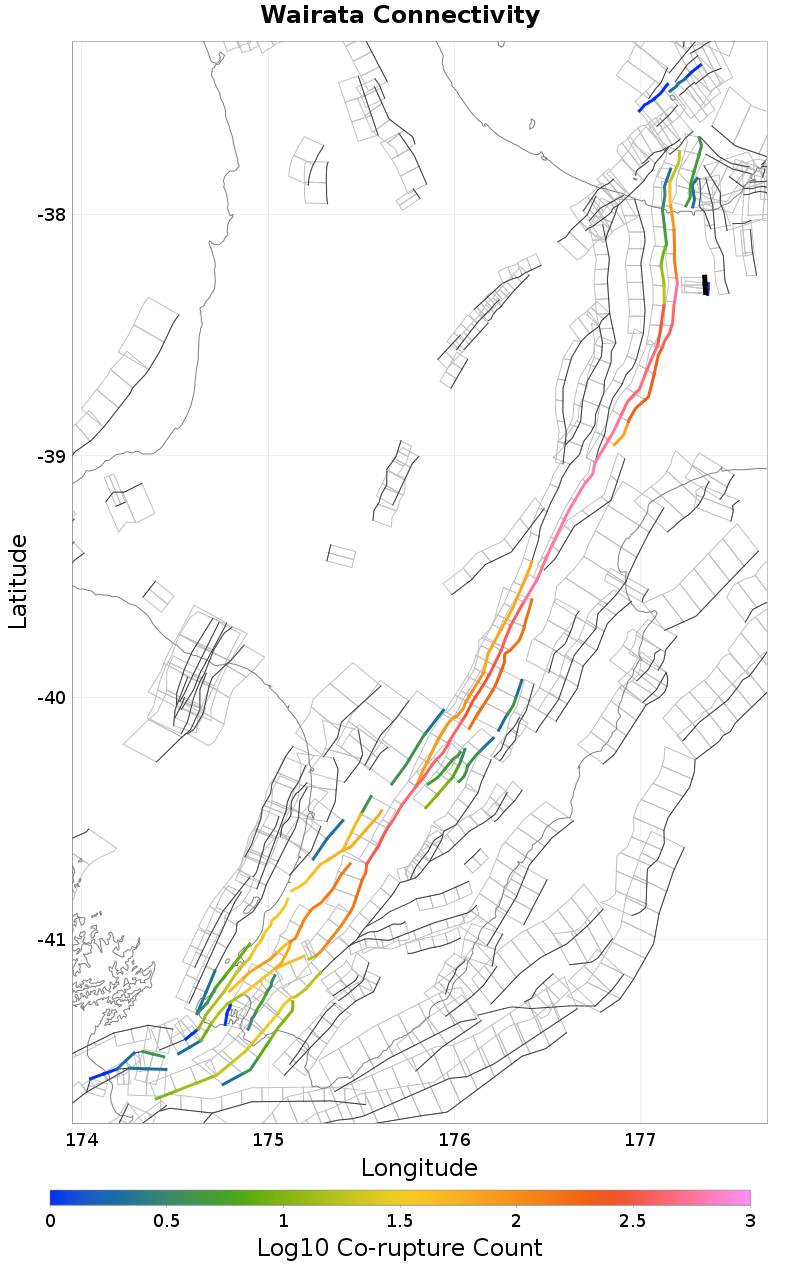

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Raukumara 9, 0.98 km away |
| Waiotahi: North, 5.27 km away |
| Kotare - Moutuhora, 9.2 km away |
| Waimana: North, 12.84 km away |
Raukumara 9, 0.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzMuMEpEeUo3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 8.977182E-6 |
Waiotahi: North, 5.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzMuMEpEeUo3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 555 |
| Co-rupture Rate | 8.5328174E-5 |
Kotare - Moutuhora, 9.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzMuMEpEeUo3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waimana: North, 12.84 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzMuMEpEeUo3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 314 |
| Co-rupture Rate | 8.589354E-5 |
