Springbank Details

PropertyValue
Rupture Count67
Ruptures Above Sect Min Mag67
Ruptures w/ Nonzero Rates15
Magnitude Range[6.96, 8.02]
Length Range[21, 274] km
Total Rate2.8250484E-5 /yr
Multi-Fault Rate2.8250484E-5 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults12

Table Of Contents

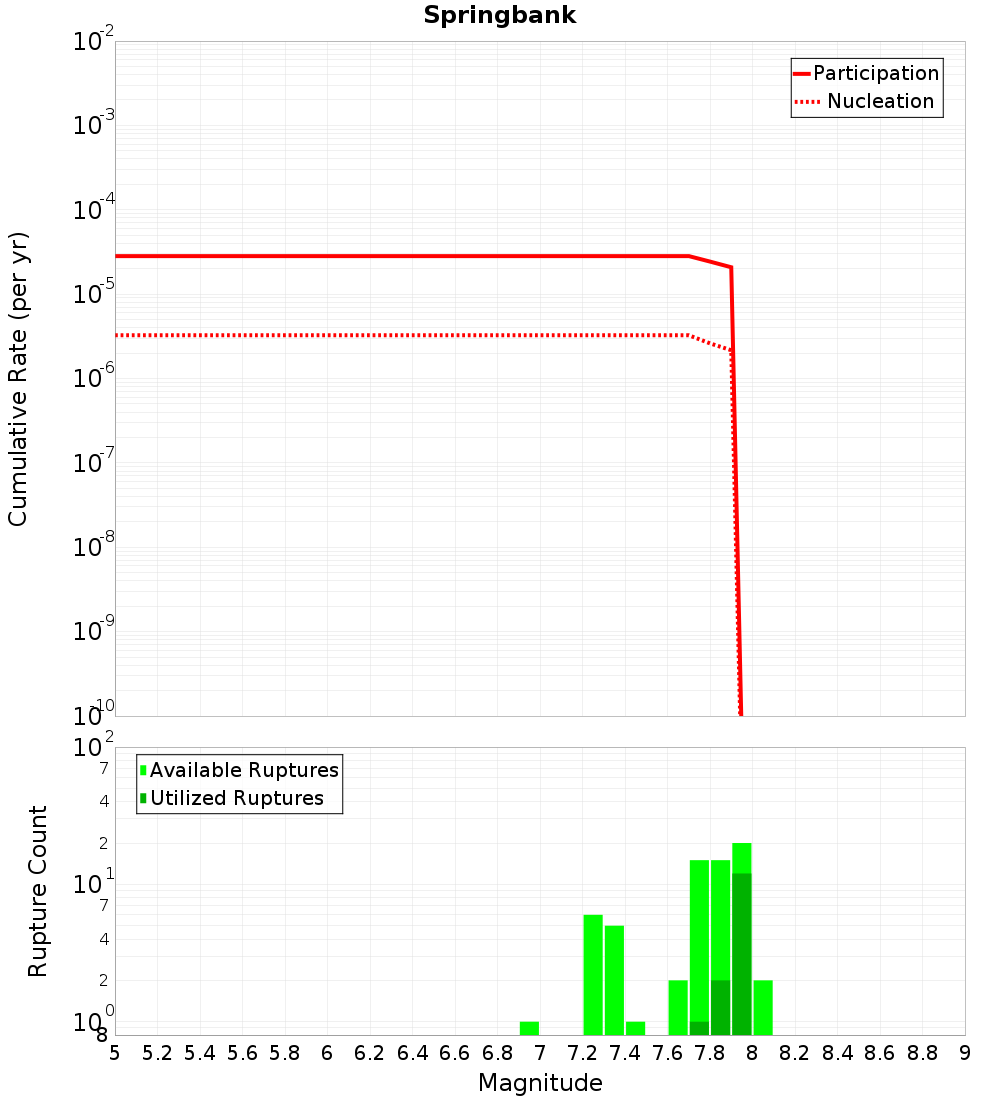

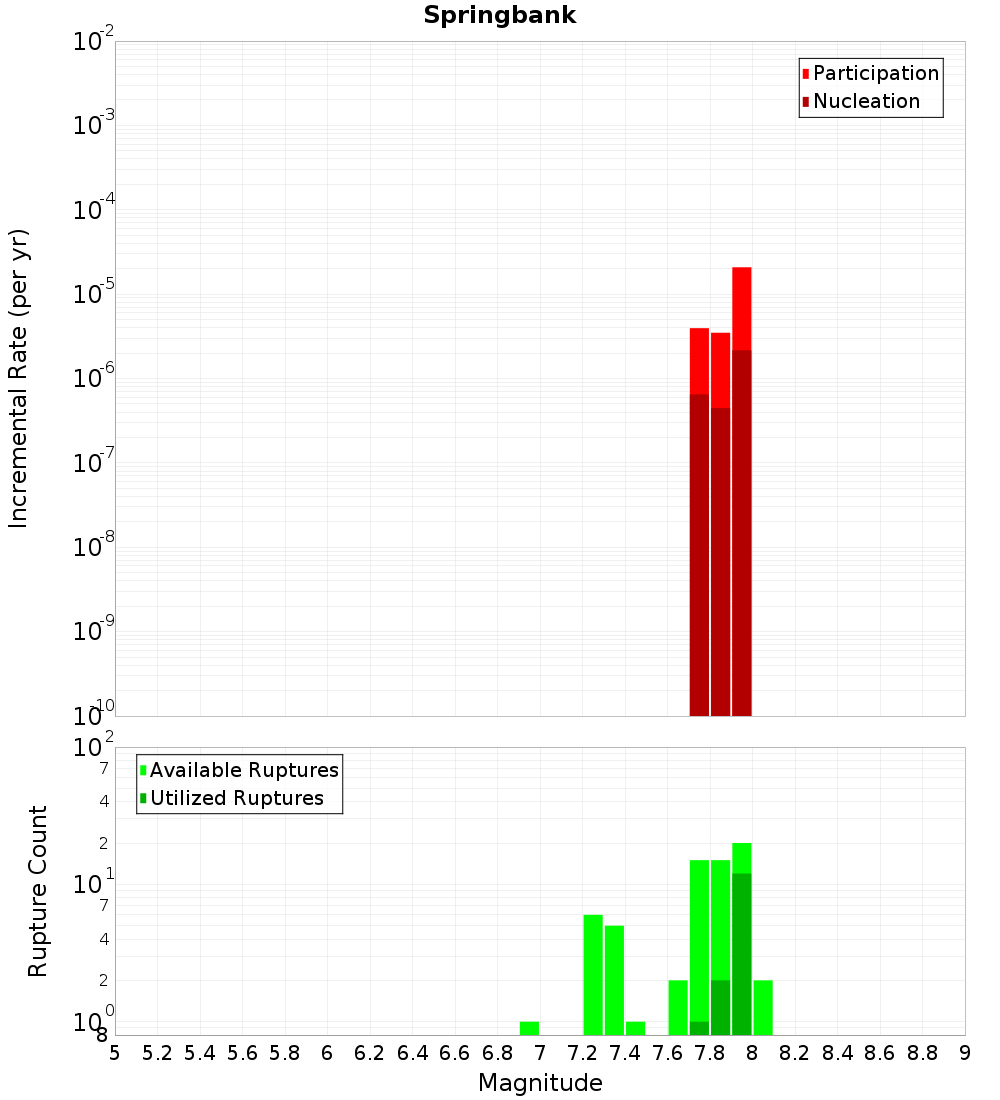

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

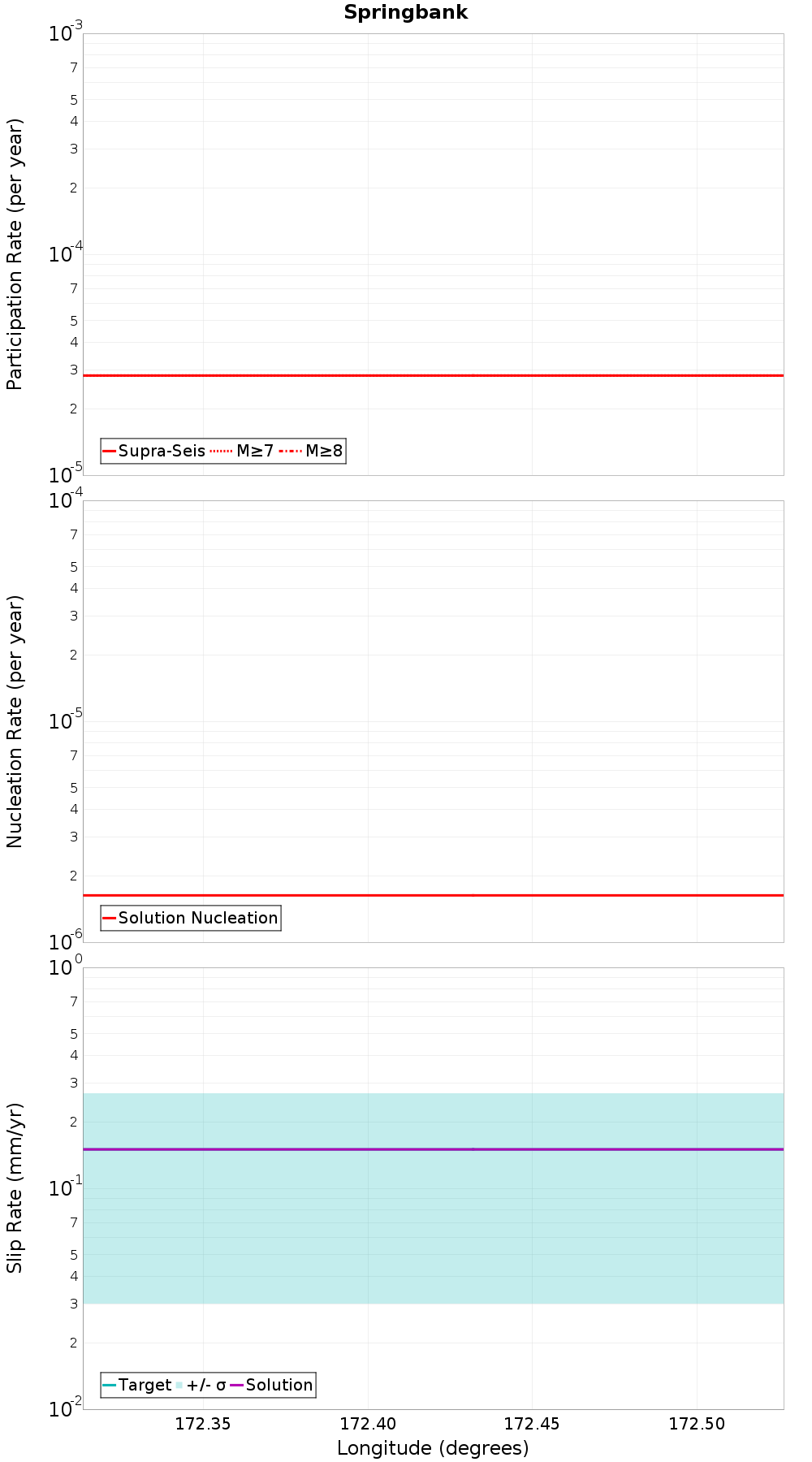

Along-Strike Values

(top)

Along-strike plot

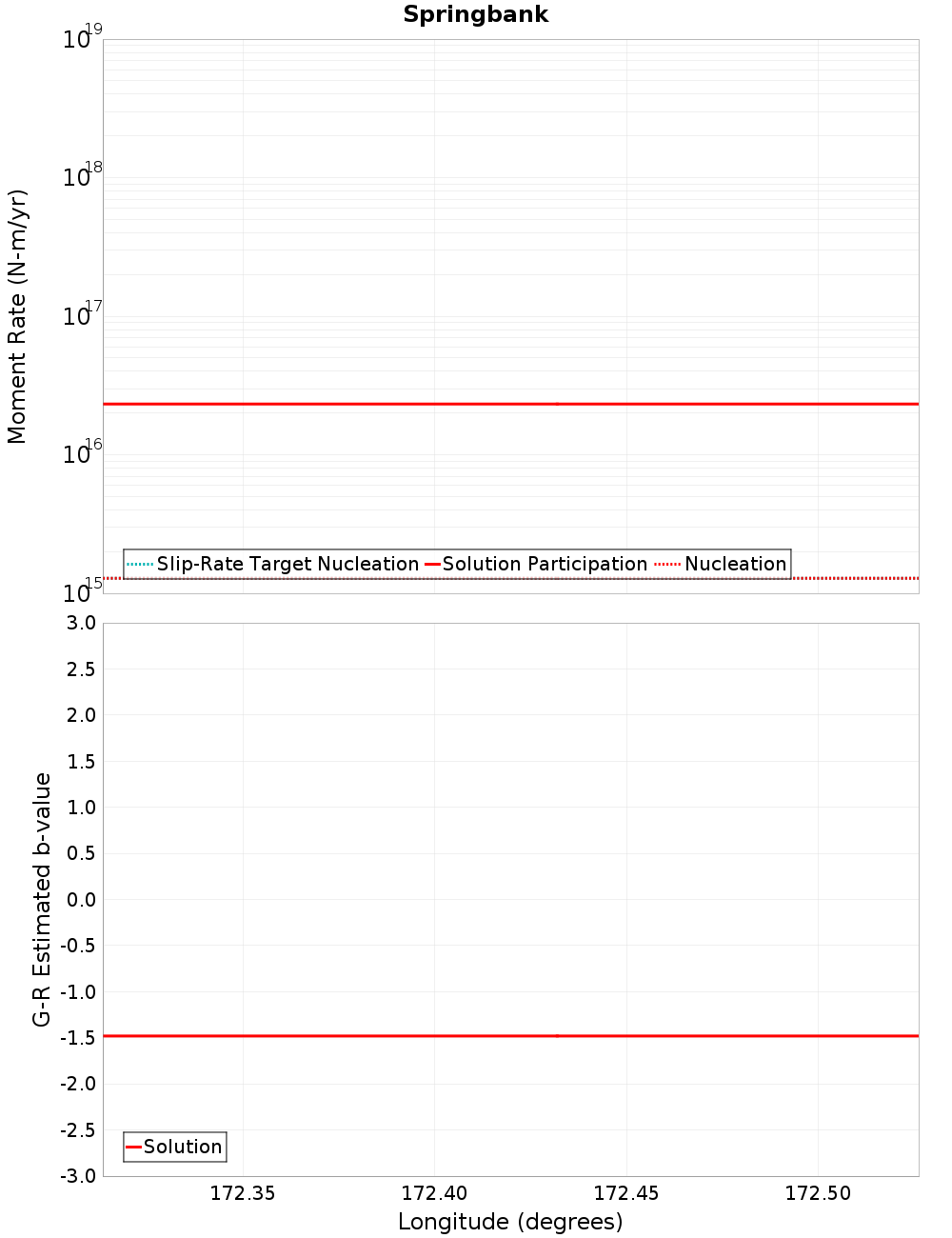

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Pancake, 0.13 km awayKowai - View Hill, 10.45 km away
Starvation - Ashley, 0.14 km awayMt Arden, 11.68 km away
Lees Valley, 0.24 km awayDoctors, 12.28 km away
Mt Lawry, 0.46 km awayHigh Peak - Sheffield, 13.42 km away
Esk South, 5.58 km awayAmberBlyth, 15.08 km away
Knowles Top, 8 km awayPorters Pass, 17.08 km away
Hororata, 8.03 km awayPegasus Bay, 17.58 km away
Boby Stream, 9.36 km awayWaikuku, 17.74 km away

Pancake, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzUuMHQ0a1B3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Starvation - Ashley, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzUuMHQ0a1B3
Connected?true
Directly Connected?true
Co-rupture Count49
Co-rupture Rate1.5668324E-5

Lees Valley, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzUuMHQ0a1B3
Connected?true
Directly Connected?true
Co-rupture Count51
Co-rupture Rate3.3195978E-5

Mt Lawry, 0.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzUuMHQ0a1B3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Esk South, 5.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzUuMHQ0a1B3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Knowles Top, 8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzUuMHQ0a1B3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hororata, 8.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzUuMHQ0a1B3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Boby Stream, 9.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzUuMHQ0a1B3
Connected?true
Directly Connected?false
Co-rupture Count22
Co-rupture Rate4.6139094E-6

Kowai - View Hill, 10.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzUuMHQ0a1B3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Arden, 11.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzUuMHQ0a1B3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Doctors, 12.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzUuMHQ0a1B3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

High Peak - Sheffield, 13.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzUuMHQ0a1B3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

AmberBlyth, 15.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzUuMHQ0a1B3
Connected?true
Directly Connected?false
Co-rupture Count17
Co-rupture Rate4.6139094E-6

Porters Pass, 17.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzUuMHQ0a1B3
Connected?true
Directly Connected?false
Co-rupture Count41
Co-rupture Rate2.3636576E-5

Pegasus Bay, 17.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzUuMHQ0a1B3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waikuku, 17.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2MzUuMHQ0a1B3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
