Clarence: Northeast Details

PropertyValue
Rupture Count5,757
Ruptures Above Sect Min Mag5,756
Ruptures w/ Nonzero Rates109
Magnitude Range[6.84, 8.55]
Length Range[21, 894] km
Total Rate0.0012534725 /yr
Multi-Fault Rate0.0012534725 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults85

Table Of Contents

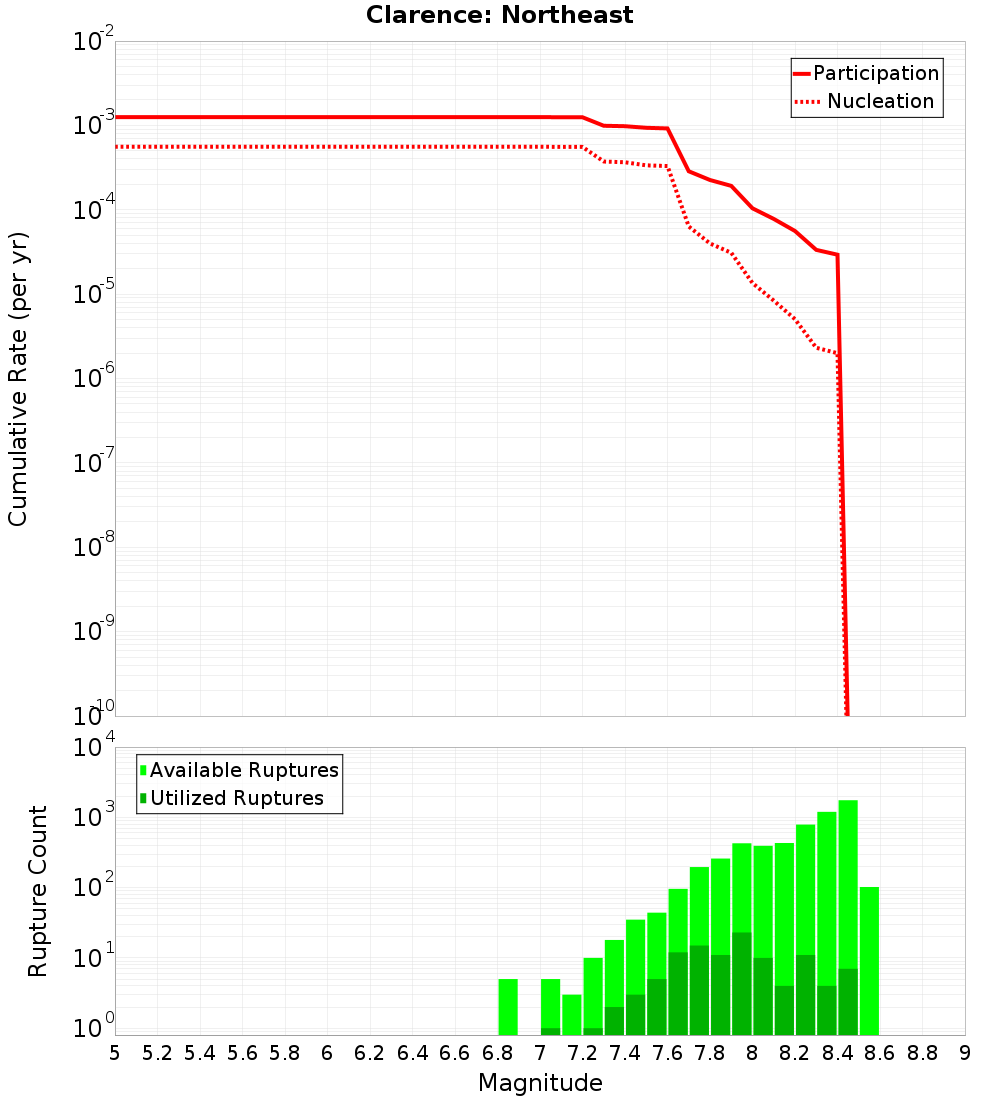

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Elliott, 0.01 km away
Clarence: Central, 0.09 km away
Fidget, 0.64 km away
Jordan, 0.78 km away
Needles East 2, 8.38 km away
Awatere: Northeast 1, 9.18 km away
Kekerengu 1, 10.43 km away
London Hill, 10.86 km away
Awatere: Southwest, 11.07 km away
Papatea, 11.87 km away
Needles, 11.97 km away
Barefell, 16.85 km away
Chancet, 18.61 km away

Elliott, 0.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDEuMGE0RWRQ
Connected?true
Directly Connected?true
Co-rupture Count2,050
Co-rupture Rate1.7298866E-4

Clarence: Central, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDEuMGE0RWRQ
Connected?true
Directly Connected?true
Co-rupture Count2,010
Co-rupture Rate2.4092598E-4

Fidget, 0.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDEuMGE0RWRQ
Connected?true
Directly Connected?false
Co-rupture Count109
Co-rupture Rate8.287583E-6

Jordan, 0.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDEuMGE0RWRQ
Connected?true
Directly Connected?true
Co-rupture Count1,711
Co-rupture Rate4.022934E-4

Needles East 2, 8.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDEuMGE0RWRQ
Connected?true
Directly Connected?false
Co-rupture Count20
Co-rupture Rate2.1724014E-5

Awatere: Northeast 1, 9.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDEuMGE0RWRQ
Connected?true
Directly Connected?true
Co-rupture Count291
Co-rupture Rate1.6829181E-4

Kekerengu 1, 10.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDEuMGE0RWRQ
Connected?true
Directly Connected?true
Co-rupture Count164
Co-rupture Rate5.3122774E-4

London Hill, 10.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDEuMGE0RWRQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awatere: Southwest, 11.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDEuMGE0RWRQ
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate2.7981018E-12

Papatea, 11.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDEuMGE0RWRQ
Connected?true
Directly Connected?true
Co-rupture Count20
Co-rupture Rate2.6387905E-4

Needles, 11.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDEuMGE0RWRQ
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate1.2404981E-5

Barefell, 16.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDEuMGE0RWRQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Chancet, 18.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDEuMGE0RWRQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
