Uruti Basin Details

Property	Value
Rupture Count	11,801
Ruptures Above Sect Min Mag	11,775
Ruptures w/ Nonzero Rates	298
Magnitude Range	[6.37, 8.33]
Length Range	[12, 674] km
Total Rate	9.985128E-4 /yr
Multi-Fault Rate	9.985128E-4 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	57

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

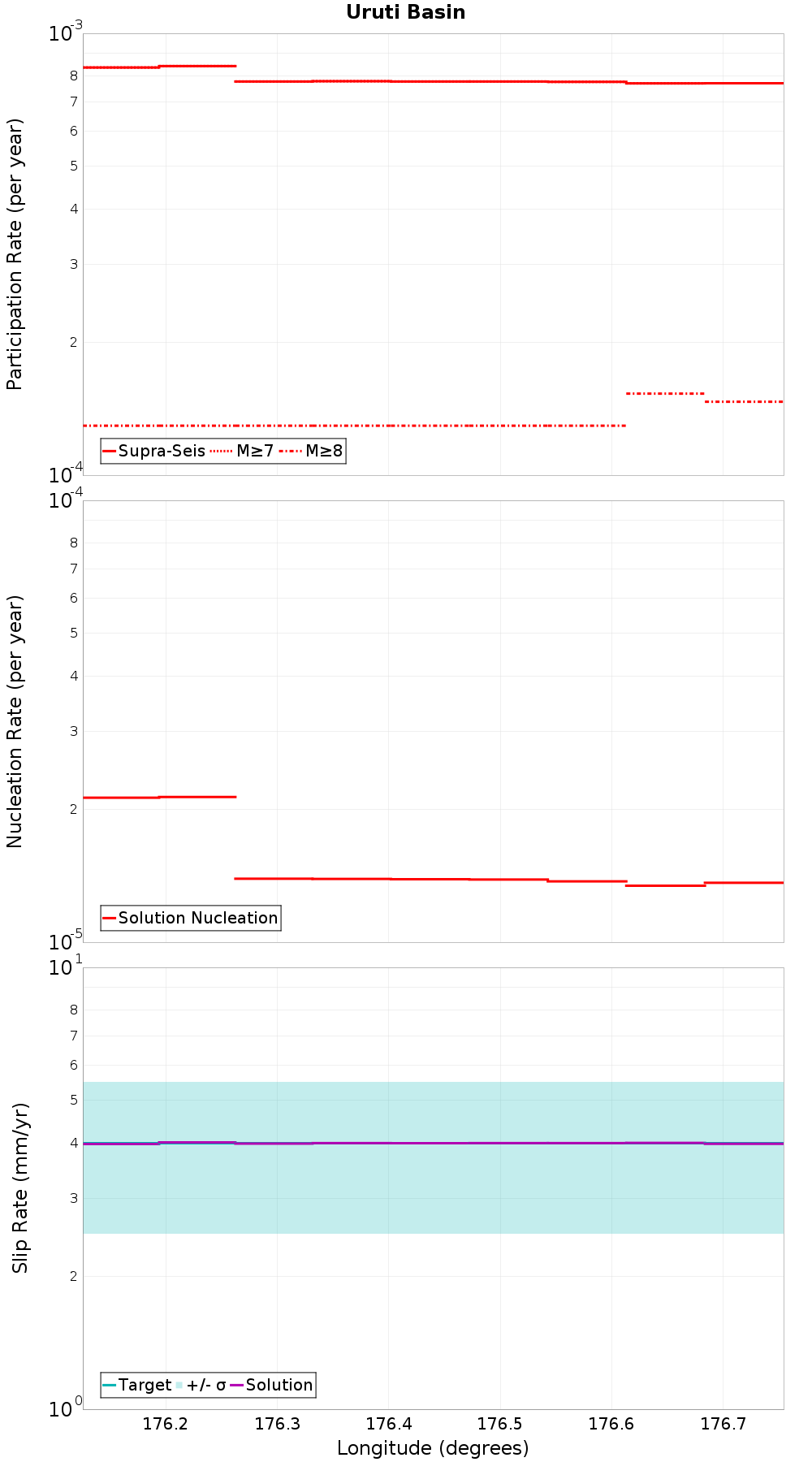

Along-Strike Values

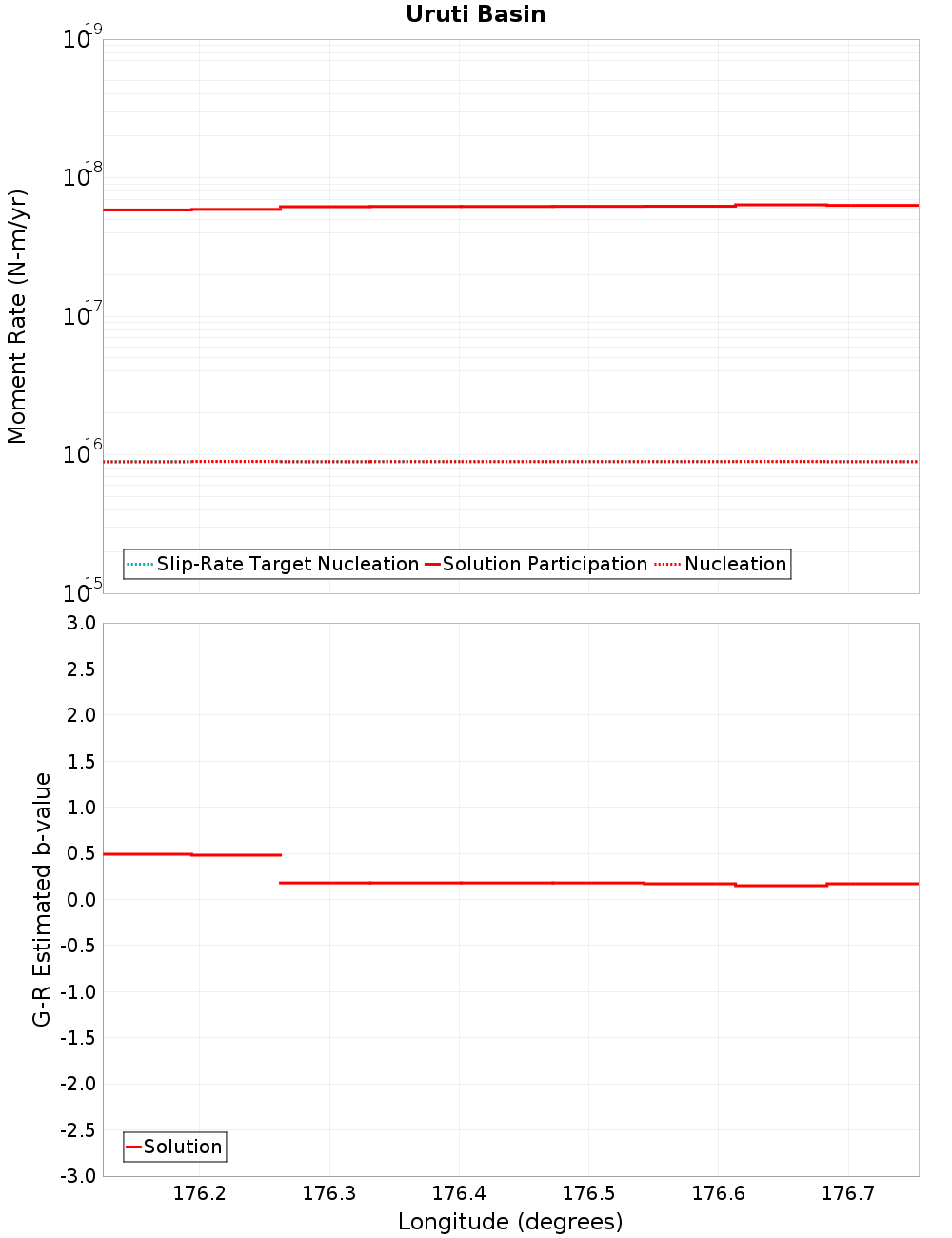

Moment-Rates and b-Values

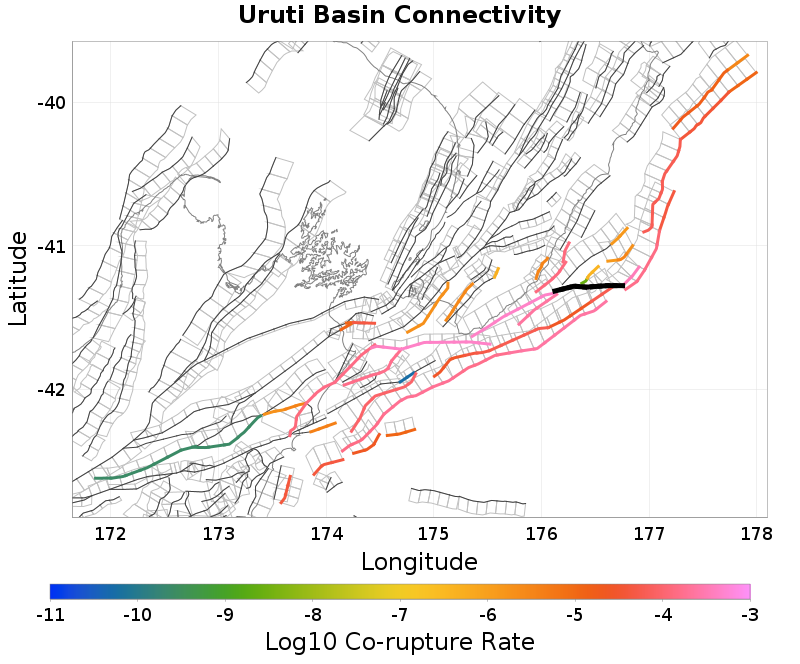

Connectivity

Nearby Sections

Fault Section
Uruti Ridge 2, 0 km away
Uruti Basin 2, 0.15 km away
Opouawe - Uruti, 0.16 km away
Pahaua, 0.28 km away
Uruti East - PorWest 1, 0.29 km away
Honeycomb, 0.57 km away
Palliser - Kaiwhata, 1.36 km away
Whareama Bank, 3.49 km away
Riversdale, 8.5 km away
Uruti Point, 17.49 km away
Uruti North, 18.95 km away

Uruti Ridge 2, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDEuMGE0RWRQ
Connected?	true
Directly Connected?	true
Co-rupture Count	4,928
Co-rupture Rate	3.5042065E-4

Uruti Basin 2, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDEuMGE0RWRQ
Connected?	true
Directly Connected?	true
Co-rupture Count	294
Co-rupture Rate	3.7869248E-7

Opouawe - Uruti, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDEuMGE0RWRQ
Connected?	true
Directly Connected?	true
Co-rupture Count	3,046
Co-rupture Rate	9.362597E-5

Pahaua, 0.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDEuMGE0RWRQ
Connected?	true
Directly Connected?	true
Co-rupture Count	3,026
Co-rupture Rate	3.4027064E-4

Uruti East - PorWest 1, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDEuMGE0RWRQ
Connected?	true
Directly Connected?	true
Co-rupture Count	7,159
Co-rupture Rate	2.616082E-4

Honeycomb, 0.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDEuMGE0RWRQ
Connected?	true
Directly Connected?	true
Co-rupture Count	1,746
Co-rupture Rate	2.331372E-4

Palliser - Kaiwhata, 1.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDEuMGE0RWRQ
Connected?	true
Directly Connected?	true
Co-rupture Count	5,324
Co-rupture Rate	4.40742E-4

Whareama Bank, 3.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDEuMGE0RWRQ
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	1.3596833E-6

Riversdale, 8.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDEuMGE0RWRQ
Connected?	true
Directly Connected?	true
Co-rupture Count	63
Co-rupture Rate	1.2953636E-4

Uruti Point, 17.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDEuMGE0RWRQ
Connected?	true
Directly Connected?	false
Co-rupture Count	283
Co-rupture Rate	3.319829E-6

Uruti North, 18.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDEuMGE0RWRQ
Connected?	true
Directly Connected?	false
Co-rupture Count	1,787
Co-rupture Rate	3.2350024E-6
