Hope: Hanmer NW Details

PropertyValue
Rupture Count10,269
Ruptures Above Sect Min Mag10,268
Ruptures w/ Nonzero Rates458
Magnitude Range[6.63, 8.59]
Length Range[12, 1,144] km
Total Rate0.002347642 /yr
Multi-Fault Rate0.002347642 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults71

Table Of Contents

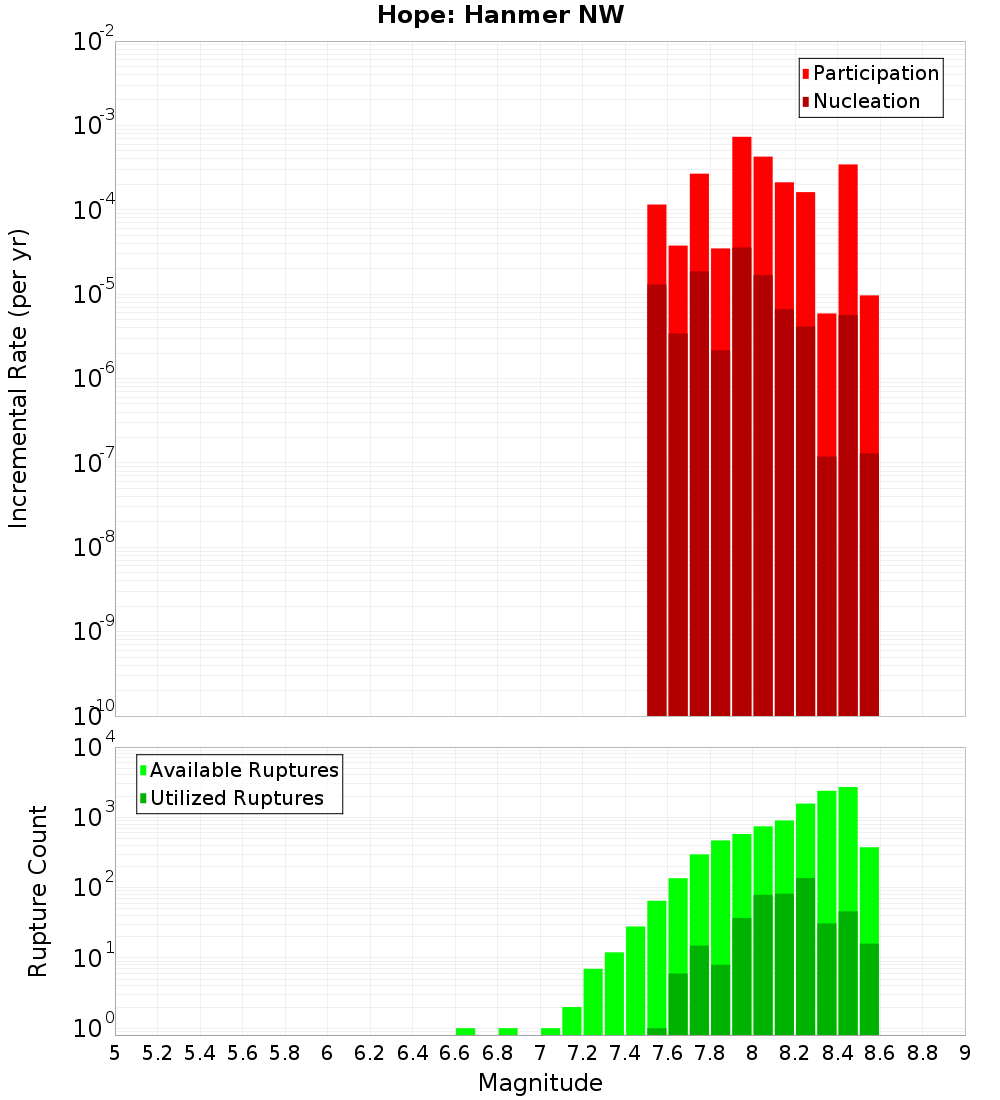

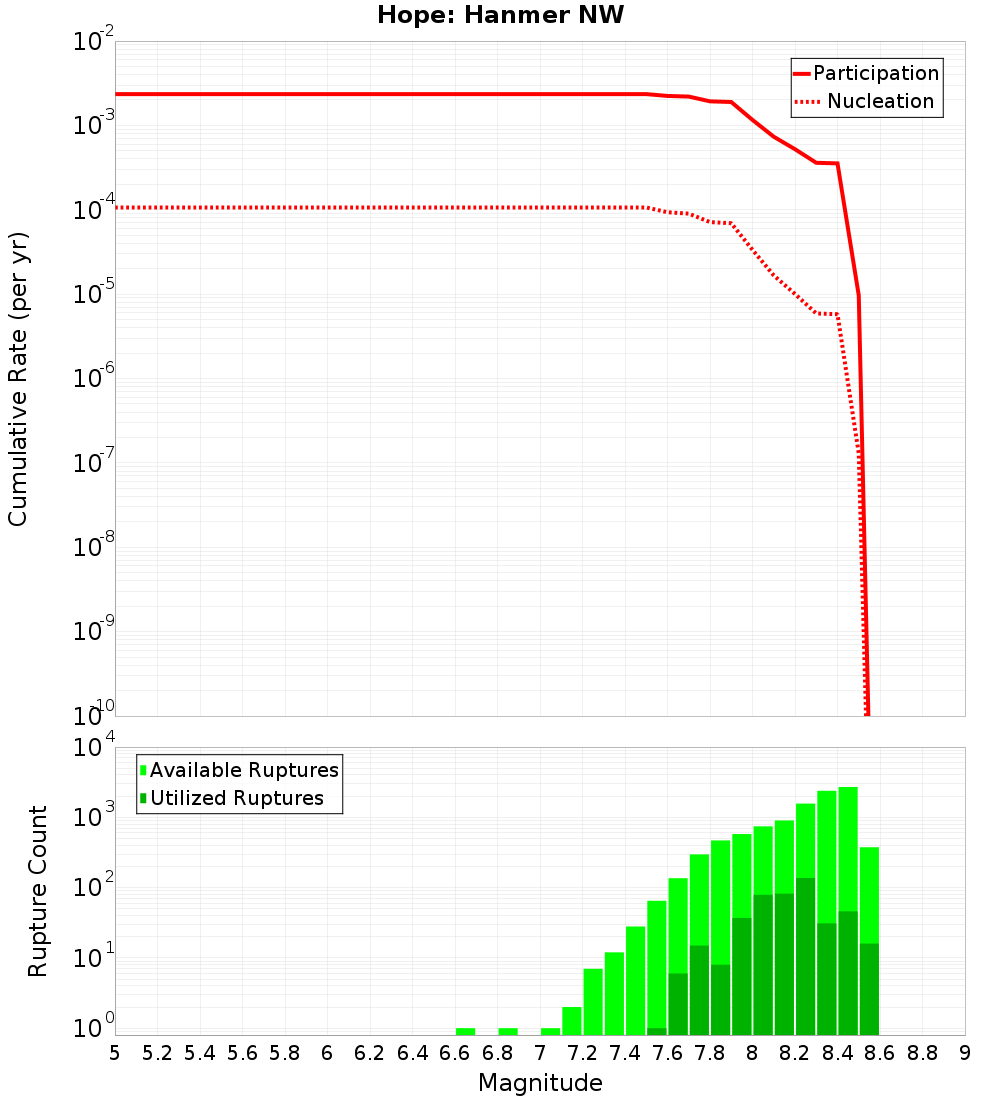

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

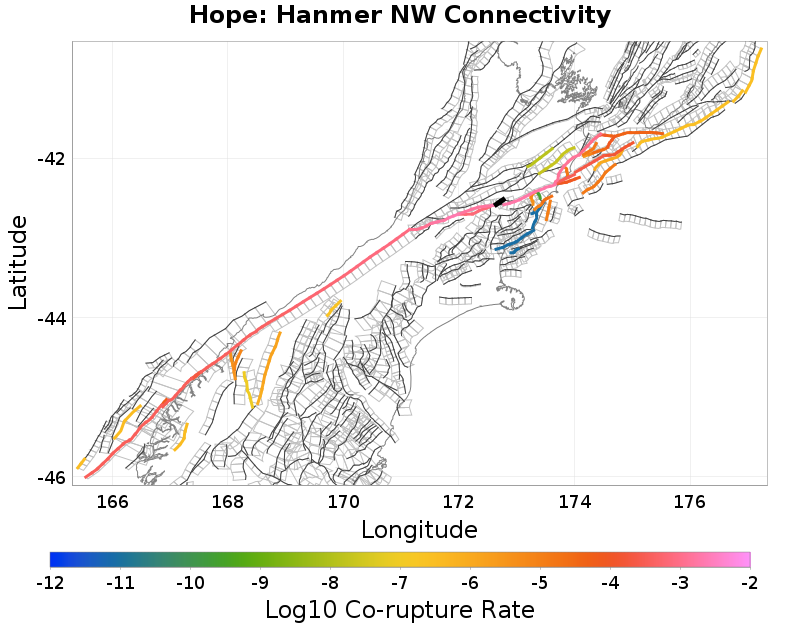

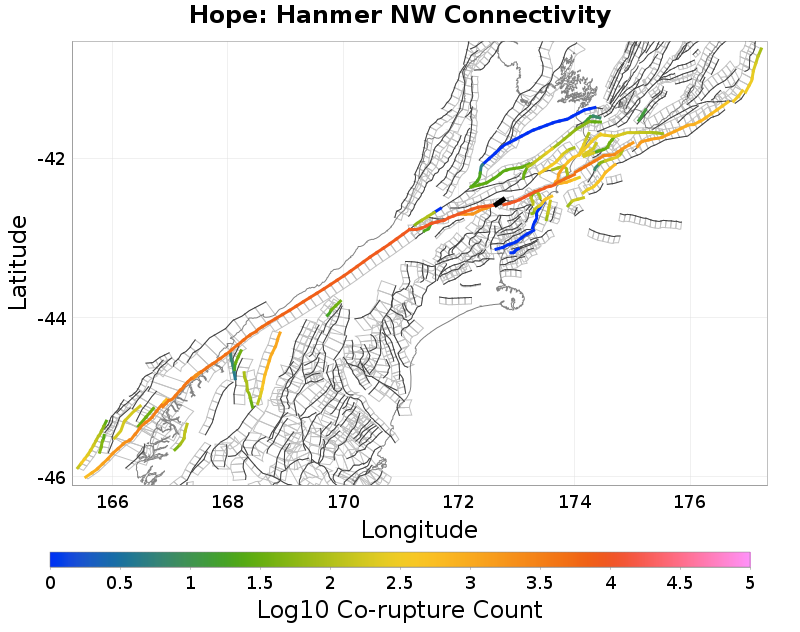

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Hope: Kakapo-2-Hamner, 0 km awayClarence: Southwest, 12.23 km away
Hope: Hamner SW, 0 km awayElliott, 12.52 km away
Hope: Hamner SE, 0.15 km awayBalmoral, 12.75 km away
Hanmer, 0.2 km awayHope: Conway, 12.84 km away
Hope: Hope River, 6.3 km awayClarence: Central, 13.28 km away
Kakapo, 6.3 km awayMt Culverden, 14.84 km away
Esk North, 9.97 km awayThe Humps, 15.15 km away
Hurunui Peak, 10.96 km awayKaiwara North, 17.2 km away

Hope: Kakapo-2-Hamner, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?true
Directly Connected?true
Co-rupture Count10,192
Co-rupture Rate0.0021863803

Hope: Hamner SW, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hamner SE, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?true
Directly Connected?true
Co-rupture Count9,984
Co-rupture Rate0.0018622894

Hanmer, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hope River, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?true
Directly Connected?false
Co-rupture Count8,352
Co-rupture Rate0.0015281175

Kakapo, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?true
Directly Connected?false
Co-rupture Count1,902
Co-rupture Rate6.473571E-4

Esk North, 9.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hurunui Peak, 10.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Southwest, 12.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Elliott, 12.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Balmoral, 12.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Conway, 12.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?true
Directly Connected?false
Co-rupture Count9,732
Co-rupture Rate0.0018480974

Clarence: Central, 13.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Culverden, 14.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

The Humps, 15.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaiwara North, 17.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
