Maungatua - North Taieri Details

Property	Value
Rupture Count	26
Ruptures Above Sect Min Mag	25
Ruptures w/ Nonzero Rates	8
Magnitude Range	[7.12, 7.92]
Length Range	[26, 170] km
Total Rate	1.8097679E-5 /yr
Multi-Fault Rate	2.2156992E-6 /yr (12.24%)
Directly-Connected Faults	2
All Co-Rupturing Faults	13

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

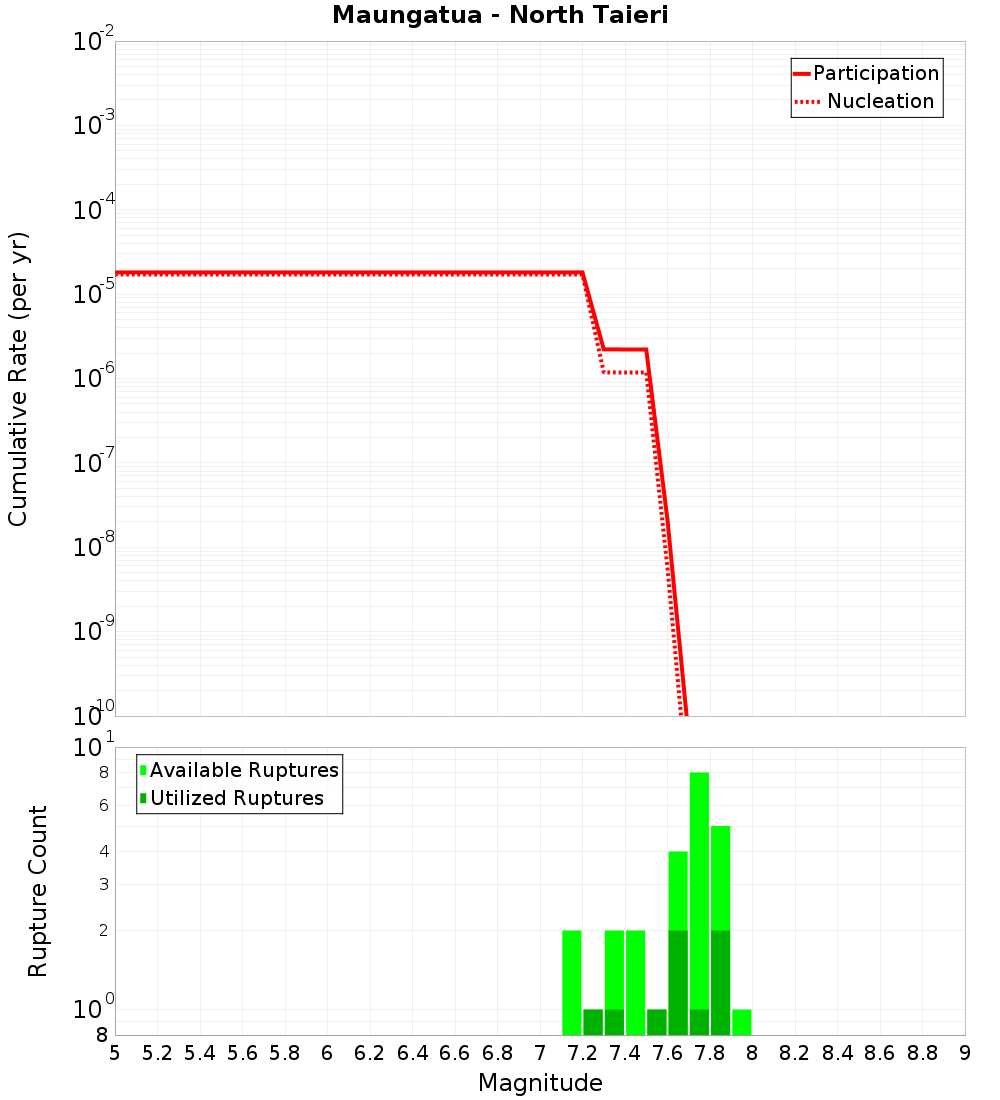

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

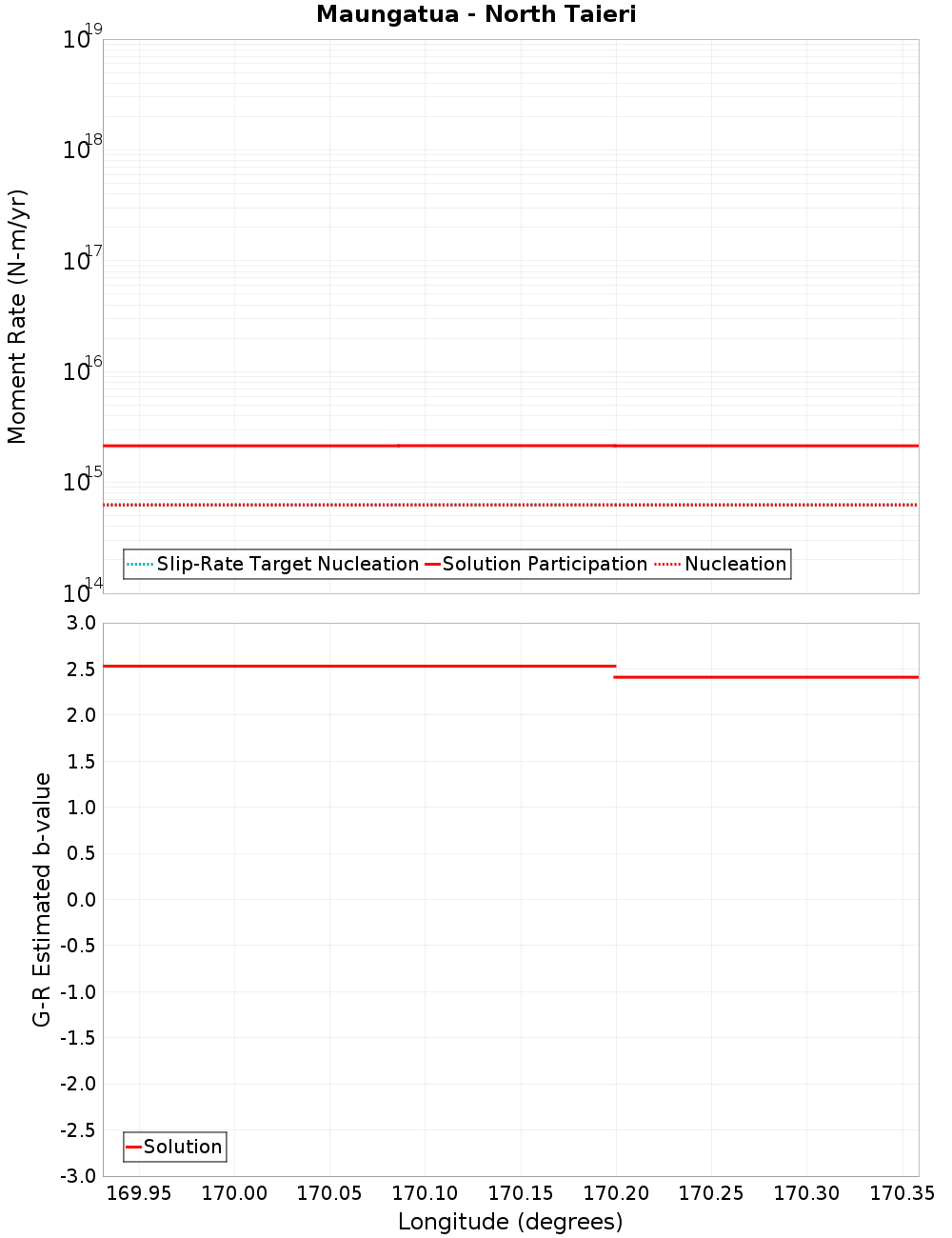

Moment-Rates and b-Values

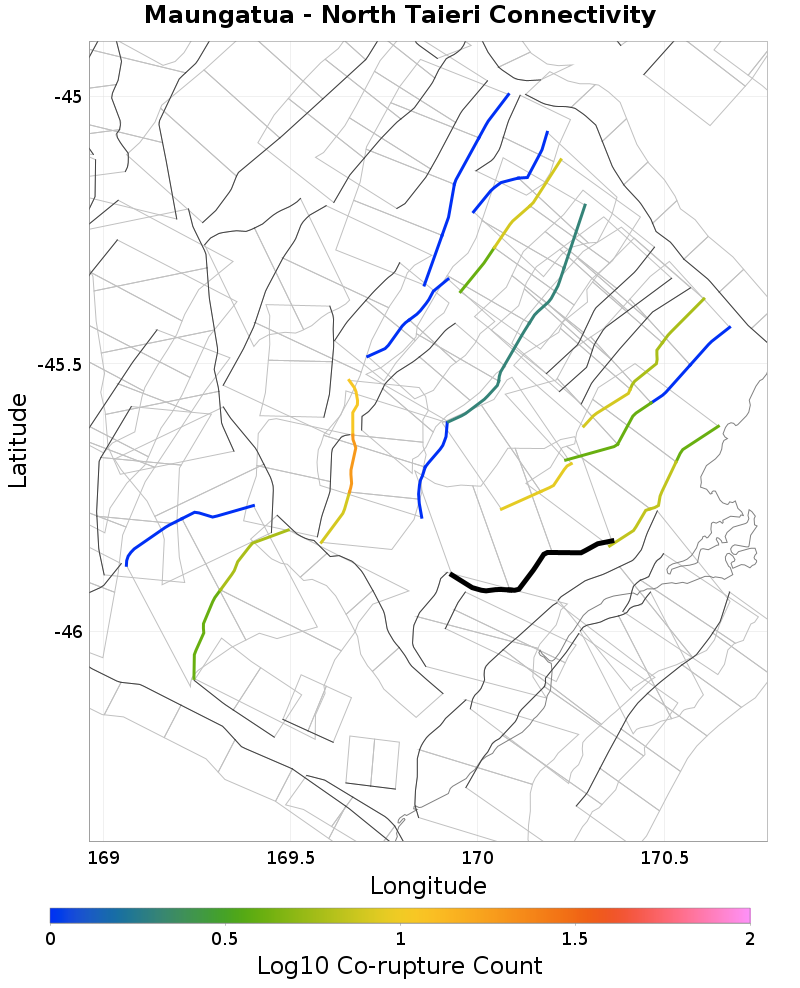

Connectivity

Nearby Sections

Fault Section	Fault Section
Sliver Stream - Merton, 0.13 km away	Green Island, 13.31 km away
Beaumont River, 0.31 km away	Pylap, 14.96 km away
Waitahuna 1, 0.31 km away	Akatore, 15.44 km away
Logan Burn, 0.95 km away	Dunback Hill, 15.86 km away
Waitahuna 2, 1.55 km away	Tuapeka, 16.01 km away
Titri North, 5.52 km away	Blue Mountain, 18.08 km away
Titri Central, 7.17 km away	Little Valley, 19.18 km away
Nichols Rock, 8.44 km away	Murphys Creek, 19.33 km away
Hyde South - The Twins, 9.58 km away	Waipiata, 19.44 km away
Kaikorai, 10.06 km away	Long Valley, 19.74 km away
Flat Stream - Glenpark, 11.66 km away	Hyde North, 19.84 km away

Sliver Stream - Merton, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?	true
Directly Connected?	true
Co-rupture Count	7
Co-rupture Rate	2.1875503E-6

Beaumont River, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?	true
Directly Connected?	true
Co-rupture Count	19
Co-rupture Rate	2.8148921E-8

Waitahuna 1, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Logan Burn, 0.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitahuna 2, 1.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Titri North, 5.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Titri Central, 7.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Nichols Rock, 8.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?	true
Directly Connected?	false
Co-rupture Count	9
Co-rupture Rate	4.839871E-11

Hyde South - The Twins, 9.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Kaikorai, 10.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Flat Stream - Glenpark, 11.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	4.5307952E-11

Green Island, 13.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pylap, 14.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	6.5425434E-12

Akatore, 15.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dunback Hill, 15.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	4.839871E-11

Tuapeka, 16.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Blue Mountain, 18.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	2.0936266E-8

Little Valley, 19.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Murphys Creek, 19.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waipiata, 19.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	4.839871E-11

Long Valley, 19.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hyde North, 19.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0
