Moumahaki - Okaia 4 Details
| Property | Value |
|---|---|
| Rupture Count | 37 |
| Ruptures Above Sect Min Mag | 36 |
| Ruptures w/ Nonzero Rates | 10 |
| Magnitude Range | [7.13, 7.88] |
| Length Range | [27, 143] km |
| Total Rate | 5.576264E-5 /yr |
| Multi-Fault Rate | 4.1805073E-5 /yr (74.97%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 6 |
Table Of Contents

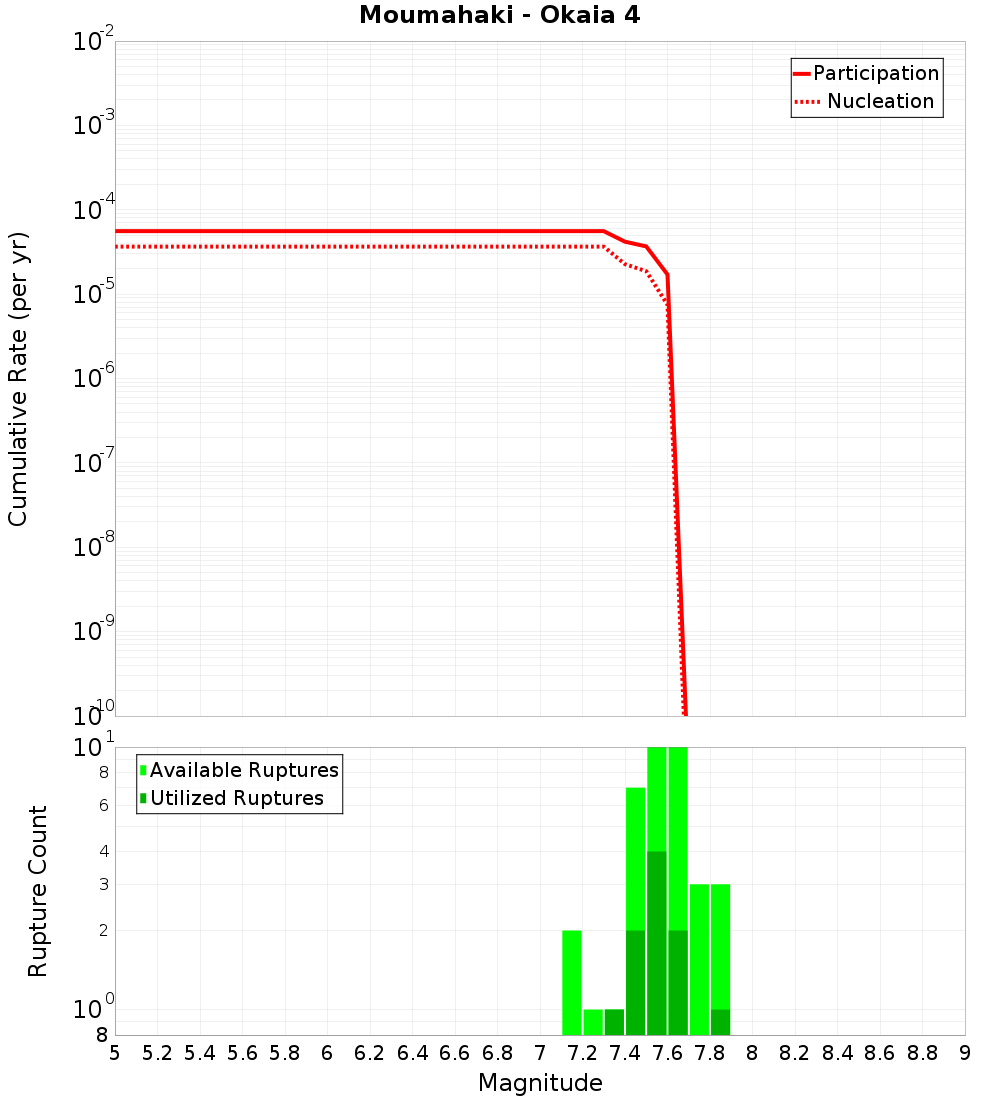

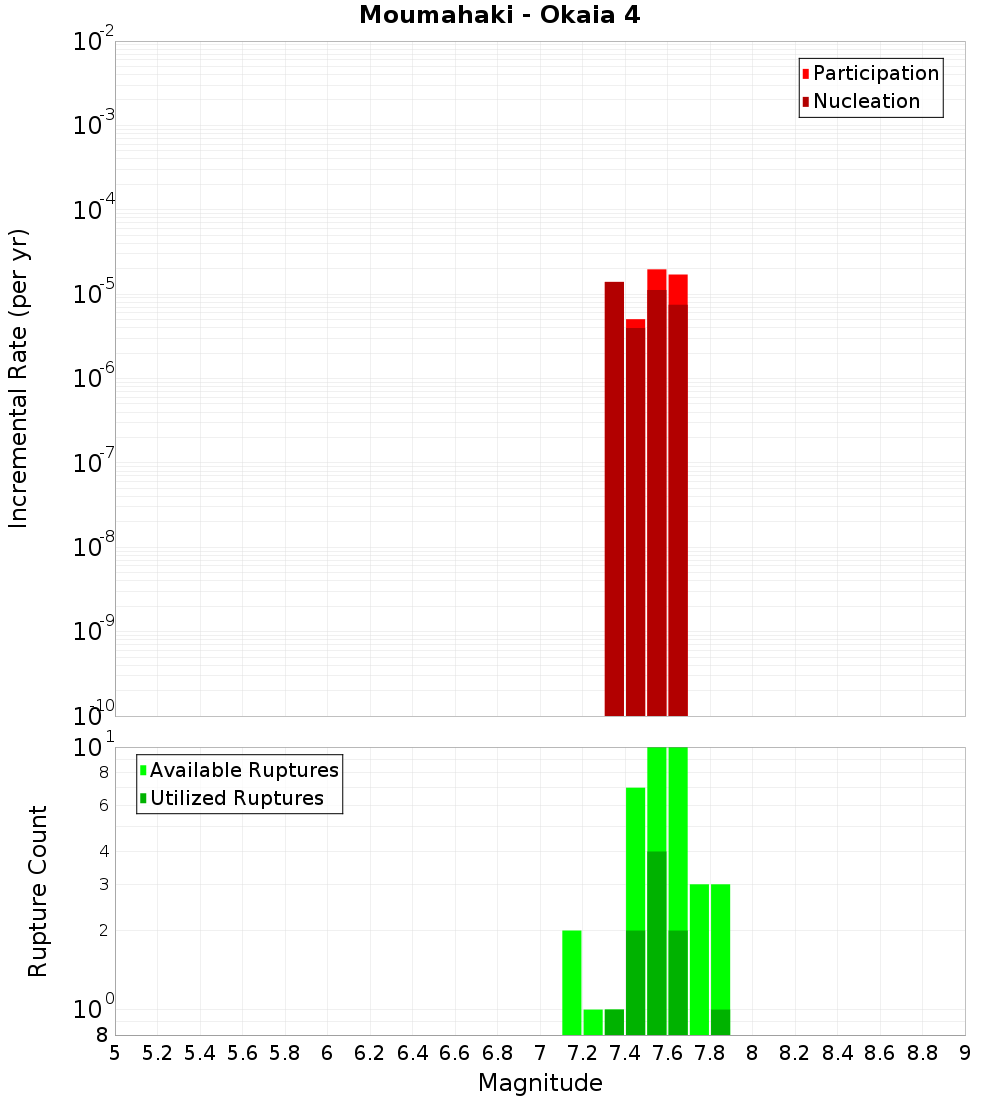

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

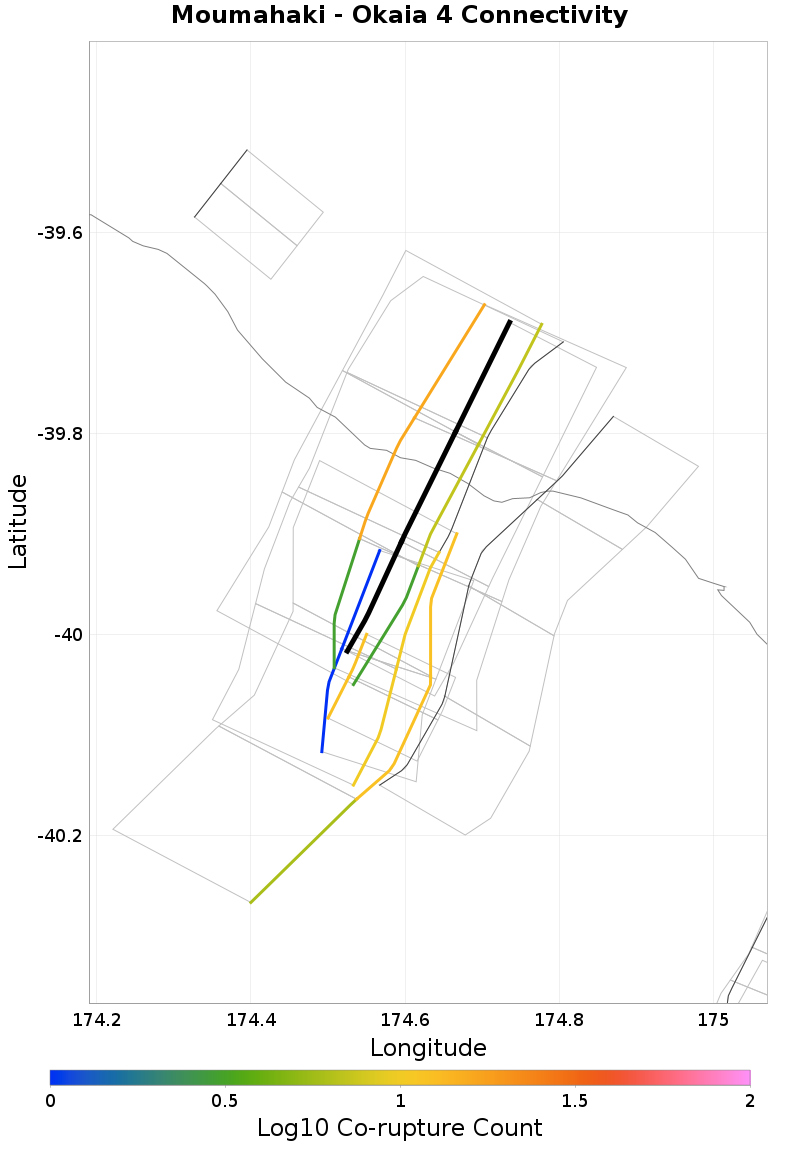

Connectivity
 |  |
|---|
Nearby Sections
Waverley - Okaia 1, 0.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 16 |
| Co-rupture Rate | 1.1201792E-7 |
Waitotara 8 & 9, 0.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 12 |
| Co-rupture Rate | 1.5829894E-5 |
Ridge Road - Okaia 2, 0.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7 |
| Co-rupture Rate | 6.796543E-7 |
Waitotara 10 & 11, 0.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 10 |
| Co-rupture Rate | 2.0174304E-5 |
Okaia 5, 0.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 7.305801E-8 |
Okaia 3, 0.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 12 |
| Co-rupture Rate | 6.300307E-6 |
Nukumuru - Waitotara 1-6, 7.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
