Uruti East - PorWest 1 Details

Property	Value
Rupture Count	18,351
Ruptures Above Sect Min Mag	18,347
Ruptures w/ Nonzero Rates	326
Magnitude Range	[6.87, 8.62]
Length Range	[22, 1,204] km
Total Rate	6.8452E-4 /yr
Multi-Fault Rate	4.1886623E-4 /yr (61.19%)
Directly-Connected Faults	4
All Co-Rupturing Faults	86

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

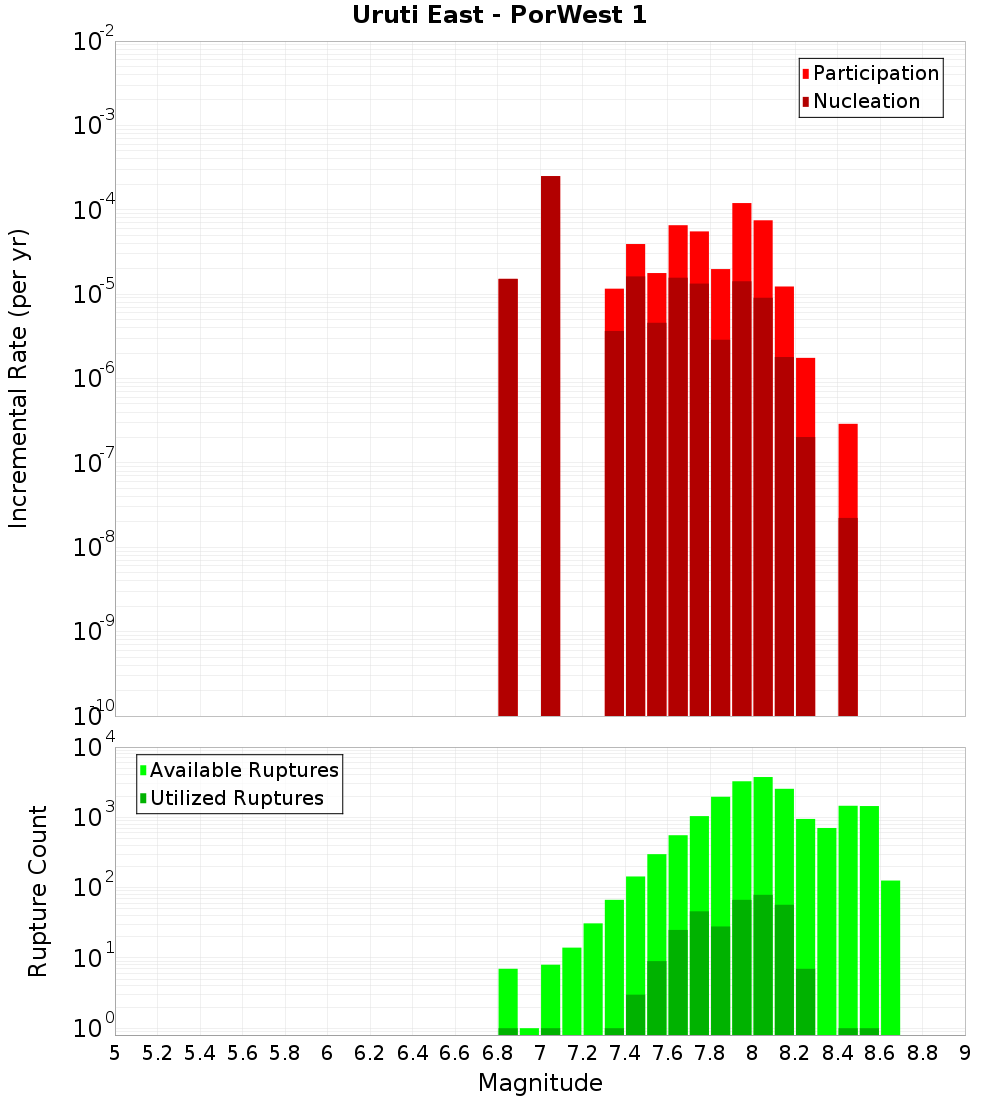

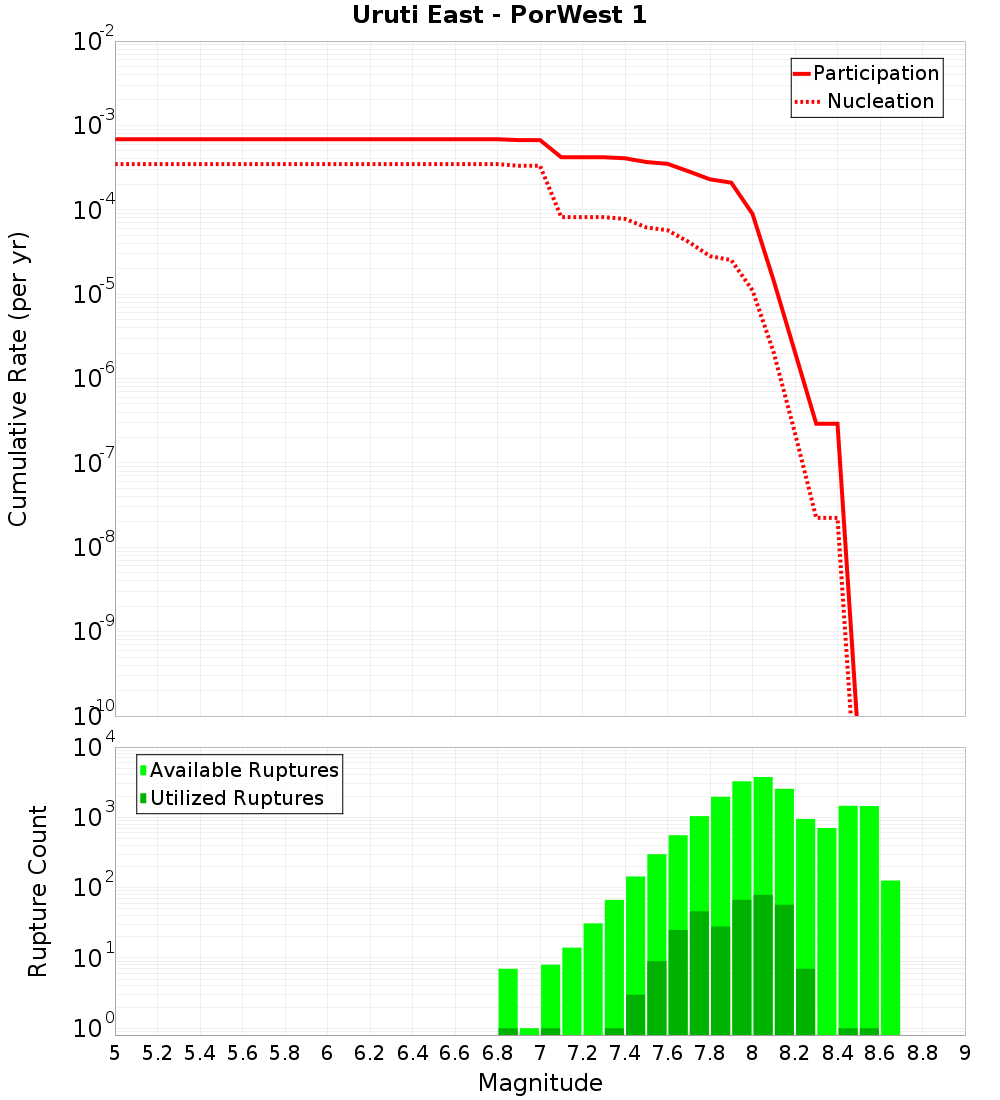

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

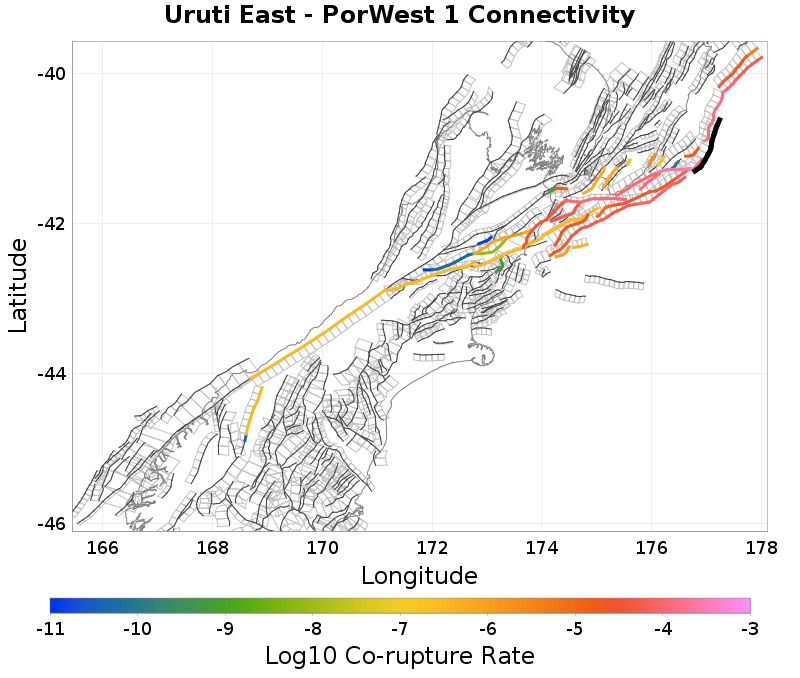

Connectivity

Nearby Sections

Fault Section
Uruti Basin, 0.29 km away
Uruti Basin 2, 1.76 km away
Uruti Ridge 2, 2.58 km away
Madden Banks, 4.32 km away
Opouawe - Uruti, 5.54 km away
Pahaua, 7.19 km away
Uruti North, 10.36 km away
Whareama Bank, 16.17 km away

Uruti Basin, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?	true
Directly Connected?	true
Co-rupture Count	7,159
Co-rupture Rate	2.8629834E-4

Uruti Basin 2, 1.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	1.08101854E-10

Uruti Ridge 2, 2.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?	true
Directly Connected?	true
Co-rupture Count	8,892
Co-rupture Rate	1.3166726E-4

Madden Banks, 4.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?	true
Directly Connected?	true
Co-rupture Count	10,330
Co-rupture Rate	1.6243663E-4

Opouawe - Uruti, 5.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?	true
Directly Connected?	true
Co-rupture Count	12,511
Co-rupture Rate	7.553277E-5

Pahaua, 7.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?	true
Directly Connected?	false
Co-rupture Count	2,922
Co-rupture Rate	1.3259408E-4

Uruti North, 10.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	1.9155035E-5

Whareama Bank, 16.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NDguMEd4WDc2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
