Tirohanga Details

PropertyValue
Rupture Count89
Ruptures Above Sect Min Mag89
Ruptures w/ Nonzero Rates2
Magnitude Range[7.04, 8.30]
Length Range[25, 534] km
Total Rate1.0156165E-4 /yr
Multi-Fault Rate1.0156165E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults25

Table Of Contents

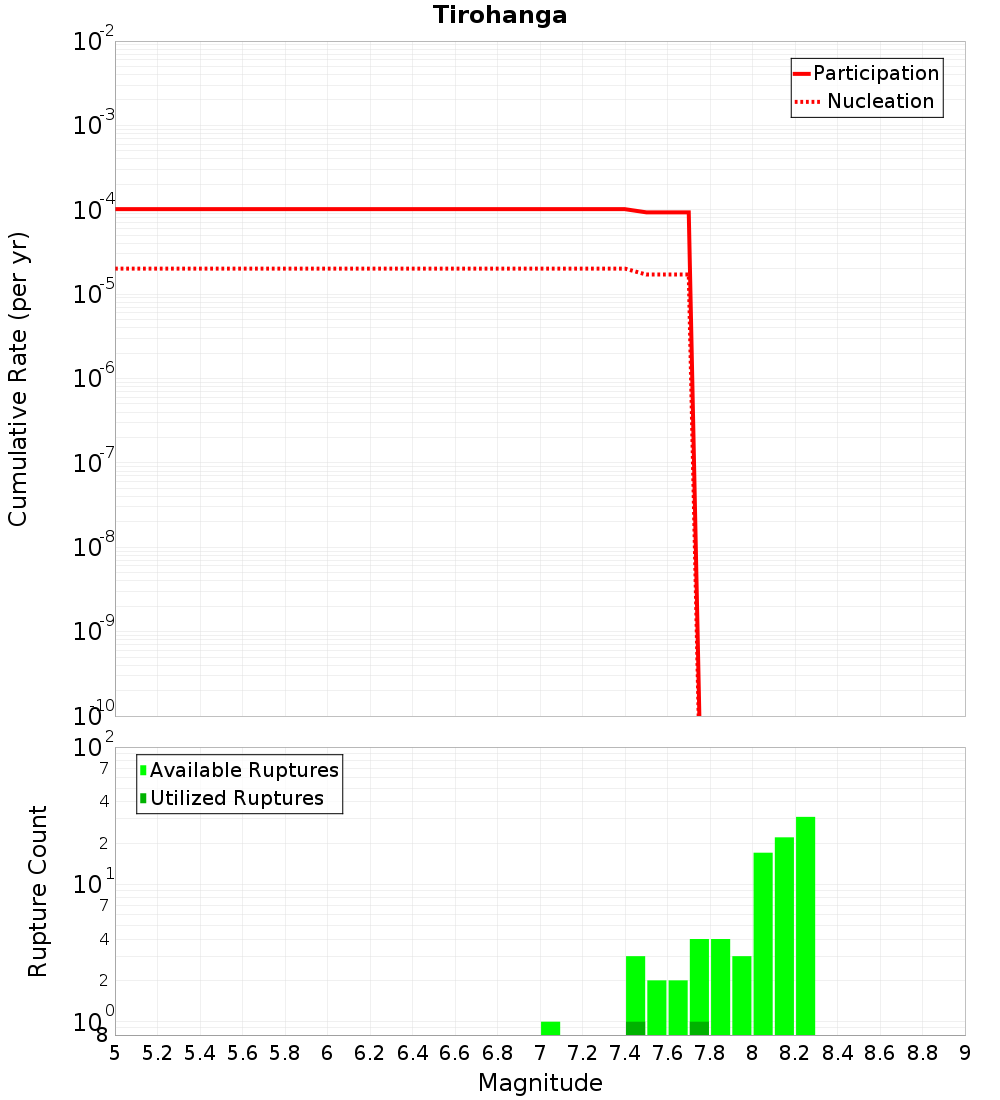

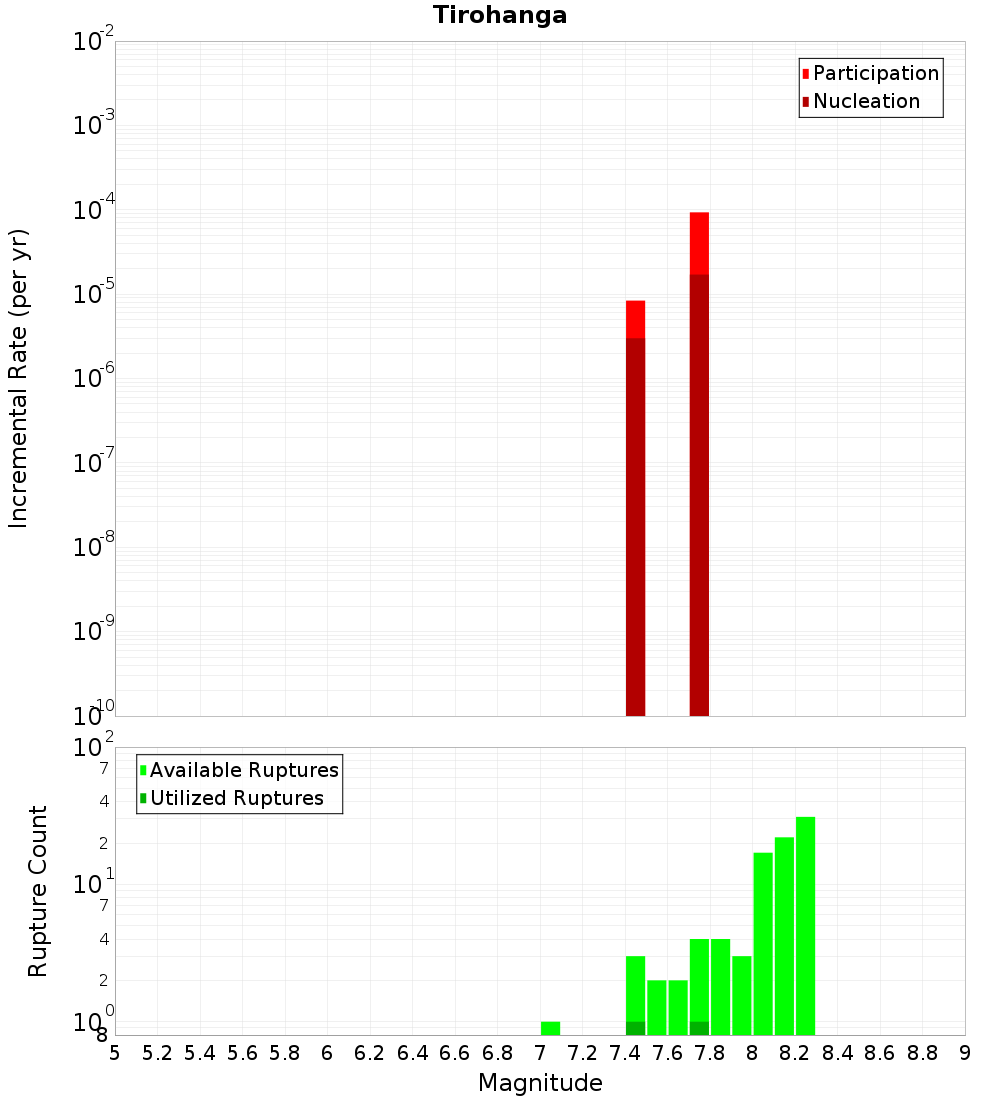

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Ohae 2, 0.11 km awayMotu River, 9.19 km away
Kotare - Moutuhora, 0.29 km awayRaukumara 17, 11.85 km away
Ohae 1, 0.29 km awayOhae 3, 11.89 km away
Opotiki 2, 1.15 km awayWaimanawa - Waikaremoana, 12.06 km away
Opotiki 3, 3.42 km awayWaiotahi: North, 13.3 km away
Opape 1, 4.65 km awayWaimana: North, 14.35 km away
Motu, 5.2 km awayRaukumara 21, 17.38 km away
Raukumara 18, 5.47 km awayWhite Island 2, 17.57 km away
Raukumara 20, 7.44 km awayKereu, 19.22 km away
Raukumara 16, 7.99 km away

Ohae 2, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kotare - Moutuhora, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?true
Directly Connected?true
Co-rupture Count2
Co-rupture Rate8.38184E-6

Ohae 1, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 2, 1.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 3, 3.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opape 1, 4.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Motu, 5.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raukumara 18, 5.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raukumara 20, 7.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raukumara 16, 7.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Motu River, 9.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raukumara 17, 11.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 3, 11.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimanawa - Waikaremoana, 12.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiotahi: North, 13.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimana: North, 14.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?true
Directly Connected?true
Co-rupture Count86
Co-rupture Rate9.3179806E-5

Raukumara 21, 17.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 2, 17.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kereu, 19.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
