Waiotahi: North Details

PropertyValue
Rupture Count13,547
Ruptures Above Sect Min Mag13,542
Ruptures w/ Nonzero Rates8
Magnitude Range[6.91, 8.44]
Length Range[22, 746] km
Total Rate2.1435009E-4 /yr
Multi-Fault Rate2.1435009E-4 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults86

Table Of Contents

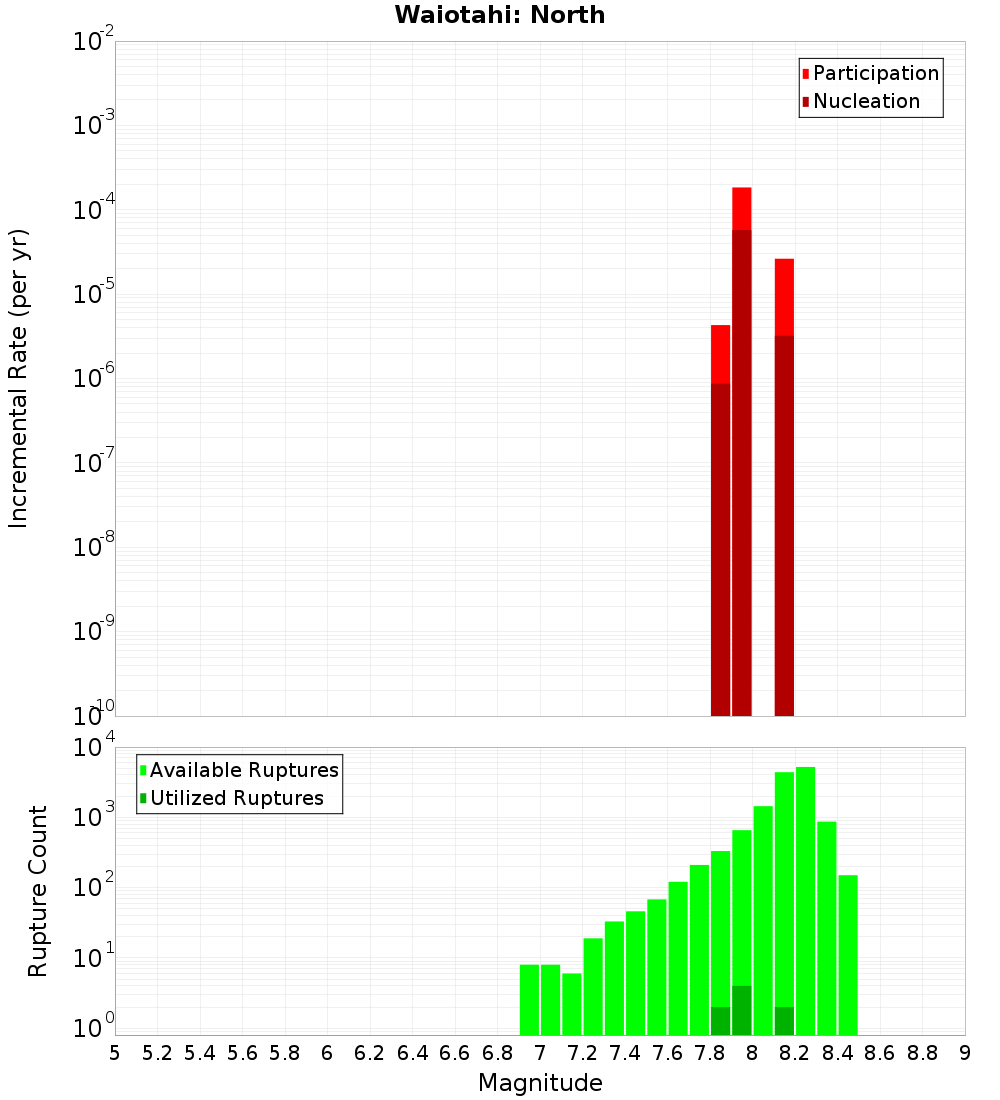

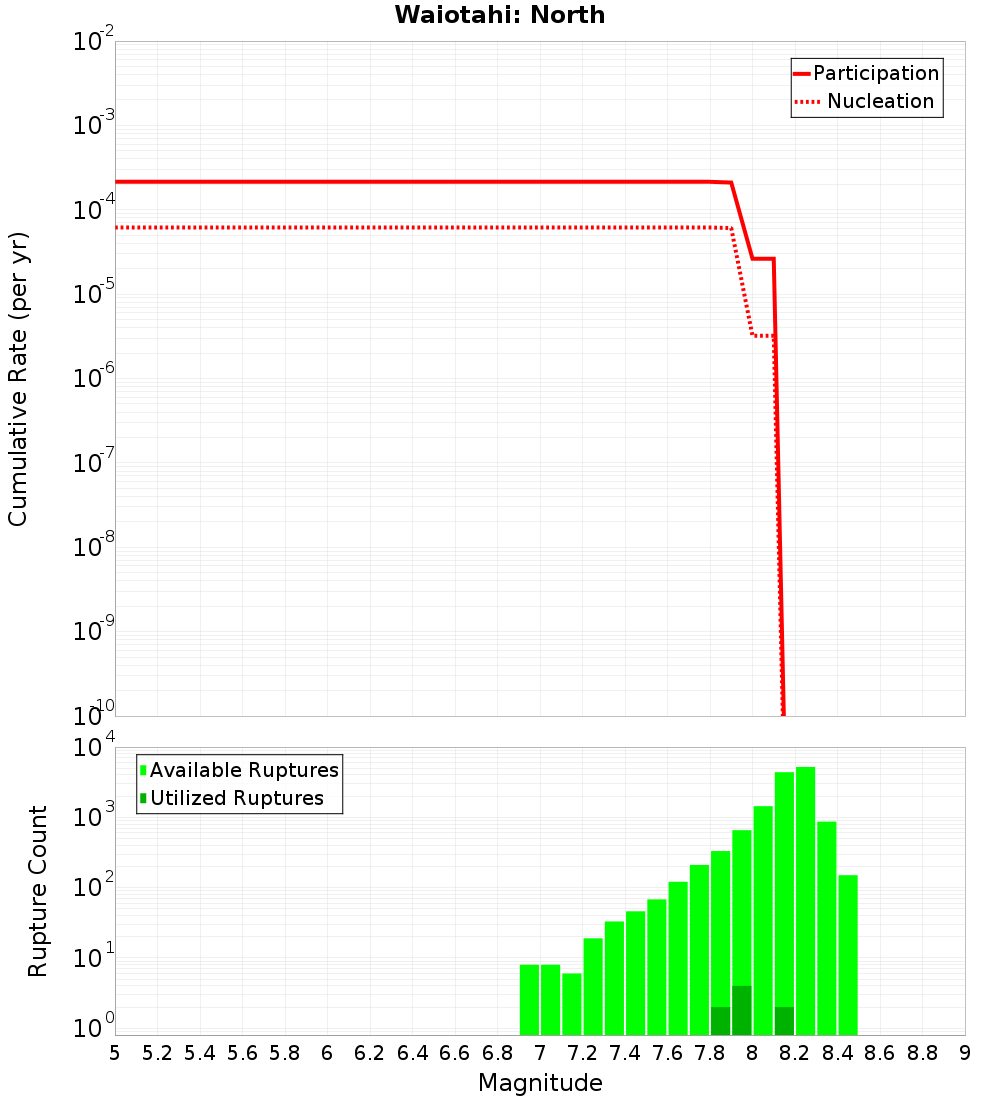

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Waiotahi: South, 0 km awayOhae 2, 12.28 km away
Waimanawa - Waikaremoana, 0.38 km awayWhite Island 2, 12.85 km away
Waimana: North, 1.8 km awayTirohanga, 13.3 km away
Waimana: South, 2.4 km awayRangitaiki 1, 13.71 km away
Opotiki 3, 3.94 km awayOtakiri, 13.76 km away
Wairata, 5.27 km awayOhiwa 1, 14.52 km away
Raukumara 9, 6.8 km awayRangitaiki 2, 14.87 km away
Ohae 1, 8.91 km awayKotare - Moutuhora, 16.72 km away
White Island 1, 9.79 km awayOpape 1, 17.76 km away
Whakatane: South, 10.09 km awayMatata, 18.33 km away
Opotiki 2, 10.14 km awayEdgecumbe Coastal, 18.75 km away
Whakatane: North, 10.4 km away

Waiotahi: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?true
Directly Connected?true
Co-rupture Count6,487
Co-rupture Rate2.0138525E-4

Waimanawa - Waikaremoana, 0.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?true
Directly Connected?true
Co-rupture Count1,612
Co-rupture Rate1.4096098E-4

Waimana: North, 1.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?true
Directly Connected?true
Co-rupture Count1,522
Co-rupture Rate1.4356368E-5

Waimana: South, 2.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?true
Directly Connected?true
Co-rupture Count10,758
Co-rupture Rate3.2131873E-5

Opotiki 3, 3.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?true
Directly Connected?true
Co-rupture Count2,395
Co-rupture Rate5.422208E-5

Wairata, 5.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?true
Directly Connected?true
Co-rupture Count597
Co-rupture Rate3.2131873E-5

Raukumara 9, 6.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?true
Directly Connected?true
Co-rupture Count347
Co-rupture Rate0.0

Ohae 1, 8.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?true
Directly Connected?false
Co-rupture Count192
Co-rupture Rate1.3915211E-6

White Island 1, 9.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whakatane: South, 10.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate0.0

Opotiki 2, 10.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?true
Directly Connected?true
Co-rupture Count355
Co-rupture Rate0.0

Whakatane: North, 10.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 2, 12.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?true
Directly Connected?true
Co-rupture Count100
Co-rupture Rate0.0

White Island 2, 12.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?true
Directly Connected?false
Co-rupture Count61
Co-rupture Rate0.0

Tirohanga, 13.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 1, 13.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otakiri, 13.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Ohiwa 1, 14.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 2, 14.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?true
Directly Connected?false
Co-rupture Count61
Co-rupture Rate0.0

Kotare - Moutuhora, 16.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Opape 1, 17.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Matata, 18.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Edgecumbe Coastal, 18.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTIuMGVwTHF0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
