Edgecumbe Coastal Details

Property	Value
Rupture Count	13,675
Ruptures Above Sect Min Mag	13,674
Ruptures w/ Nonzero Rates	90
Magnitude Range	[6.44, 8.00]
Length Range	[7, 300] km
Total Rate	7.9132477E-4 /yr
Multi-Fault Rate	7.9132477E-4 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	55

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

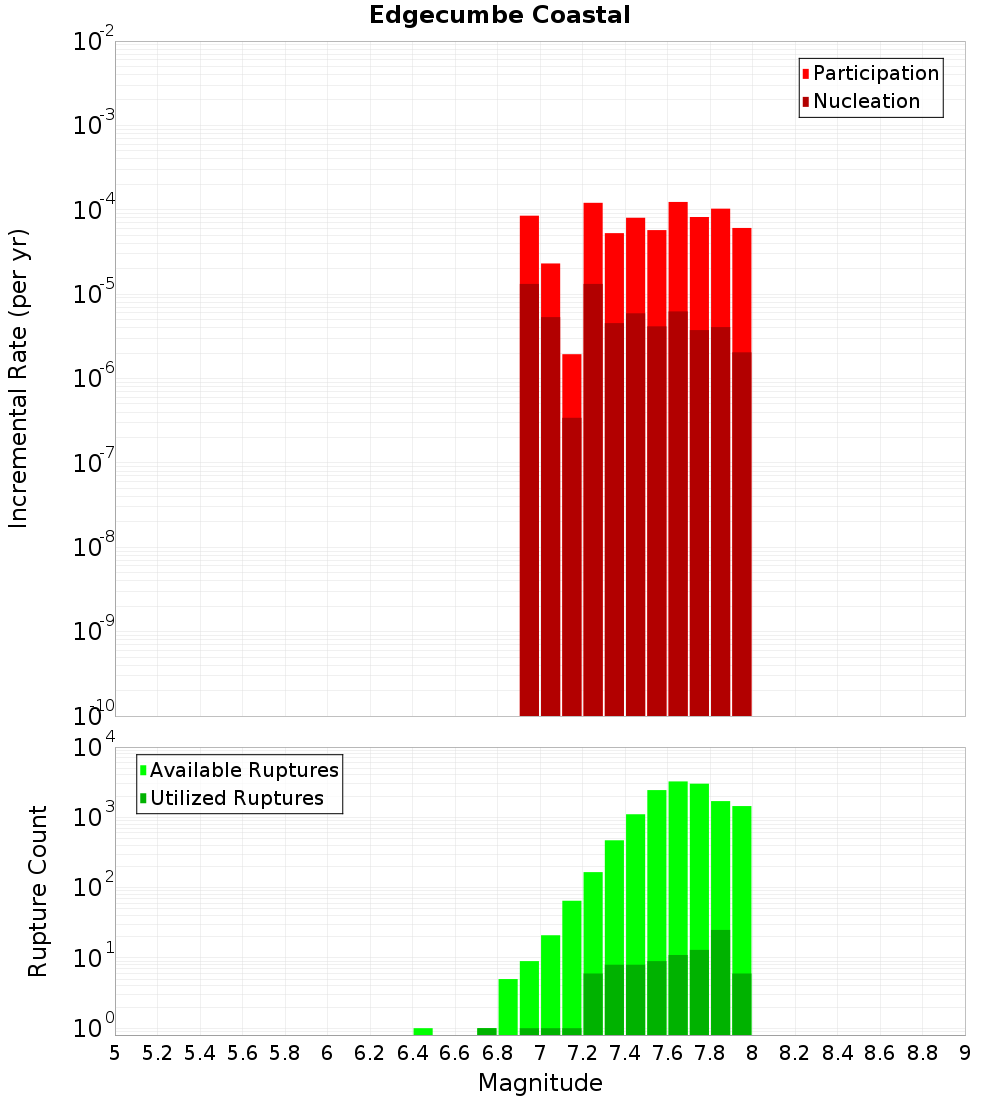

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

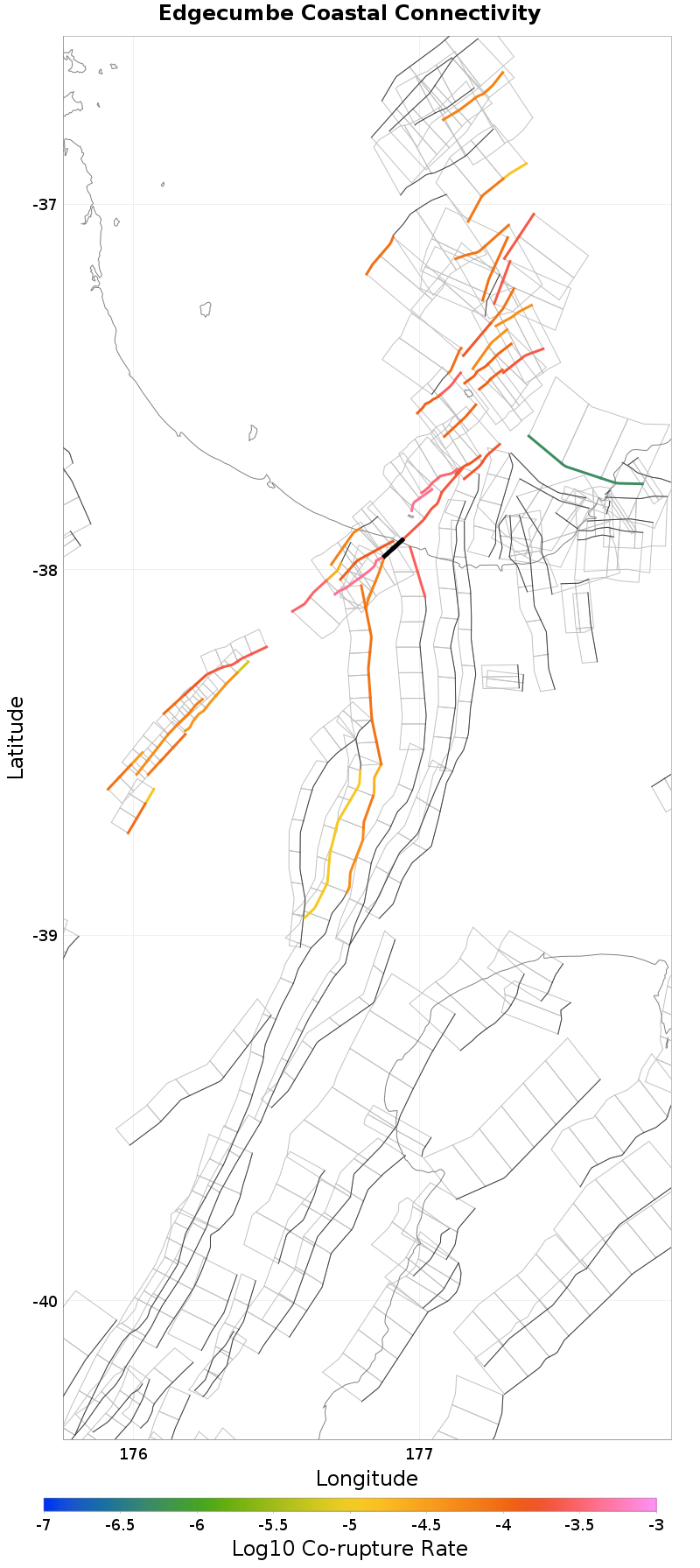

Connectivity

Nearby Sections

Fault Section
White Island 1, 0 km away
Edgecumbe 1987, 0 km away
Awakeri, 0 km away
Otakiri, 0.1 km away
Matata, 0.14 km away
Whakatane: North, 3.09 km away
Braemar, 4.62 km away
Rangitaiki 1, 8.81 km away
Waiohau: North, 11.47 km away
Rangitaiki 2, 14.83 km away
Waimana: North, 15.94 km away
Waiotahi: North, 18.75 km away
Waimanawa - Waikaremoana, 19.37 km away

White Island 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?	true
Directly Connected?	true
Co-rupture Count	10,292
Co-rupture Rate	2.1108669E-4

Edgecumbe 1987, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?	true
Directly Connected?	true
Co-rupture Count	6,470
Co-rupture Rate	4.0786038E-4

Awakeri, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?	true
Directly Connected?	true
Co-rupture Count	4,740
Co-rupture Rate	6.1281586E-5

Otakiri, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?	true
Directly Connected?	true
Co-rupture Count	282
Co-rupture Rate	1.3842956E-4

Matata, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?	true
Directly Connected?	true
Co-rupture Count	1,890
Co-rupture Rate	5.970306E-5

Whakatane: North, 3.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?	true
Directly Connected?	true
Co-rupture Count	227
Co-rupture Rate	2.6598282E-4

Braemar, 4.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?	true
Directly Connected?	true
Co-rupture Count	4,197
Co-rupture Rate	3.107282E-4

Rangitaiki 1, 8.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?	true
Directly Connected?	true
Co-rupture Count	2,085
Co-rupture Rate	4.2021758E-4

Waiohau: North, 11.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?	true
Directly Connected?	false
Co-rupture Count	8,929
Co-rupture Rate	8.189518E-5

Rangitaiki 2, 14.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?	true
Directly Connected?	false
Co-rupture Count	4,999
Co-rupture Rate	3.1950854E-4

Waimana: North, 15.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waiotahi: North, 18.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waimanawa - Waikaremoana, 19.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
