Mohaka: North Details

PropertyValue
Rupture Count34,996
Ruptures Above Sect Min Mag34,993
Ruptures w/ Nonzero Rates21
Magnitude Range[6.88, 8.60]
Length Range[20, 1,119] km
Total Rate4.5306428E-4 /yr
Multi-Fault Rate4.5306428E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults129

Table Of Contents

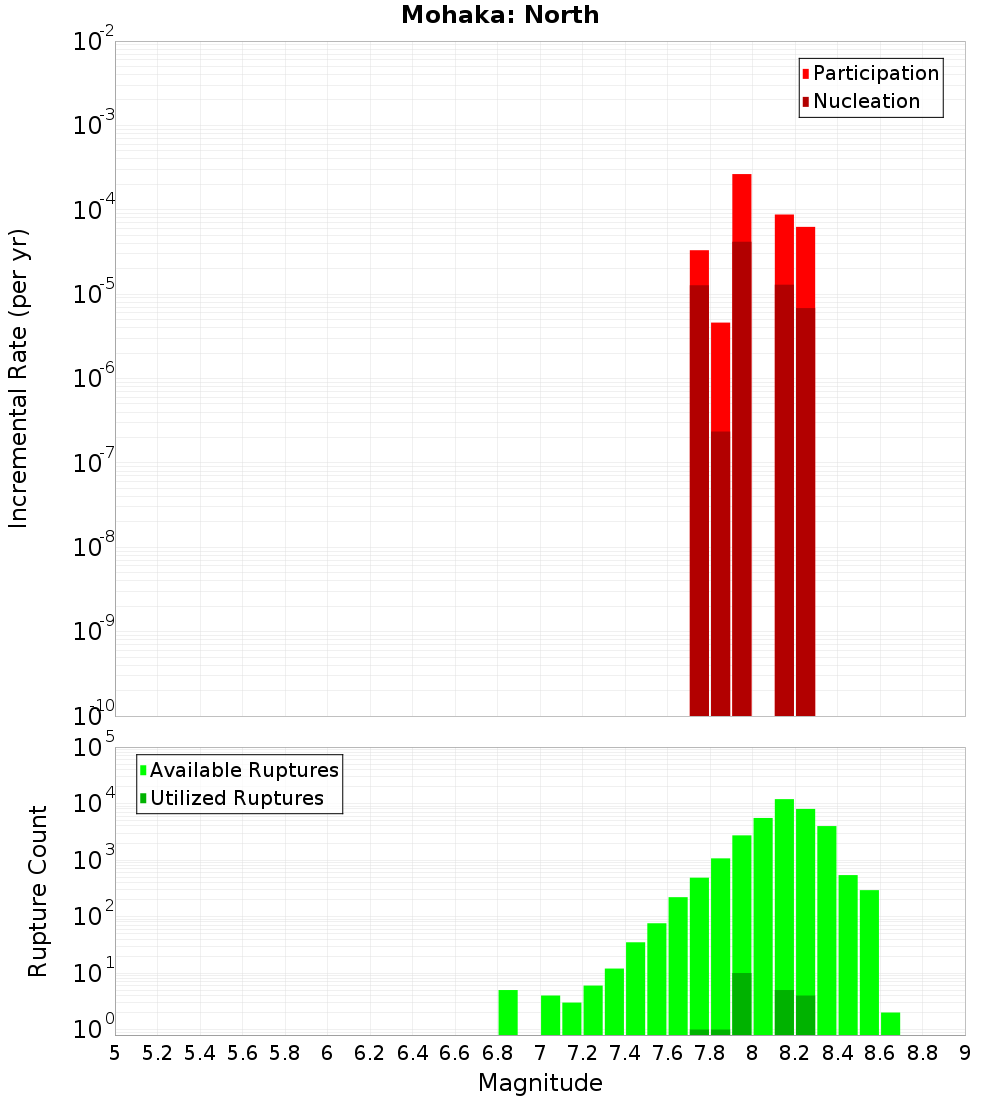

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

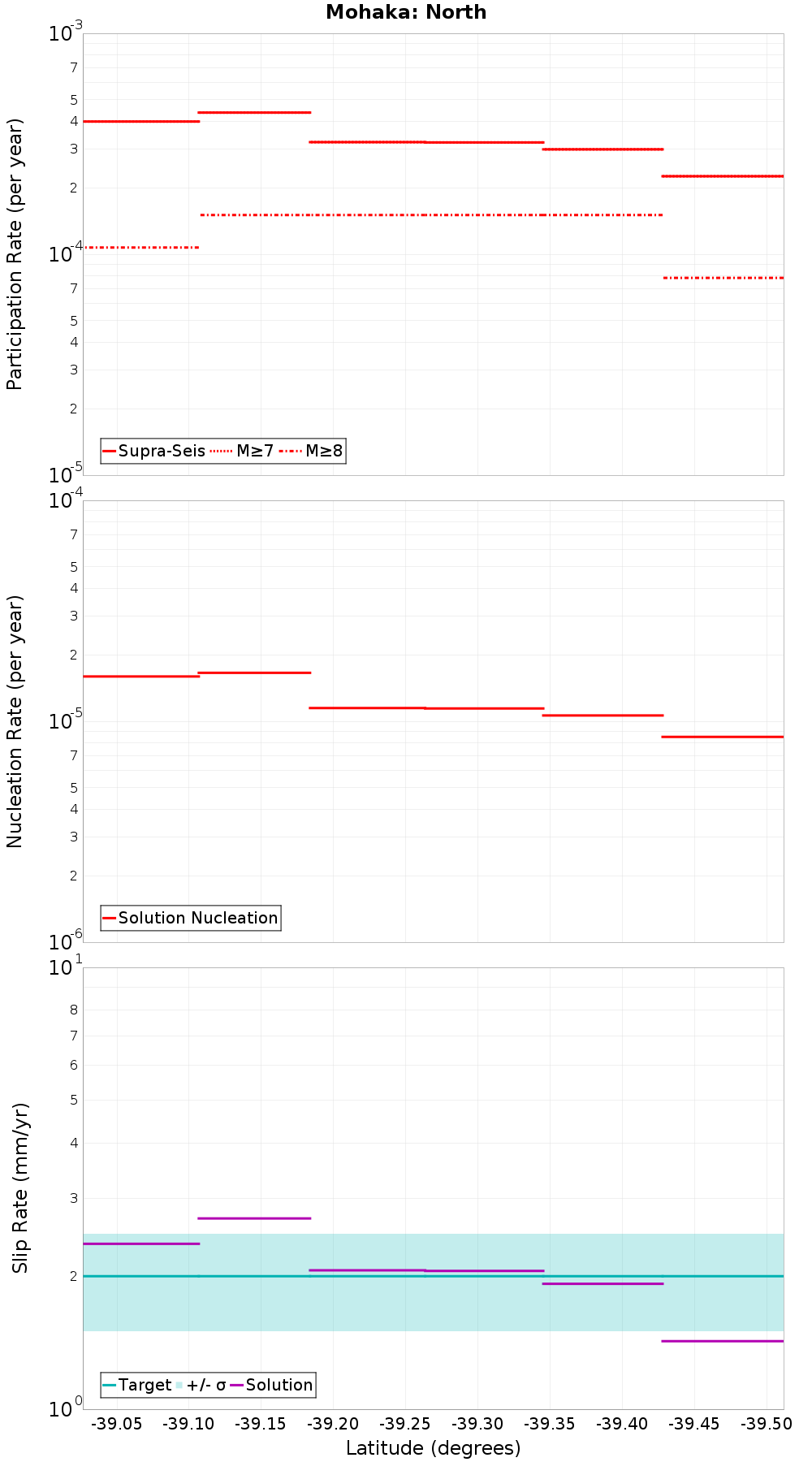

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mohaka: South, 0 km away
Whakatane: South, 0 km away
Waimana: South, 0 km away
Patoka - Rangiora, 0.41 km away
Ruahine: North, 5.2 km away
Ruahine: Central, 7.58 km away
Waiohau: South, 8.1 km away
Wakarara, 9.63 km away
Kaweka, 10.6 km away
Awanui, 11.19 km away
Waiotahi: South, 11.48 km away
Wheao: South, 13.51 km away
Te Heka, 14.28 km away
Te Whaiti South, 15.34 km away

Mohaka: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?true
Directly Connected?true
Co-rupture Count33,623
Co-rupture Rate1.1325133E-4

Whakatane: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?true
Directly Connected?true
Co-rupture Count5,964
Co-rupture Rate8.839609E-5

Waimana: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?true
Directly Connected?true
Co-rupture Count20,069
Co-rupture Rate1.9459444E-4

Patoka - Rangiora, 0.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?true
Directly Connected?true
Co-rupture Count822
Co-rupture Rate1.5909215E-4

Ruahine: North, 5.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?true
Directly Connected?true
Co-rupture Count5,135
Co-rupture Rate8.335383E-5

Ruahine: Central, 7.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?true
Directly Connected?false
Co-rupture Count5,113
Co-rupture Rate8.335383E-5

Waiohau: South, 8.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?true
Directly Connected?false
Co-rupture Count41
Co-rupture Rate0.0

Wakarara, 9.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?true
Directly Connected?false
Co-rupture Count3,053
Co-rupture Rate1.5469885E-5

Kaweka, 10.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awanui, 11.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?true
Directly Connected?false
Co-rupture Count410
Co-rupture Rate4.328875E-5

Waiotahi: South, 11.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?true
Directly Connected?true
Co-rupture Count7,005
Co-rupture Rate1.438433E-4

Wheao: South, 13.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Heka, 14.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?true
Directly Connected?false
Co-rupture Count39
Co-rupture Rate0.0

Te Whaiti South, 15.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?true
Directly Connected?false
Co-rupture Count37
Co-rupture Rate0.0
