Pukerua - Shepherds Gully: 1 Details

PropertyValue
Rupture Count1,756
Ruptures Above Sect Min Mag1,753
Ruptures w/ Nonzero Rates8
Magnitude Range[6.38, 8.29]
Length Range[7, 505] km
Total Rate2.4853728E-4 /yr
Multi-Fault Rate2.4853728E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults45

Table Of Contents

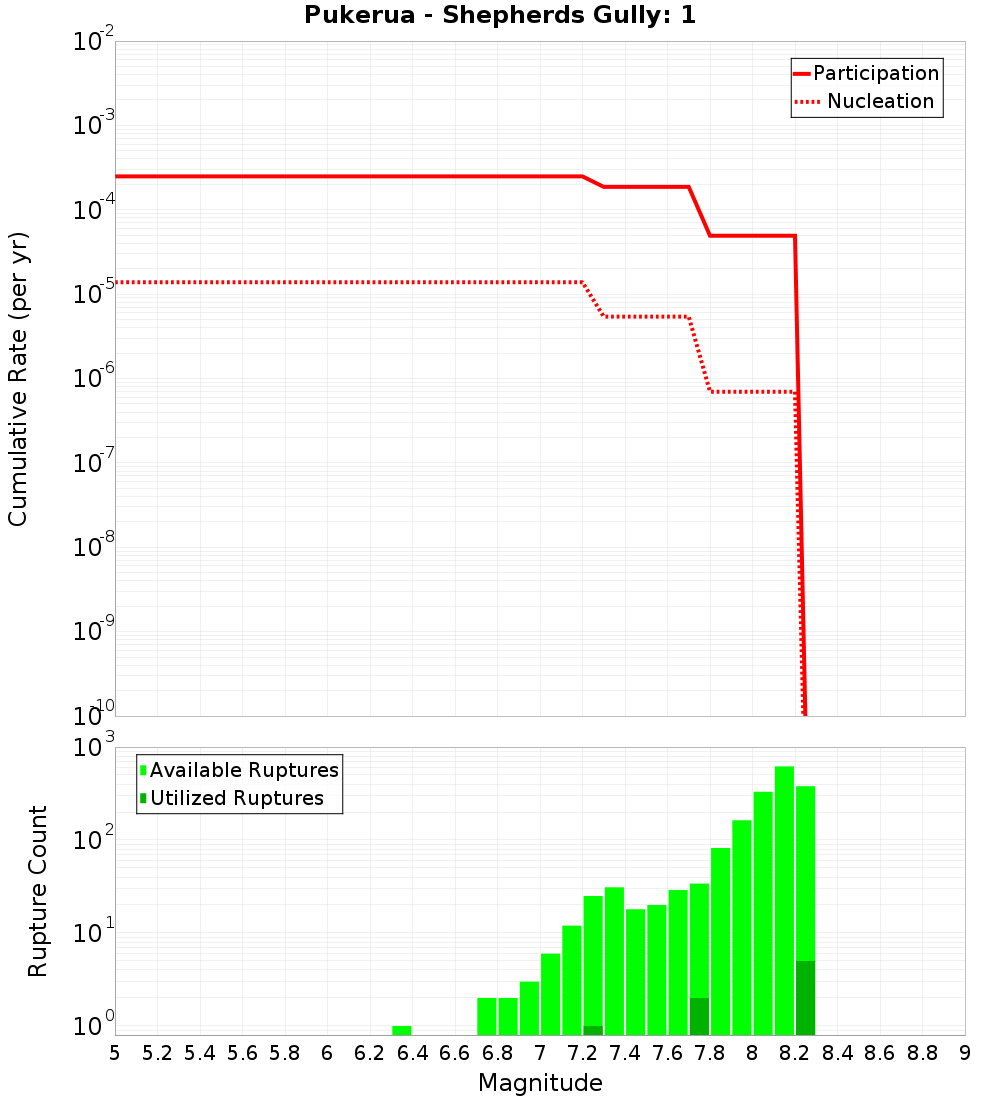

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

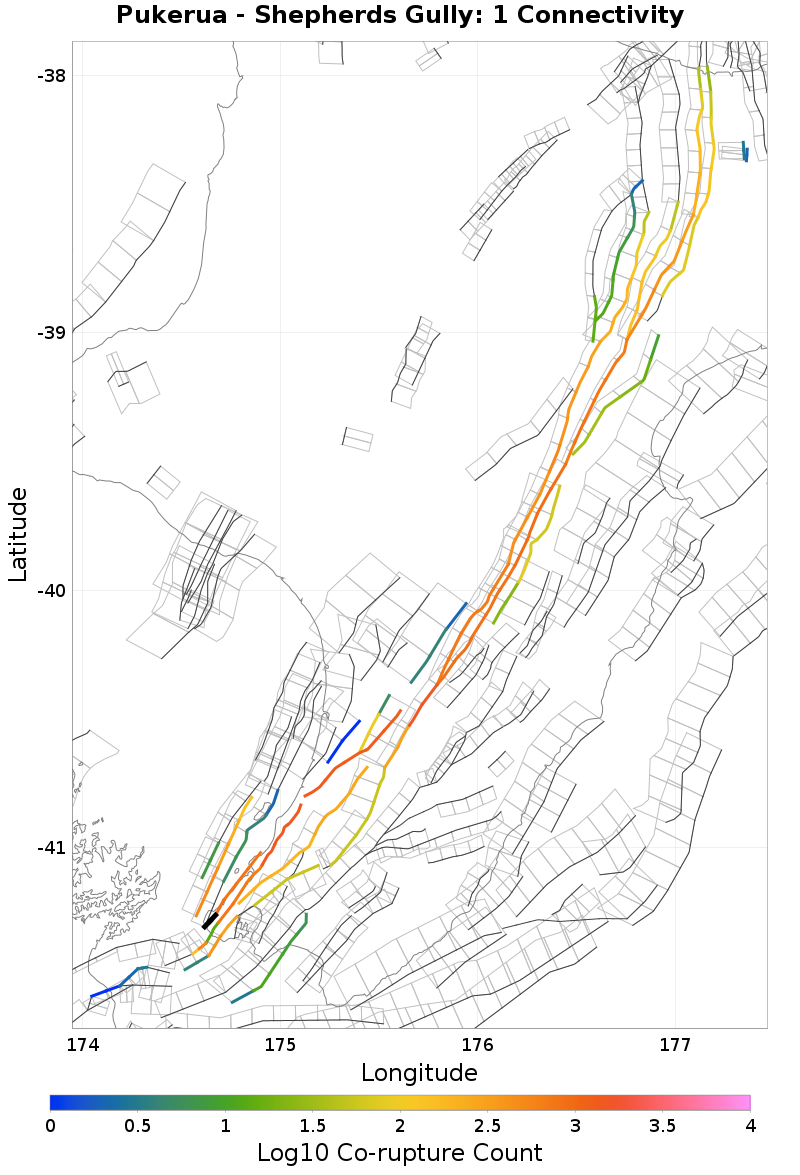

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Shepherds Gully - Mana, 0 km awayWellington Hutt Valley: 4, 9.04 km away
Pukerua - Shepherds Gully: 2, 0 km awayOhariu South 1, 9.15 km away
Ohariu, 2.91 km awayWhitemans Valley, 9.8 km away
Wellington Hutt Valley: 2, 3.93 km awayAotea - Evans Bay, 9.94 km away
Ohariu South 2, 4.02 km awayMoonshine, 11.23 km away
Okupe 1, 5.82 km awayWairau 3, 13.01 km away
Wellington Hutt Valley: 1, 6.03 km awayOtaheke South, 14.97 km away
Wellington Hutt Valley: 3, 7.12 km awayWharekauhau, 15.16 km away
Pukerua - Shepherds Gully: 3, 7.39 km awayFisherman 1, 17.2 km away

Shepherds Gully - Mana, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pukerua - Shepherds Gully: 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?true
Directly Connected?true
Co-rupture Count889
Co-rupture Rate1.3617848E-4

Ohariu, 2.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?true
Directly Connected?true
Co-rupture Count1,544
Co-rupture Rate1.8658064E-4

Wellington Hutt Valley: 2, 3.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?true
Directly Connected?false
Co-rupture Count408
Co-rupture Rate8.697222E-5

Ohariu South 2, 4.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?true
Directly Connected?true
Co-rupture Count549
Co-rupture Rate8.697222E-5

Okupe 1, 5.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?true
Directly Connected?true
Co-rupture Count495
Co-rupture Rate1.6156507E-4

Wellington Hutt Valley: 1, 6.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Wellington Hutt Valley: 3, 7.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?true
Directly Connected?false
Co-rupture Count301
Co-rupture Rate8.697222E-5

Pukerua - Shepherds Gully: 3, 7.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?true
Directly Connected?false
Co-rupture Count786
Co-rupture Rate1.3617848E-4

Wellington Hutt Valley: 4, 9.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?true
Directly Connected?false
Co-rupture Count53
Co-rupture Rate0.0

Ohariu South 1, 9.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whitemans Valley, 9.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Aotea - Evans Bay, 9.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Moonshine, 11.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?true
Directly Connected?false
Co-rupture Count213
Co-rupture Rate0.0

Wairau 3, 13.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaheke South, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Wharekauhau, 15.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate0.0

Fisherman 1, 17.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTMuMERrRUhR
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate6.195665E-5
