Omarama Saddle Details

PropertyValue
Rupture Count201
Ruptures Above Sect Min Mag200
Ruptures w/ Nonzero Rates14
Magnitude Range[6.82, 8.10]
Length Range[18, 255] km
Total Rate6.626983E-5 /yr
Multi-Fault Rate4.4800458E-5 /yr (67.60%)
Directly-Connected Faults3
All Co-Rupturing Faults22

Table Of Contents

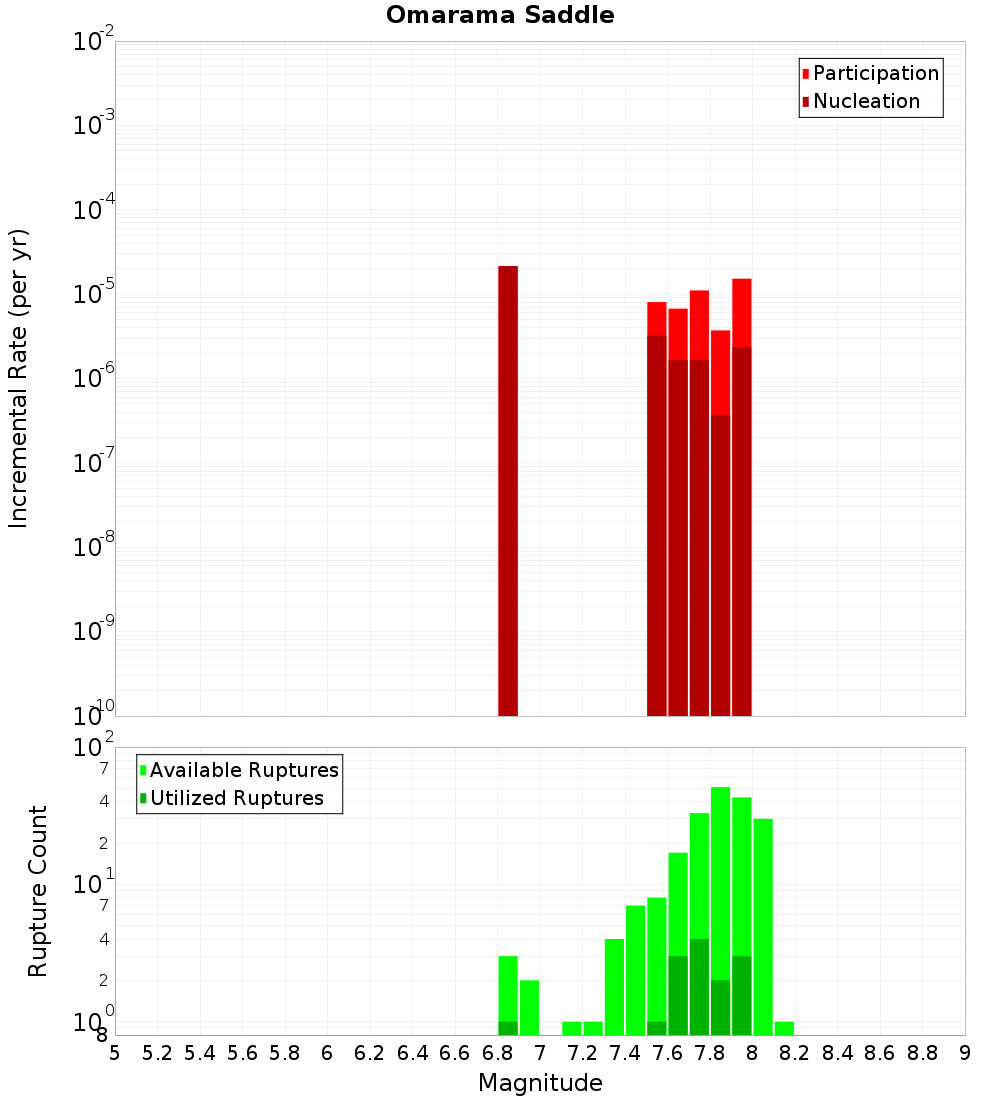

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

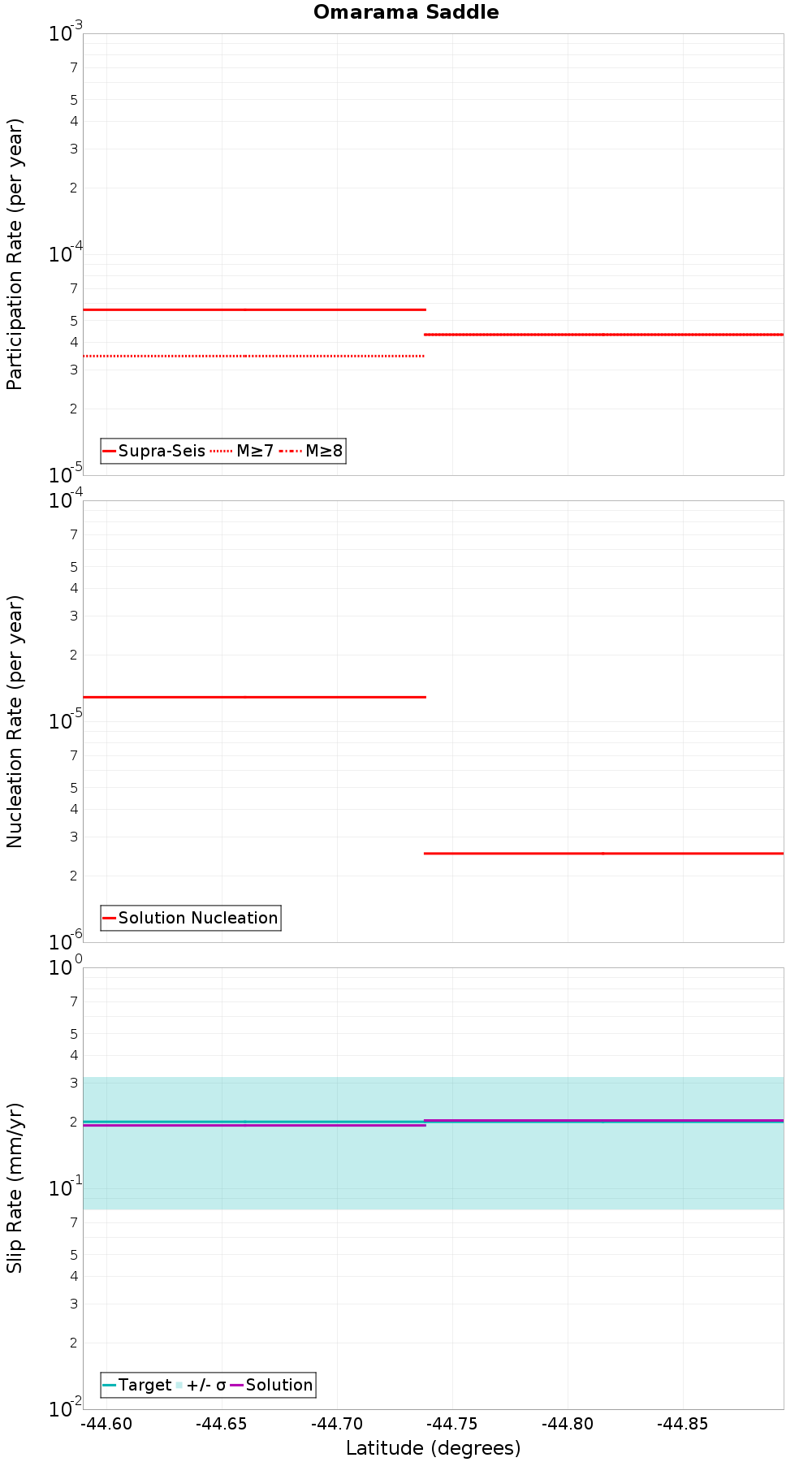

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Hawkdun, 0.14 km awayMt Sutton, 7.05 km away
Raggedy - Blackstone, 0.26 km awayOstler South, 7.55 km away
Fern Gully, 0.26 km awayDromedary, 13.1 km away
Blue Lake, 1.09 km awayCluden, 13.48 km away
Gibson, 1.5 km awayMiddle Range, 14.06 km away
Garibaldi, 3.15 km awayWaitangi, 15.52 km away
Dunstan, 5.06 km awayWaihemo, 16.92 km away
Gimmerburn, 6.74 km awayGoodger, 17.61 km away
Falstone, 6.83 km away

Hawkdun, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTguMEVSWDlu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raggedy - Blackstone, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTguMEVSWDlu
Connected?true
Directly Connected?true
Co-rupture Count19
Co-rupture Rate1.5431781E-6

Fern Gully, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTguMEVSWDlu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Blue Lake, 1.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTguMEVSWDlu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Gibson, 1.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTguMEVSWDlu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Garibaldi, 3.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTguMEVSWDlu
Connected?true
Directly Connected?true
Co-rupture Count85
Co-rupture Rate1.0219223E-5

Dunstan, 5.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTguMEVSWDlu
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate1.5431781E-6

Gimmerburn, 6.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTguMEVSWDlu
Connected?true
Directly Connected?true
Co-rupture Count188
Co-rupture Rate4.325728E-5

Falstone, 6.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTguMEVSWDlu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Sutton, 7.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTguMEVSWDlu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ostler South, 7.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTguMEVSWDlu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dromedary, 13.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTguMEVSWDlu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cluden, 13.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTguMEVSWDlu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Middle Range, 14.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTguMEVSWDlu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitangi, 15.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTguMEVSWDlu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waihemo, 16.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTguMEVSWDlu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Goodger, 17.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM2NTguMEVSWDlu
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
